4000W MAX Maxphotonics CW MFSC 6kw Fiber Laser Source Laser Generator Laser Oscillator Power Supply
4000W MAX Maxphotonics CW MFSC 6kw Fiber Laser Source Laser Generator Laser Oscillator Power Supply 1
4000W MAX Maxphotonics CW MFSC 6kw Fiber Laser Source Laser Generator Laser Oscillator Power Supply 2

4000W MAX Maxphotonics CW MFSC 6kw Fiber Laser Source Laser Generator Laser Oscillator Power Supply

0.00 / 5 (0 user)
SKU: SHP-7F007FB326D469A8
Brand: Unbranded
$43066.14 $100866.14
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Model Number
MFSC-1000W

Product Description  MAX MFSC-4000W MFSC 4000W-6000W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high las

Product Description
 MAX MFSC-4000W

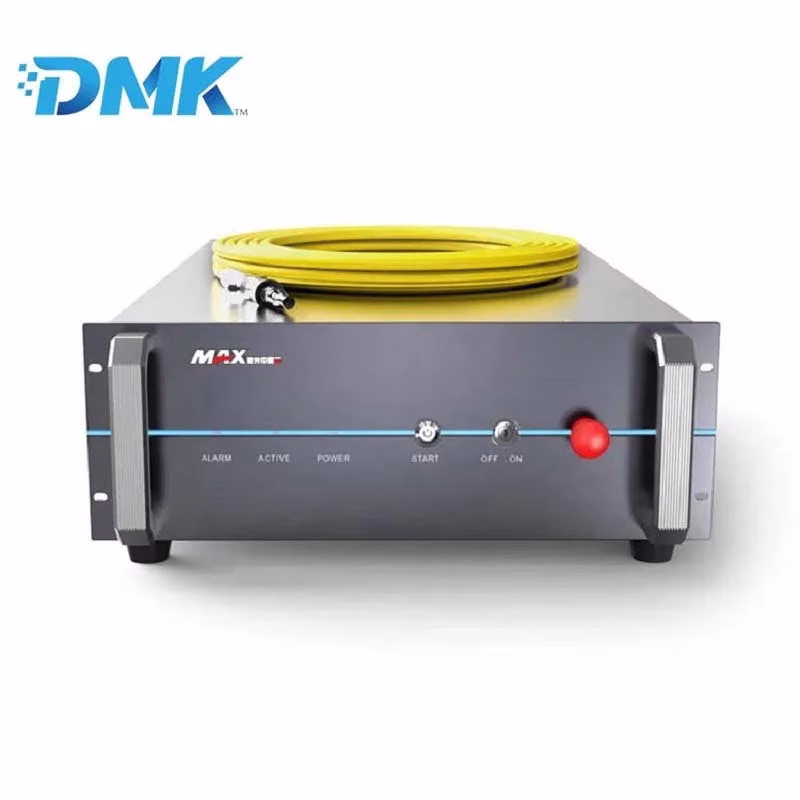

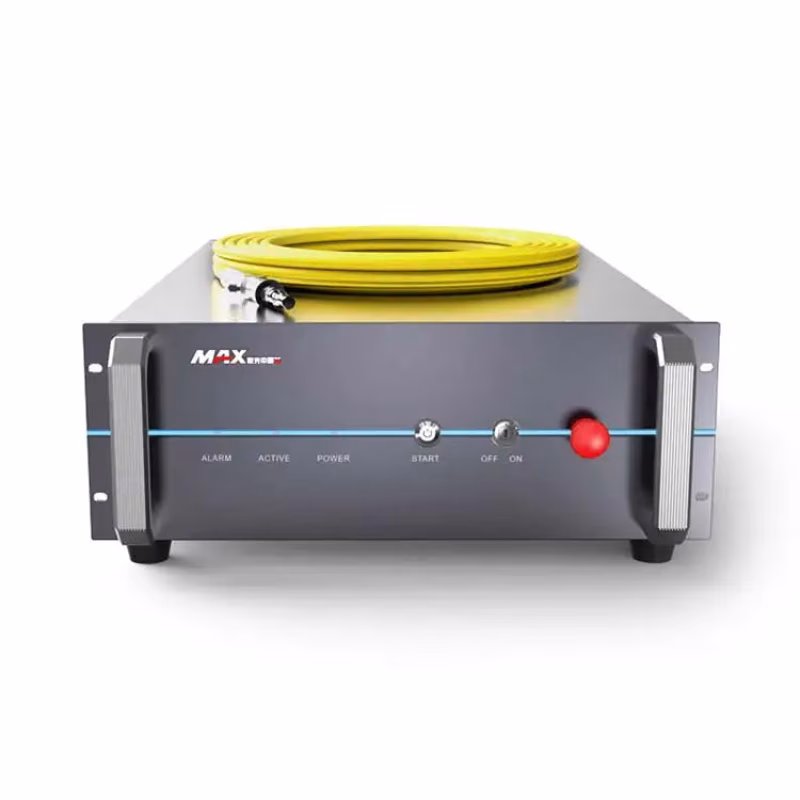

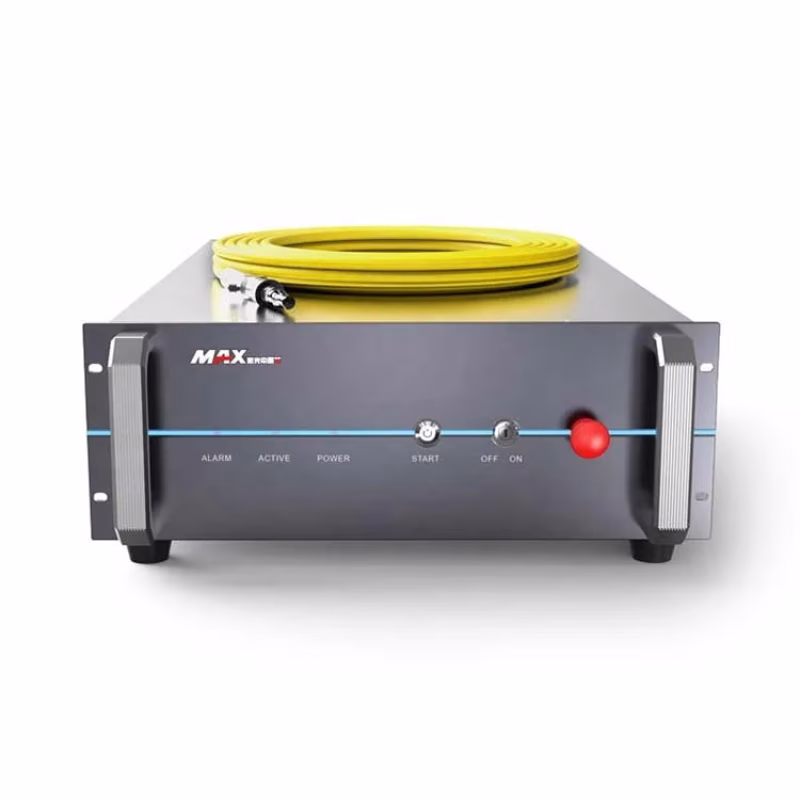

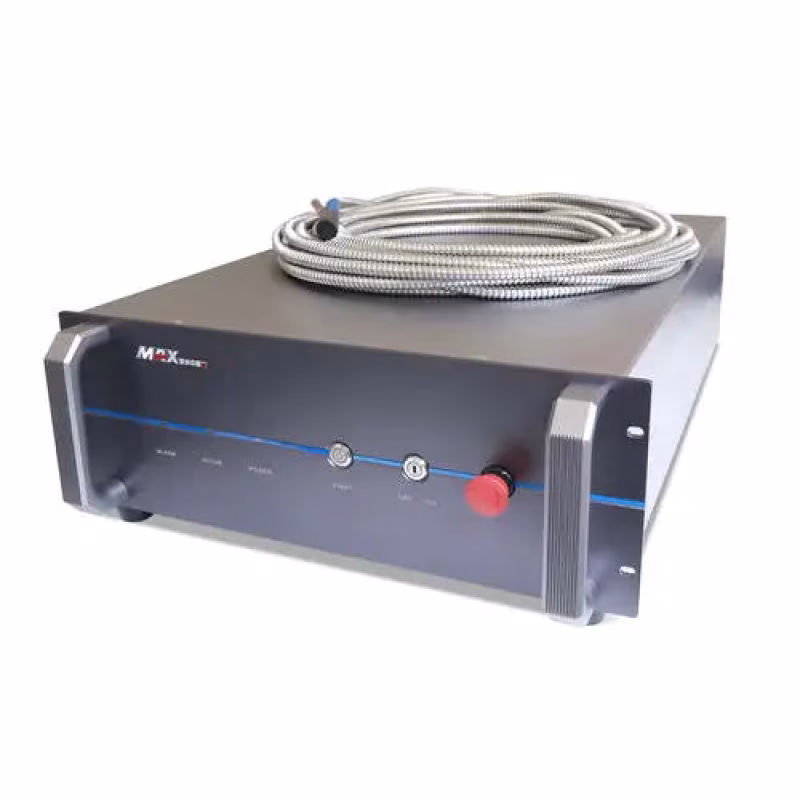

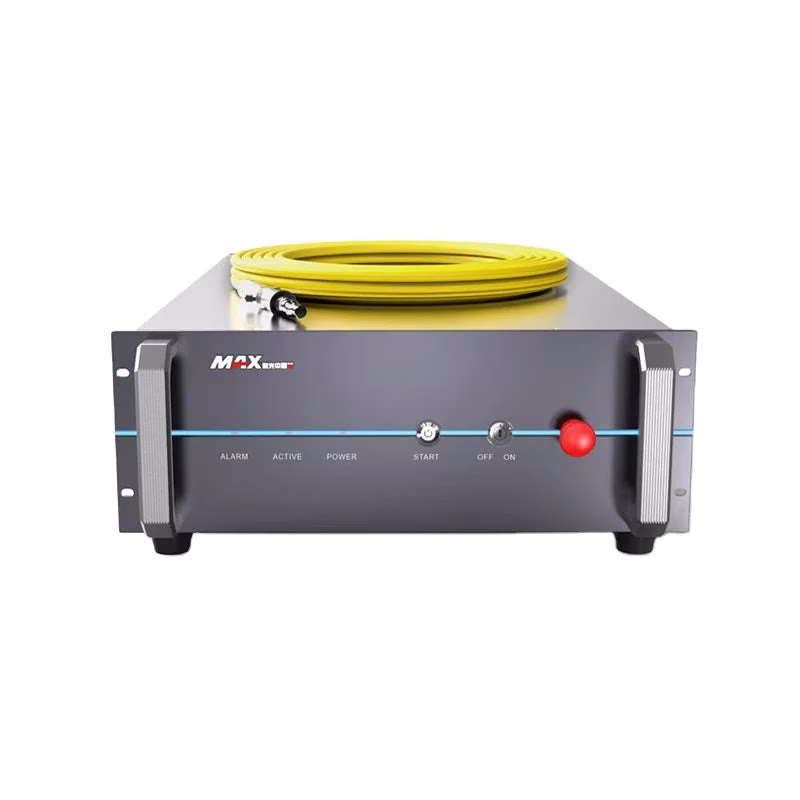

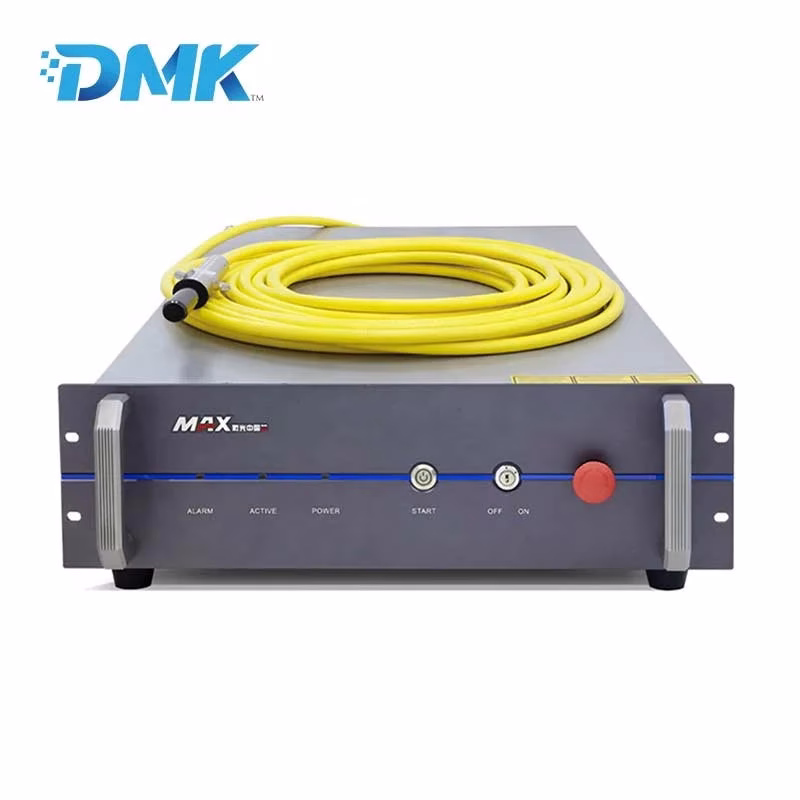

MFSC 4000W-6000W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.
Product Paramenters
 Model
MFSC-700W
MFSC-800W
MFSC-1000W
MFSC-1200W
MFSC-1300W
MFSC-1500W
 Optical Properties
 Output Power(W)
700
800
1000
1200
1300
1500
Operating Mode
Continuous/ Pulse
Power Adjust Range(%)
10-100
Wavelemgth (nm)
1080(±10)
Spectral Bandwidth (nm)
3-5
Laser Beam Quality(M2)
1.3 (20u-QBH)
2.8 (50u-QBH)
Laser on time(μs)
50-100
50-80
Laser off time(μs)
50-100
30-50
Modulation Power(KHz)
20
20-50
Indicating Red Light Power(μW)
150
Output Optical Cable Parameters
Output Mode
QBH(LOC)
Fiber Cable Length(m)
15
Fiber Core Diameter
(μm)
50( 30/100 optional)
Bending Radius(mm)
200
Electrical Parameters
Voltage(VAC)
220
Rated Power Consumption(KW)
2.5
2.8
3.5
4.8
5.2
6.0
Other Parameters
Working Temperature (oC)
10-40
Relative Humidity(%)
10-85
Cooling Method
Water Cooling
Storage  Temperature (oC)
-10—60
Size(mm)
800*482.6*193.2
Weight(KG)
50(±3)
88
Features
MAX MFSC 1000
* Modular design, stable performance
The internal structure adopts the photoelectric module separation design, and the operating performance is more stable.
*Easy maintenance, reduce downtime
Optical modules, electrical modules, control units, and drive units can be directly replaced, upgraded, and maintained at the client.
*Customized to meet various needs
Users can choose different size of fiber core diameters in accordance with the different process requirements to meet differentiated processing needs.
*Uniform spot energy distribution
Reduce welding spatter, thick plate cutting ability is more stable.
*Multiple applying scenarios
It can be used with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc.; Laser fine cutting, precision welding processing, used in 3C, hardware, medical, automotive, aviation and other fields.
Application
