4420 tapestry industry furniture triple transport upholstery tarpualin industrial sewing machines   Product Character   1. It adopts large-scale vertical rotary hook and sliding rod to take up the thread. 2. The lubricating system of plunger type oil pump

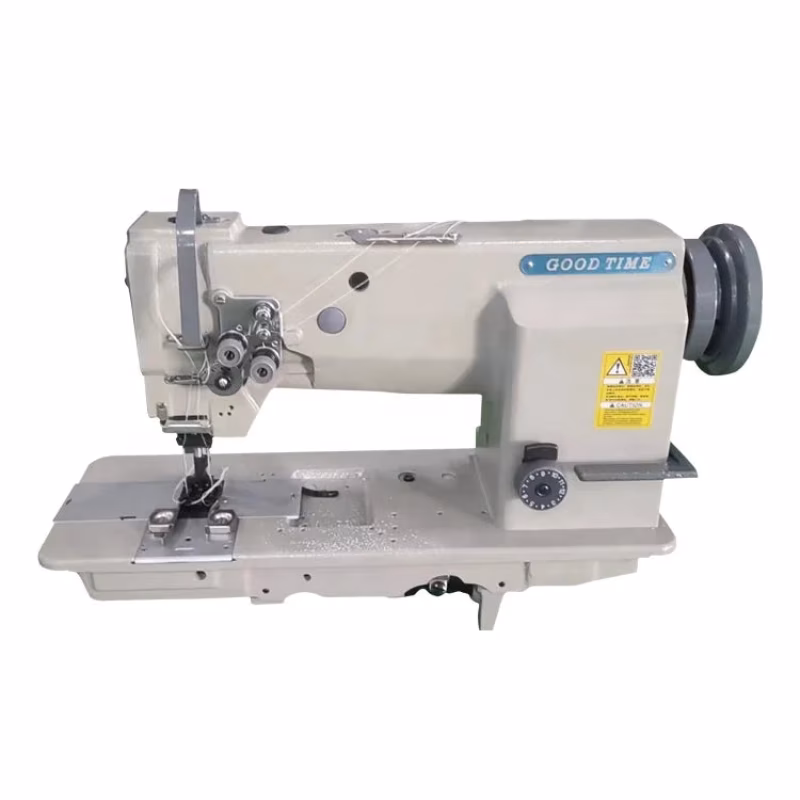

4420 tapestry industry furniture triple transport upholstery tarpualin industrial sewing machines

Product Character

1. It adopts large-scale vertical rotary hook and sliding rod to take up the thread.
2. The lubricating system of plunger type oil pump with synchronous toothed belt.
3. The transmission is light and smooth, with low noise and high durability.

Technical data

Condition
New
Brand Name
Good Time
Type
Industrial sewing machine
Model
GT-4420DU
Place of Origin
Guangzhou, China (Mainland)
Stitch Formation
Lock stitch
Mechanical Configuration
flat-bed
Max Sewing Speed
2000r.p.m
Height of Presser Foot
16mm
Stitch Length
0-9mm
Needle bar stroke
36mm
Power
900W Energy saving motor

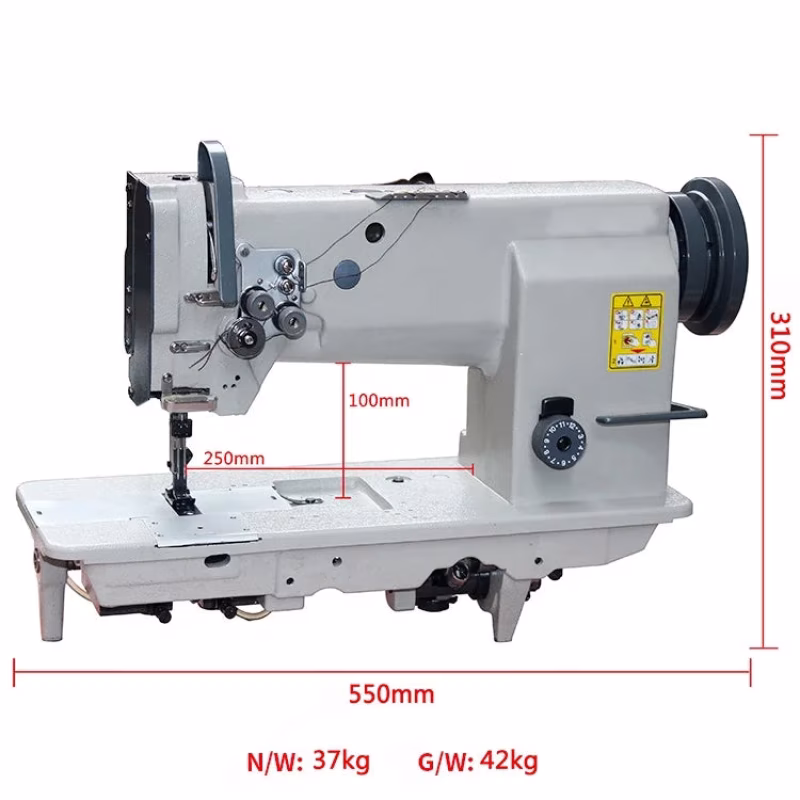

table working size
250mm(width) x 100mm(high)
Feed Mechanism
Compound feed
Color
White
Needle
DP x 17 single needle / double needle for optional
Gross Weight
50KG
Detail Image

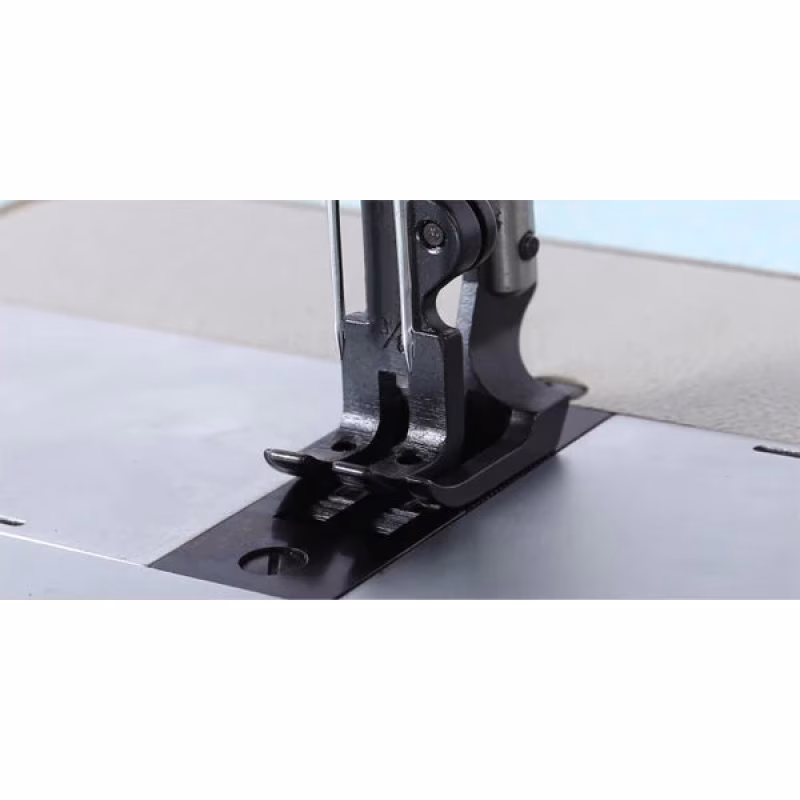

Replaceable presser foot function: the corresponding presser foot can be replaced for different sewing processes, which is convenient for sewing.


The needle position group has 3 / 16, 3 / 18, 1 / 2. The width can be up to 2 inches, and customers can choose freely.

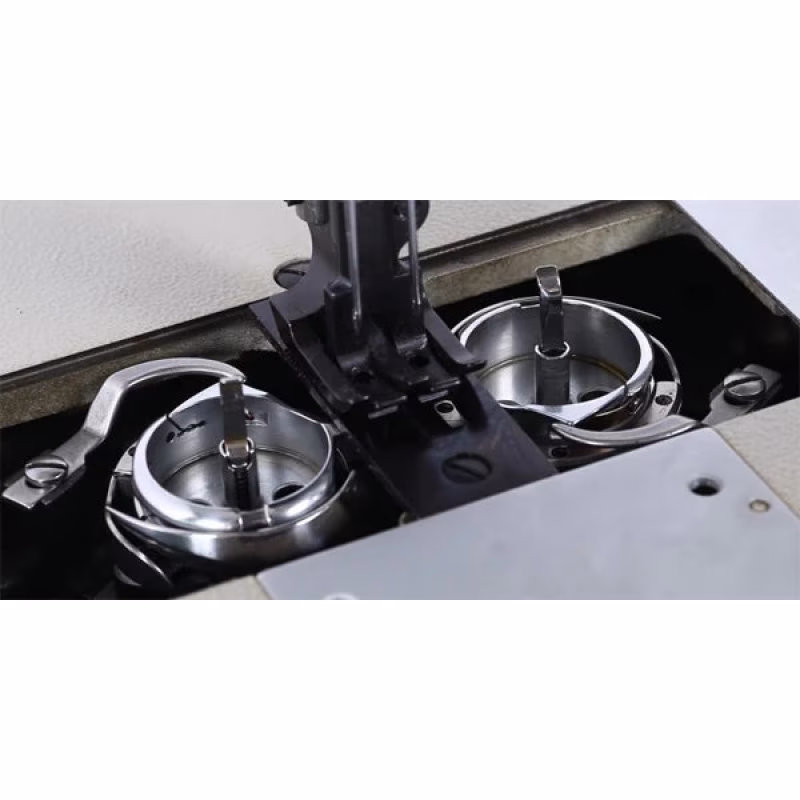

Vertical rotary hook: hook the thread ring at the tip of the hook, expand the thread ring at the same time, and guide the thread ring around the hook center to form a trivial thread trace.


Inverted needle assembly: this assembly has differential feeding adjustment function, which is not easy to misplace when sewing double-layer materials.





Vertical rotary hook: hook the thread ring at the tip of the hook, expand the thread ring at the same time, and guide the thread ring around the hook center to form a trivial thread trace.

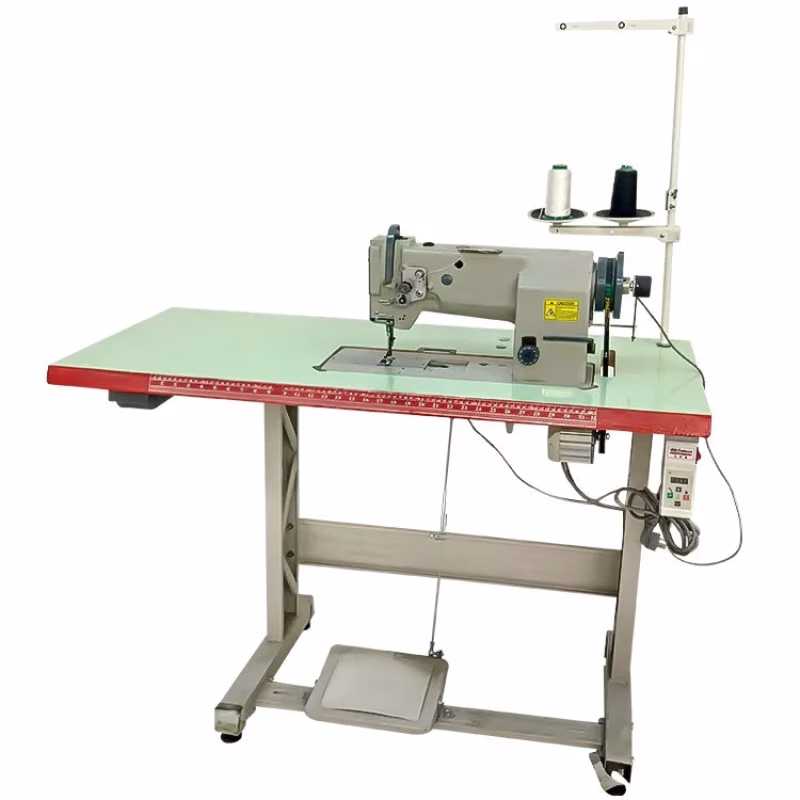

It can be matched with many kinds of the motor, 4P 400W clutch motor, 750W computer direct servo motor, 750W & 900W electronic servo motor for option.
Oil pump: the oil pump of this machine can draw the oil stored in the oil pan to all key parts of the machine head, so as to reduce friction.

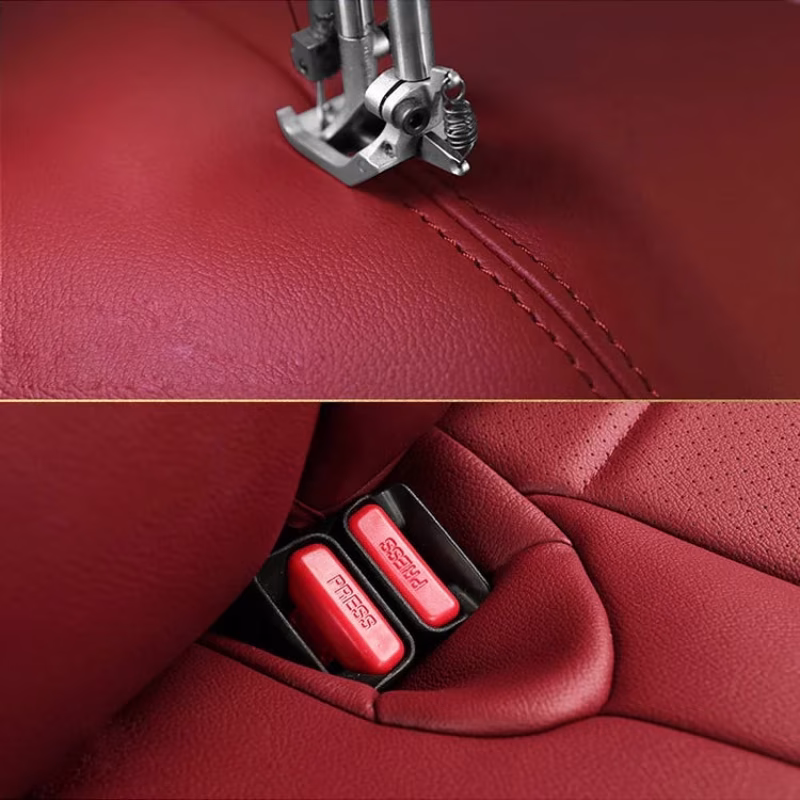

Stitching show pictures:


Application display
This machine is suitable for: luggage, sofa, tent, cushion, car interior, leather sewing.
