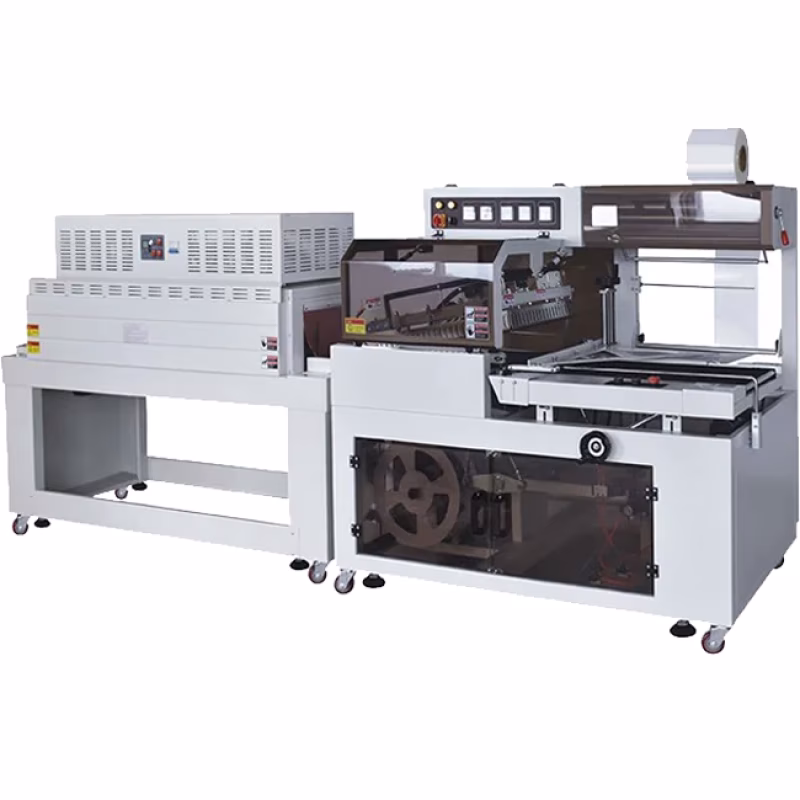

Automatic Shrink Wrapping Machine , Box L-sealer Wrap Machine, Carton Heat Shrink Wrap Packaging Machine Turkey Wrapping Product
Automatic Shrink Wrapping Machine , Box L-sealer Wrap Machine, Carton Heat Shrink Wrap Packaging Machine Turkey Wrapping Product 1
Automatic Shrink Wrapping Machine , Box L-sealer Wrap Machine, Carton Heat Shrink Wrap Packaging Machine Turkey Wrapping Product 2

Automatic Shrink Wrapping Machine , Box L-sealer Wrap Machine, Carton Heat Shrink Wrap Packaging Machine Turkey Wrapping Product

0.00 / 5 (0 user)
SKU: SHP-A5AEF0B140BCD1B6
Brand: Unbranded
$9812.50 $15066.00
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Model Number
FQA-450+BSE-4522
FQA-550+BSE-5530
HFQ-590
HFQ-720
Silicone stripe

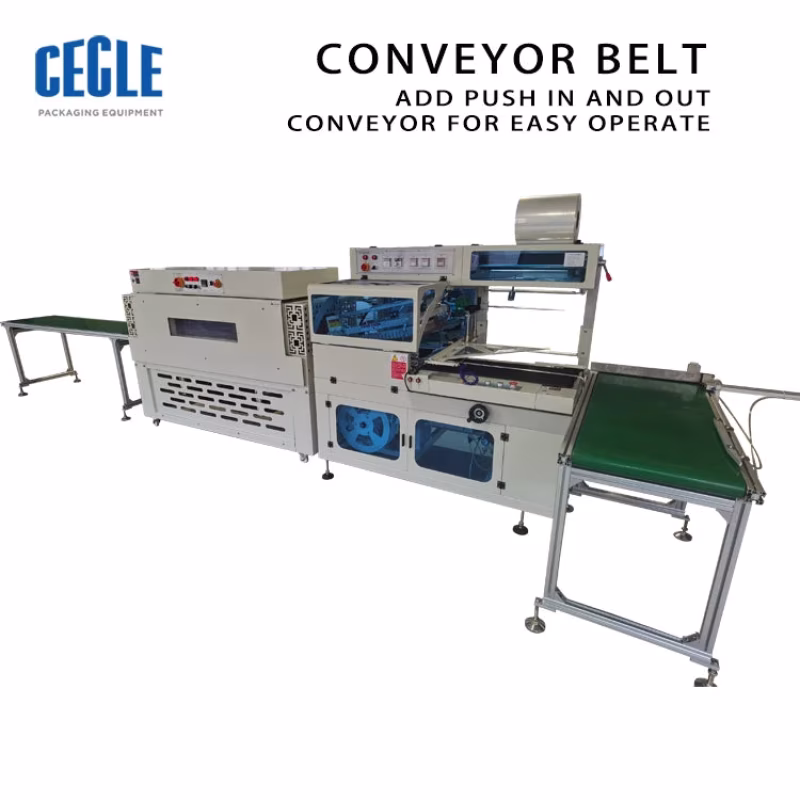

FQA-450+BSE-4522+conveyor belt
FQA-550+BSE-5530+conveyor belt
Power
1.5kw+12kw
Max Speed
15-30 times/min

Product Description BSD series small shrink tunnel: ● Small shrink tunnel for POF film ● Various specifications are available ● 110v, 220v or 380V optional Video:https://youtu.be/8sMwHv0vQcQ BSE series big shrink tunnel: ● Big shrink tunnel for PE film ●

Product Description
BSD series small shrink tunnel:
● Small shrink tunnel for POF film
● Various specifications are available
● 110v, 220v or 380V optional
Video:https://youtu.be/8sMwHv0vQcQ
BSE series big shrink tunnel:
● Big shrink tunnel for PE film
● Various specifications are available
● 110v, 220v or 380V optional
Video:https://youtu.be/O1mGuqgmUwc
FQA-450+BSE-4522:
● L-bar sealing
● Automatic operation
● 110v, 220v or 380V optional
Video:https://www.youtube.com/watch?v=OUhFCH-bqqc&t=32s
FQS-450+BSE-4522:
● Side sealing, the length the product is not limited
● Automatic operation
● 110v, 220v or 380V optional
Video:https://https://youtu.be/I0bFVQcmDsk

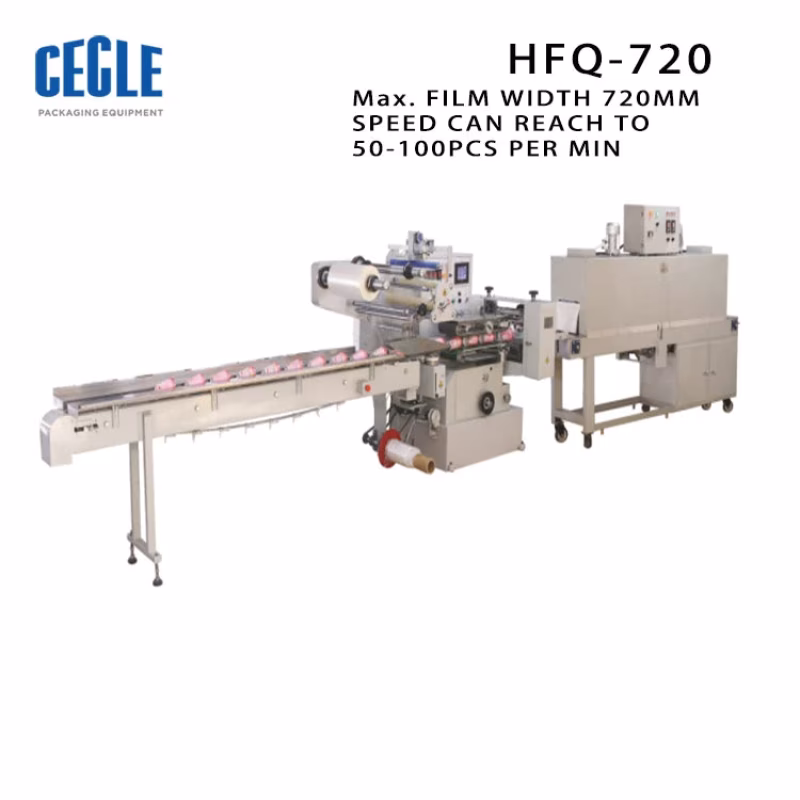

HFQ-590:
●Speed can reach to 50-100pcs per min
●Save 5-10% plastic films than the L-bar sealer and side sealer
●Small cutting sealing corners, more beautiful packaging
Video:
https://youtu.be/mp-_2d73eMM
BZJ-5038+BSE-5040A:
● Two open-end sealing
● Bottle and big item shrink wrapping
● 110v, 220v or 380V optional
Video:https://youtu.be/O1mGuqgmUwc
FQL-450+BSE-4525:
● L type sealing
● Semi automatic operation
● 110v, 220v or 380V optional
Vido:https://youtu.be/8sMwHv0vQcQ
FM-5540:
● 2 in 1 shrink wrapping
● Manual operation
● 110v, 220v or 380V optional
Vido:https://http://youtu.be/Tz2nFqJi-ho
Roll film:
● Roll film for shrink wrapping used.
● Various specifications are available
Features:
This machine has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, only need to manually adjust the film guiding system and manually adjust the feeding conveying platform for products of different widths and heights. The automatic sealing and shrinking packaging machine is also suitable for multi-piece wrapping and tray packaging, and can also be used with the automatic packaging line, which is the first choice for sealing and shrinking packaging.
Application:
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Parameters:

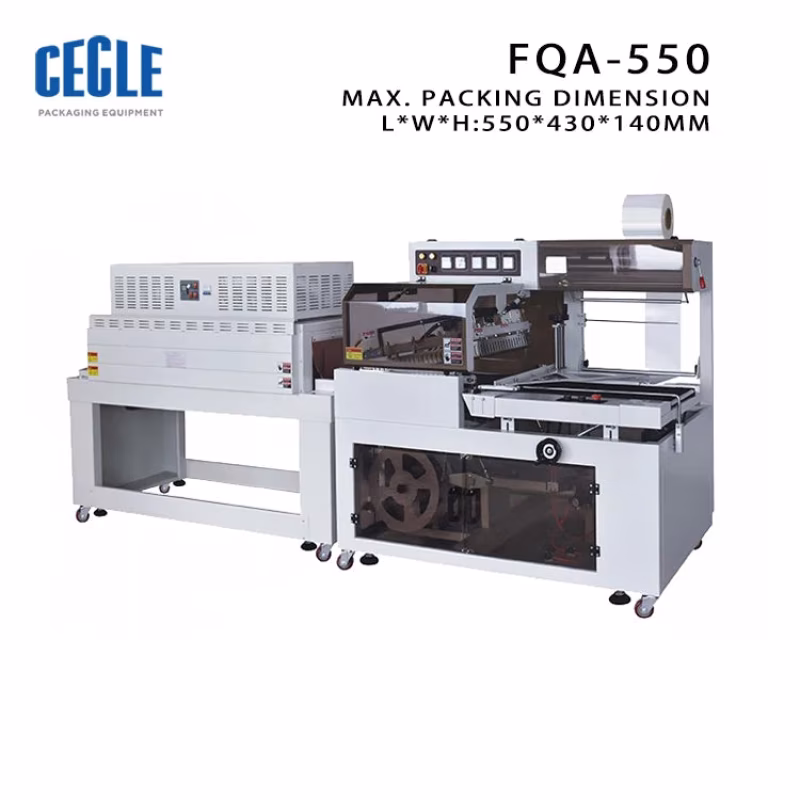

Model:
FQA-450
FQA-550
Packaging Speed:
15-30times/min
15-30times/min
Conveying Weight:
10kg
10kg
Film Width:
500mm
600mm
Max. Packing Size(L*W*H):
450>L>100mm W<330mm  H≤140mm        W+H<400mm        L+H<500mm
550>L>100mm W<430mm H≤140mm W+H<500mm         L+H<600mm
Packaging dimension:
1750*900*1450mm
2020*1100*1600mm
Voltage:
110/220V single-phase 50-60hz
110/220V single-phase 50-60hz
Model:
BSE-4522
BSE-5530
Conveying Speed:
1-15m/min
1-15m/min
Conveying Weight:
20kg
20kg
Heating Power:
12kw
13kw
Shrink Tunnel Size(L*W*H):
1300*450*220mm
1300*550*300mm
Packaging dimension:
1800*810*1450mm
1800*900*1580mm
Voltage:
220/380V 3-phase 50-60hz
220/380V 3-phase 50-60hz
Detailed Images
