CE CERTIFICATED HIGH PRECISION INDUSTRIAL DIGITAL OUTDOOR RAIN AND SNOW SENSOR
CE CERTIFICATED HIGH PRECISION INDUSTRIAL DIGITAL OUTDOOR RAIN AND SNOW SENSOR 1
CE CERTIFICATED HIGH PRECISION INDUSTRIAL DIGITAL OUTDOOR RAIN AND SNOW SENSOR 2

CE CERTIFICATED HIGH PRECISION INDUSTRIAL DIGITAL OUTDOOR RAIN AND SNOW SENSOR

0.00 / 5 (0 user)
SKU: SHP-7EF00AA82970680E
Brand: Unbranded
$83.40 $152.10
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
Service Prepared Booking Prepared

Product Description Measurement parameters Parameters name Rain and snow detect sensor Technical parameter Power supply 12~24VDC Output RS485, MODBUS communication protocol 0~2V,0~5V,0~10V; 4~20mA Relay output Power supply 12~24VDC Load capacity AC 220V 1

Product Description
Measurement parameters
Parameters name
Rain and snow detect sensor
Technical parameter
Power supply
12~24VDC
Output
RS485, MODBUS communication protocol
0~2V,0~5V,0~10V; 4~20mA
Relay output
Power supply
12~24VDC
Load capacity
AC 220V 1A; DC 24V 2A
Working environment
Temperature -30 ~ 70 ℃, working humidity: 0-100%
Storage conditions
-40 ~ 60 ℃
Standard cable length
2-meter 3-wire system (analog signal); 2-meter 4-wire system (relay switch, RS485)
The farthest lead length
RS485 1000 meters
Protection level
IP68
Wireless transmission
Wireless transmission
LORA / LORAWAN(868MHZ,915MHZ,434MHZ), GPRS, 4G,WIFI
Mounting Accessories
Stand pole
1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
Equiment case
Stainless steel waterproof
Ground cage
Can supply the matched ground cage to burried in the ground
Cross arm for the install
Optional(Used in thunderstorm places)
LED display screen
Optional
7 inch touch screen
Optional
Surveillance cameras
Optional
Solar power system
Solar panels
Power can be customized
Solar Controller
Can provide matched controller
Mounting brackets
Can provide the matched bracket
Detailed Images
Strong anti-interference ability
Easy installation and accurate detection Long service life and strong anti-interference ability

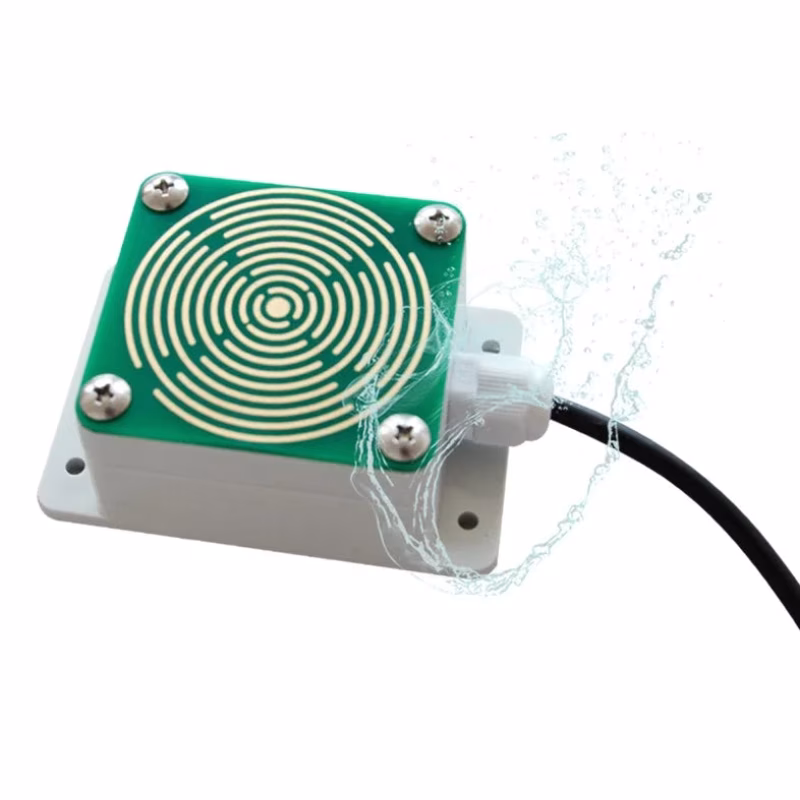

Outlet waterproof design
Reasonable structure design Strong sealing Long transmission distance

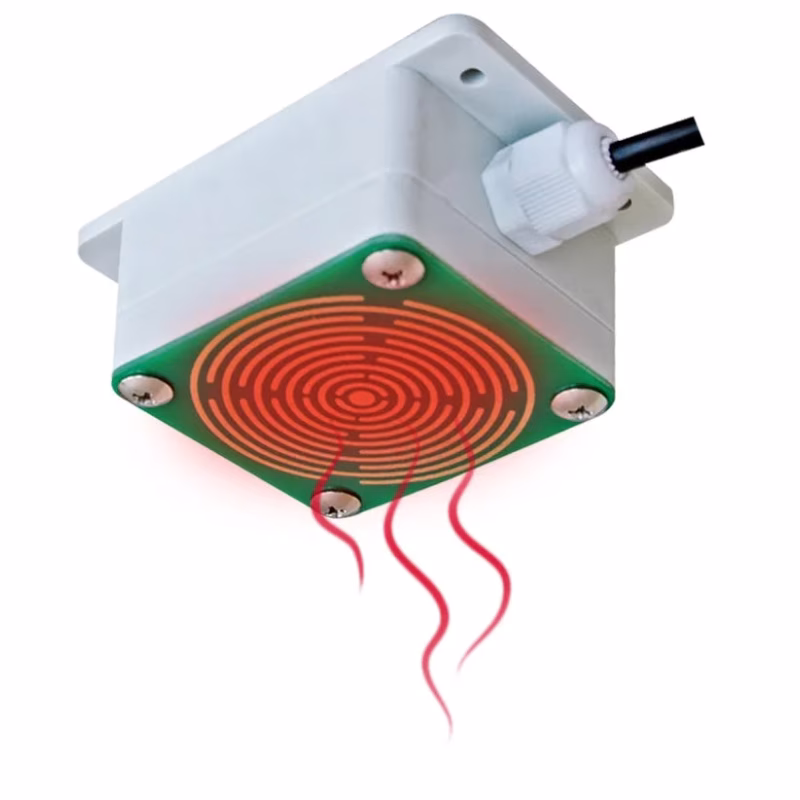

Automatic heating function
In the snow, the temperature is below 0 degrees Celsius for a long time and high humidity can prevent freezing and condensation
Product Install
Installation requirements
During installation, the sensor sensing surface should be kept at an angle of 15 degrees with the horizontal plane to prevent the accumulation of rain and snow from affecting the sensor measurement
