Product Overview
Pvc pillowwater tank
A water sac is a special pressure vessel.The water bag is simple and light, can store residual gas, and can be moved.The product adopts thickened composite cloth, double-sided coating, and contains high density and high strength network cable.
Name
Pvc  pillow water tank
Brand Name
Baoyuan
Material:
Pvc/tpu
Size
Consult customer service for specific size
Weight
Need to customize
Color
Blue,green,white,red,yellow,gray,orange, black,camouflage,other colors
Usage
Water storage
Custom service
Support for custom
category
introduce
advantage
Other manufacturers
Welding machine temperature
600℃
Ensure that the sandwich mesh fabric adhesive layer is completely melted, the temperature is too high the adhesive layer is
inactive, the temperature is too low the adhesive layer is not melted;
can't control the temperature accurately
Welding machine pressure
8kg
Under strong pressure, the adhesive layer is fused more closely.
3kg
Welding way
Continuous welding
Guarantee no leakage point of weld joint;
Phase welding
weld width
＞30mm
Make the welding joint strength is higher, difficult to peel;
25mm
Strength after welding
200N/cm
It is 200% higher than other manufacturers
100N/mm
Open mode
 mold opening
More standard, avoid human error
Artificial scissors opening
Double layer welding size at opening
＞100mm
After the opening, the strength of the opening position is reduced, and the opening position is strengthened by double-layer
welding
nothing
Chassis fastening
Robot arm fastening
Standard torque, no leakage
Feel by experience
The state of being full of water The state of drained water after folding
Stainless steel valve

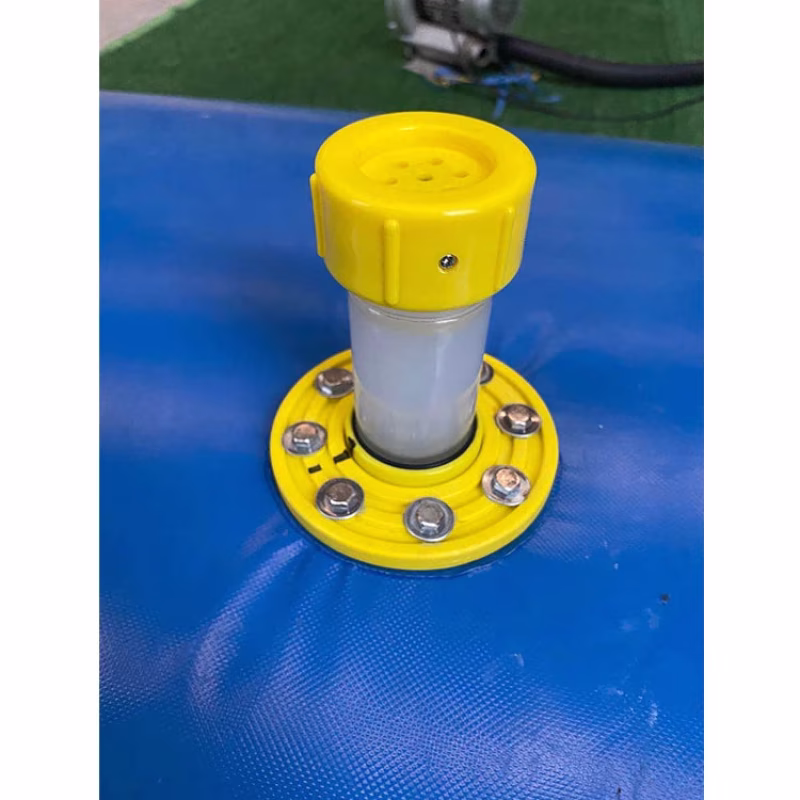

Rotate to close the intake
exhaust valve
Product advantage
A good product is made by good materials and good technology
1、Product material advantages
Sturdy, durable
Made of three layers of PVC clamping net design, wear-resistant and scratch-resistant, longer use
thick material
0.7mm-1.6mm, can be customized thickening materials
PVC waterproof material
In the action of water and by water after the performance is basically unchanged
Is impermeable to water pressure.
Heat resistant 90 ℃.Cold resistance -40℃, strong acid, alkali resistance
Compressive strength
Display of process details
Hot melt reinforcement
The water design
Add water outlet, water outlet is more convenient
Quality inspection show.
1. The blower will flush the gas into the water sac to 0.2MPa, and the barometer will keep the parameters unchanged. After standing for 12h, the barometer will be qualified if the parameters do not change;
2. After filling with water, place a weight on the plane of the water sac for gravity test;No overall leakage is qualified;
Successful projects
Project in jining
Outdoor perennial use of fadeless does not age，Can be applied to agricultural water storage, agricultural drought resistance
Project in taiyuan
Even in the sharp rough ground will not scratch the product，It has the advantages of compression resistance and wear resistance
Project in linyi
It has the advantages of foldable, soft, mobile, large capacity, customizable, portable, weatherproof and other products, which
are widely used in liquid transportation and liquid storage
Our Advantages
Quality problems to provide return, replacement, repair and other services
Provide maintenance materials free of charge for life
24-hour customer service is always on call
Installation services
1. All of our products can provide installation video or video technical guidance, and these services are free of charge;
2. If you want our technicians to come to your place, we should charge you a certain fee.
After sales problem
1. After you receive the goods or use the goods, if you find quality problems, please contact us, I will provide you with
replacement, repair or return services;
2. In case of man-made damage or accident, we will provide repair materials for free, but you have to pay the express fee.
3. We promise to guarantee the quality for two years after you receive the goods. If there are welding cracks and other situations
within two years, we will provide you with replacement, repair or return services;
