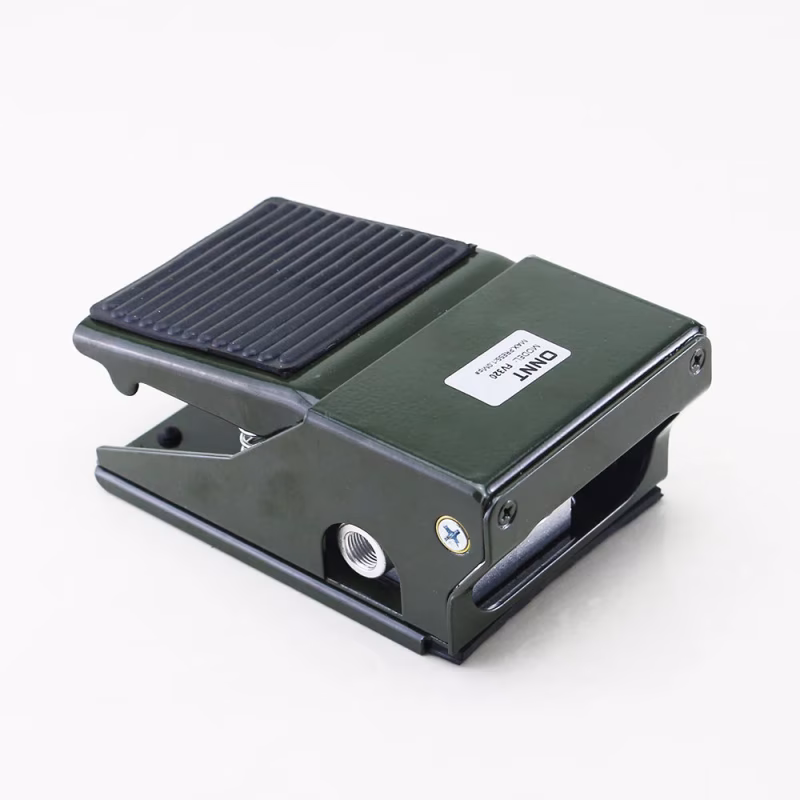

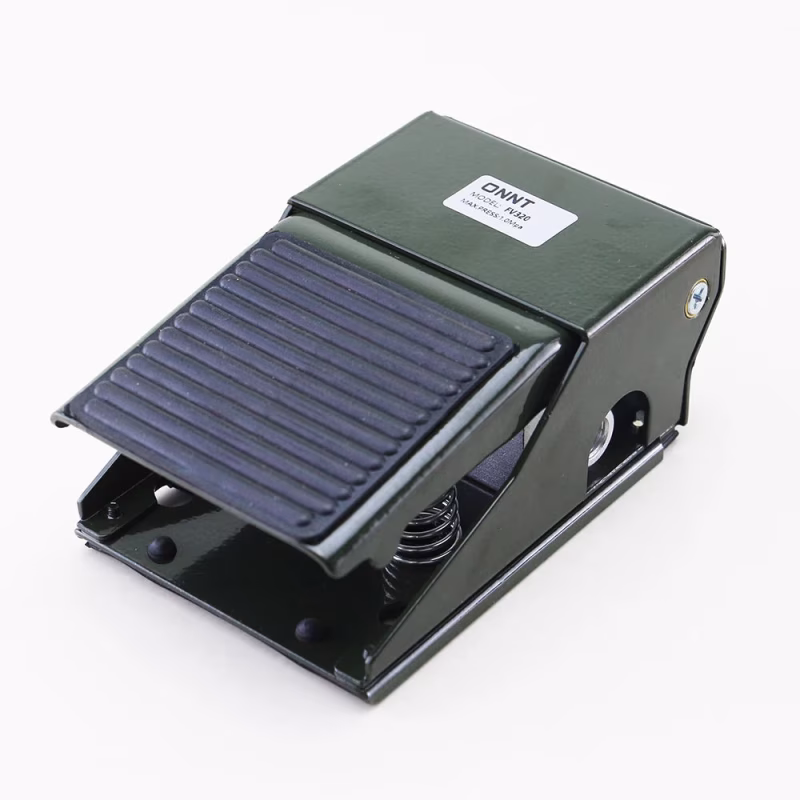

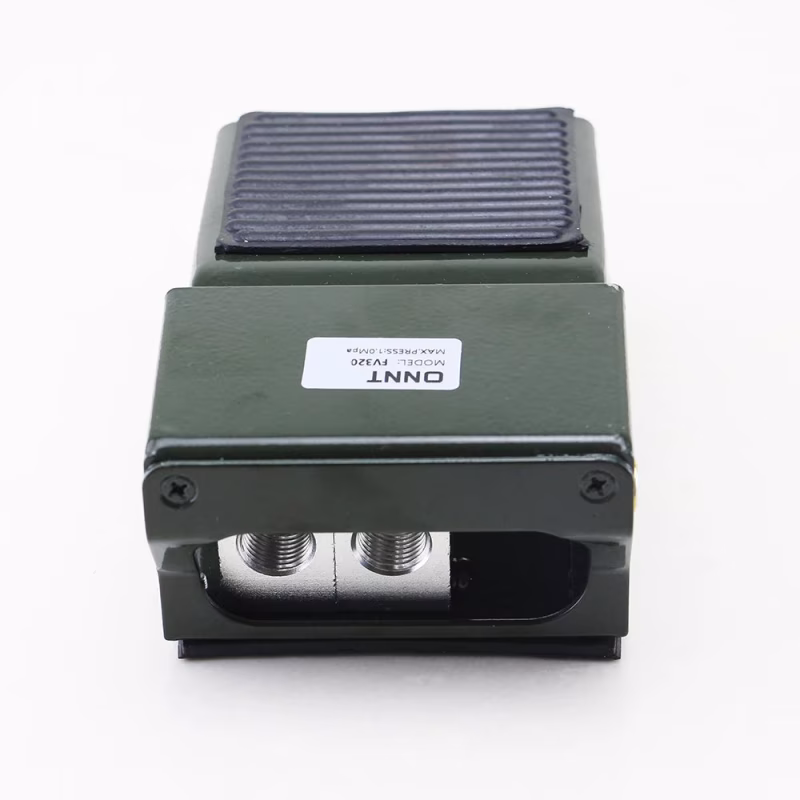

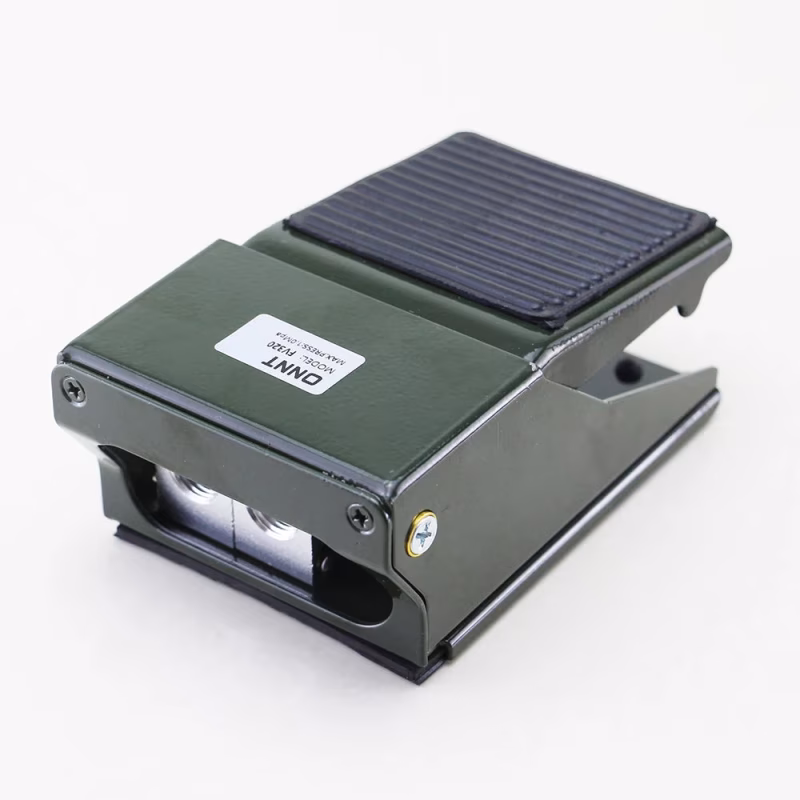

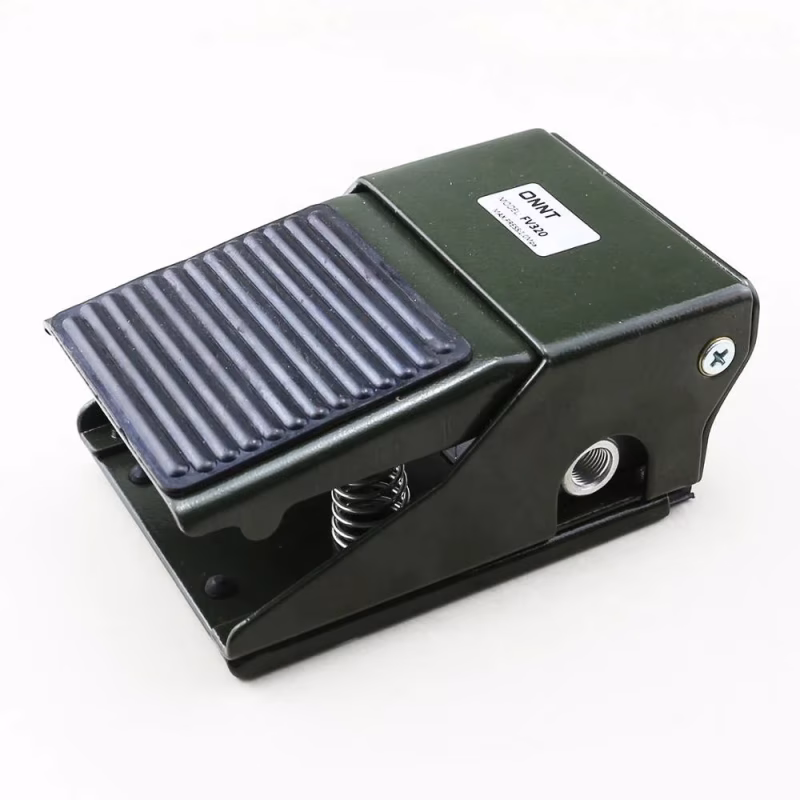

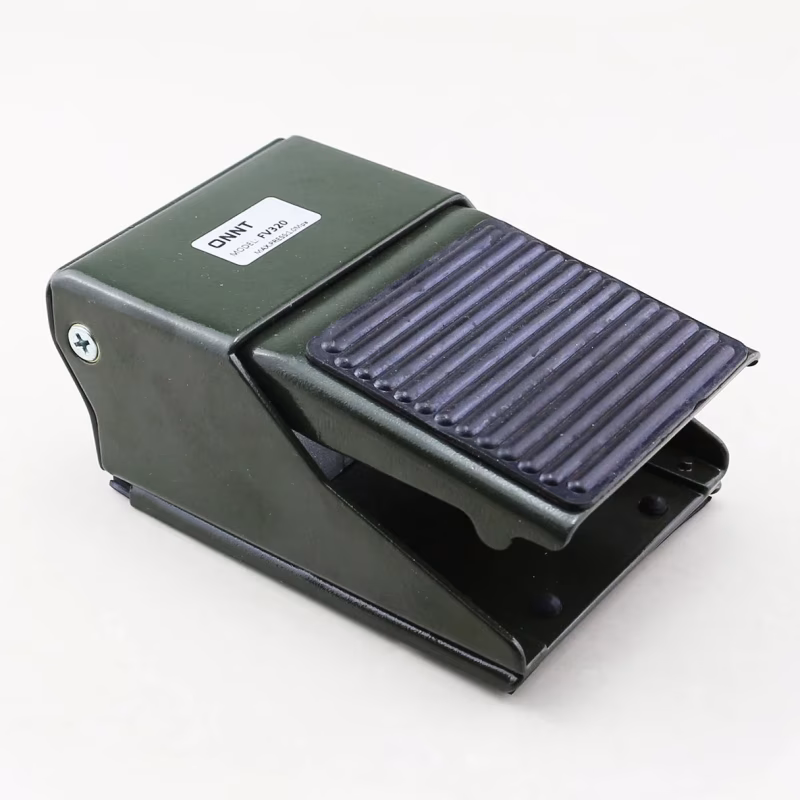

Controls Pneumatic Foot Pedal Valve 2/3 Way 1/4 Inch Aluminum FV320 Air Foot Valve
Controls Pneumatic Foot Pedal Valve 2/3 Way 1/4 Inch Aluminum FV320 Air Foot Valve 1

Controls Pneumatic Foot Pedal Valve 2/3 Way 1/4 Inch Aluminum FV320 Air Foot Valve

0.00 / 5 (0 user)
SKU: SHP-1C4BCCD7A00FC70D-1
Brand: Unbranded
Category: Varied
$34.96 $61.10
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Size
FV320 (G1/4)
Material
aluminum alloy
Pressure
Low Pressure

Controls Pneumatic Foot Pedal Valve 2/3 Way 1/4 Inch Aluminum FV320 Air Foot Valve  Product Description Ordering Code                        FV                -            320                                                       Series

Controls Pneumatic Foot Pedal Valve 2/3 Way 1/4 Inch Aluminum FV320 Air Foot Valve
Product Description
Ordering Code
                       FV                -            320
                                       Series                                                       Type
                                                 FV                                                          320: 3/2 Way
                                                                                                               420: 4/2 Way
Specifications
Model
 FV320
FV420
Fluid
Air( to be filtered bu 40 µ m filter element)
Acting
Acting type controlled by foot
Port size
1/4''
Pressure range
0~1.0MPa(0~145psi)
Proof pressure
1.5MPa(215psi)
Temperature °C
-20~70℃
Material of body
Aluminum Alloy
Lubrication
Not required
