Cutting Splitting Machine Hydraulic Stone Marble and Granite Wholesale Stone OEM Power Building Technical Sales
Cutting Splitting Machine Hydraulic Stone Marble and Granite Wholesale Stone OEM Power Building Technical Sales 1

Cutting Splitting Machine Hydraulic Stone Marble and Granite Wholesale Stone OEM Power Building Technical Sales

0.00 / 5 (0 user)
SKU: SHP-BEAFD5A87354AD2C
Brand: Unbranded
Category: Varied
$6700.00 $14820.00
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared

Machine Details Details image 4.5KW water cooling spindle When cutting stone, automatically spray water to cool down and remove debris DSP control system through DSP handle to operation,easy and simple to operate. HIWIN guide rail the best guild for the m

Machine Details
Details image
4.5KW water cooling spindle
When cutting stone, automatically spray water to cool down and remove debris
DSP control system
through DSP handle to operation,easy and simple to operate.
HIWIN guide rail
the best guild for the machine, could keep high precision for long term. And our machine have dust cover to protect guide rail.
T-slot and stainless steel water tank
We use stainless steel material, even if it is used for a long time, it will not rust
Stepper motor
High precision step motor,could keep high precision and provide more fast speed
Manual lubrication system
Lubricate the guide rail to protect the precision of the guide rail

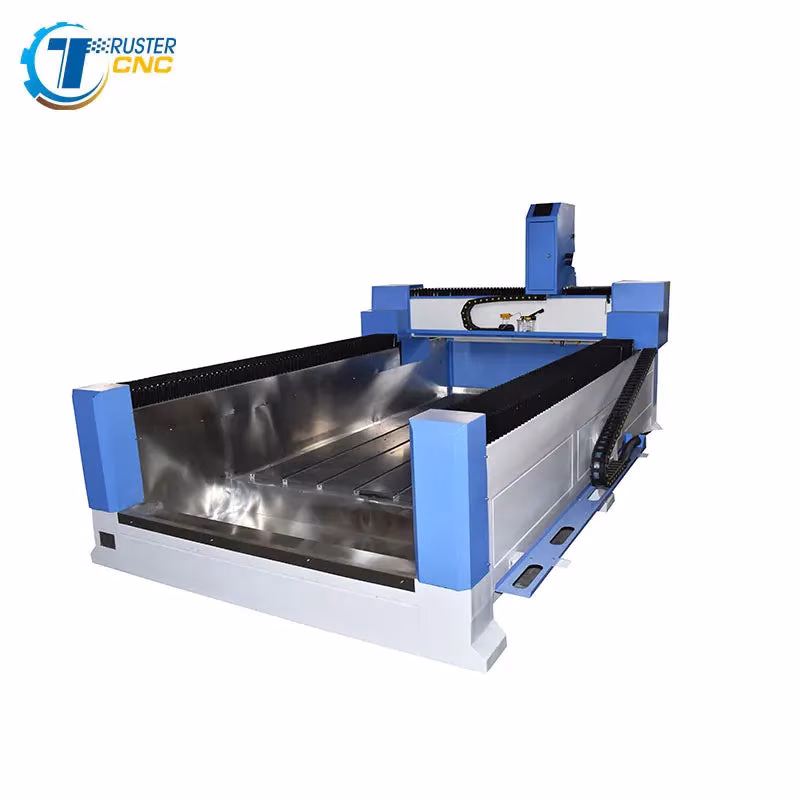

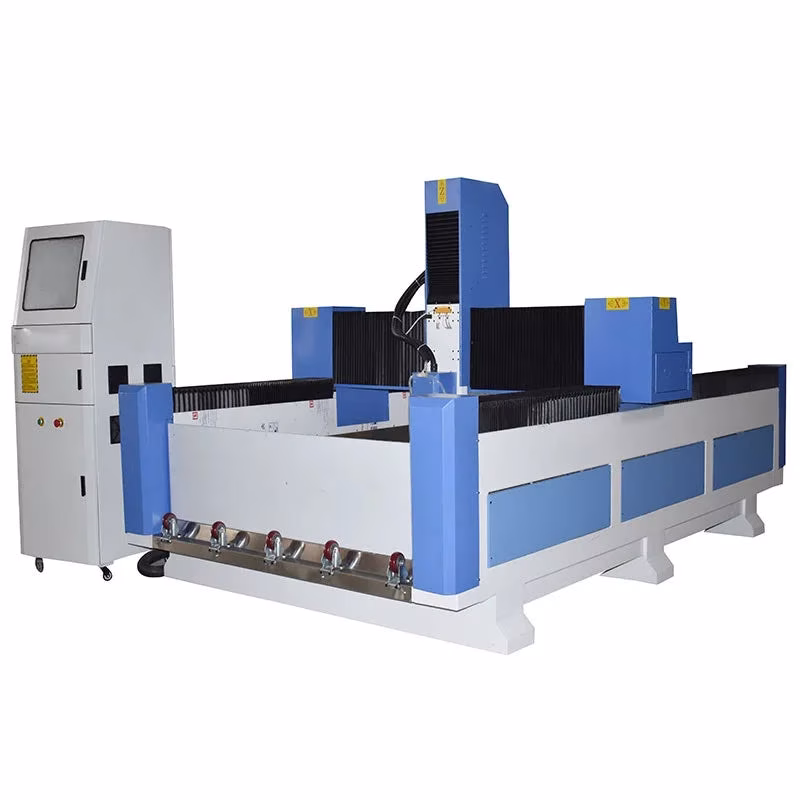

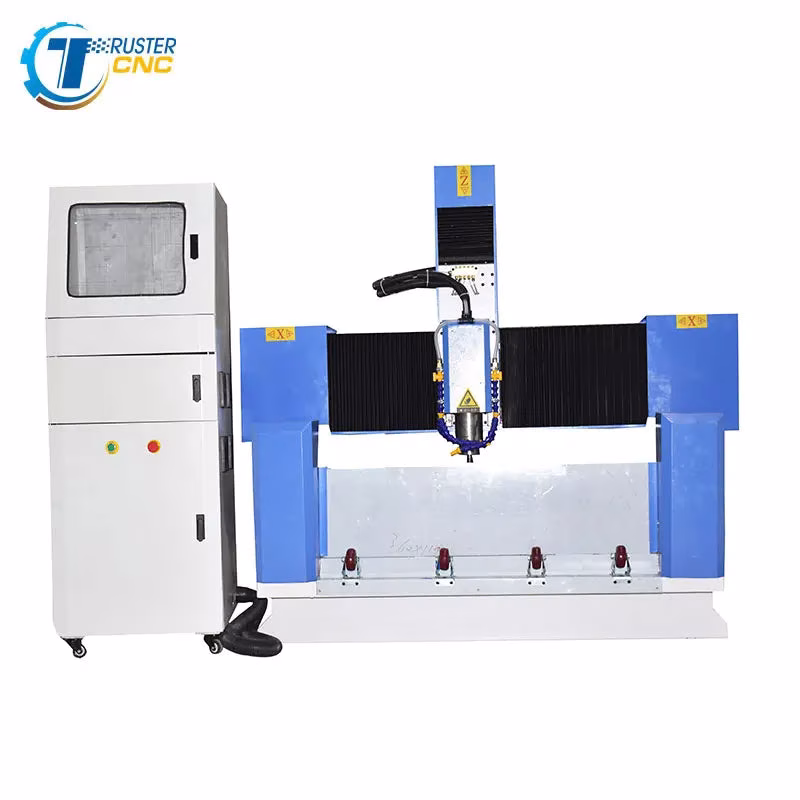

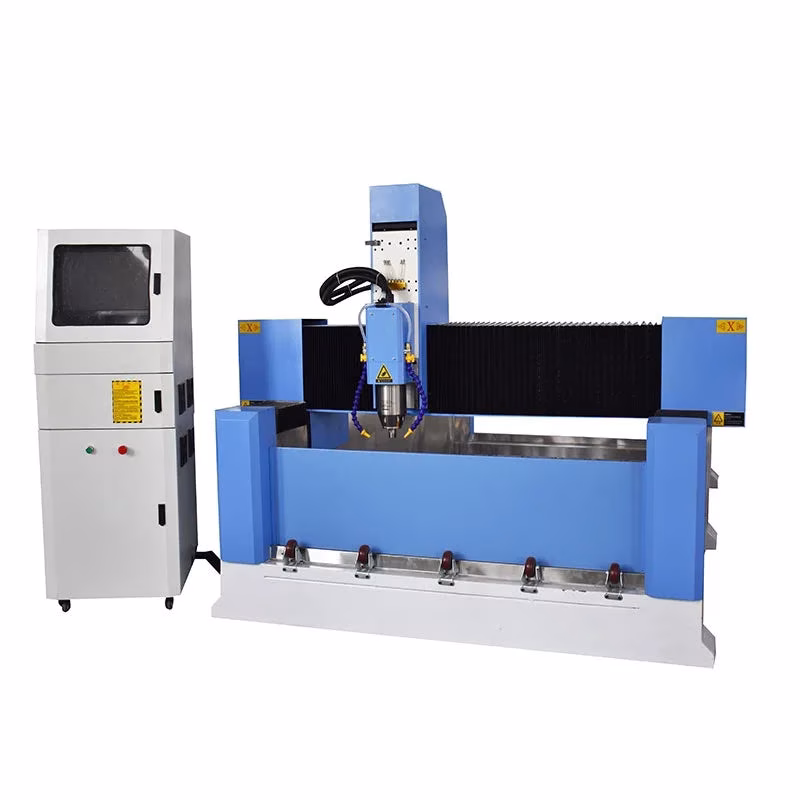

Model
1325/1530 Stone cnc router
X, Y, Z Axis working area
1300*2500mm/1500*3000mm
Control system
DSP A18 control system
Machine frame
Stone Cnc Cutting Machine
X Y transmission
Rack Gear
Z Transmission
Ball Screws
X Y Z guide rail
TAIWAN HINWIN Square rail
Spindle power
4.5kw water cooling spindle
Max Spindle speed
24000r/min
Max traveling speed
25m/s
Processing Accuracy
±0.025mm
Reposition Accuracy
Less than 0.025mm
Driving system
Stepper motor or Servo motor
Command language
HPGL, G code
Working voltage
380V
Sample show
