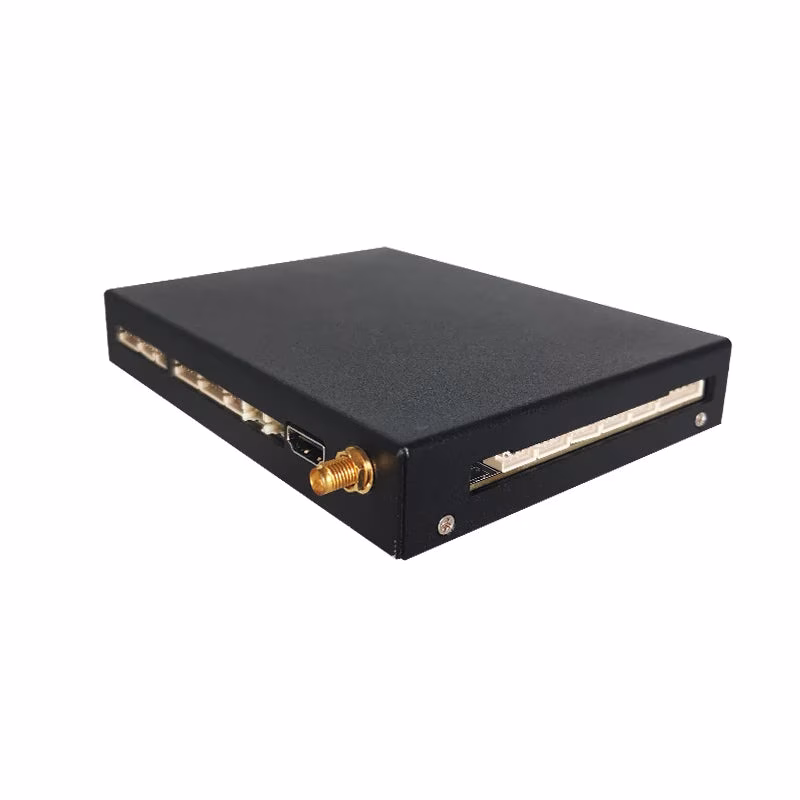

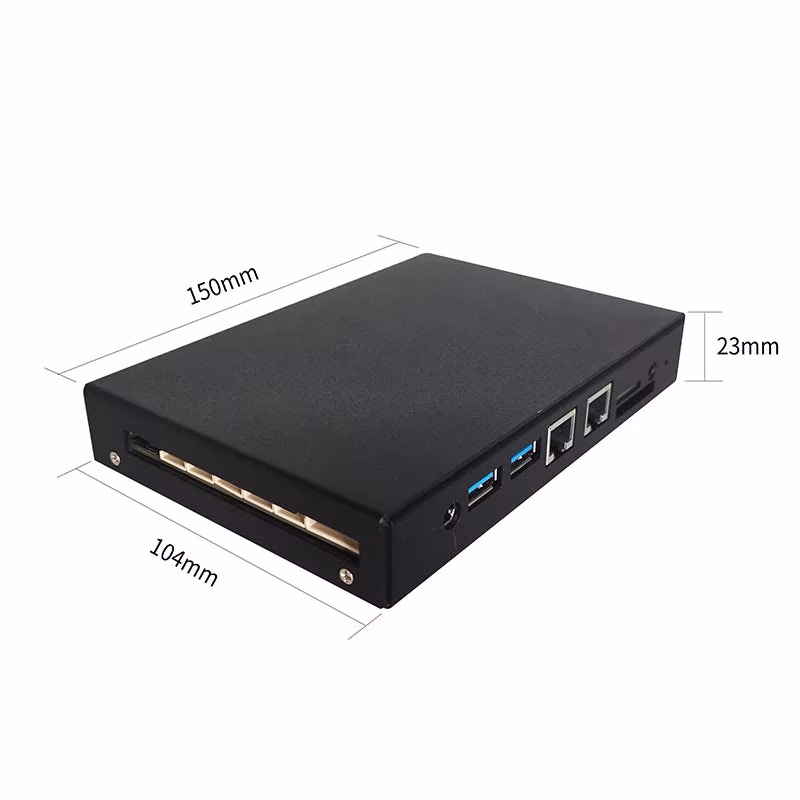

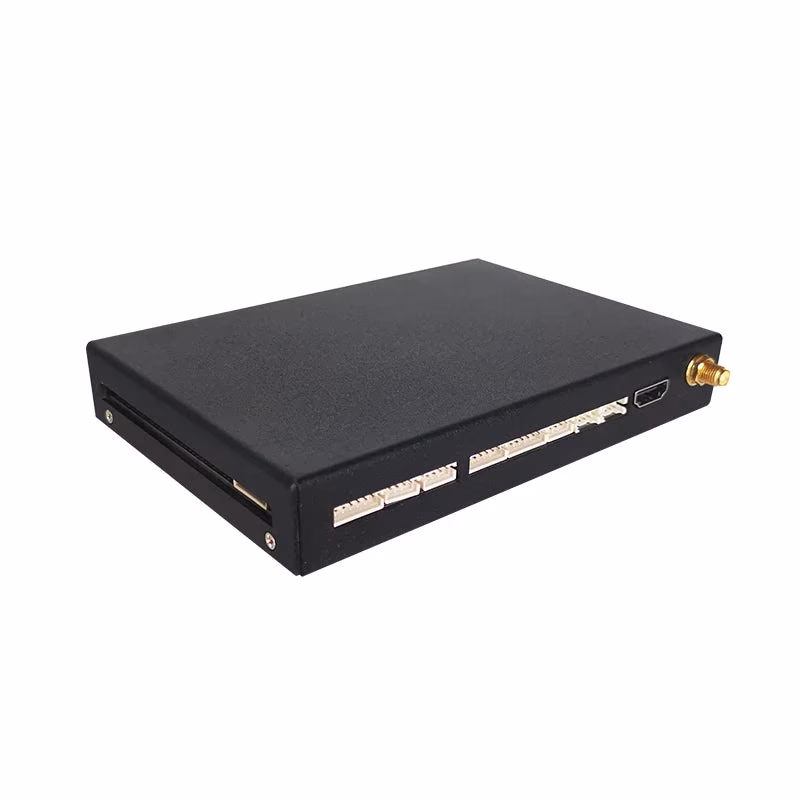

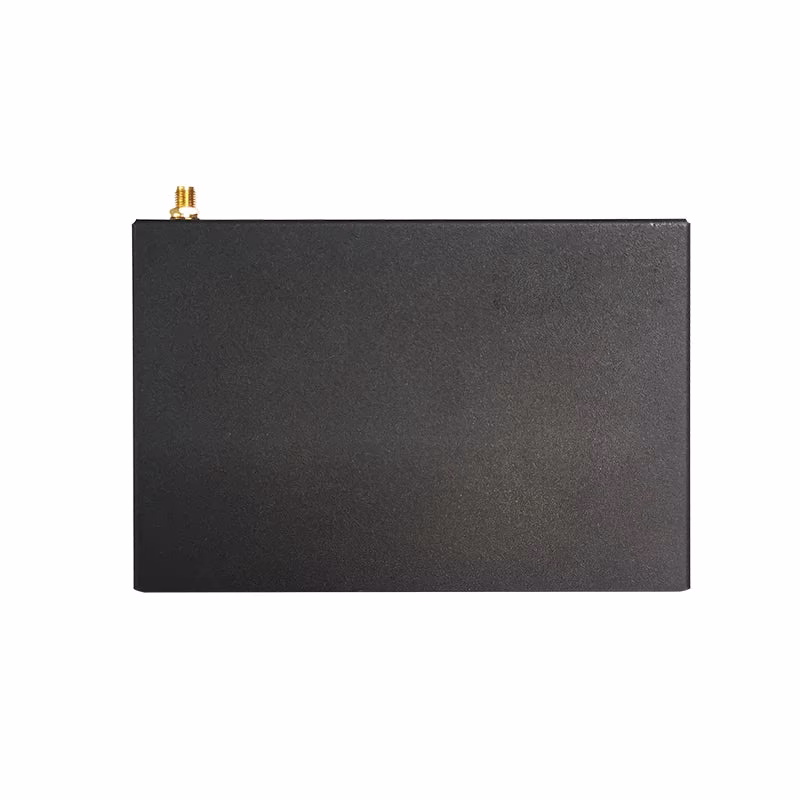

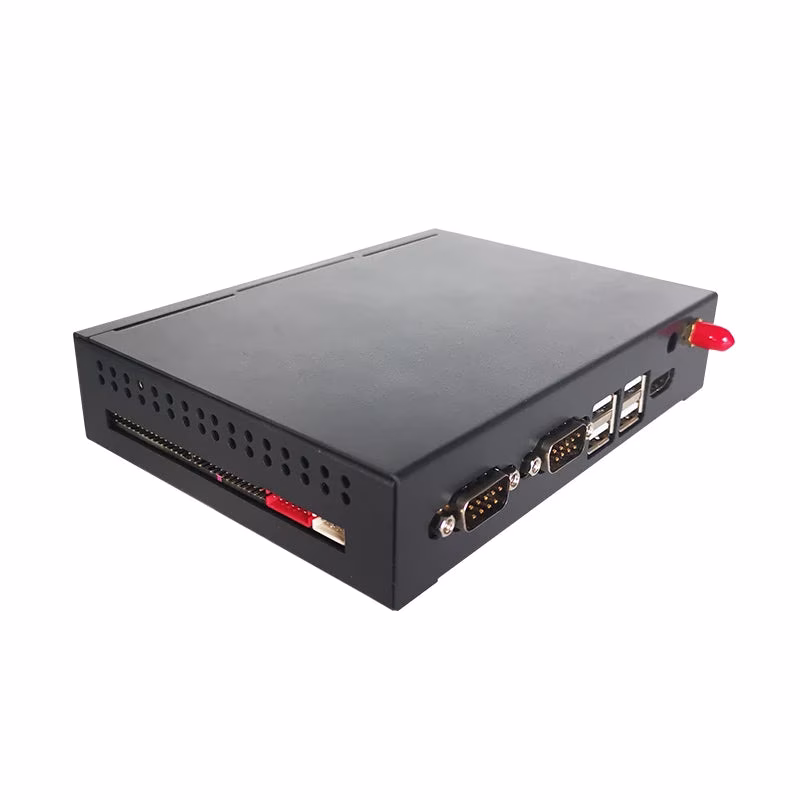

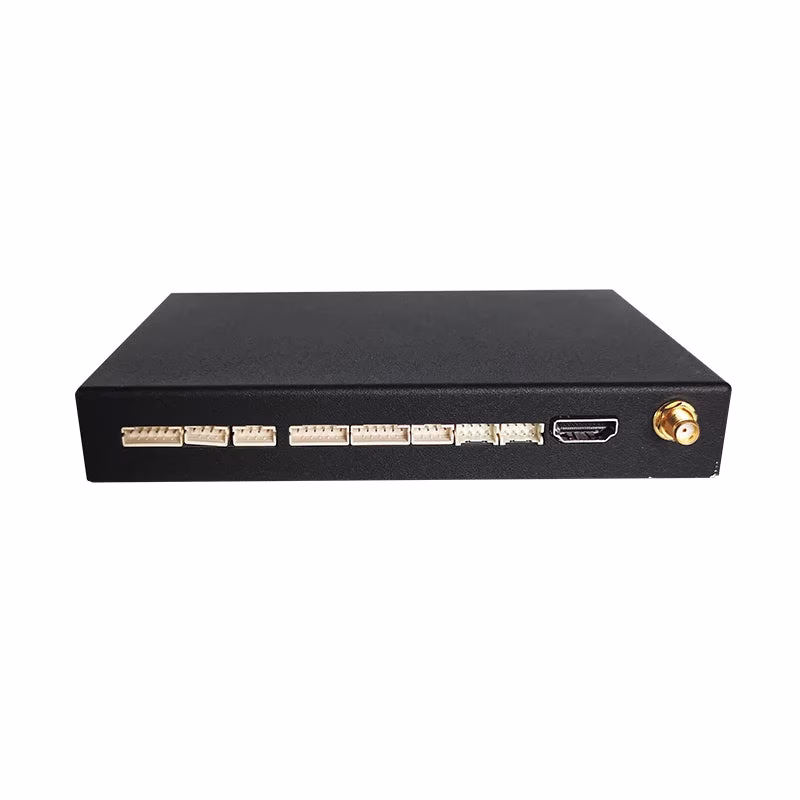

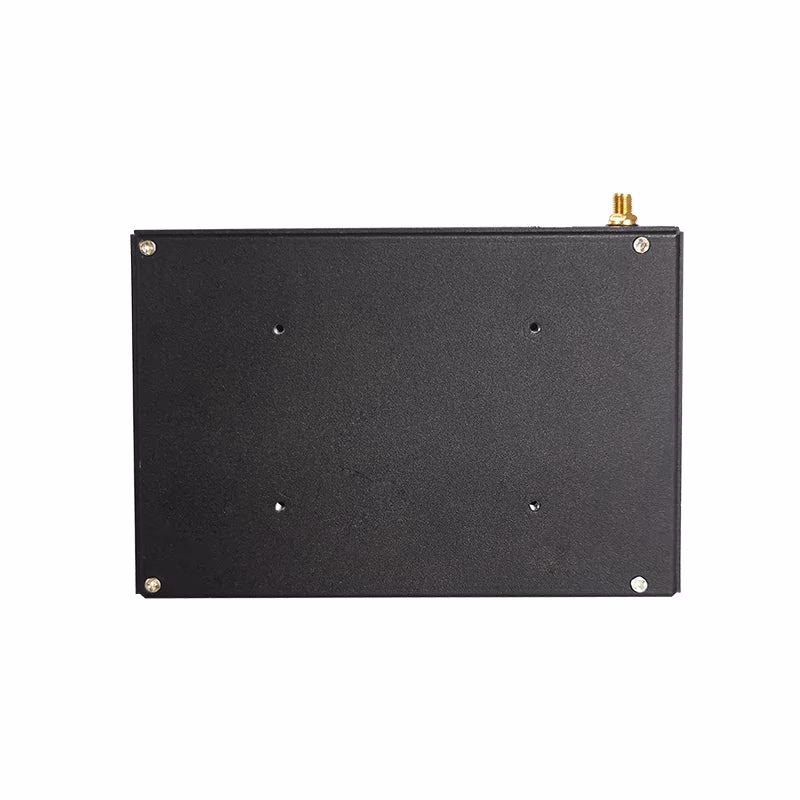

Desktop Android System 9 Industrial Computer HD-MI RK3399 Embedded Computer 4G-32G Memory Fixed Mounted Android Mini Box
Desktop Android System 9 Industrial Computer HD-MI RK3399 Embedded Computer 4G-32G Memory Fixed Mounted Android Mini Box 1

Desktop Android System 9 Industrial Computer HD-MI RK3399 Embedded Computer 4G-32G Memory Fixed Mounted Android Mini Box

0.00 / 5 (0 user)
SKU: SHP-4B8512495176DCFE
Brand: Unbranded
Category: Varied
$369.31 $855.81
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared

Product Description Rockchip RK3399 up to 64-bit high-performance CPU, 2.0GHz; Dual Cortex-A72 large core + four Cortex-A53 small core 64-bit CPU 8* USB, 4 serial ports 3G/4G EDP, LVDS,HDMI interface 1. support Linux. Optional Windows J1900, I3, I5; 2. Op

Product Description
Rockchip RK3399 up to 64-bit high-performance CPU, 2.0GHz; Dual Cortex-A72 large core + four Cortex-A53 small core 64-bit CPU
8* USB, 4 serial ports
3G/4G
EDP, LVDS,HDMI interface
1.
support Linux. Optional Windows J1900, I3, I5;
2. Optional storage and memory;
3. Support OEM/ ODM.
Application
Specification
Please noted, the below specifications for E801 Android motherboard, if have any questions or needs contact us feel free.
We also supply 7inch, 8inch, 10.1inch, 15.6inch, 21.5inch, etc industrial touch panels. Optional Windows, Android system.
Support desktop bracket, wall-mounted bracket and top bracket.
If you need barcode scanners please click here!
Biometric access control devices(face recognition, palm vein recognition) click here!
finger vein modules and palm vein recognition modules click here!
CPU
Rockchip RK3399 up to 64-bit high-performance CPU, 2.0GHz; 1. Dual Cortex-A72 large core + four Cortex-A53 small core 64-bit CPU
2. Built-in low-power MCU Cortex-M0
GPU
Quad-core ARM Mali-T860MP4 high-performance GPU
Memory /storage
Standard 2G (4G optional) / EMMC standard 16G (8G/32G/64G optional)
audio and video output
Support left and right channel output, built-in dual 8R/5W power amplifier
Earphone
Support one headphone jack
USB
 1* USB2.0(Support OTG/HOST switching); 7* USB2.0 HOST;
8*USB in total
LVDS
1 single/dual channel, can directly drive 1920x1080 LCD screen
eDP
Maximum drive 4KX2K resolution eDP interface LCD screen
HDMI
1, support 1080P@60Hz, 4kx2k@60Hz output
Serial port
4*RS232, 2*485,1* TTL,1* DEBUG total 8 serial port
Mipi Camera
Dual channel supports dual camera 30pin FPC interface, supports 1300w Camera
TF card
Support TF card
WIFI、BT
Built-in WIFI, BT4.0 (optional) WIFI module, support WIFI hotspot sharing during 4G communication
3G/4G
Built-in WCDMA, EVDO, 4G full Netcom expansion interface
