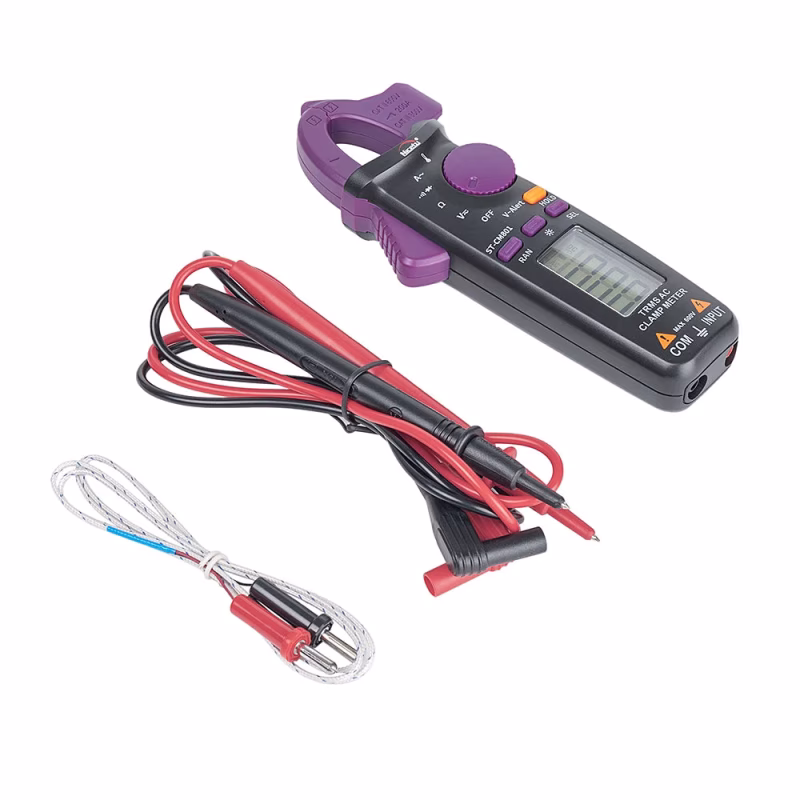

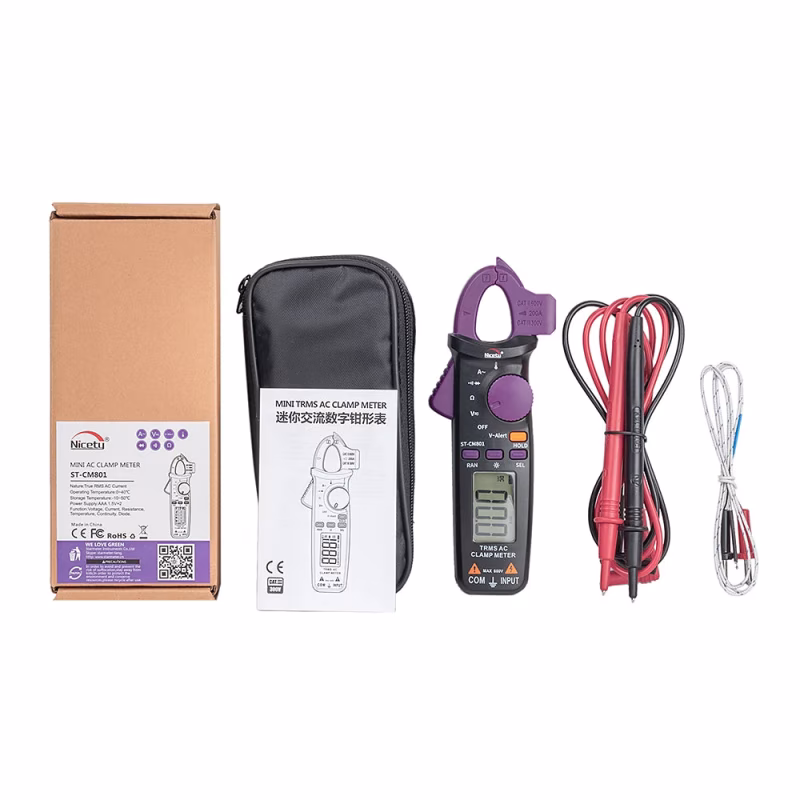

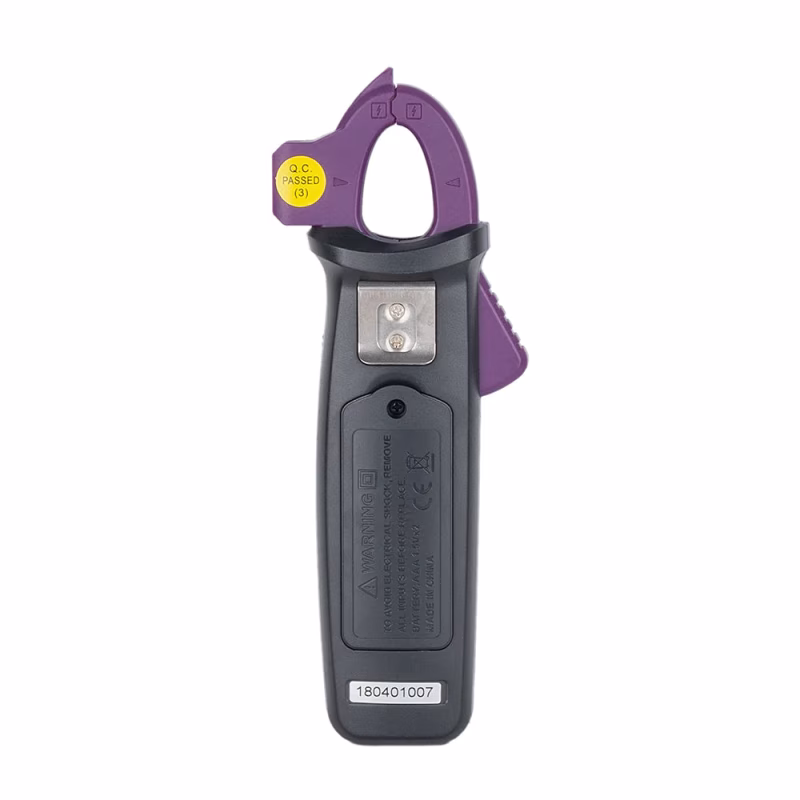

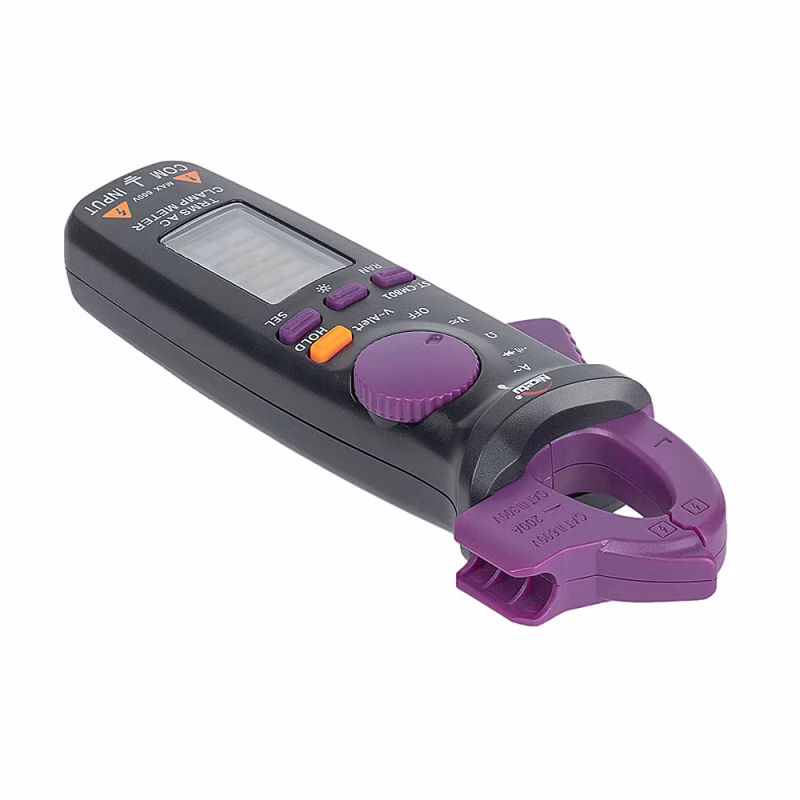

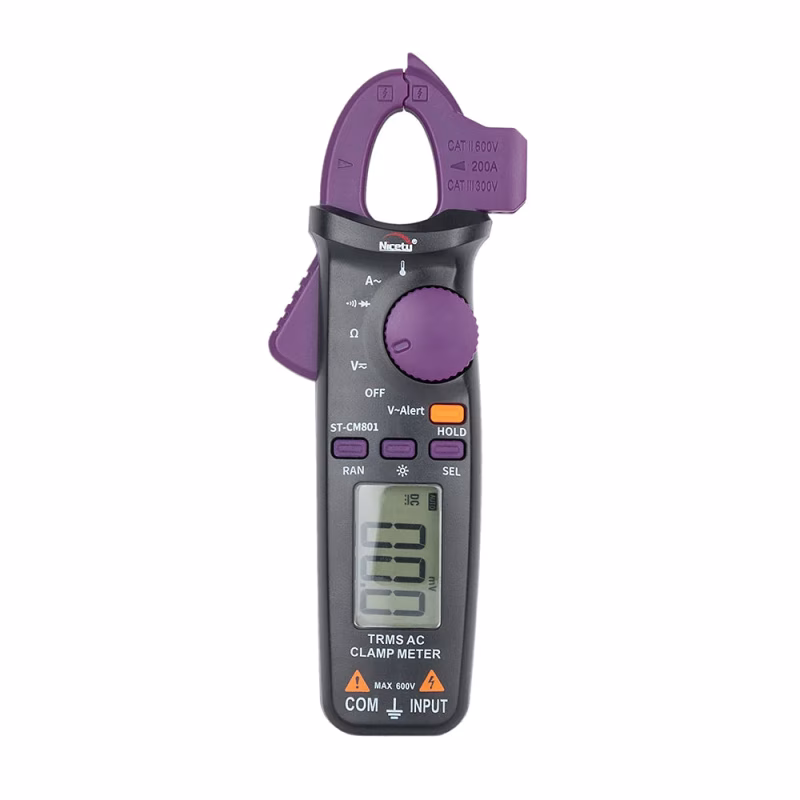

Digital Clamp Meter 1mA AC/DC Current True RMS Auto-Ranging 6000 Counts Meter Hz Temperature Capacitance Live Check

0.00 / 5 (0 user)
SKU: SHP-1076D74ECF950CAA
Brand: Unbranded
Category: Varied
$33.70 $69.01
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared

Product Description Introduction 1. Auto / Manual range selectable, 2~3/s sampling rate 2. True RMS measurement (AC Current) 3. NCV, Non-Contact Voltage testing function 4. LCD backlight, data hold 5. Auto power off, low battery indication and overload pr

Product Description
Introduction
1. Auto / Manual range selectable, 2~3/s sampling rate
2. True RMS measurement (AC Current)
3. NCV, Non-Contact Voltage testing function
4. LCD backlight, data hold
5. Auto power off, low battery indication and overload protection
6. Probes attached to the jaw ; Buckle on back for easy carrying .
7. Moving the "COM" and "INPUT" to the end of the body , avoid dust and increase the safety.
8. Complies with CE (European Union) , 300V CAT.Ⅲ; 600V CAT.II; Directives

Specification
Range
Best Accuracy
AC Current (A)
2A/20A/200A
±(3.0%+5)
AC Voltage (V)
2V/20V/200V
±(1.2%+3)
600V
±(1.5%+3)
DC Voltage (V)
200mV/2V/20V/200V
±(0.8%+3)
600V
±(1.0%+3)
Resistance (Ω)
200Ω/2KΩ/20KΩ/200KΩ/2MΩ
±(1.2%+2)
20MΩ
±(2.0%+5)
Temperature (℃/℉)
-30~0℃(-22℉~32℉)
±(5.0%+3)
0-400℃(32~752℉)
±(1.0%+3)
400℃~1000℃(752~1832℉)
±(2.0%+2)
Features
Display Count
1999
Jaw Capacity
25
LCD Size
21mm
Diode
Around 3.0V
Auto/ Manual Range
√
True RMS (AC Current)
√
NCV
√
Continuity Buzzer
√
Data Hold
√
LCD Backlight
√
Input Protection
√
Auto Power Off
Around 15 minutes
Low Battery Indication
≤2.5V
Input Impedance for DCV
10MΩ
General Information

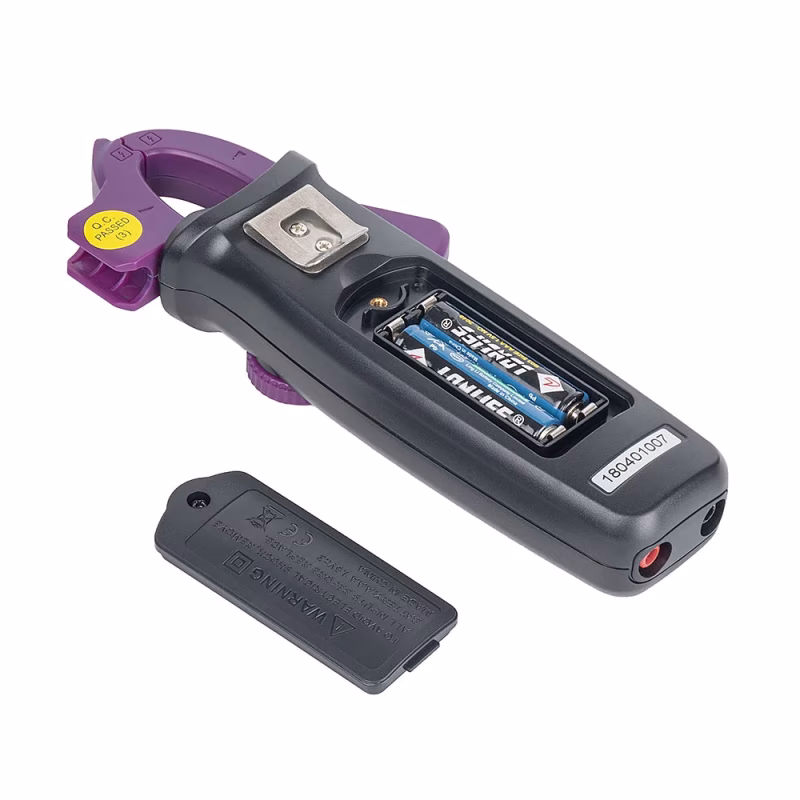

Power Supply
AAA DC1.5Vx 2
Product Color
Black + Purple
Product Weight
137g(without battery)
Product Size
179mm×67mm×36mm





















































Detailed Images
