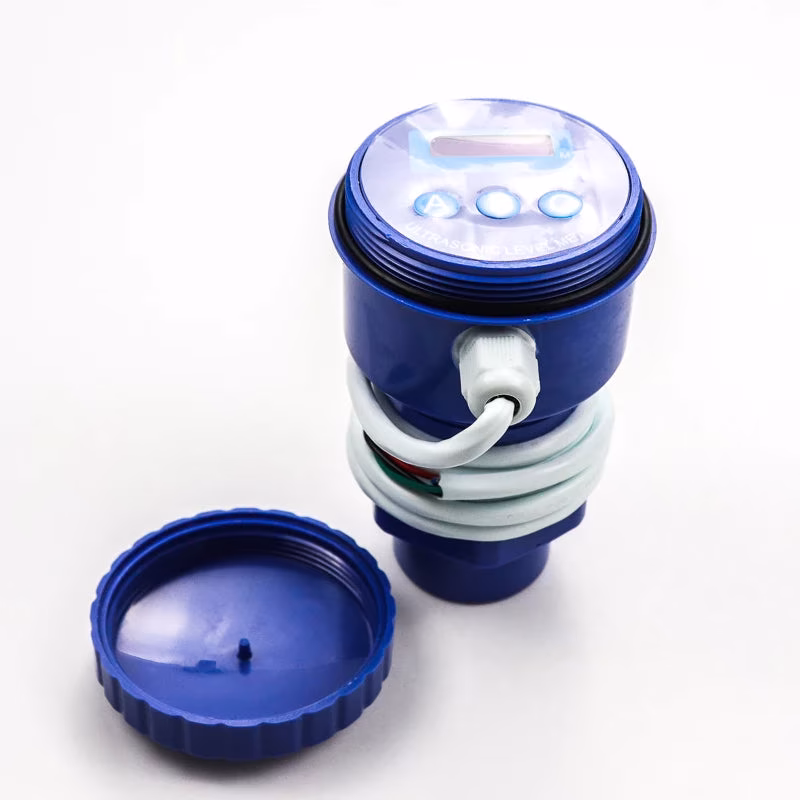

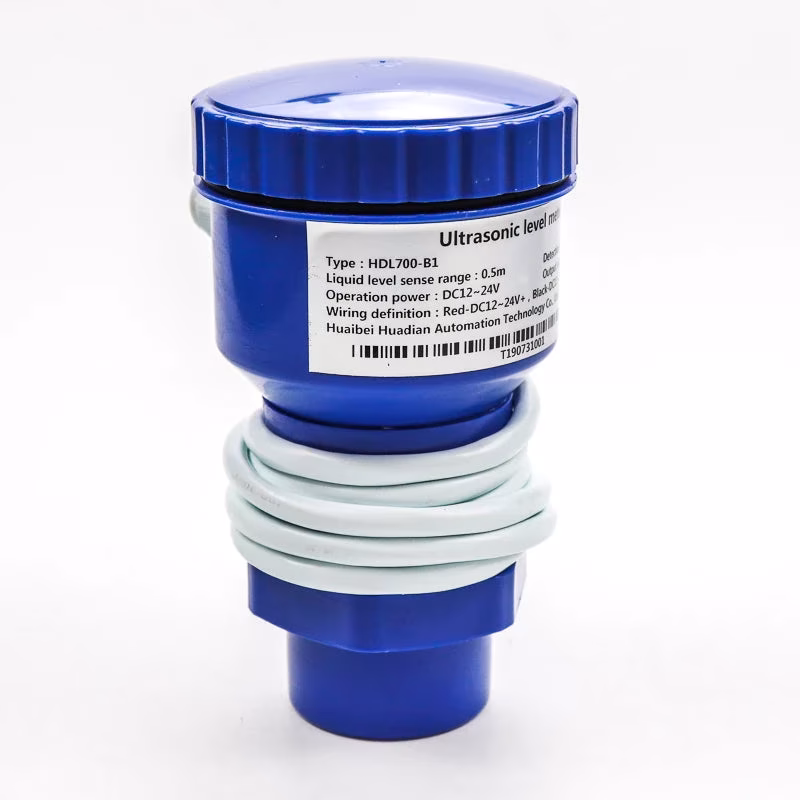

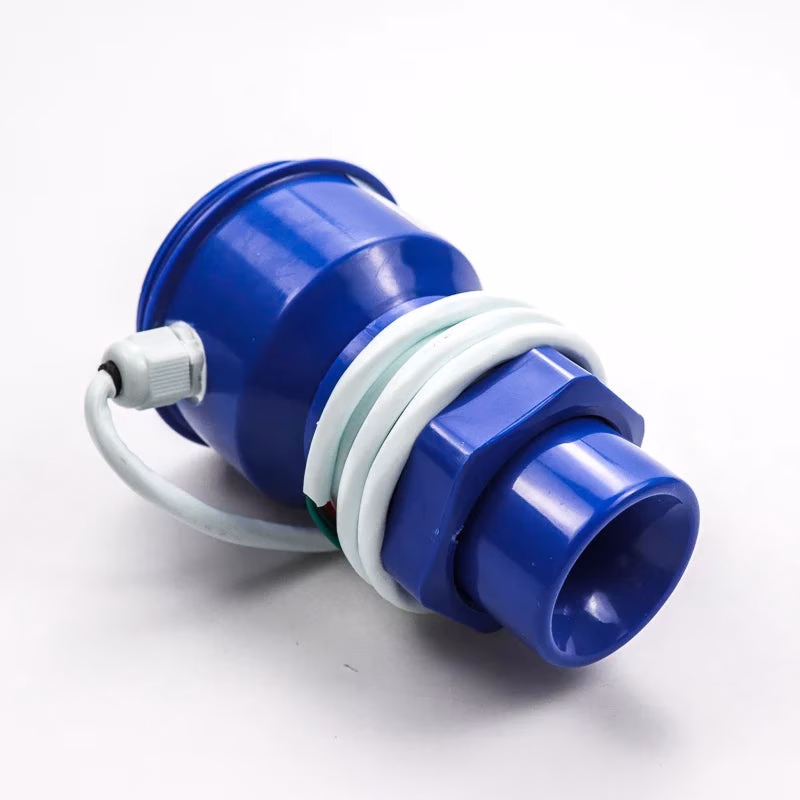

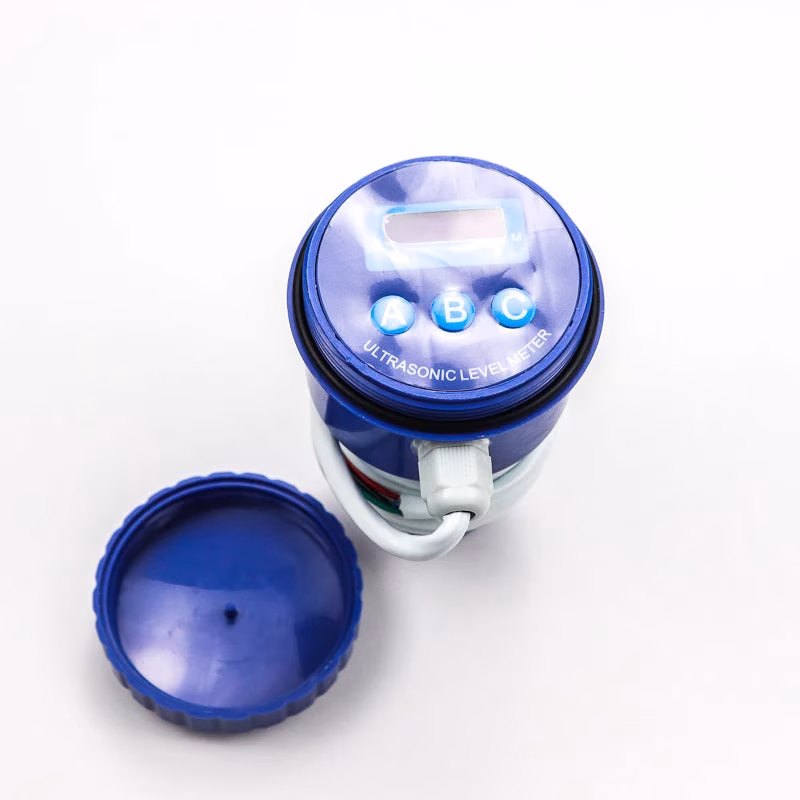

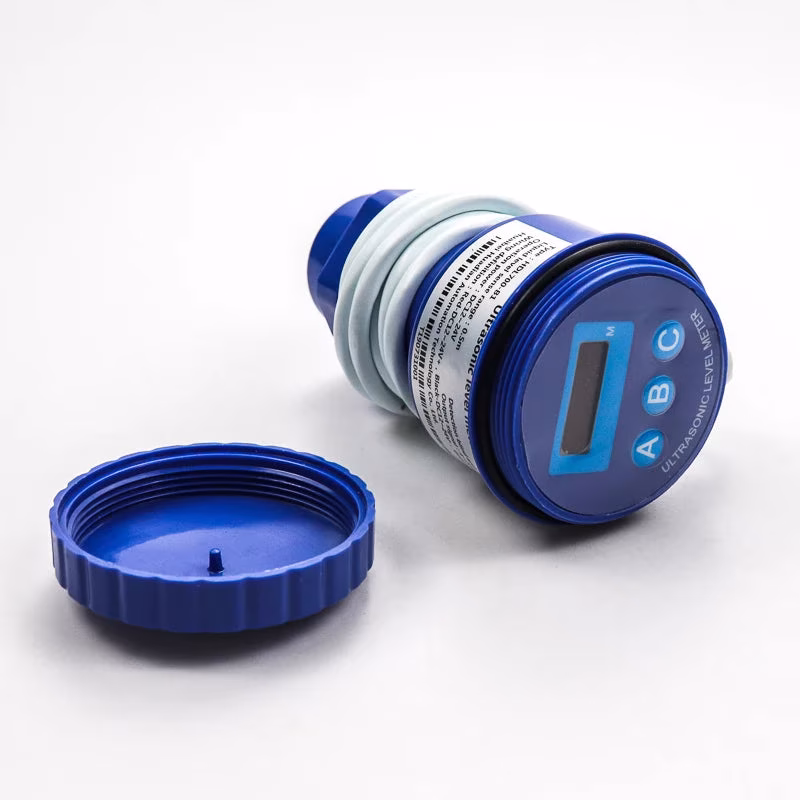

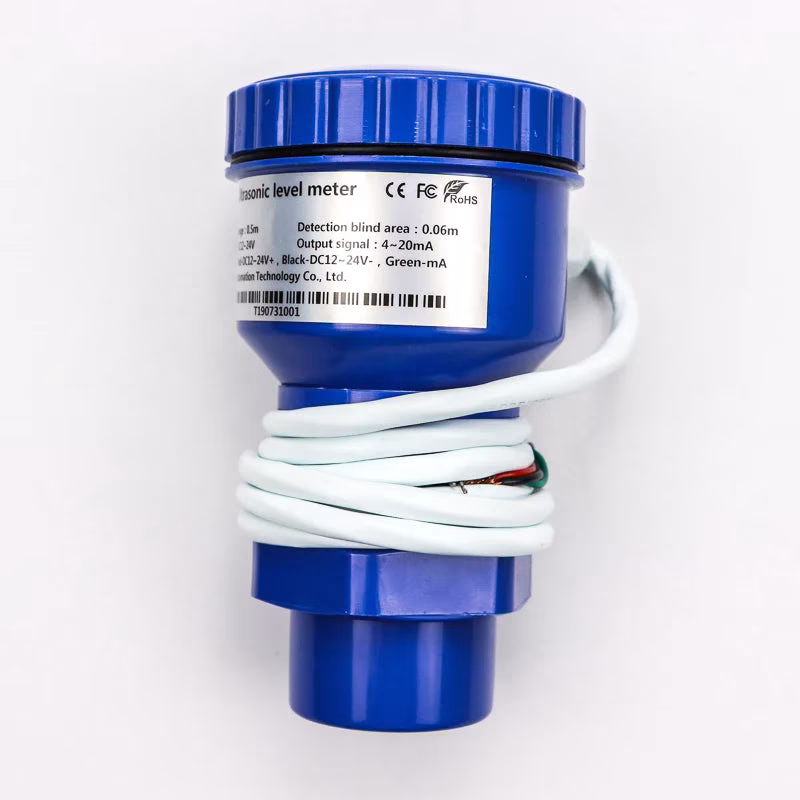

Digital LCD 4-20mA ultrasonic sensor level transmitter for deep well
Digital LCD 4-20mA ultrasonic sensor level transmitter for deep well 1
Digital LCD 4-20mA ultrasonic sensor level transmitter for deep well 2

Digital LCD 4-20mA ultrasonic sensor level transmitter for deep well

0.00 / 5 (0 user)
SKU: SHP-E945840EF47FEC21
Brand: Unbranded
Category: Varied
$242.33 $794.38
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Color
3m range, 4-20mA, 24vdc
4m range, 4-20mA, 24vdc
5m range, 4-20mA, 24vdc
1m range, 4-20mA, 24vdc
2m range, 4-20mA, 24vdc

Digital LCD 4-20mA ultrasonic sensor level transmitter for deep well      The ultrasonic level meter owning the advantage of perfect level monitoring, data transmission, and man-machine communication. The CPU applies industrial monolithic integrated circu

Digital LCD 4-20mA ultrasonic sensor level transmitter for deep well

   The ultrasonic level meter owning the advantage of perfect level monitoring, data transmission, and man-machine communication. The CPU applies industrial monolithic integrated circuits, digital temperature compensation, etc ASICs. You can select analog, switch output, RS485 series signal output.
   It’s applicable for various fields concerning level measuring and monitoring, and no need to contact the measured liquids.

Product Description

Model
HDL700-B1
HDL700-C1
HDL700-D1
HDL700-B2
HDL700-C2
HDL700-D2
Type
Integrated type
Integrated type
Integrated type
Split type
Measuring range
1m, 2m
Small blind area
5m, 8m, 10m, 15m
Standard
20m, 25m, 30m, 40m Max
1-40m (Optional)
Power
DC12—28V,AC220V(Optional)
Electric connection
PG7
M20*1.5
M20*1.5
PG7,M20*1.5 (Optional)
Process connection
G 1 1/2 (1m,2m )
M60*2 (5m-15m )
DN 80 flange connection (20m-40m) (Optional)
Output
Analog output:0-20mA; 4-20mA; 0-5V; 0-10V
Digital output: RS485 (Mod_bus)
Switch output: PNP/Relay output
Housing material
ABS,nylon,Cast aluminum, SS304 (Optional)
Keywords
ultrasonic level sensor


Technology Features of ultrasonic level sensor
1) It can be with GPRS and Wifi.
2) Backup and restore settings parameters
3) Measurement of material level, liquid level, volume, weight, etc.
4) Analog output can be adjusted arbitrarily.
5) It has the functions of digital filtering and echo recognition.
6) Can set artificial interference filtering function manually.
7) RS485,RS232,Relays for option.
8) Explosion-proof:ExiaIIBT4Gb for option.

Wiring Diagram

Product details
Why choose Huadian
1. Instruments has been exported to over 50 countries.
2.100% QC inspection Before Shippment.
3.ISO, CE, SGS standard and factory price.
4. All instruments has been 100% recognized by the Bureau of National  Metrology.
5.Excellent product quality and strong technical support capability.
Packaging & Shipping
