DT-157 High Accuracy 0~2000um Coating Thickness Gauge Paint Thickness Meter Tester Magnetic Eddy Current Method
DT-157 High Accuracy 0~2000um Coating Thickness Gauge Paint Thickness Meter Tester Magnetic Eddy Current Method 1
DT-157 High Accuracy 0~2000um Coating Thickness Gauge Paint Thickness Meter Tester Magnetic Eddy Current Method 2

DT-157 High Accuracy 0~2000um Coating Thickness Gauge Paint Thickness Meter Tester Magnetic Eddy Current Method

0.00 / 5 (0 user)
SKU: SHP-283BAC0C9B421E4B
Brand: Unbranded
Category: Varied
$687.70 $1405.30
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
default
default

DT-157 Coating Thickness Tester Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques. The measuring data is easily transferred to PC for edit and storage.    Features Non-magnetic coatings (e.g. paint,

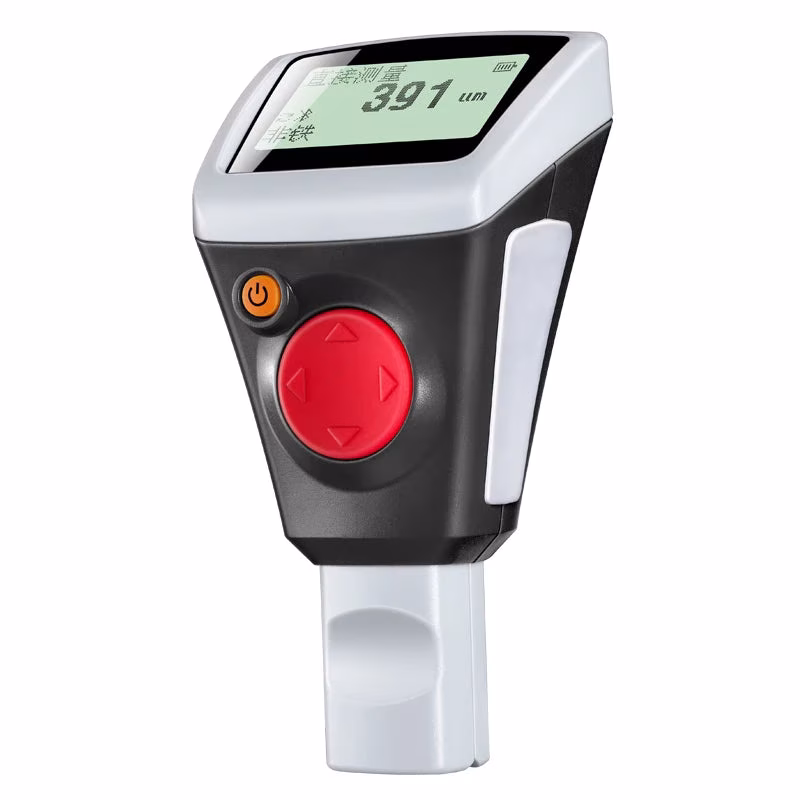

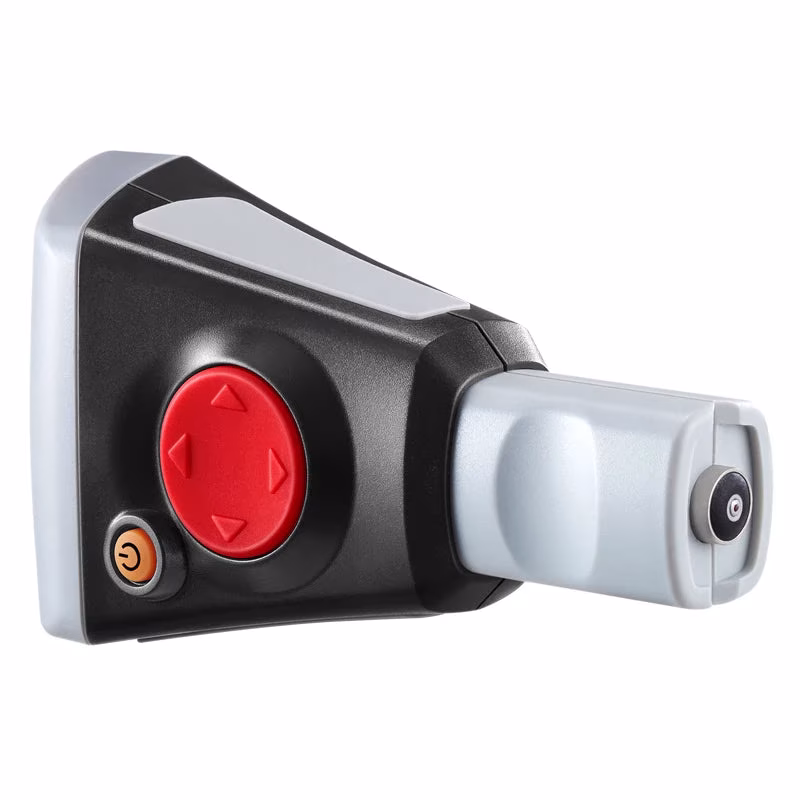

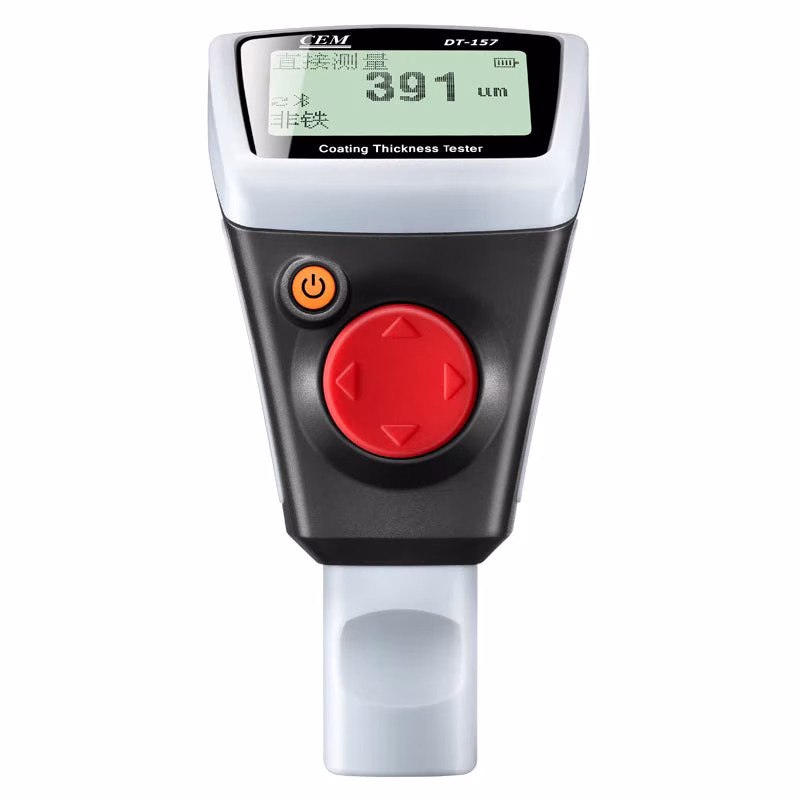

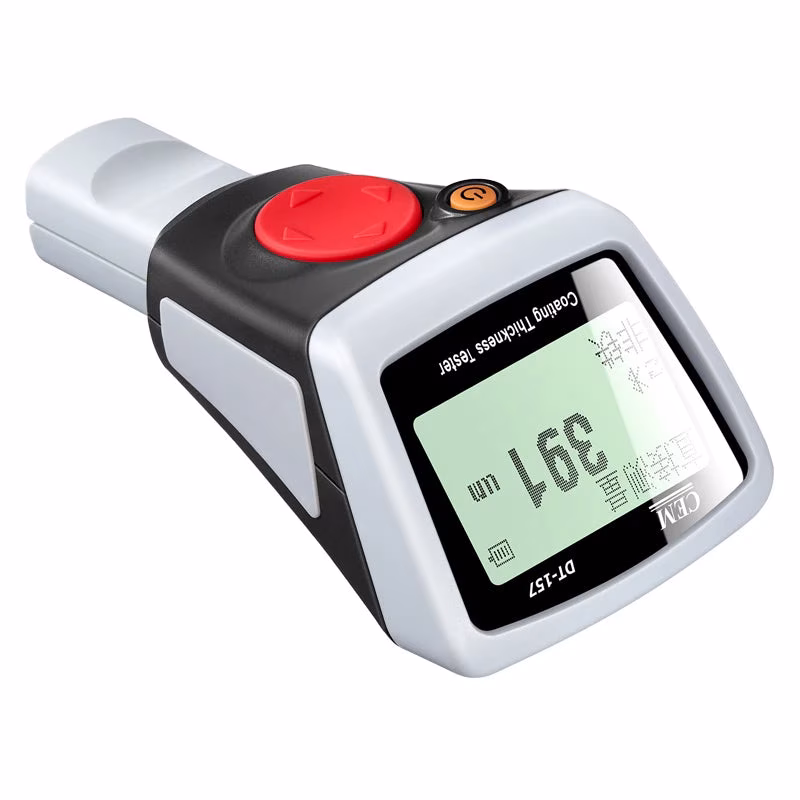

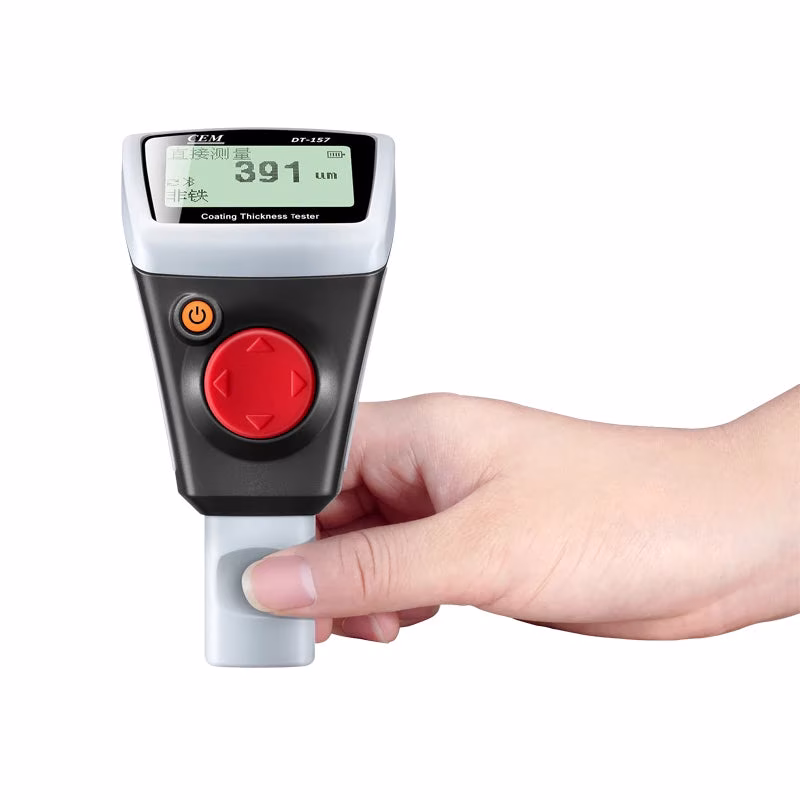

DT-157 Coating Thickness Tester
Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques. The measuring data is easily transferred to PC for edit and storage.

Features
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
Statistic Display: AVG, MAX, MIN, NO., S.DEV
One point calibration,  two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
Memory for 2500 readings (50 GROUP readings)
4 levels of battery indication
Error indication
Bluetooth interface
Easily adapt to lighting conditions with 8 levels of backlight


Specifications:
Sensor probe
F
N
Working principle
magnetic induction
Eddy current principle
Measuring range
0~2000um
0~2000um
Guaranteed tolerance (of reading)
(+/- 2%+2)um
(+/- 2%+2)um
Repeatability
(+/- 1%+1)um
(+/- 1%+1)um
Low range Precision
0.1um
0.1um
Minimum curvature radius
1.5mm
3mm
Diameter of Minimum area
7mm
5mm
Basic critical thickness
0.5mm
0.3mm

Size (H x W x D): 120mm x 60mm x 40mm
Weight: 120g
