ELP 1megapixel Day Night Vision Indoor&outdoor Cctv Usb Dome Housing Camera Vandal-proof for House and Pc Industrial Security.cctv Camera for Baby Monitor, Pets Monitor,home Security



Product Description

ELP-USB100W05MT-DL36 is usb camera with IR LED day&night and also housing completely for personal house video surveillance use or industrial video security.
This Dome USB camera already widely used at home for baby monitor or pet surveillance, and also widely use in industrial video, such as bank ATM room to connect with ATM pc for security,all kinds of Android,Windows,Linux OS system etc.

Features


 *1megapixel HD USB Camera for house and industiral video security
*With dome housing can install directly at house or bank etc.
*Plug&play with any PC video surveillance, no need additional power
*With IR LED for day&night whole day video security
*CMOS 720P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

Specifications


Model
ELP-USB100W05MT-DL36
Standard
1*1MP Dome USB Camera with 3.6mm lens
1*3m USB Cable
Features
Support Microphone,
With 24pcs IR LED for night vision
Sensor
1/4"  OV9712 CMOS Color Sensor
Pixel Size
3.0um X 3.0um
image area
3888 µm x 2430 µm
Max. Resolution
1280(H)X720(V)
Compression format
MJPEG  / YUV2(YUYV)
Performance
1280 (H) x 720 (V) pixels   MJPEG 30fps      YUY2 10fps
960 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels    MJPEG 30fps      YUY2 20fps
640 (H) x 480 (V) pixels    MJPEG 30fps      YUY2 30fps
S/N Ratio
40dB
Dynamic Range
69dB
Sensitivity
3.7V/lux-sec@550nm
Mini illumination
0. 1lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG)
Free Drive Protocol
USB Video Class(UVC)
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Adjustable parameters Brightness/Contrast/Color saturation
 /Definition/Gamma/WB
Audio input
Support
Power supply
DC5V
Operating Voltage
100mA~120mA
Working current
 -10~70°C
Working temperature
 -20~85°C
Board size /Weight
 94x94x73mm,About 0.6kg
Support OS
WinXP/Vista/WIN7/WIN8
 Linux with UVC
 Mac-OS X 10.4.8 or later
 Wince with UVC
 Android 4.0 or above
Optional Pixels Lens ,USB Cable length
Pixels Available
0.3MP (VGA,Face detection),
1MP (Audio, H.264...)
1.3MP (Low illumination)
2MP (H.264,Audio, High spped 100fps, low illumination)
3MP(WDR)
5MP (Mini, Autofocus,)
8MP (HD)
Lens Available
Fixed focus lens : 2.1/2.8/3.6/6/8/12/16/25 mm,3.7mm pinhole lens,
FOV=170/180degree fisheye lens , 100degree no distortion lens
Auto Focus lens: 30/45/60/170/180 degree optional
Manual Focus lens: 4/6/8mm
Varifocal Lens: 2.8-12mm , 5-50mm varifocal lens
USB Cable optional
1m/2m/3m/5m Optional (Customization available)



Product Display

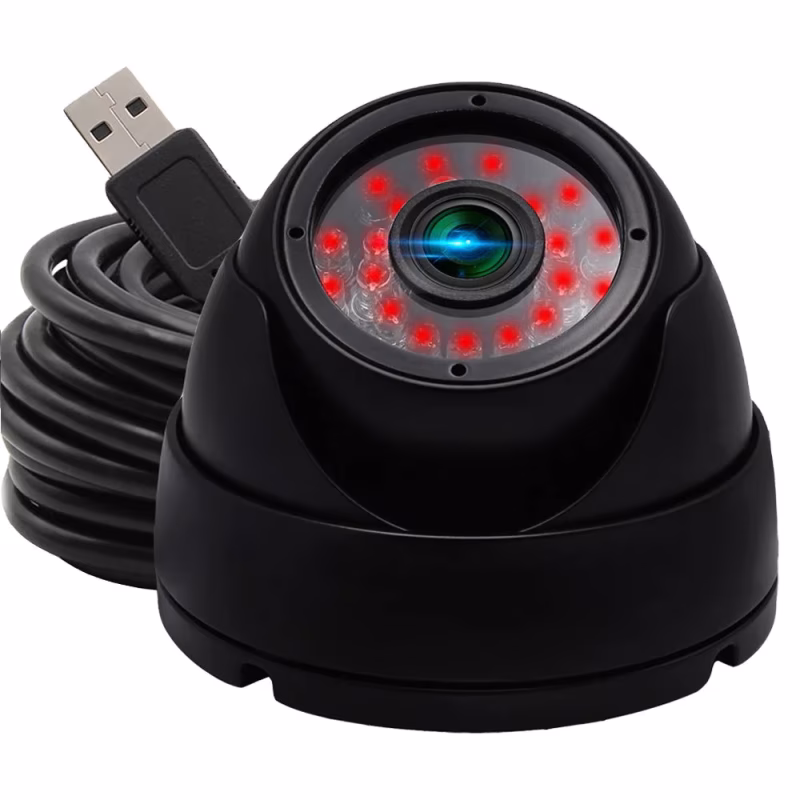

With IR CUT and IR LED for night vision, completely dark room can also be seen clearly.
1Megapixel 1920x720P HD resolution
24PCS IR LED for day&night image vision
Black small conch housing, natural and beautiful


At day time, 3.6mm wide angle lens broaden the horizons.

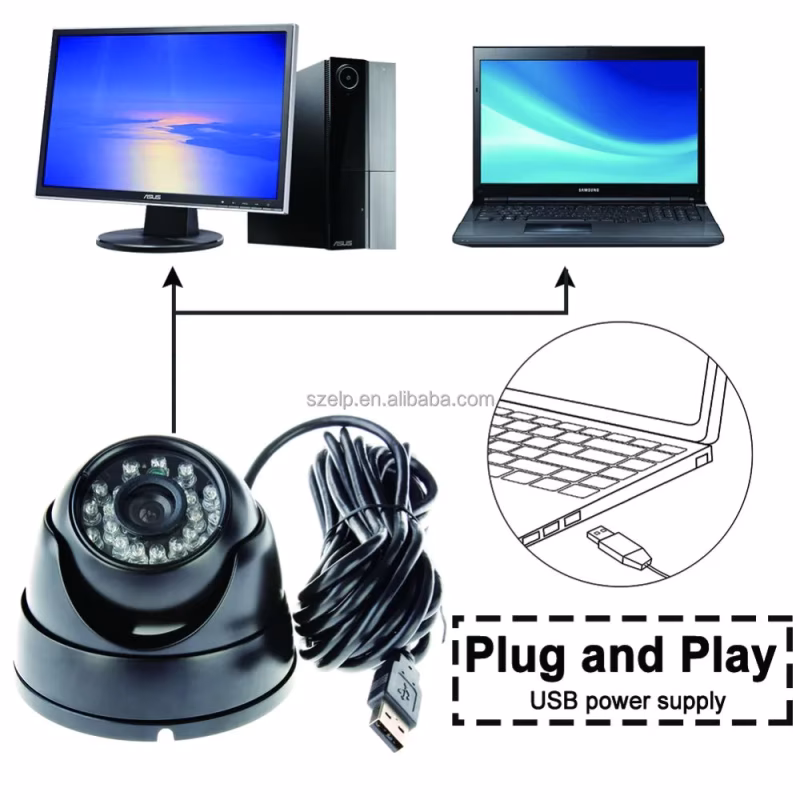

Plug&play, no need additional power
USB high speed connecting port
Brightness, white balance adjustable
3.6mm lens



Waterproof&Vandal resist for outdoor video security surveillance.



5Meters long usb cables, convenient for long distance connecting.

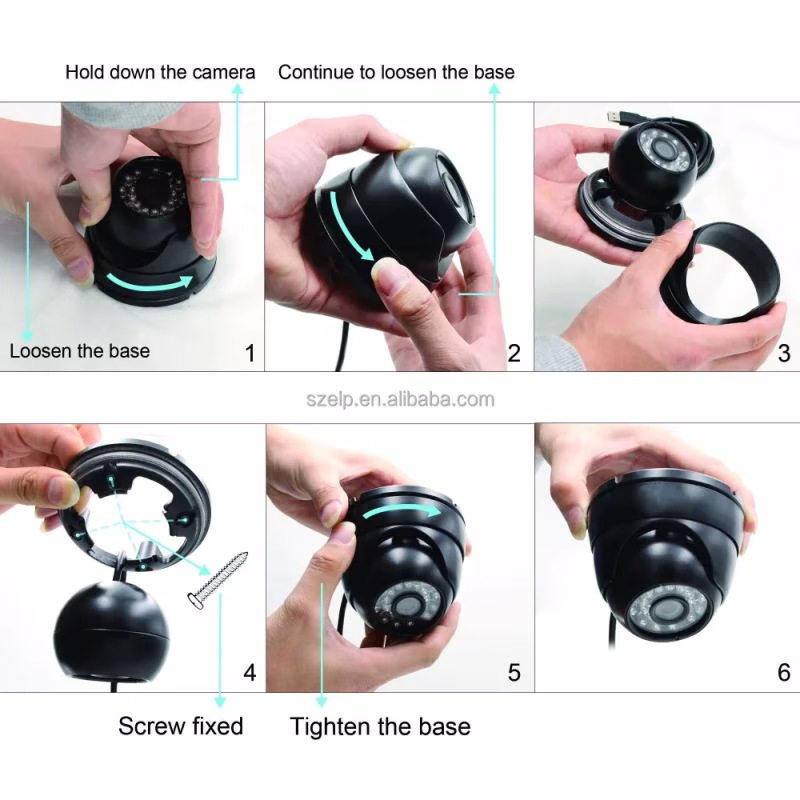

Simplely rotate to open the base for installation, nice and generous.

Product Size

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
