ELP 720P HD USB camera YUY2 and MJPEG machine Vision CCTV Video camera with 2.8-12mm manual varifocal CS Mount lens Model: ELP-USB100W03M-SFV(2.8-12mm)   Fetures *CMOS OV9712 sensor for high quality image and low power consumption. *High speed USB 2.0 int

ELP 720P HD USB camera YUY2 and MJPEG machine Vision CCTV Video camera with 2.8-12mm manual varifocal CS Mount lens
Model: ELP-USB100W03M-SFV(2.8-12mm)

Fetures
*CMOS OV9712 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280X720 resolution.

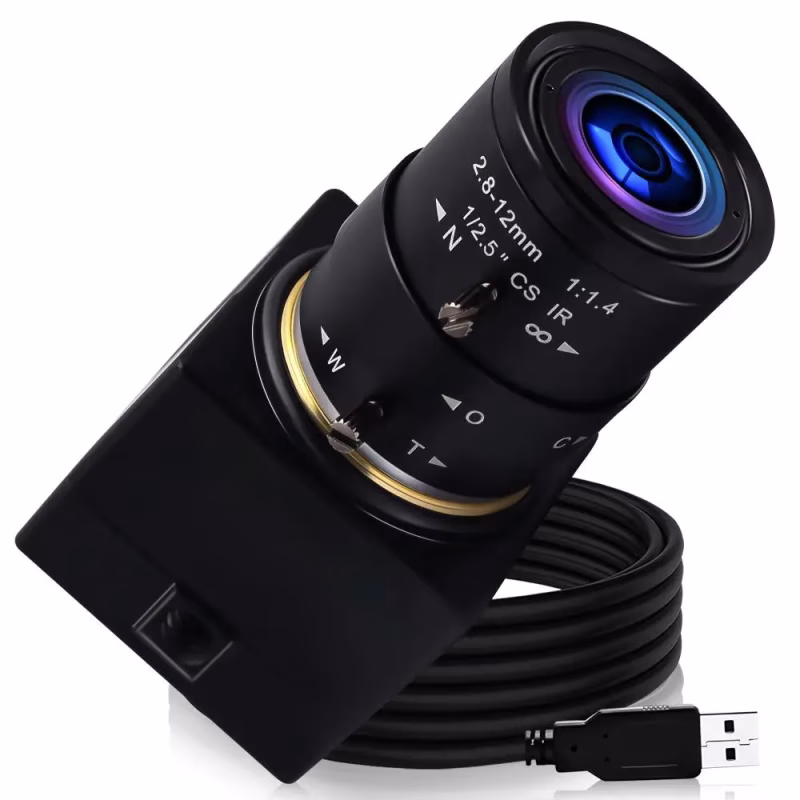

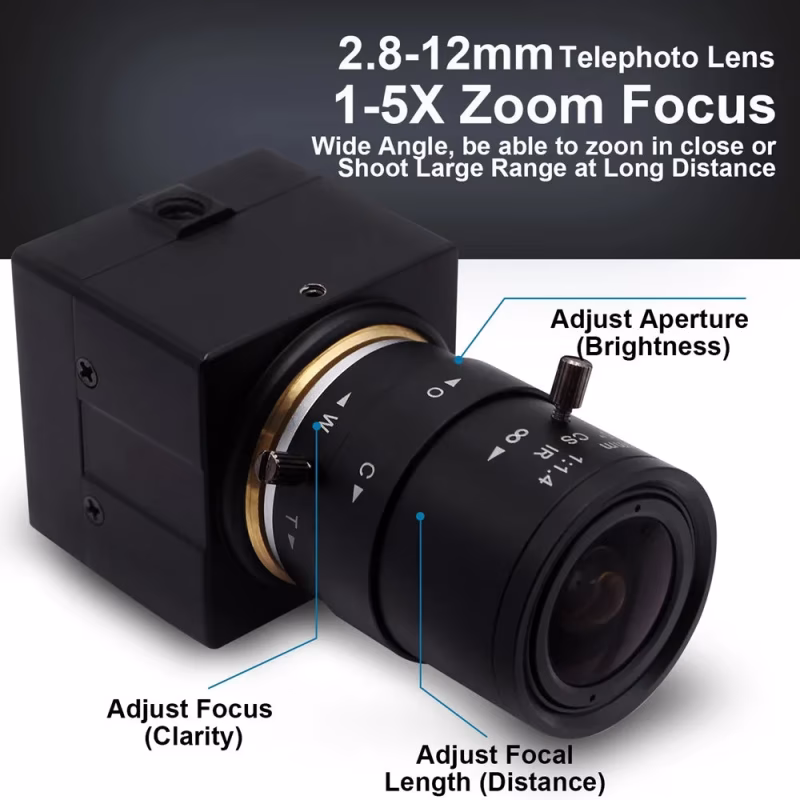

*High quality lens,  2.8-12mm manual varifocal CS lens
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Product Description

Optional models
ELP-USB100W03M-SFV
(2.8-12mm manual varifocal CS Mount lens)
Sensor
OV9712
Lens size
100W, 1.0megapixel, 1280X720
Max. Resolution
640X480 VGA
Picture format
YUY2
MJPEG
USB Protocal
USB2.0 HS/FS, USB1.1 FS
Support free driver
USB Video Class(UVC)1.1
Auto exposure AEC
Support
Auto white blance AEB
Support
Frame rate
1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 10fps
960 (H)   x 720 (V) pixels    MJPEG 30fps      YUY2 15fps
800 (H)   x 600 (V) pixels    MJPEG 30fps      YUY2 20fps
640 (H)   x 480 (V) pixels    MJPEG 30fps      YUY2 30fps
352(H)    x 288 (V) pixels    MJPEG 30fps      YUY2 30fps
320 (H)   x 240 (V) pixels    MJPEG 30fps      YUY2 30fps
176(H)    x 144 (V) pixels    MJPEG 30fps      YUY2 30fps
160 (H)   x 120 (V) pixels    MJPEG 30fps      YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision
optional, can choose IR board
view angle
30-150 degree optional
voltage
DC 5V
current
150mA
work temperature
DEGREES(-20~70)
Size
32x32mm

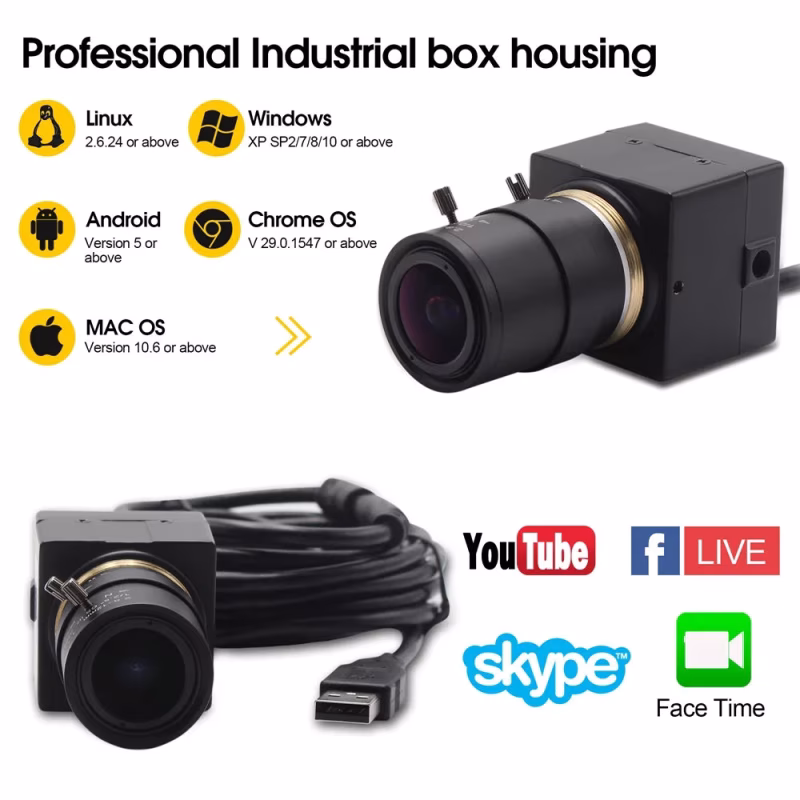

Support OS
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.

Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, Smart box,TV box,
advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,endoscope, Medical auxiliary equipment, etc.
Product Show
