ET4401 10khz Desktop Digital Bridge Capacitance Resistance Impedance Inductance Meter Measure L CR Bridge L CR Meter Descriptions: ET44 series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety of measurement paramete

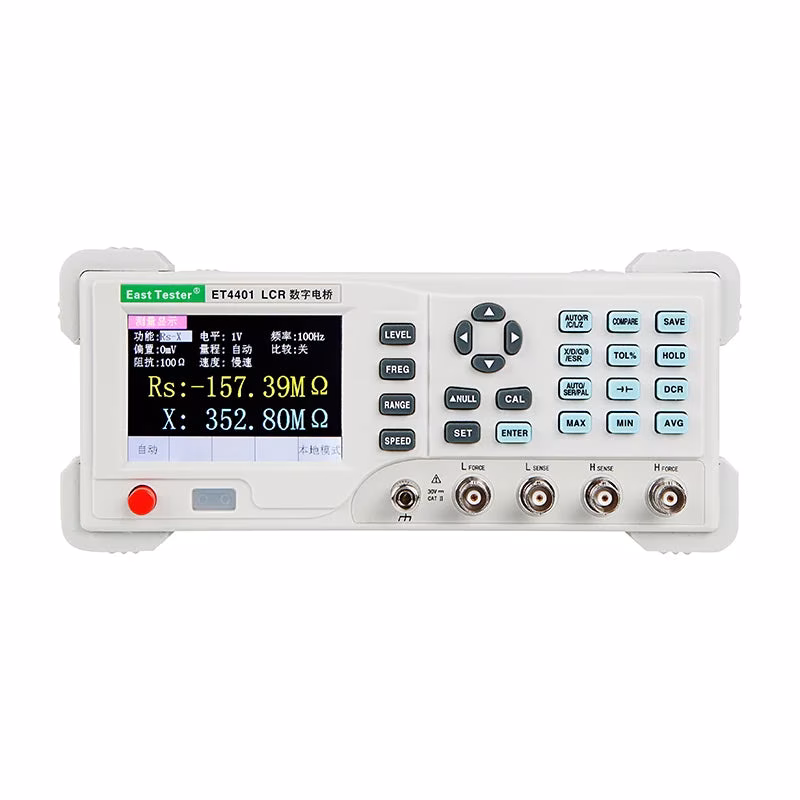

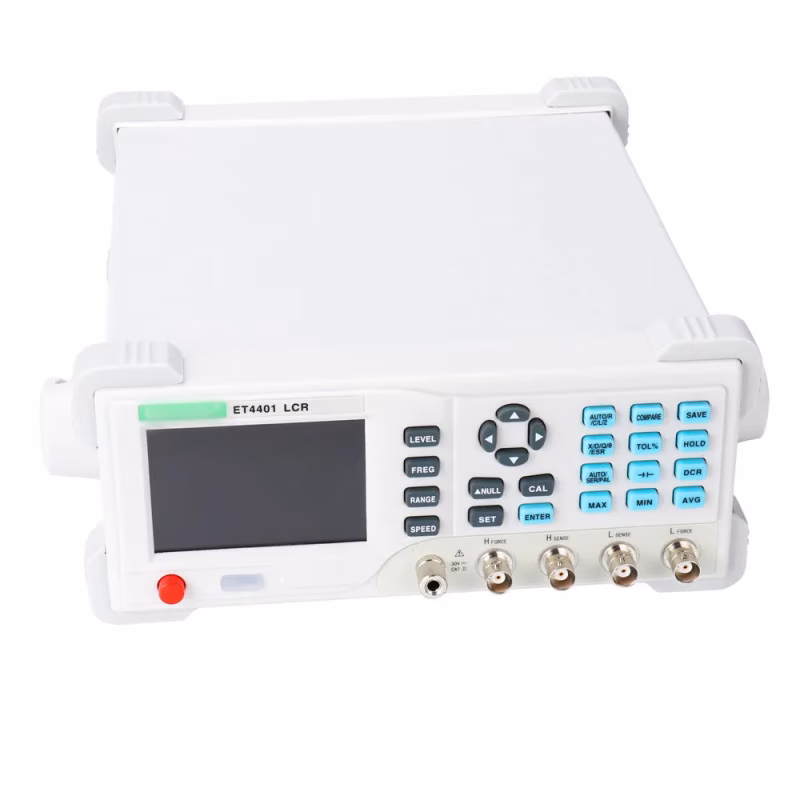

ET4401 10khz Desktop Digital Bridge Capacitance Resistance Impedance Inductance Meter Measure L CR Bridge L CR Meter
Descriptions:
ET44 series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety of
measurement parameters into one body. It is convenient for users to carry out remote control with USB
and RS232 and also perform the sorting of components using handle. In function, it can not only adjust
the output frequency and test level, but also record the value of components in the process of measurement.
In the performance parameters, its basic accuracy reaches 0.2%.
Features:

 Measurement frequency up to 10kHz
 Test level 100 ~ 2000mV
Support the measurement of DC
resistance and electrolytic capacitor
Internal bias voltage output (1mV-1500mV)
Automatic identification of
component measurement
3.5-inch TFT display, 5 and a half bits display
USB, RS232 communication interface,
Handle sorting
 Data recording function (maximum and
minimum values, average value)
 Support SCPI communication protocol
 Provide system settings, which can configure
language, buzzer, screen brightness,
etc accordingto the needs of users.
 Basic accuracy 0.2%
 Manual and automatic range
 Be equipped with open circuit and
short circuit correction
 Comparator has sorting and alarm function
 Provide a variety of test ports
Specifications:


Model
ET4401
ET4402
ET4410
Digits
Main parameter: 5 digits; secondary parameter: 5 digits
Measurement Parameter
Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR
Measurement Range(L)
0.01μH - 9999H
Measurement Range(C)
0.01pF - 99999μF
Measurement Range(R)
0.0001Ω - 99.99MΩ
Basic Accuracy
0.2%
Test Frequency (Hz)
100~10kHz 10 point
100~20kHz 12point
100~100kHz 20 point
Measurement
Display Speed
2 times/second (slow), 4 times/second
(medium speed), 8 times/sec (fast)
Internal Bias
0-1500mV adjustable, 1mV stepping
Test Level
100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV
Correction Function
Open circuit correction, short circuit correction
Screening function
The screening limit can be set from -50% to + 50%
with fixed points of 1%, 5%, 10% and 20%
Selection of comparator
Five gear sorting, third gear qualified, one gear failed, one ancillary gear
Communication Interface
Standard configuration: USB, RS232 (or 485),
Handle interface; Optional: GPIB, USB Host
Others
Support DCR, electrolytic capacitor measurement mode,
adjustable backlight brightness, optional in English and Chinese


Power supply voltage: 220V AC ± 10%, or 110V AC ± 10%, 45-65Hz
Working environment: 0 ~ 40 ℃, relative humidity
