Factory embedded desktop small computer Intel J1900 CPU server Win10 Linux Fanless Industrial Mini PC
Factory embedded desktop small computer Intel J1900 CPU server Win10 Linux Fanless Industrial Mini PC 1
Factory embedded desktop small computer Intel J1900 CPU server Win10 Linux Fanless Industrial Mini PC 2

Factory embedded desktop small computer Intel J1900 CPU server Win10 Linux Fanless Industrial Mini PC

0.00 / 5 (0 user)
SKU: SHP-13C666B5CEB6F01A
Brand: Unbranded
Category: Varied
$245.51 $517.31
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared
Model Number
C5750Z-C6(J1900)

Product specifications Case Material/structure All aluminum alloy without fan Product Form colour Bright black Dimensions  (length, width, height) 174mm*148mm*57mm LCD Weight (bare metal net weight) 1.35KG installation Desktop/embedded Motherboard CPU J19

Product specifications
Case
Material/structure
All aluminum alloy without fan
Product Form
colour
Bright black
Dimensions
(length, width, height)
174mm*148mm*57mm
LCD
Weight (bare metal net weight)
1.35KG
installation
Desktop/embedded

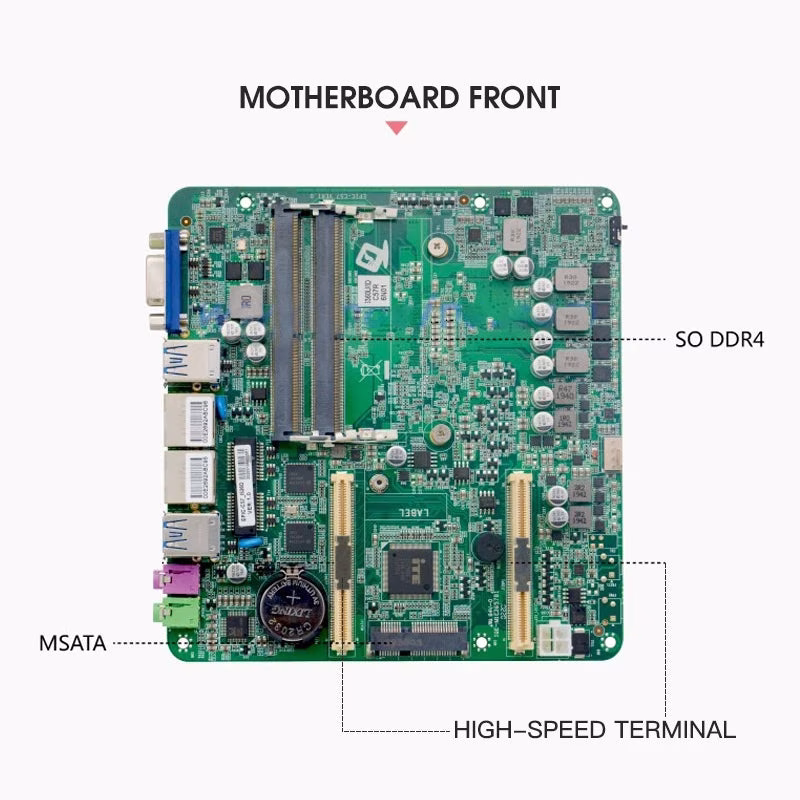

Motherboard
CPU
J1900/2.0GHz
System chip
Based on Intel®Skylake-U SOC platform
display
Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4
RAM
2*DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum support 32GB

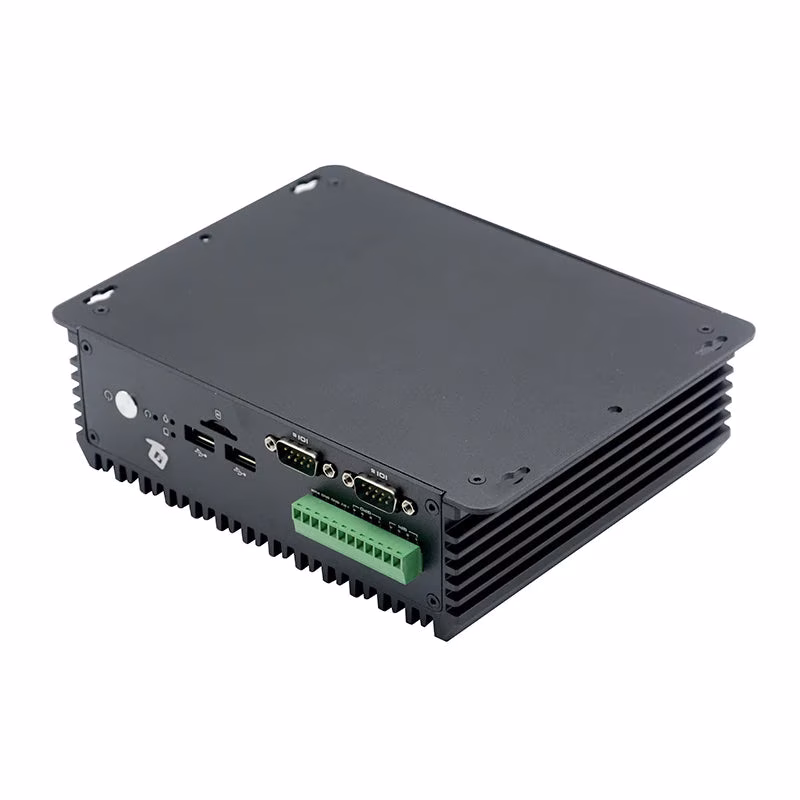

Front panel interface
POWER
1*Power switch, 1*Reset switch
AC LOSS
1*AC LOSS (Toggle switch when power on)
USB
5* USB2.0, 1*USB3.0, 1* built-in USB dongle
Phoenix terminal
1*12pin, support four in and four out GPIO, switch, 5V
SIM
1* SIM card slot, 3G/4G module application

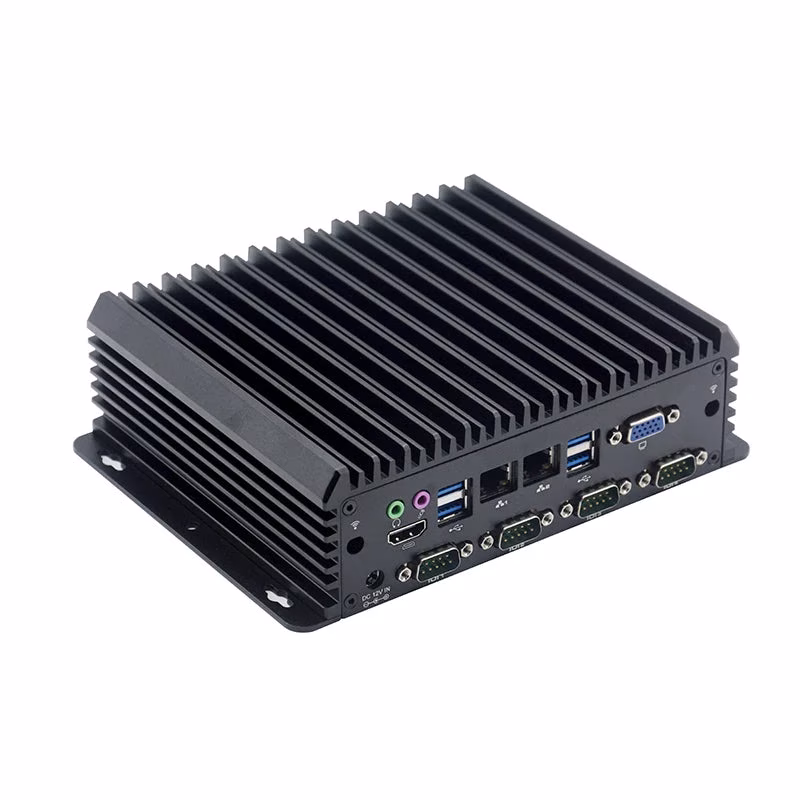

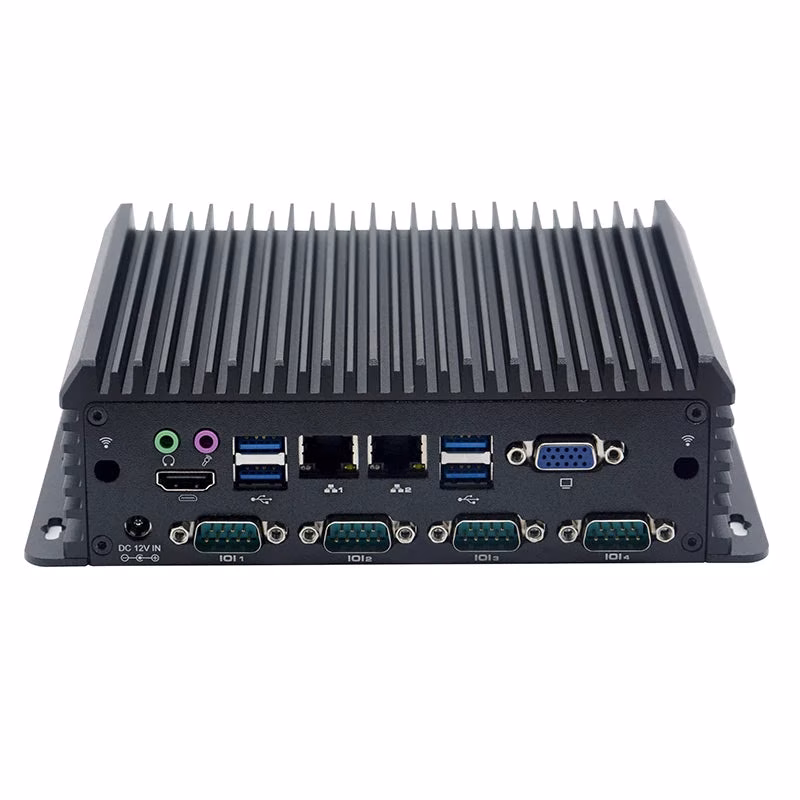

Rear panel interface
Display interface
1*VGA interface,
LAN
2*Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function
USB
4* USB3.0 interface
COM
4* DB9 RS232 serial interface, COM1/2 supports the 9th pin
Operation / Mechanical
Audio
1* Line out interface, 1* MIC interface
power supply
1* DC power adapter interface, support DC12V power input
storage
SATA
1*2.5 inch hard drive expansion
Solid state drive
1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps
Expand
Mini PCIE
1* Mini PCIE slot, support WIFI/4G module
M.2
1*M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD
software support
Microsoft Windows
Windows 10, 64bit (without key)
Linux
Ubuntu
Watch Dog
Support hardware reset function (256 levels, 0~255 seconds)
Power requirement
Power type
External power adapter
Power requirement
Voltage input
DC 12V
Power
Power output
AC TO DC, 36W / 60W
surroundings
Operating temperature
-10℃~60℃
storage temperature
-20℃~70℃
Relative humidity
5%-95% relative humidity, non-condensing
Job vibration
0.5g rms/5-500HZ/random/operating
Detail Images
Product application
