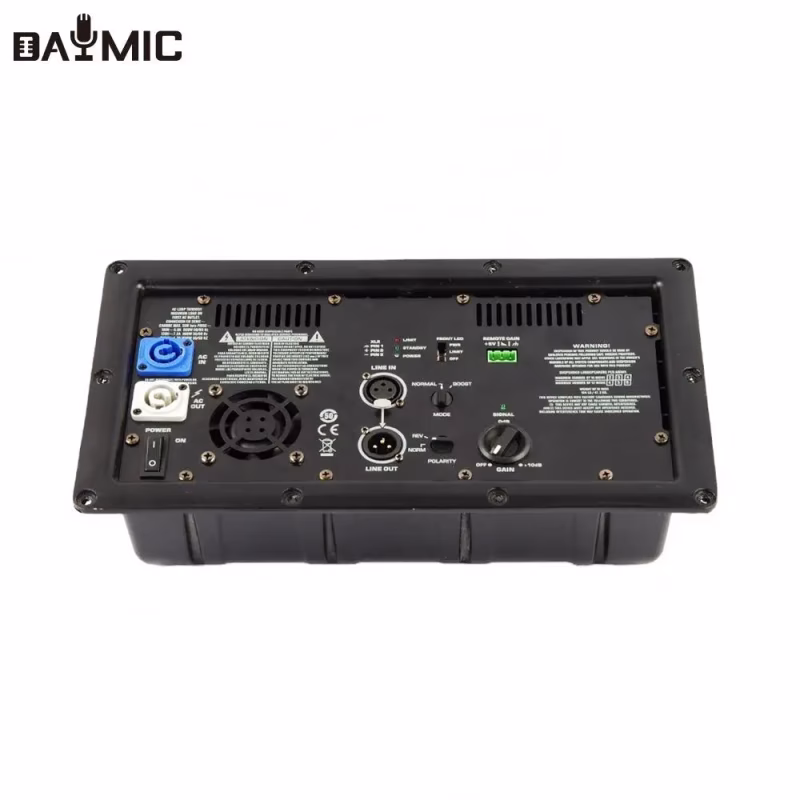

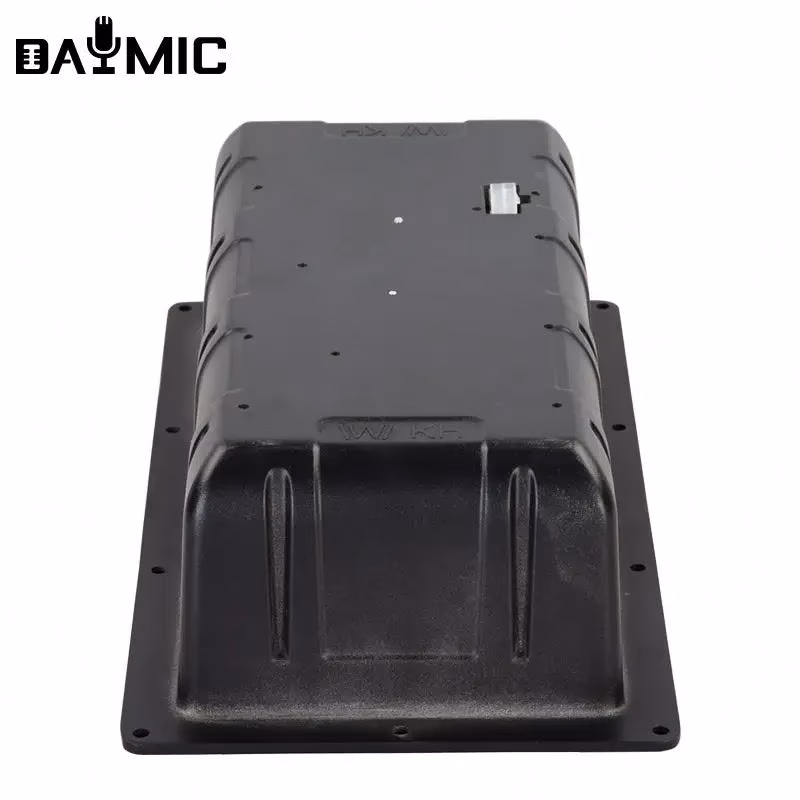

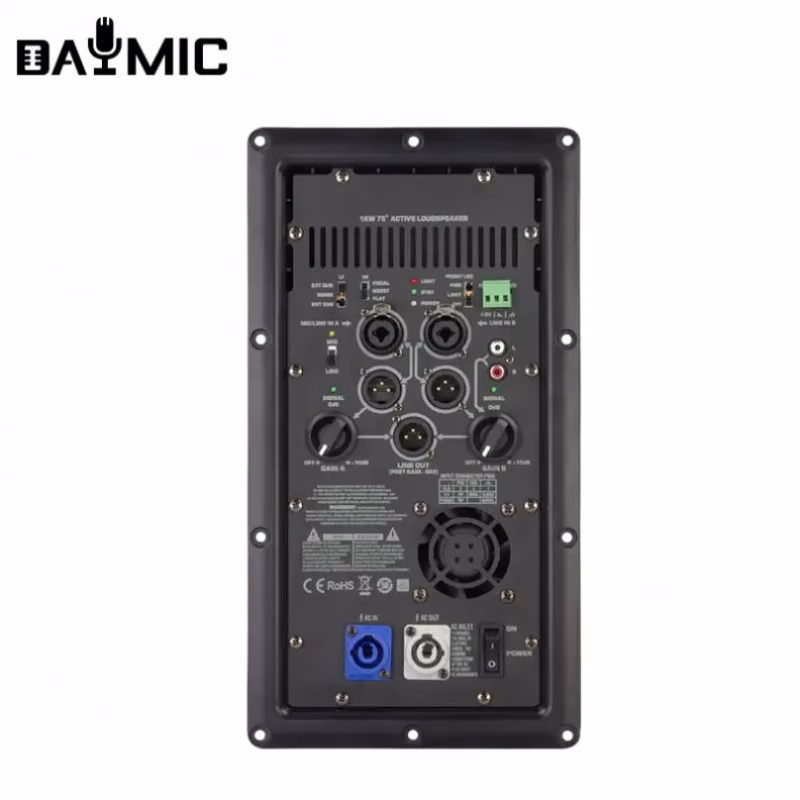

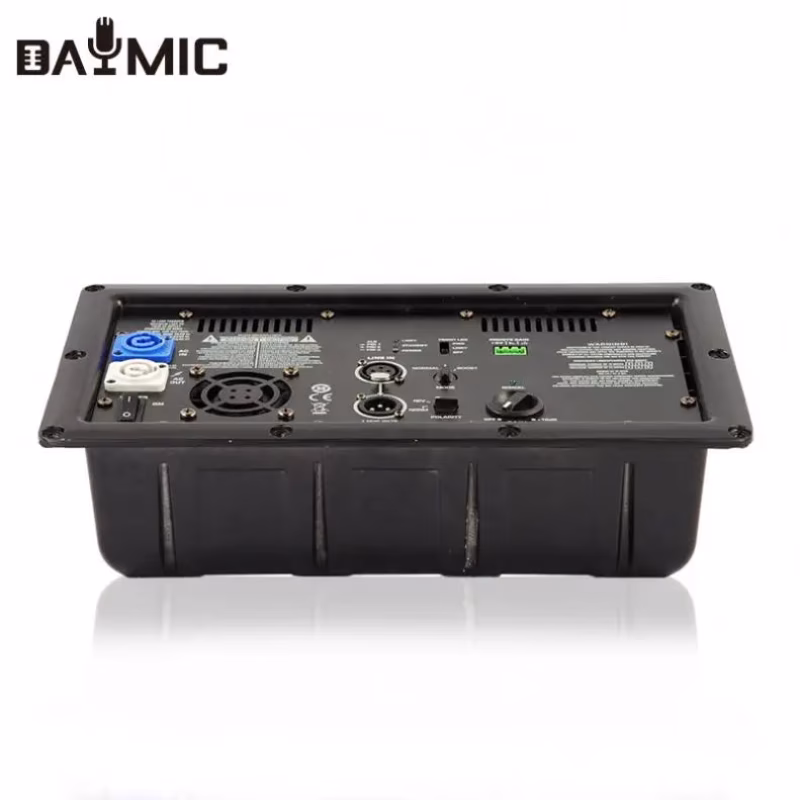

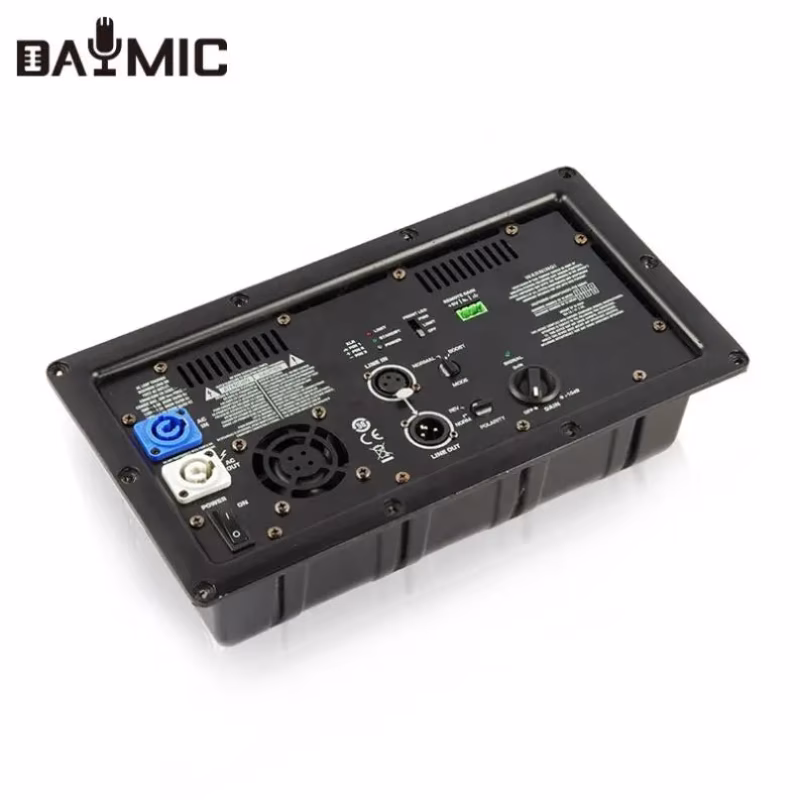

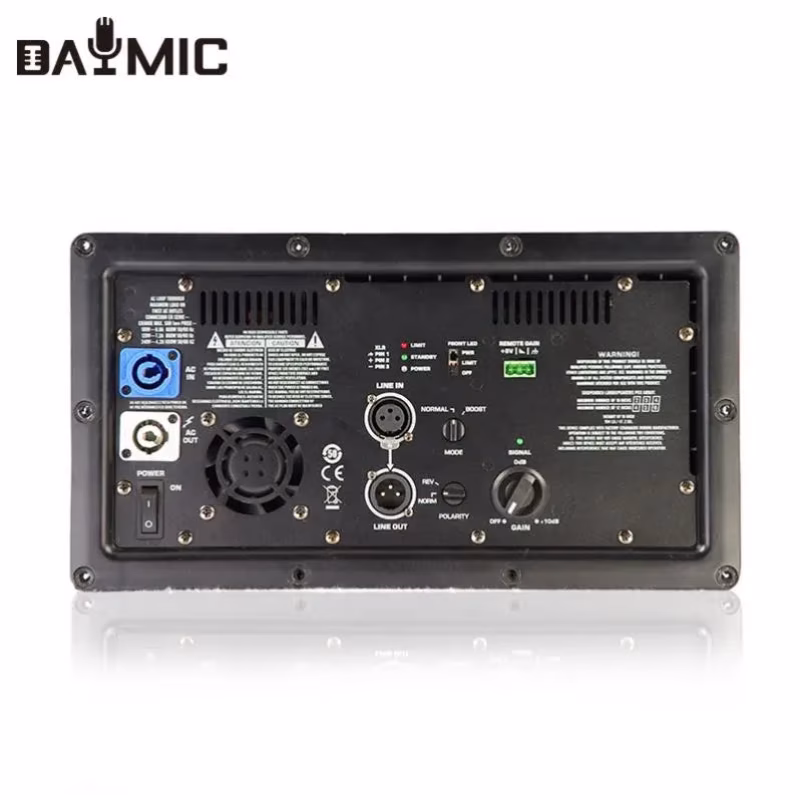

1000W professional amplifier Module board Class D Power Amp for Full-range speakers
Product Description
We are a DJ and stage equipment manufacturer.
Manufacturer Of Professional Audio Amplifiers, mixers, equalizer, limiter and crossover.
We support OEM and ODM.
If you have any special requirements please feel free to contact us.
Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
Extensive DSP enhances system performance
DMT(Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
Intrinsic Correction, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.
DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping.
Model
K12A power module
Power Output
1000 W continuous Class D
(500 W LF, 500 W HF)
2000 W peak
Input Impedance
XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced
XLR / ¼" MIC mode: 2260Ω balanced
RCA: 10 kΩ
Controls
Power, Gain A, Gain B, Mic/Line, LF Mode, HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators
Power, Signal A, Signal B, Standby, Limit, Mic
Connectors
Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
Cooling
On demand, 50 mm variable speed fan
Amplifier Protection
Thermal limiting, output overcurrent, overtemperature muting, GuardRail
Transducer Protection
Thermal limiting, excursion limiting
AC Power Input
Universal power supply 100–240 VAC, 50 to 60 Hz
AC Power Consumption
(1/8 of full power)
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
G weight
2.8KG
Dimensions (W*H*D) mm
355*190*110
Output Circuitry
Class D
