Product Description
X44 6-LAN Firewall Appliance 3865U Mini PC
-In-tel Ce-leron Processor 2955U,2M Cache, 1.40 GHz,2 Core 2 threads,TDP:15W In-tel Ce-leron Processor 3865U,2M Cache, 1.80 GHz,2 Core 2 threads,TDP:15W In-tel Ce-leron Processor J1900,2M Cache, up to 2.42 GHz,4 Core 4 In-tel Core i3-7100U Processor,3M Cache, 2.40 GHz,2 Core 4 threads,TDP:15W In-tel Core i5-7200U Processor,3M Cache, up to 3.10 GHz,2 Core 4 threads,TDP:15Wthreads - Work with 1 socket 1.35V DDR3L 1066/1333/1600MHz memory, max support to 8GB; - Supprot 1x mSATA SSD and 1x SATA 2.5 inch HDD/SSD; - Interfaces with 6x LAN In-tel 210AT 10/100/1000Mbps, 2x USB 3.0, 2x USB 2.0, 1x HD-MI, 2x COM ( one is RJ45 to RS232 console ); - OS support Windows 7/8/10, Linux, Ubuntu, CentOS, LEDE, Pfsense, SohpOS, ESXI6.7 and more; - Support wake up on LAN, virtualization, automatically power on after power failure. - 1 socket Mini PCIE for WiFi / 3G 4G module; - Fanless passive cooling, aluminum case.
Package Includes: 1x Mini PC 1x AC Adapter 1x Power Cord 1x SATA power and data cable 1x User manual
Details Images
Processor
In-tel Ce-leron Processor 2955U,2M Cache, 1.40 GHz,2 Core 2 threads,TDP:15W
In-tel Ce-leron Processor 3865U,2M Cache, 1.80 GHz,2 Core 2 threads,TDP:15W
Display
GPU: In-tel HD Graphics

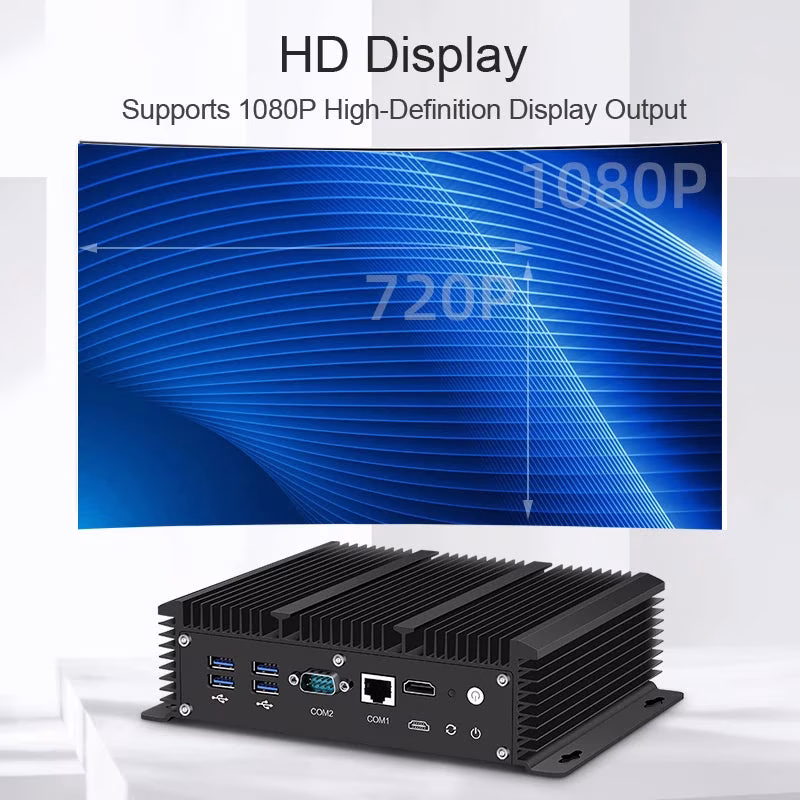

H-D-M-I:Maximum resolution 1920x1080@60Hz
Memory
2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V
1*204-pim SO-DIMM
Maximum capacity:8G
Hard Disk
SSD:1*Full Height mSATA socket,16GB/30GB/60GB/120GB/240GB/500GB/1TB mSATA SSD
HDD:Support SATA2.5"HDD
Support OS
Official Win7/8/10 ubuntu/LINUX/CENTOS/ LEDE /ESXI6.7
Notice: we pre-install Win7/8/10 OS for testing only, If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu,
Pfsense..., please contact us in time.

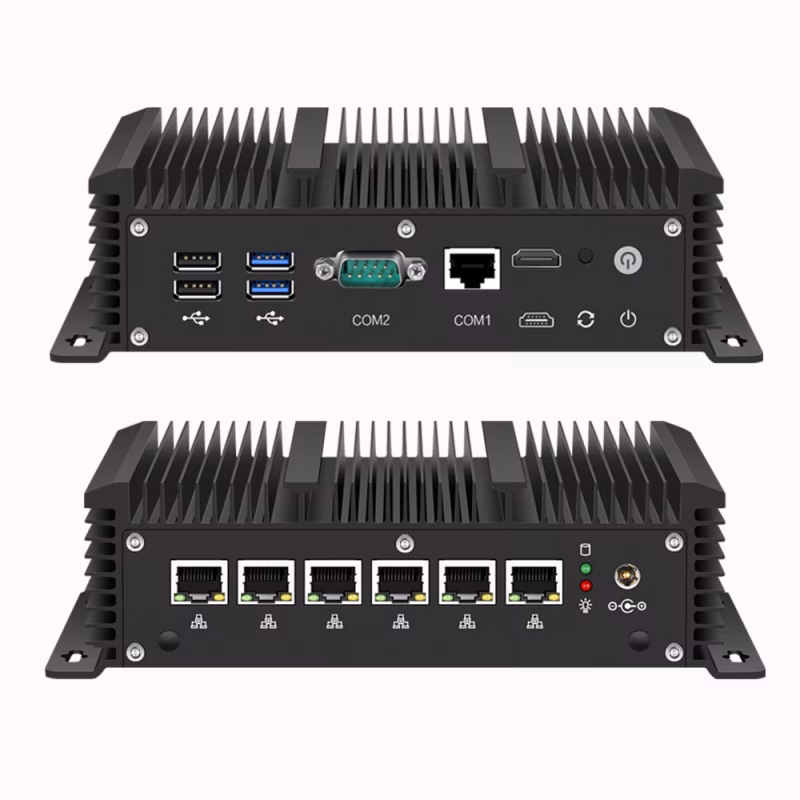

Port
2xUSB3.0 (Motherboard expandable 2 * USB2.0)
2xUSB2.0
2xRS232 COM (Motherboard can expand COM3)

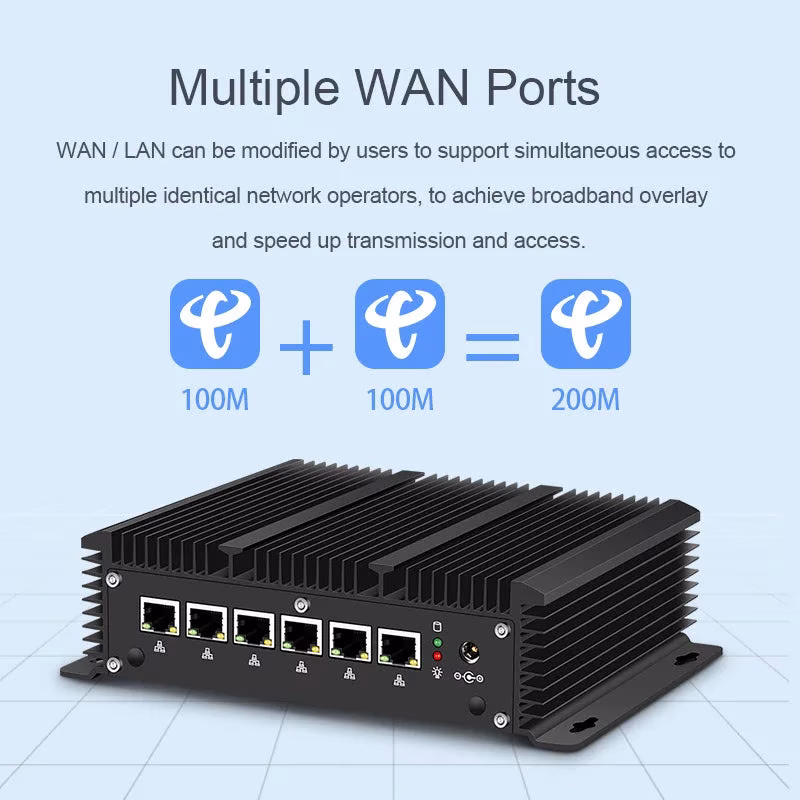

6xLAN 10/100/1000/ Mbps Intel 210AT,Support Wake on lan,S5 RTC Wake Settings
1xH-D
1x Switch
Extension
Mini-PCIe:1* Half Height Mini PCIe for WIFI/3/4G
Power Requirement
Power Type:DC-IN5.5*2.5
Power Input Vol:12V
Power Input Ampere:5A
Working Environment

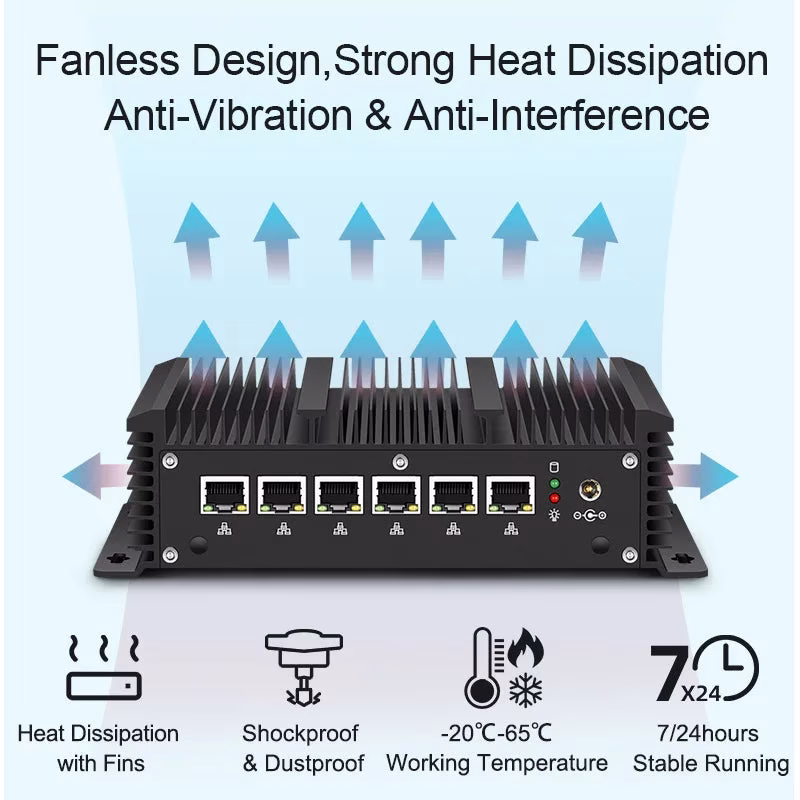

Operating Temperature ‘-20-65℃
Storage Temperature 15℃-35℃
Relative Humidity 5%~95% (non-condensing)
Dimension
209MM*150MM*58MM
Package Contents
1 x Mini PC
1 x User manual
1 x Power adapter
1 x SATA data and power cable
Customizable
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo) ☑ Computer Colors
☑ Security ☑ Interfaces Customization
☑ Virtualisation ☑ And so on...
☑ Data Protection
For more information, Pls leave your message.
