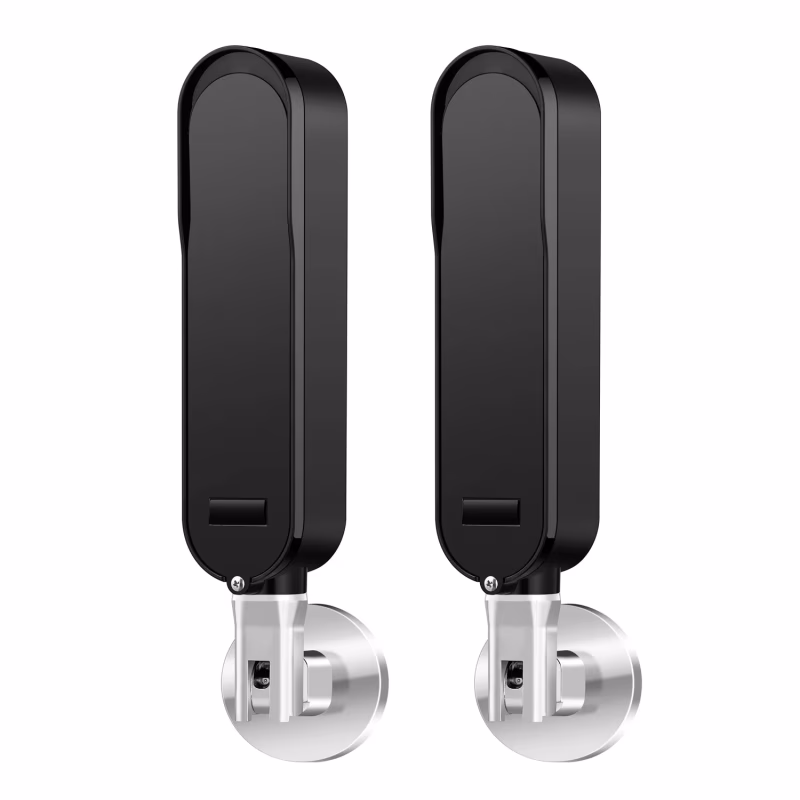

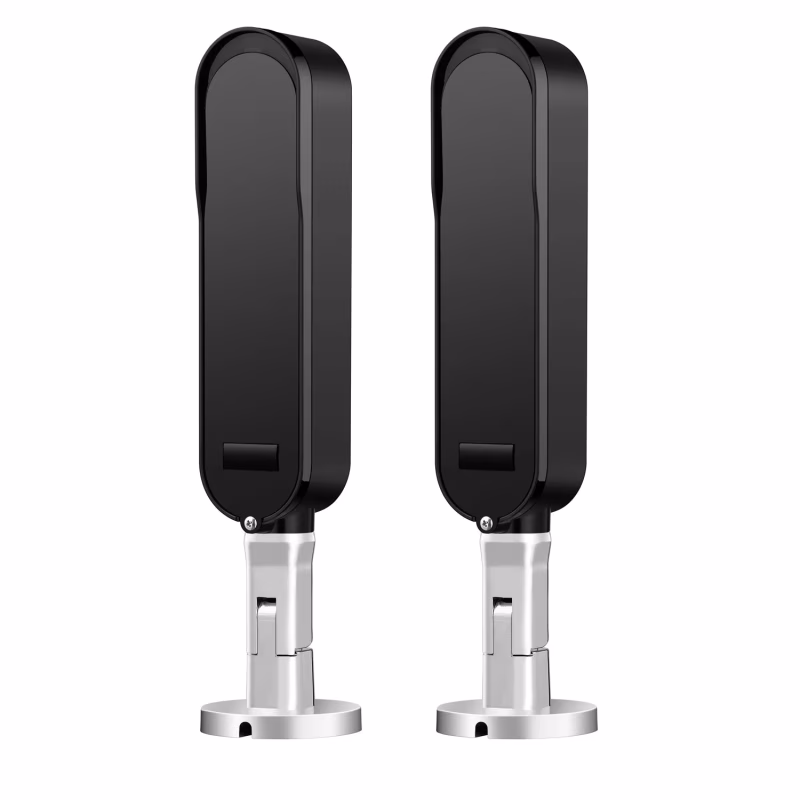

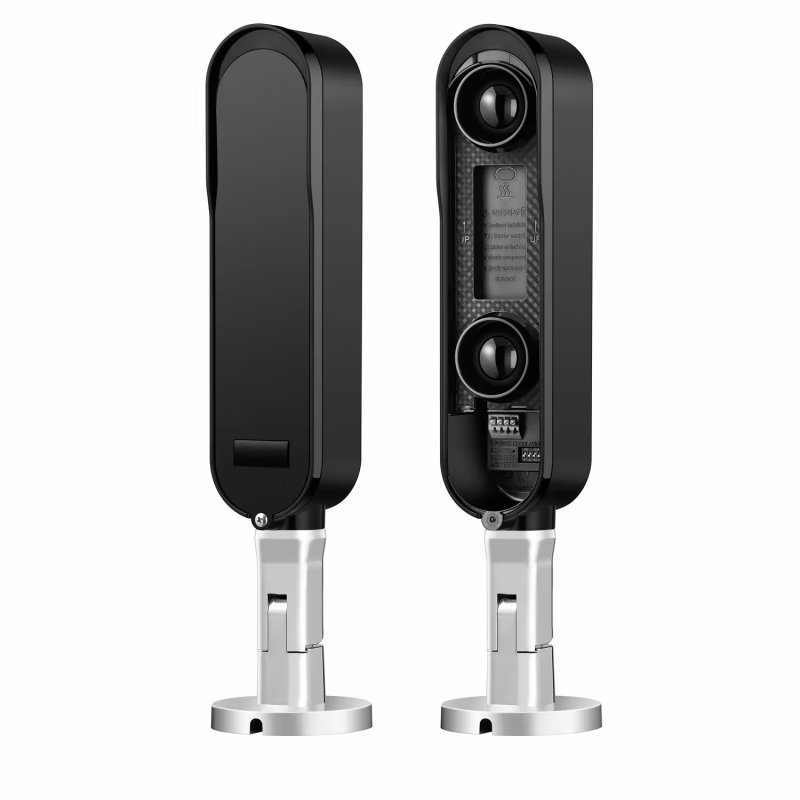

Farm Perimeter Intrusion Detection Waterproof 2 Beam IR Beam Sensor
Farm Perimeter Intrusion Detection Waterproof 2 Beam IR Beam Sensor 1
Farm Perimeter Intrusion Detection Waterproof 2 Beam IR Beam Sensor 2

Farm Perimeter Intrusion Detection Waterproof 2 Beam IR Beam Sensor

0.00 / 5 (0 user)
SKU: SHP-AFA1DB5FE7FB6C1C
Brand: Unbranded
Category: Varied
$64.35 $117.15
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
Course Prepared Subscription Prepared
Use
Home Security System
Special Features
150m
100m
60m
30m

Product Paramenters Farm Perimeter Intrusion Detection Waterproof 2 Beam IR Beam Sensor SPECIFICATIONS: Receiver: Power Source: 12V - 24V DC Working current: 90mA max Maximum Range: 30/60/100/150m Wavelength: 940nm Induction speed: 50ms Alarm output: Rela

Product Paramenters
Farm Perimeter Intrusion Detection Waterproof 2 Beam IR Beam Sensor
SPECIFICATIONS:
Receiver:
Power Source: 12V - 24V DC
Working current: 90mA max
Maximum Range: 30/60/100/150m
Wavelength: 940nm
Induction speed: 50ms
Alarm output: Relay output NC NO
Optical axis adjustment: Horizontal 360° (± 180°), vertical 90°.
Size: 327*76*71mm
● Digital frequency conversion function. Adopting the best-in-class 4-band frequency conversion technology, the product is applicable for long-distance and stacked installations, which has completely overcome the industry challenge of mutual interference for the installation of infrared through-beam photoelectric detectors under complex conditions; we use digital photoelectric technology.

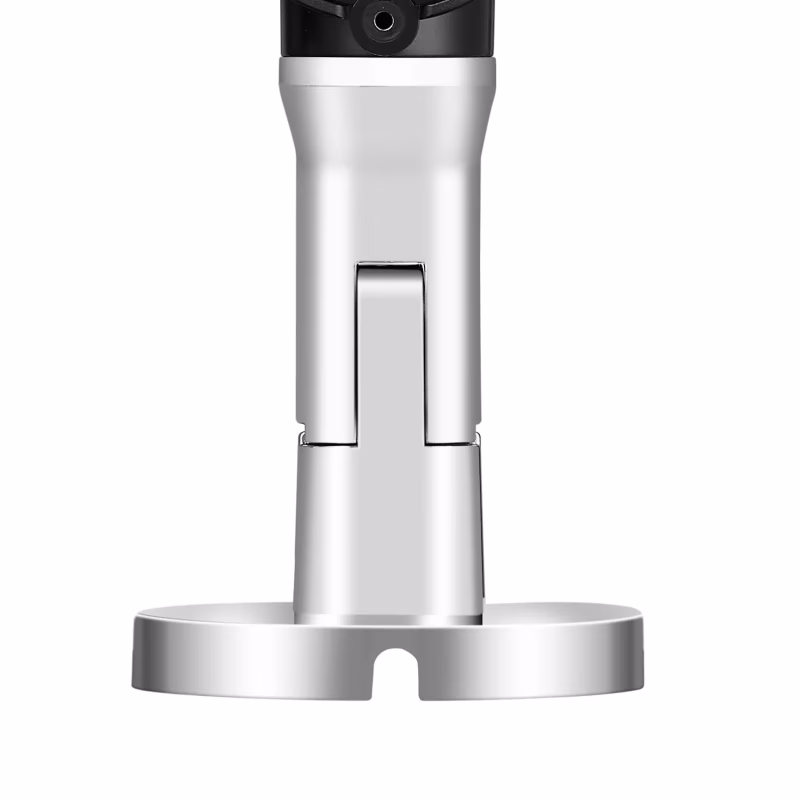

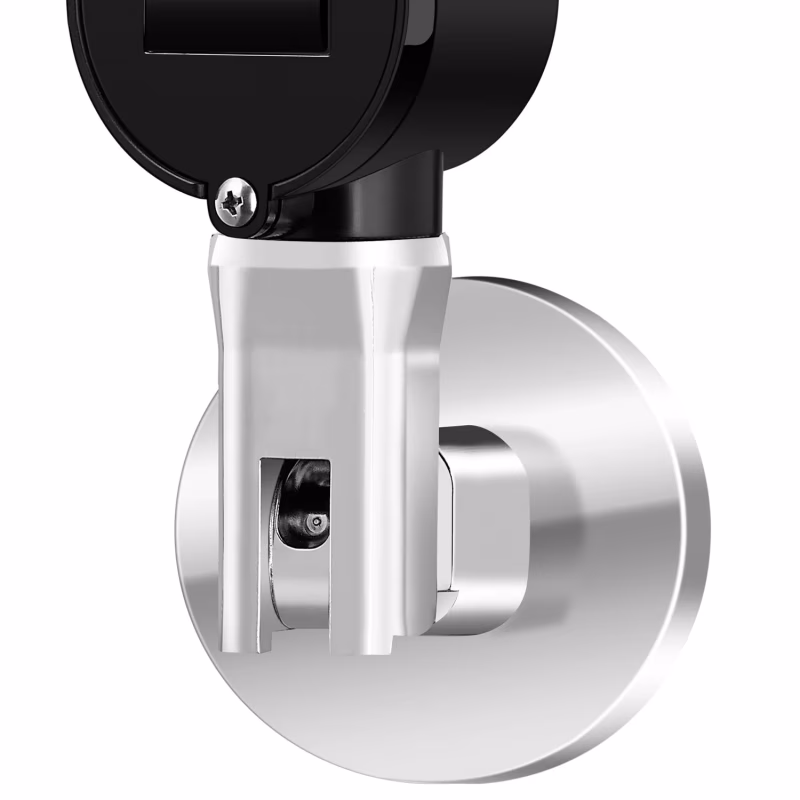

● The product has simple design and an installation bracket for easy and convenient installation.
● Indicators for specific modes offer a simple and accurate optical calibration method;
● The product is designed with a secondary processing function of infrared signals (which can compare favorably with AGC function). It ensures over 90% power redundancy, and can easily handle various adverse weather conditions such as wind, rain, frost, snow, fog, tide, direct sunshine, etc.
● Transmission and reception are controlled by the CPU-powered control circuit. High-power photoelectric transmission and reception tubes, as well as low-power digital frequency conversion and processing technology reduce false alarms and eliminate missing alarms; Wide voltage design completely solves the problem of circuit voltage drop. The power supply voltage ranges between DC12~24V and AC9-16V, facilitating integrated power supply;

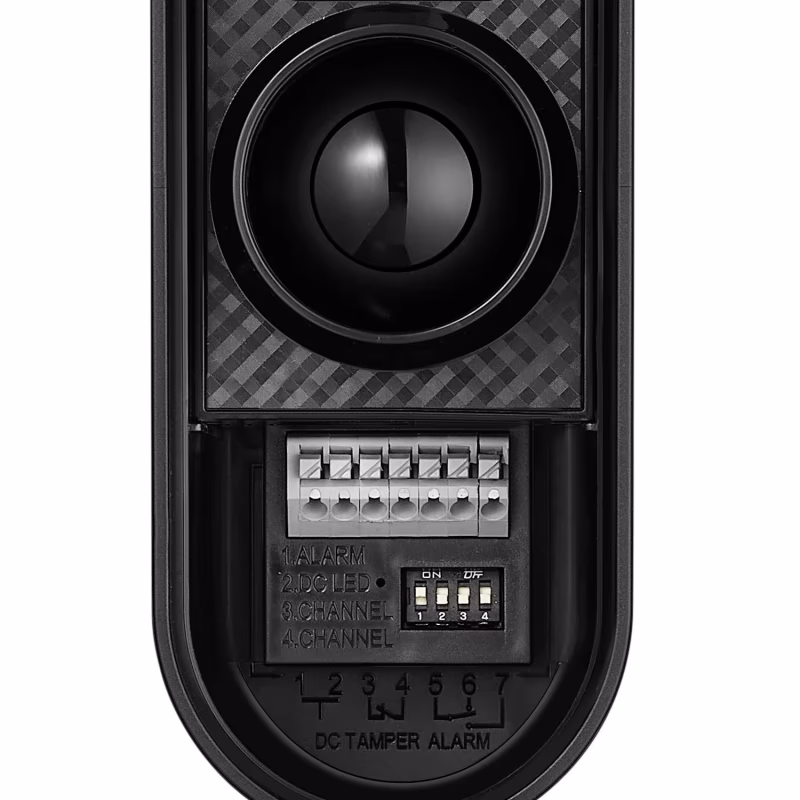

● Form-C relay output for multiple applications;
● The tamper switch is on when the casing is removed;
● Highly water-resistant: IP65 rating;
● Wide-angle optical calibration range: Horizontal 360° (± 180°), vertical 90°.
●A brand-new structural design enhances the anti-interference against sunshine inference.
Specifications for Active Infrared Beam Sensor
Model
ABF2-30
ABF2-60
ABF2-100
ABF2-150
Detection Distance
30m
60m
100m
150m
Beam
2 Beam Active IR Beam Sensor
Working Voltage
DC 12v to 24v
Working Current
90mA max
Application areas
Outdoor/Indoor
Induction speed
50ms
Detectio way
Infrared beam interruption alarm
Beam frequency
4 channel optional
Alarm Output
NC/NO :AC/DC 30V 0.5A max
Tamper Switch
NC,opens when cover is removed
Waterproof Grade
IP55
Operating temperature
-25°C~+55°C
Certificate
CE certificated
Case Material
PC
Dimensions
327*76*71mm
Products Description
