  PRODUCT INFORMATION   United Insulation rigid glasswool board provides an excellent balance of both thermal and acoustic insulation properties, which render it suitable for a broad range of industrial applications. It is particularly suited to the mecha


PRODUCT INFORMATION

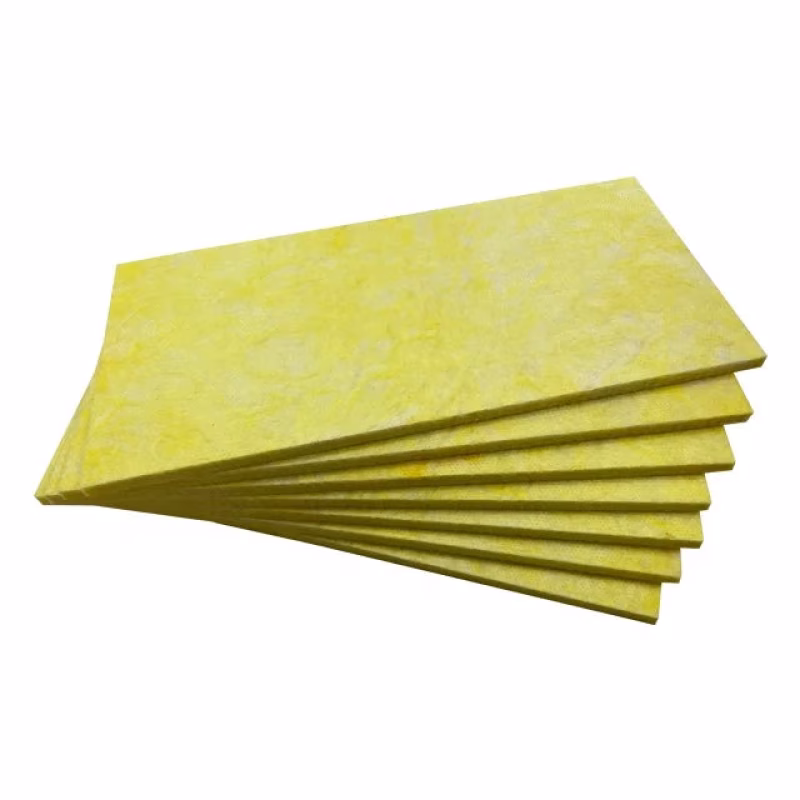

United Insulation rigid glasswool board provides an excellent balance of both thermal and acoustic insulation properties, which render it suitable for a broad range of industrial applications. It is particularly suited to the mechanical services industry where design requirements dictate optimum performance from internally lined air conditioning ducts, plant room and equipment casings.
AVAILABLE FORMS

Rigid Panel
AVAILABLE SIZE


Product Code
Density
(kg/m³)
Thickness
(mm)
Width
(mm)
Conductivty
(W/m·K)
Packing
(pcs/PKG)
PKG/40'HQ
(No#)

UET RIGID 6425
64
25
1200
0.034
1
Loading Qty,
Please consult

UET RIGID 6430
64
30
1200
0.034
1

UET RIGID 6450
64
50
1200
0.034
1

UET RIGID 8025
80
25
1200
0.033
1

UET RIGID 8030
80
30
1200
0.033
1

UET RIGID 8050
80
50
1200
0.033
1

UET RIGID 9625
96
25
1200
0.032
1

UET RIGID 9630
96
30
1200
0.032
1

UET RIGID 9650
96
50
1200
0.032
1
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET RIGID 8050


Tested Content
Tested Method
Tested Value

Density
ASTM C612
80kgs/m³

Thickness
GB/T 17795-2008
50mm

Average diameter of fibers
GB/T 17795-2008
6.0μm

Coefficient of Heat Conductivity
EN12667
0.033W/m·K

Thermal Resistance
ASTM C653
1.50m²·K/W

Average NRC
EN ISO 354
1.00

Maximum Service Temperature
ASTM C411
170°C

Corrosion Resistance
ASTM C665
NO Chemical Reaction

Mold Resistance
ASTM C665
Mildew proof

Moisture Absorption
ASTM C1104
Less 3% by weight

Humidity veneration Rate
ASTM E96
Max 0.013g/24Hours·m²

Non-Combustibility
ASTM E84
Flame Propagation: 25; Flame Diffustivity: 50

SOUND ABSORPTION


Thickness(mm)
125 Hz
250 Hz
500 Hz
1000 Hz
2000 Hz
4000 Hz
NRC

25
0.03
0.25
0.62
0.92
1.03
0.97
0.70

30
0.02
0.44
0.96
1.17
1.16
1.12
0.95

50
0.19
0.64
1.08
1.13
1.06
1.06
1.00
AVAILABLE FACINGS

Unfaced, Foil-Faced

PACKAGING

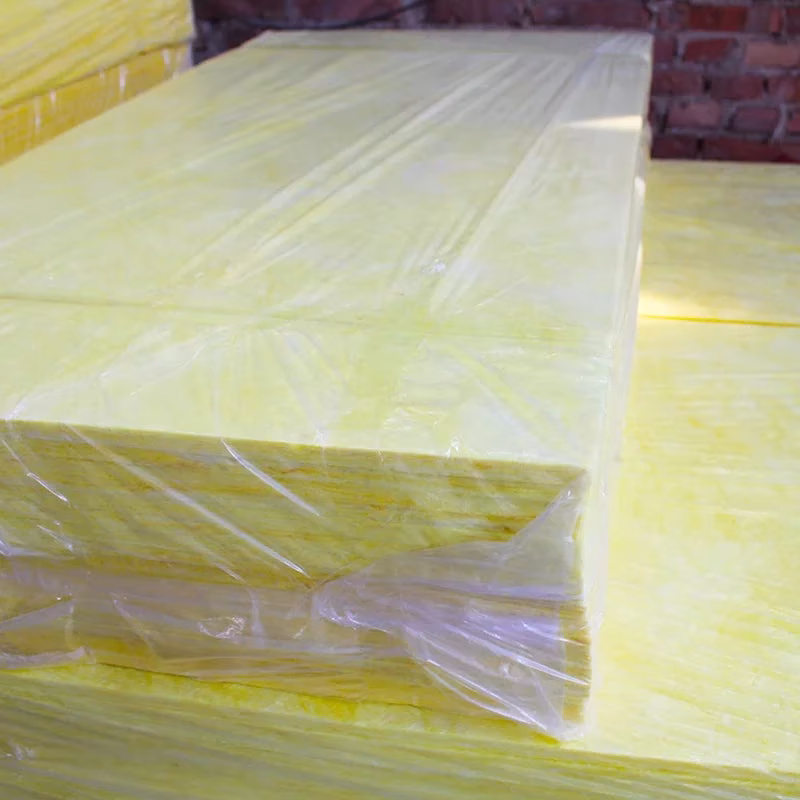

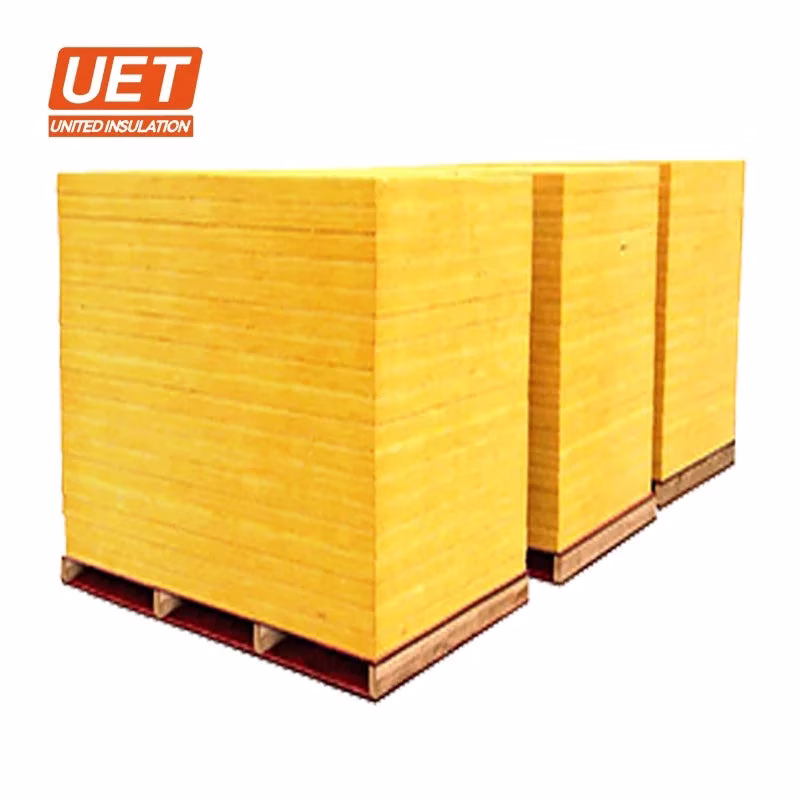

Rigid board is wrapped by a stretch shrink film, packed in Caton. It's easy to load and un-load with forklift to save labor cost and save storage space.

STORAGE AND TRANSPORT

Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.

QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE

ISO 9001: 2008, ISO 14001:2004
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE

Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS

•
Excellent thermal and acoustic properties
• Easy to fasten
• Made to size to reduce wastage
• Excellent machanical performance
• Available in various densities to meet specific performance

Keep Cool

Keep Warm

Fire Proof

Moisture Proof

Noise Control

Sustainbility

Save Cost

Health Safe

APPLICATIONS

It is recommended for the optimum thermal and acoustic insulation of industrial equipment, domestic appliances and sheet metal ductwork, operating at up to 170°C.
NOTICE

Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
