Product Name:FR1050E Current 10000A Test Digital AC Clamp Meter Function: current test, leakage current test Coil inner Dia.:300mm Current range: 0mA-10000A Current resolution: 1mA  AC voltage: 0V-750V AC DC Voltage:0.0V-1000V DC Data storage: 500 groups

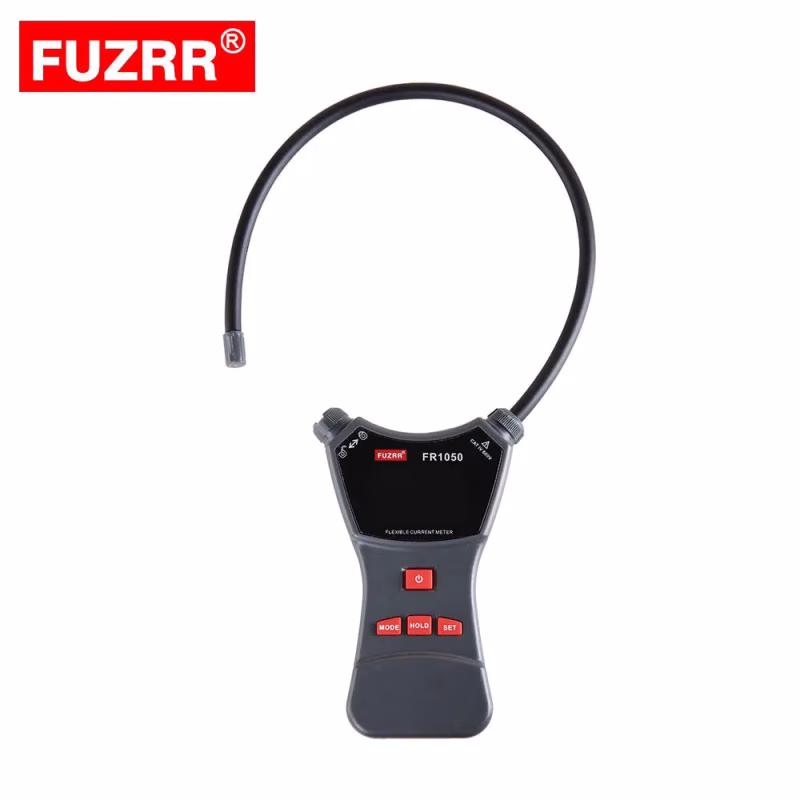

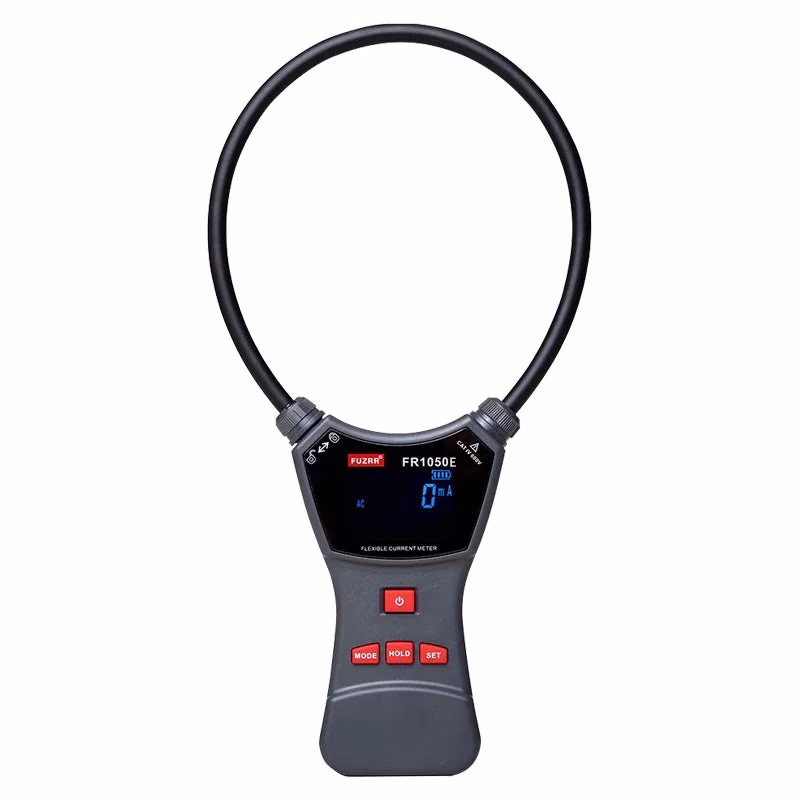

Product Name:FR1050E Current 10000A Test Digital AC Clamp Meter
Function: current test, leakage current test
Coil inner Dia.:300mm
Current range: 0mA-10000A
Current resolution: 1mA
AC voltage: 0V-750V AC
DC Voltage:0.0V-1000V DC
Data storage: 500 groups
Have backlight function
 Application: FR1050E series flexible current clamp meter is well-designed and manufactured for field test of AC large current and leakage current, with high accuracy, good linearity, and anti-interference ability, it can replace the traditional ordinary clamp meter and large diameter clamp meter to measure large current and leakage current.,widely used in electricity, communications, meteorology, railways, oil fields, construction, measurement, research and teaching units, industrial and mining enterprises and other fields. It is especially suitable for places where cables are dense, transformers are connected to the wall for current measurement of subway cores, and tests for thick wire cables are conducted,suitable for current testing of industrial environments such as relay protection, thyristor rectification, variable frequency speed control, semiconductor switching, power electronics conversion equipment, arc welding, etc. with severely distorted signals.

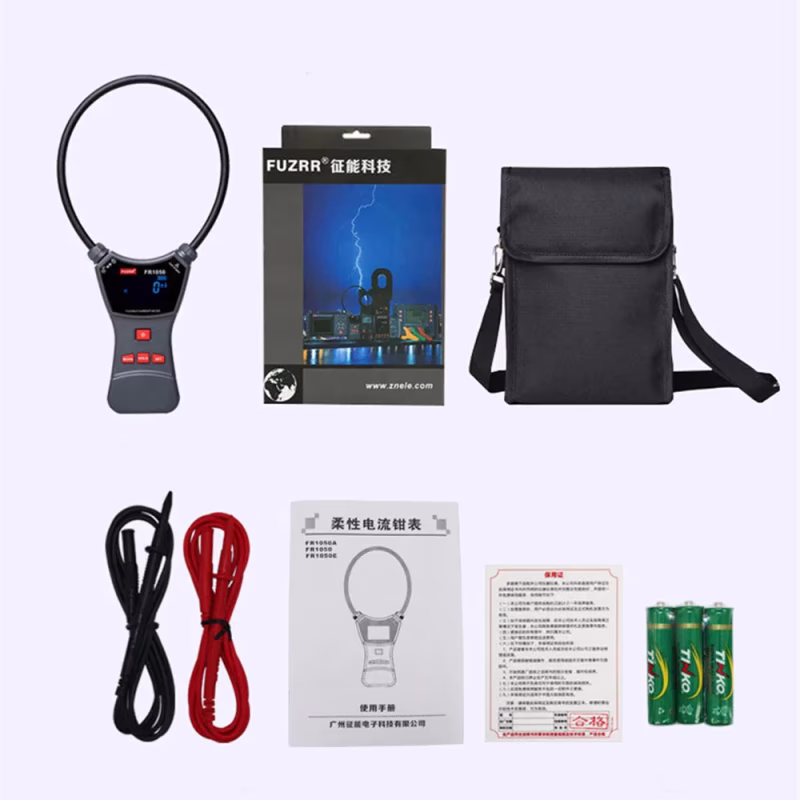

Accessories

Instrument
1PC
Test pen
1SET(red and black each 1)

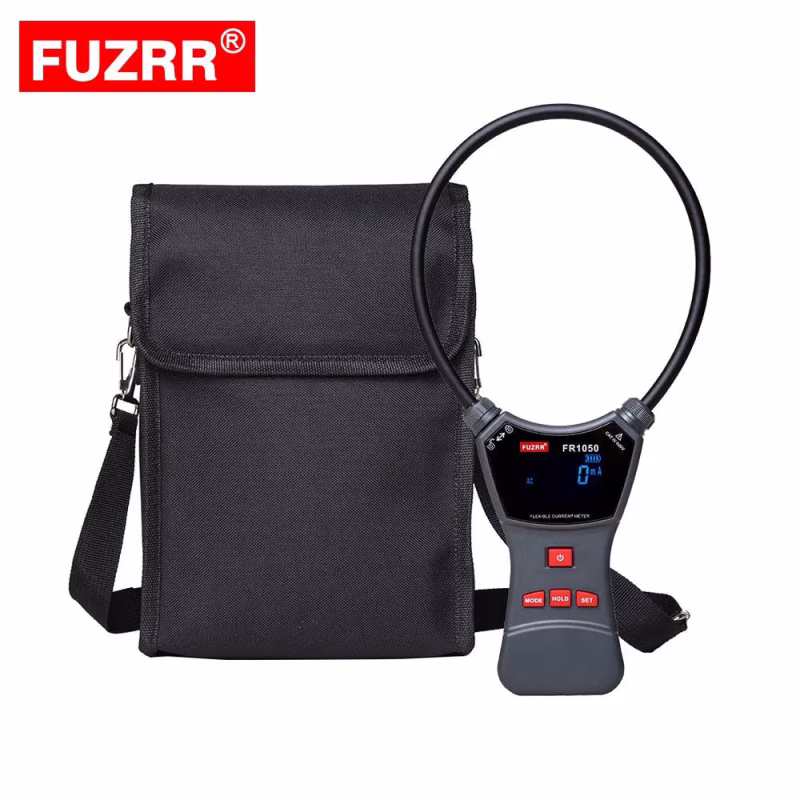

Instrument bag
1PC
Instrument battery
7#  alkaline AAA batteries 3 section
Manual, certificate
1SET


Technical Specification
Function
Current test, leakage current test
Current accuracy
Accuracy ±2%±5dgt (The wire is at the center of the flexible coil,23℃±2℃)

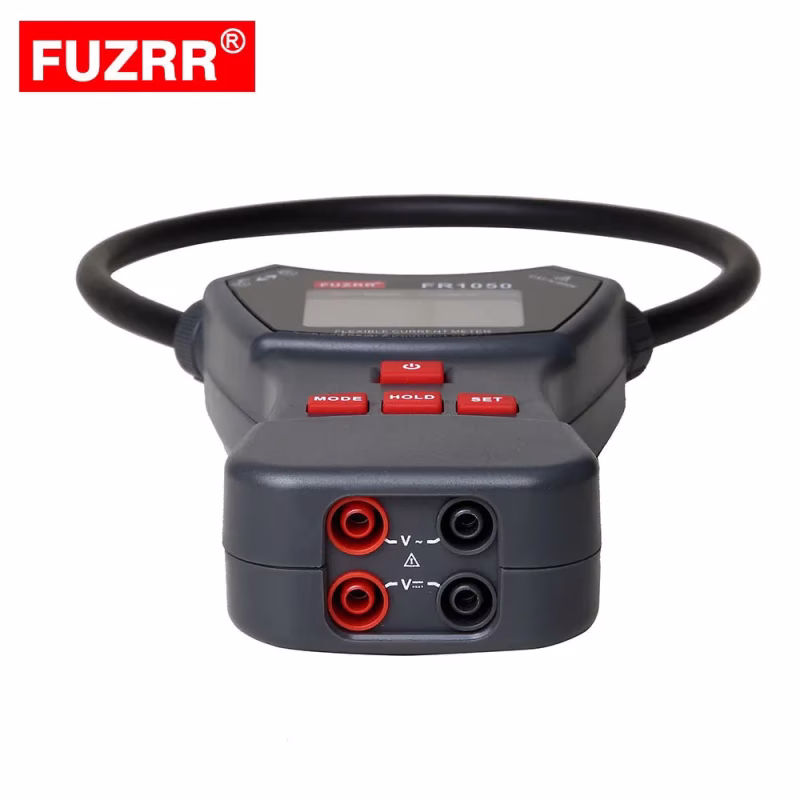

AC voltage
0.0V~750V AC   Accuracy±1.5%rdg±3dgt
AC voltage resolution
0.1V
DC voltage range
0.0V~1000V DC  Accuracy±1.5%rdg±5dgt
DC voltage resolution
0.1V
Sampling rate
2times/sec
Power
DC4.5V 7# alkaline battery(1.5V AAA×3)
Backlight
Have
Test method

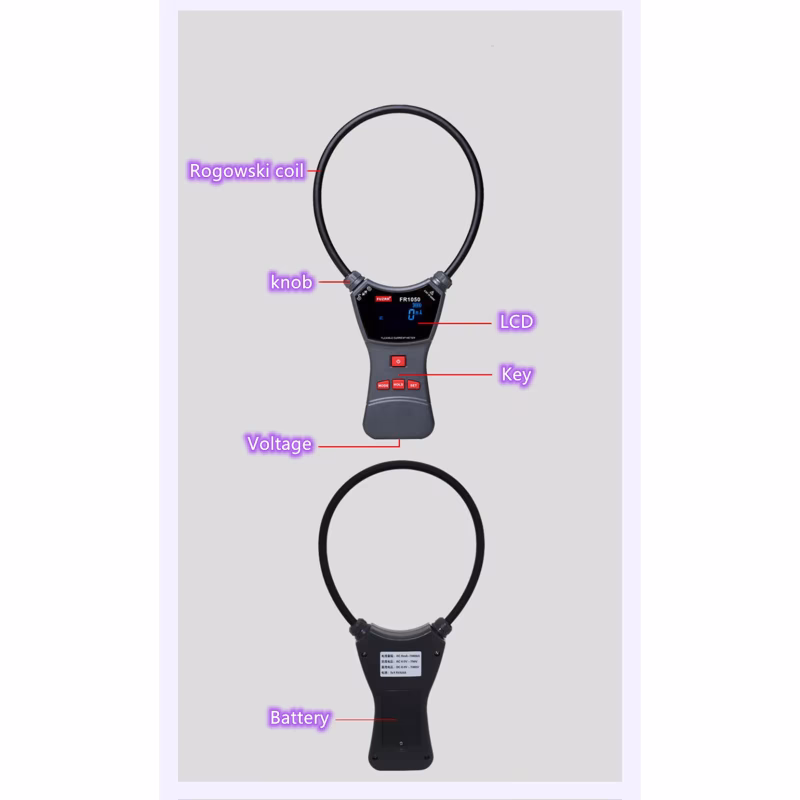

Flexibility CT
Instrument size
Host size:W/T/H: 151*100*35mm(not including coil)
LCD size
45mm×28mm
Coil thickness
Φ8mm(Suitable for narrow environments and cable-intensive places)
Instrument total weight
220g(φ150mm caliber, including battery)
Overflow display
Over-range overflow function:“OL”symbol display
Data storage
500groups
Data is full
Data full function:“FULL”symbol display
Battery voltage
The battery voltage is 4 grids. When the battery symbol is empty, the battery is less than 3.15V.
Insulation resistance
Larger than 100M(1kV)
Working temperature and humidity
-10℃~40℃  below 70%rh
Storage temperature and humidity
-10℃~60℃  below 80%rh
Suitable for Safety Regulations
IEC1010-1,IEC1010-2-032, pollution grade 2,CAT Ⅲ(600V) IEC61326(EMC standard)
