Good heat dissipation IPS LCD Color Screen Linux 3.5 Inch LCD Module All-fit black effect sc01 plus 16MB touch screen monitor Product Description Brief Introduction: 1. WT32-SC01 Plus is a development board for color touch screen, the board is equipped wi

Good heat dissipation IPS LCD Color Screen Linux 3.5 Inch LCD Module All-fit black effect sc01 plus 16MB touch screen monitor
Product Description
Brief Introduction:
1.
WT32-SC01 Plus is a development board for color touch screen, the board is equipped with
GUI platform firmware developed independently, support graphic drag and drop programming to help users complete the development of customized control platform.
2. The main controller of
WT32-SC01 Plus development board adopts WT32-S3-WROVER-N16R2 module, this module is a general-purpose
WiFi + BT + BLE MCU module, 16MB SPI flash and 2MB PSRAM are configured in.
3. WT32-SC01 has been upgraded to WT32-SC01 Plus  that development board can esay to assemble,can be perfectly combined with the user's product through the buckle,all-fit black effect and good heat dissipation.
4.It also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shorten the development cycle of users.
Product Parameters
1.Specification Details
Product Type
Development board
Product Model
WT32-SC01 Plus
CPU
Dual core xtensa 32 bit LX6 MCU
Module
WT32-S3-WROVER-N16R2
WIFI
2.4GHz WiFi 802.11 B / g / N protocol
Blue-tooth
V4.2 BR/EDR/BLE standard
Display
3.5 inch, LCD screen, two touch
Resolition
480*320
Power
DC 5V 2A
OperatingTemperature
-20~70°C
Interface
Speaker/TP/LCM/RST/Type-C/UART
Clock frequency
80 ~ 240 MHz
Antenna
PCB board
Dimension
92mm*60mm*10.8mm
2. PCB Dimension Diagram
3. Physical Dimension
>> Send me inquiry for price, packing, shipping, sample, OEM & ODM service details!

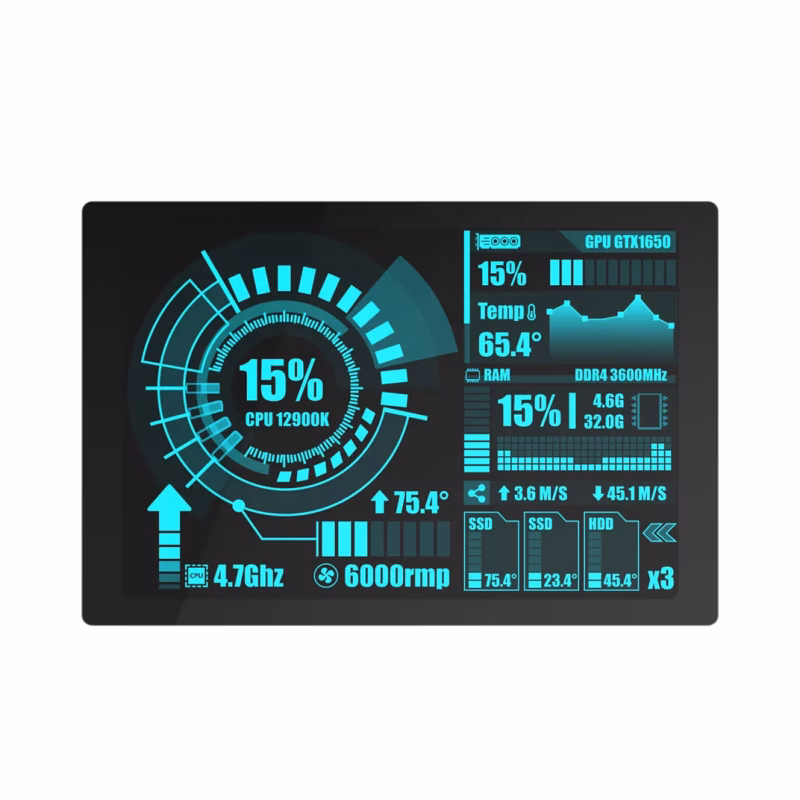

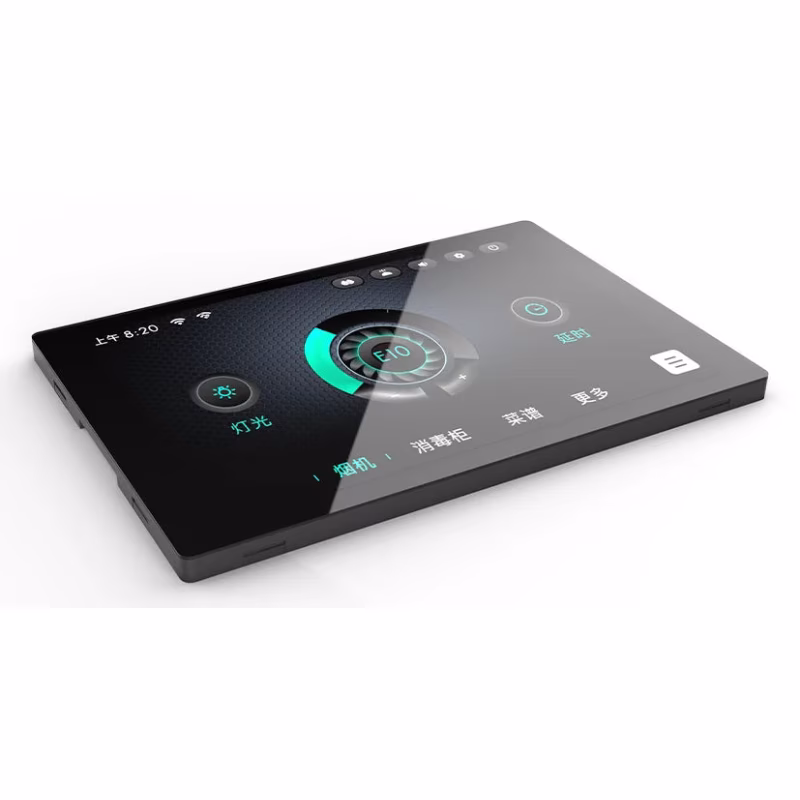

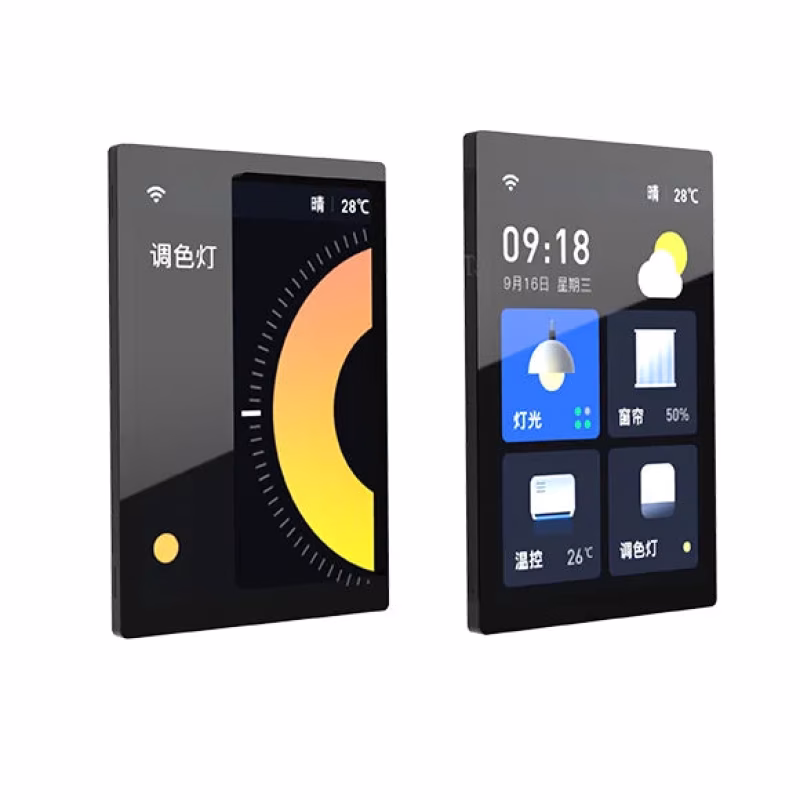

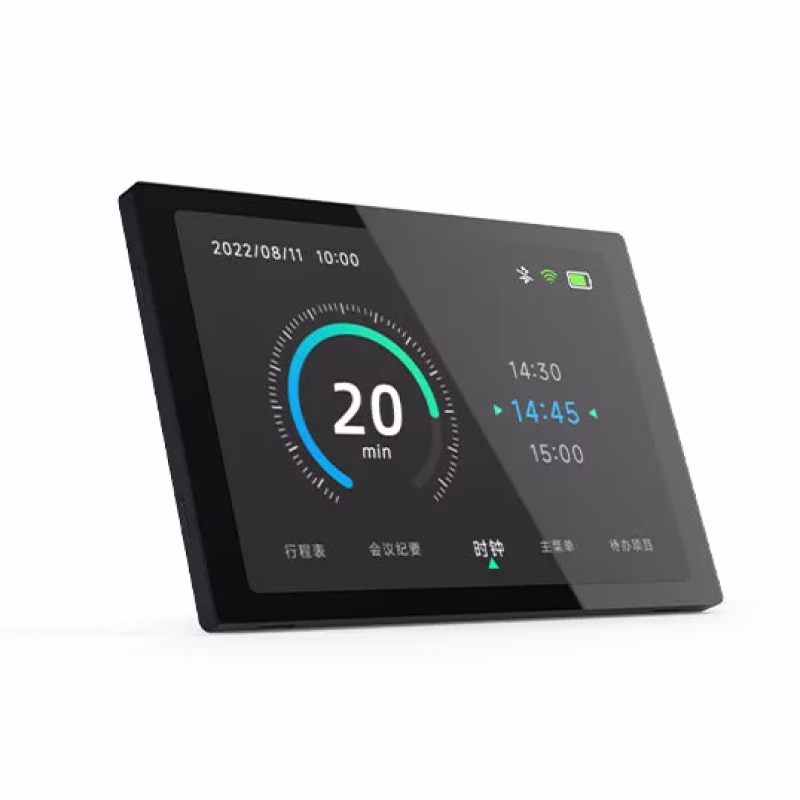

Product Application
