Hd 720p Health Beauty Care Hair face Scalp Microscope Camera Wifi Wireless Skin Detector,Skin Inspection Microscope
Product Display
BW36 AI smart scalp hair analyzer is an instrument used to detect scalp hair. It is equipped with professional analysis software to help doctors or beauticians and health professionals observe and detect the health status of patients or consumers' scalp, hair and hair follicles. Image storage, automatic analysis or picture comparison detection help consumers intuitively and quickly understand the health of their scalp, hair, hair follicles, understand the cleanliness of the scalp, the oily / dryness of the scalp hair, sensitivity, dandruff, scalp Erythema, excessive secretion of oil, blocked pores, hair growth, hair loss, white hair, damagedstatus, and other scalp hair conditions.
Product Description
Picture:
CMOS sensor
Controller:
High-speed DSP (M-JPEG)
Magnification range:
50X and 200X (manual focus)
Focusing range:
0 ~ 40 mm, other ranges can be customized
Frame rate:
20 ~ 30 frames / second
Resolution:
1280*720
Pixel:
Hardware HD 720P
image resolution:
640*480 (resoluution of preview image)
Take a picture:
built-in
Photo storage format:
jpg
Light source:
6 built-in bright white LED lights + 6 UV violet lights
Lighting range:
0 ~ 30000LUX
WIFI standard:
IEEE 802.11 / b / g / n
Fixed bottom seat:
special base
Application software:
Scalp (iOS and Android )
Support system:
iOS and Android systems
Battery:
Built-in high-performance 1000mA lithium polymer battery
Power:
USB (5V DC)
Language:
Chinese , English (other languages can be customized)
Product size:
142 mm (length) x 37 mm (width)
Color:
Purple(other colors can be customized)
Product net weight:
100g
Product Features
Professional AI intelligent scalp hair analysis system can perform professional detection and analysis on scalp hair on iOS and Android systems:AI intelligent automatic analysis of 5 major items of scalp hair: 1.Oil control,2.Pore clogging,3.Scalp allergy,4.Hair loss,5.Hair density;
Double picture comparison + four picture comparison,,image save,analysis report save,member archive,recommend products,save history report. The Android system analysis report can be shared to WeChat friends or to WeChat circle of friends. IOS system requires mobile phone screenshot to save the analysis report.

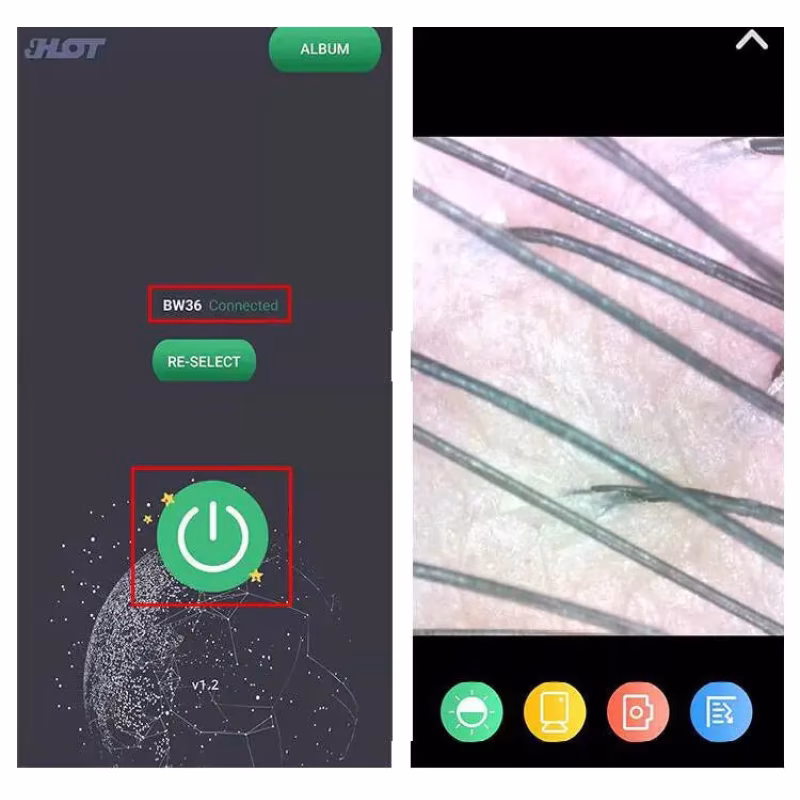

AI Smart scalp hair analysis system APP: (iOS and Android)
Member Management Interface
Product recommendation interface
Ai intelligent analysis interface
Comprehensive analysis report interface
Single analysis report interface
Four-picture comparison interface
Operation Guide:
1.Products connect the phone,turn on the LED ligh switch
2.Install the application software HotMac
3. Place it on the workbench, and then adjust the focus wheel of the microscope to make the image clear.
Product applications:
Safety Warnings and Precautions
1.Do not disassemble the product to avoid electrostatic breakdown precision chip.
2. Do not use alcohol or other organic solvents to clean the product.
3. Do not touch the lens with your fingers, so as not to cause scratches and dirt surface.
4. outdoors should avoid high temperature and high humidity environments, short-circuit proof
electronic devices.
This product is not waterproof, please avoid rain and water.
5. this product appropriate use and storage temperature range : 0 ° C ~ 40 ° C,
relative humidity: 45% RH ~85% RH.
6. If you accidentally make foreign objects or water / liquid to enter the number of product inside,
immediately disconnect the power supply and to the dimension Repair center overhaul, not
themselves.
7. Equipment Standard contrast picture is only for reference, user-replaceable.

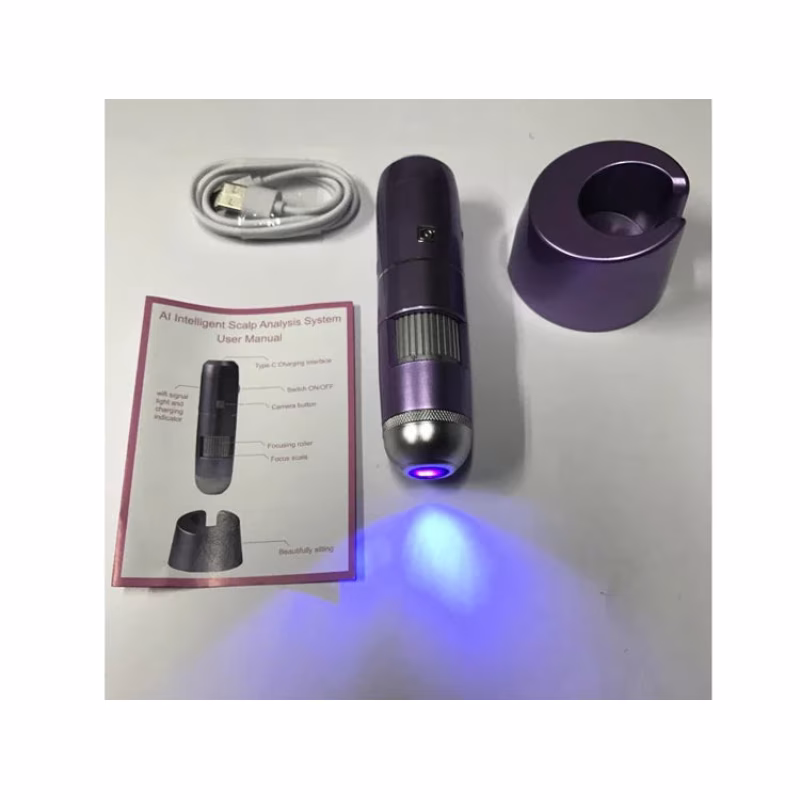

Product packing including:
1pcs/white gift box
* AI smart scalp hair analysis wifi microscope 1pcs
* Type-C USB data cable 1pcs
* Base 1pcs
* paper manual 1pcs
