HUASIFEI WE826-Q industrial 4g router Wireless Network Hotspot 4g sim router wifi
HUASIFEI WE826-Q industrial 4g router Wireless Network Hotspot 4g sim router wifi 1
HUASIFEI WE826-Q industrial 4g router Wireless Network Hotspot 4g sim router wifi 2

HUASIFEI WE826-Q industrial 4g router Wireless Network Hotspot 4g sim router wifi

0.00 / 5 (0 user)
SKU: SHP-B9FFA9F8772DC486
Brand: Unbranded
Category: Electronics
$77.01 $159.26
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Color
Black
Model Number
WE826-Q

Product Description WE826-Q 3G/4G openWRT Wireless Router with sim card slot The WE826-Q uses the latest wireless solution, performance is better and more functions. Stable wireless signal,stronger scalability, the Max transmission rate can up to 1200Mbps

Product Description
WE826-Q 3G/4G openWRT Wireless Router with sim card slot
The WE826-Q uses the latest wireless solution, performance is better and more functions. Stable wireless signal,stronger scalability, the Max transmission rate can up to 1200Mbps (the 11ac PCIE mode is necessary). 2.4GHz up to 300Mbps, 5G up to867Mbps. Also support 3G,4G (3G,4G PCIE module is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card), also support watchdog feature. Provide 1 USB2.0 interface, 1 Micro SD slot .
bands Situation
For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules and update the price for you.
4G AU version (Australia / New Zealand / Taiwan / Brazil)
LTE-FDD: B1/B3/B4/B5/B7/B8/B28/
LTE-TDD:B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
4G EU version (Europe / Middle East / Africa / Korea / Thailand)
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
4G USA version (North American AT&T)
LTE-FDD: B2/B4/B12
WCDMA: B2/B4/B5
4G Global version
LTE TDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Product Feature
* Support 802.11ac/802.11a/802.11n/802.11g/802.11b network protocol, the transmission rate up to 1200Mbps(2.4G 300Mbps+ 5G
867Mbps)
* Support 802.3/802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
* 1 USB 2.0 interface
* 1 Micro SD Card Slot
* Support 3G/4G
*1 SIM slot
* Many kinds of way to protect your data transmission;
Hardware
Product Specification
Main Chipset
QCA9531
RAM
DDR2 128MB (MAX DDR2 256MB)
SPI FLASH
16MB (MAX 16MB)
Protocol
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a
IEEE 802.3, IEEE 802.3u
RT Power
802.11b 18dBm±2dBm;
802.11g 15dBm±2dBm;
802.11n 15dBm±2dBm;
802.11ac depends on the 11ac module;
Reception Sensitivity
802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER
802.11n: -68dBm@10% PER
802.11ac: depends on the 11ac module;
Work Channel
2.4GHz choose :1-13
5GHz choose :149、153、157、161、165
Wireless Rate
Max 1200Mbps(depends on the 11ac module)
Work Frequency
2.4GHz,5.8GHz
Antenna
2 or 4 removable 5dBi antenna
Interface
1 PCI-E slot
1 SIM card slot
1 USB 2.0 port
1 Micro SD card slot
1 10/100M WAN port(Auto MDI/MDIX)
4 10/100M LAN port(Auto MDI/MDIX)
LED
Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button
Reset/WPS
Max Power consumption
< 12W

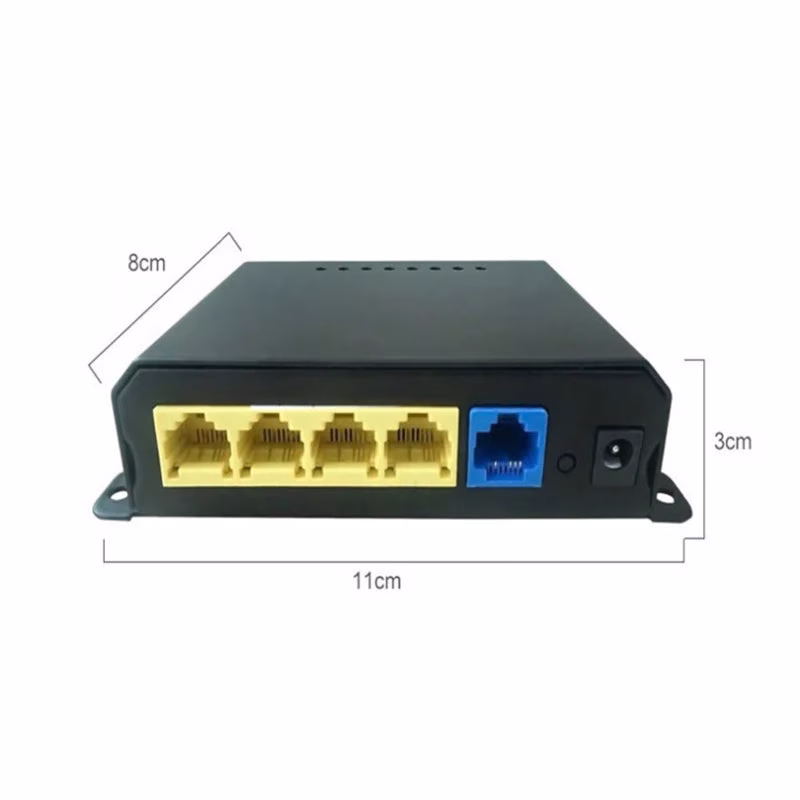

Dimension(L*W*H)
141*85*26MM
