KV10 Oil Burner Heating Waste Oil Refinery Equipment
KV10 Oil Burner Heating Waste Oil Refinery Equipment 1
KV10 Oil Burner Heating Waste Oil Refinery Equipment 2

KV10 Oil Burner Heating Waste Oil Refinery Equipment

0.00 / 5 (0 user)
SKU: SHP-57041FCA48CCB2D9
Brand: Unbranded
Category: Varied
$1888.00 $4548.00
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Working Pressure
0.5bar (7psi)
Use
Other
Model Number
KV10

Available Fuel List Our burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided into six types, 1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc 2) #2-#5 fuel oil 3) Vegetable oils, lik

Available Fuel List
Our burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided into six types, 1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc 2) #2-#5 fuel oil 3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc 4) Mix oil 5) Diesel oil 6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol, etc (Link)
Waste Engine Oil
Vegetable Oil
Diesel Oil
Do you know how much heat/power you can gain from different fuels? ​Please choose the correct model from the below table before you put an order.
Fuel
Diesel Oil, Fuel Oil,
Pyrolysis Oil Sample-C1
(Reference Calorific Value:
10 000Kcal/kg)
Vegetable Oil
(Reference Calorific Value:
9 000Kcal/kg)
Engine Oil/Waste Engine Oil
(Reference Calorific Value:
8 500Kcal/kg)
Model
Max. output heat(Kcal/h)
Max.output power(Kw)
Max. output heat(Kcal/h)
Max.output power(Kw)
Max. output heat(Kcal/h)
Max.output power(Kw)
KV03
30 000
34
27 000
31
25 500
29
KV05
50 000
57
45 000
51
42 500
48
KV10
100 000
114
90 000
102
85 000
97
KV20
200 000
227
180 000
205
170 000
193
KV30
300 000
341
270 000
307
255 000
290
KV40
400 000
455
360 000
409
340 000
386
KV50
500 000
570
450 000
511
425 000
483
KV60
600 000
682
540 000
614
510 000
580
KV90
900 000
1023
810 000
920
765000
870
KV120
12 00 000
1360
10 80 000
1227
10 20 000
1160
KV180
18 00 000
2045
16 20 000
1840
15 30 000
1740
KV240
24 00 000
2730
21 60 000
2455
20 40 000
2320
KV360
36 00 000
4090
32 40 000
3682
30 60 000
3478
KV10 Oil Burner Description
KV10 Oil Burner Feature
1)
Pc board control, works fully automatically
2) Working stage & Malfunction readable, suit for different kinds of fuel
3) Customized siphon brass nozzles, casted flame ring, reach the best combustion
4) Multi safety protection
Oil pump protection
Stop the burner when oil pumps more than 2 minutes
Photocell protection
Stop the burner when there is light
Oil level protection
Stop the burner when oil level reaches the high oil float
External Air Compressor Selection Guide

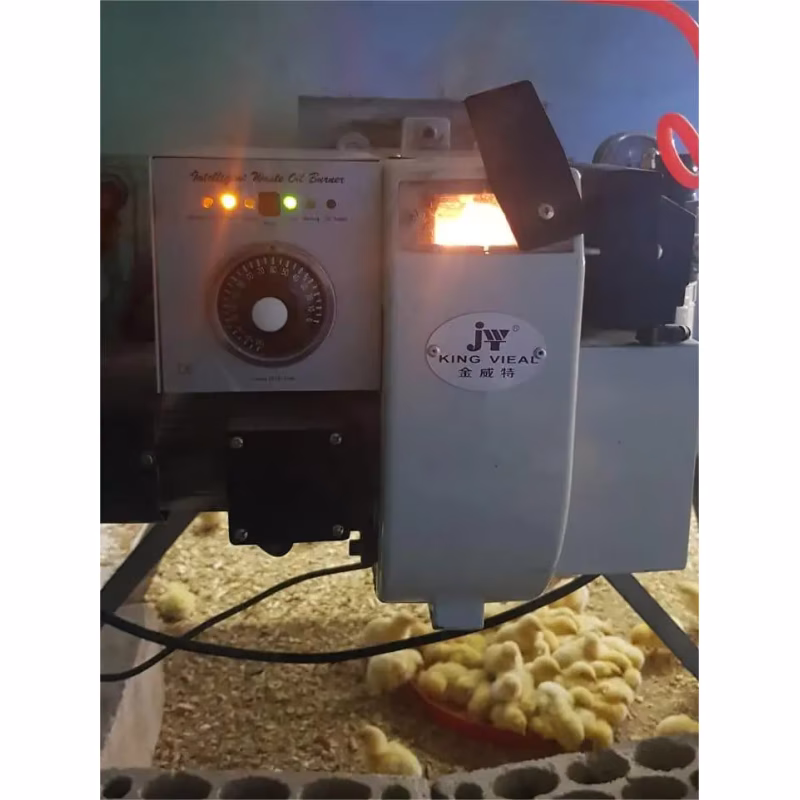

Installation Example
Our waste oil burner has various applications, can use for both individual and industrial area
Small power burners are very popular for individual heating, for home, swimming pool, grain dryer, chicken house, fryer, etc
Big power burners are suitable for industrial area, such as boiler, furnace, grain dryer, mold casting,
reactor,
incinerator, etc
