lab SKZ60A Gloss test device for Coatings Paint Marble Plastic Paper
lab SKZ60A Gloss test device for Coatings Paint Marble Plastic Paper 1
lab SKZ60A Gloss test device for Coatings Paint Marble Plastic Paper 2

lab SKZ60A Gloss test device for Coatings Paint Marble Plastic Paper

0.00 / 5 (0 user)
SKU: SHP-8A40A31A9BDC2D0C
Brand: Unbranded
Category: Varied
$812.08 $1635.28
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Digital delivery Prepared
Use
SKZ60A Gloss Meter
pottery brick/porcelain/Plastic
printing/paper/Other
coating/ wood products/Marble
granite/vitrified polished tile
paint/ink/stoving/varnish

IS07668 SKZ60A Precise Digital LCD Prints Paint Plastic Metal Surface Glarimeter Gloss Tester Designed according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability,small volume, high precision and

IS07668 SKZ60A Precise Digital LCD Prints Paint Plastic Metal Surface Glarimeter Gloss Tester
Designed according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability,small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite,polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable
Function:

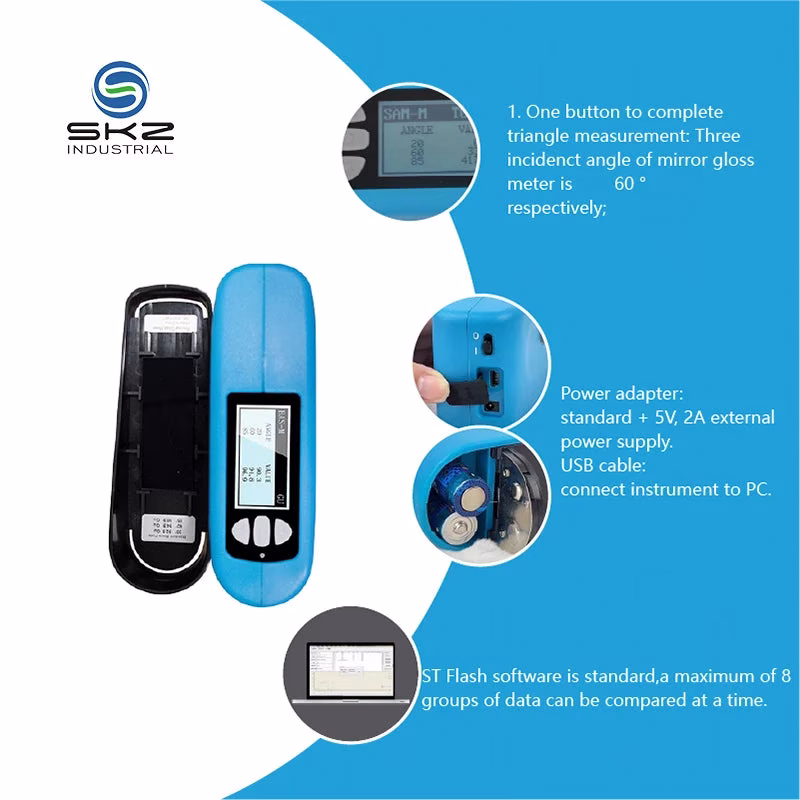

(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incident angle of mirror gloss meter is 20 °, 60 °, 85°respectively
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data
(4) Humanized design, good man-machine communication interface
(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data
(6) Data browsing and viewing function
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions
(8) USB communication interface to communicate with PC
(9) PC software can be extended more functions.
Standard
IS02813, 1S07668, ASTM D523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T 8807, JG 696-2002
Measuring Angle
60°
Measuring range
60:0~1000 GU
Repeatability
0.2GU(0~100GU)
0.2%GU(>100GU)
Measuring Spot
9*15mm(60°)
Indication Error
±1.5 GU

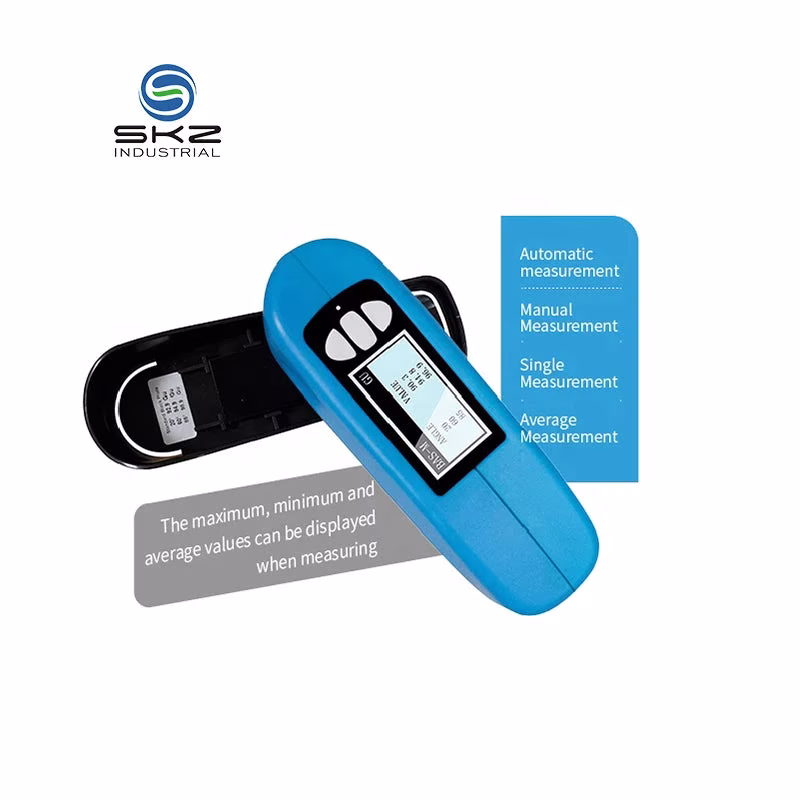

Measurement Pattern
Manual measurement
Automatic measurement
Single measurement
Average measurement
Division Value
0.1GU(0~1000GU)
1GU(1000~2000GU)
Data Interface
USB and DC ports
Data Storage
50000(Three angle)
Languages
Chinese/English

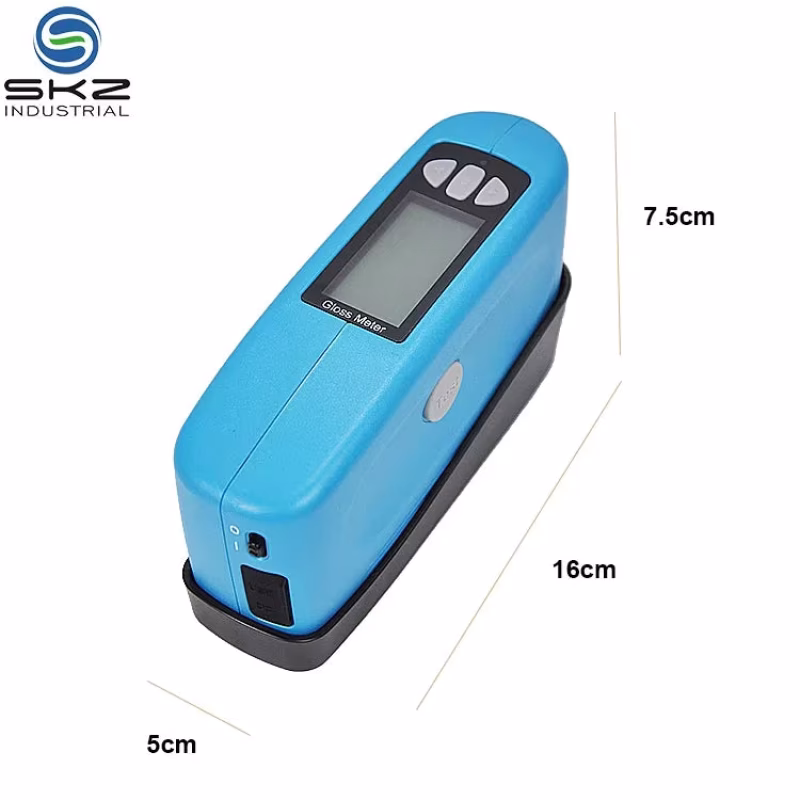

Instrument size
159*79*72
Weight
500g
Power Supply
2 # 5 alkaline batteries/power adapter
Zero error
0.2GU
Operating Temperature
10-40℃
Storage Temperature
-10-70℃
Relative Humidity
