MAX MFSC 1000W 1.5kw 2kw Fiber Laser Source Oscillator Laser Power Generator Supply Laser Cutting Welding Cleaning Solutions
MAX MFSC 1000W 1.5kw 2kw Fiber Laser Source Oscillator Laser Power Generator Supply Laser Cutting Welding Cleaning Solutions 1
MAX MFSC 1000W 1.5kw 2kw Fiber Laser Source Oscillator Laser Power Generator Supply Laser Cutting Welding Cleaning Solutions 2

MAX MFSC 1000W 1.5kw 2kw Fiber Laser Source Oscillator Laser Power Generator Supply Laser Cutting Welding Cleaning Solutions

0.00 / 5 (0 user)
SKU: SHP-62FFB8F161F12576
Brand: Unbranded
$9325.00 $29087.00
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Model Number
MFSC

MAX MFSC 1000W 1.5kw 2kw Fiber Laser Source Oscillator Laser Power Generator Supply Laser Cutting Welding Cleaning Solutions     SPECIFICATIONS     MAX MFSC-1500W MFSC 700W-1500W single-mode continuous fiber laser adopts modular design, highly integrated

MAX MFSC 1000W 1.5kw 2kw Fiber Laser Source Oscillator Laser Power Generator Supply Laser Cutting Welding Cleaning Solutions


SPECIFICATIONS

 MAX MFSC-1500W

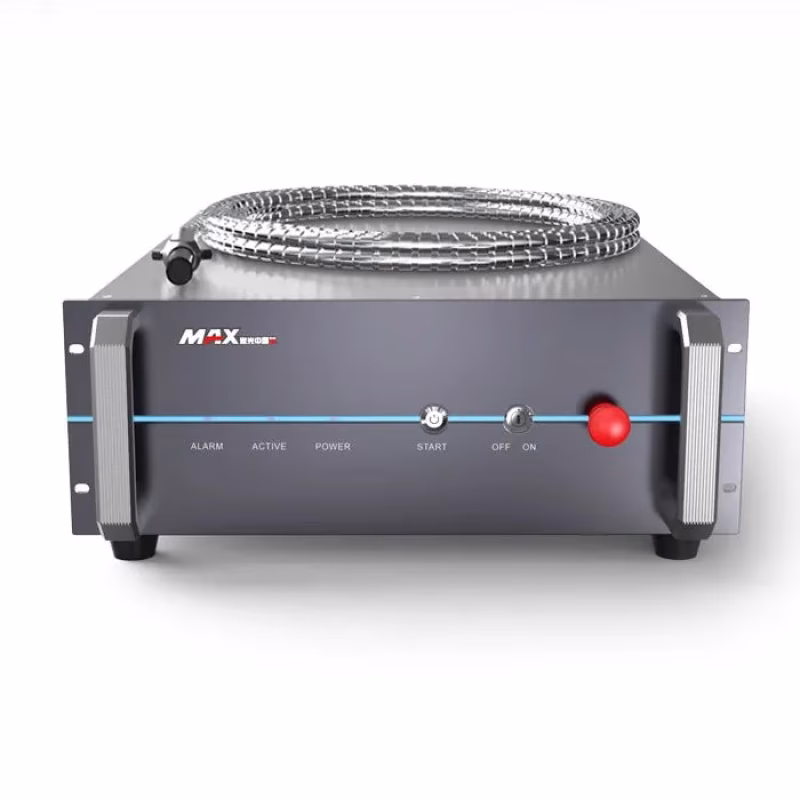

MFSC 700W-1500W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting  precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.

 Model
MFSC-700W
MFSC-800W
MFSC-1000W
MFSC-1200W
MFSC-1300W
MFSC-1500W
 Optical Properties
 Output Power(W)
700
800
1000
1200
1300
1500
Operating Mode
Continuous/ Pulse
Power Adjust Range(%)
10-100
Wavelemgth (nm)
1080(±10)
Spectral Bandwidth (nm)
3-5
Laser Beam Quality(M2)
1.3 (20u-QBH)
2.8 (50u-QBH)
Laser on time(μs)
50-100
50-80
Laser off time(μs)
50-100
30-50
Modulation Power(KHz)
20
20-50


Output Optical Cable Parameters
Output Mode
QBH(LOC)
Fiber Cable Length(m)
15
Fiber Core Diameter
(μm)
50( 30/100 optional)
Bending Radius(mm)
200
Electrical Parameters
Voltage(VAC)
220
Rated Power Consumption(KW)
2.5
2.8
3.5
4.8
5.2
6.0


Weight(KG)
50(±3)
88
