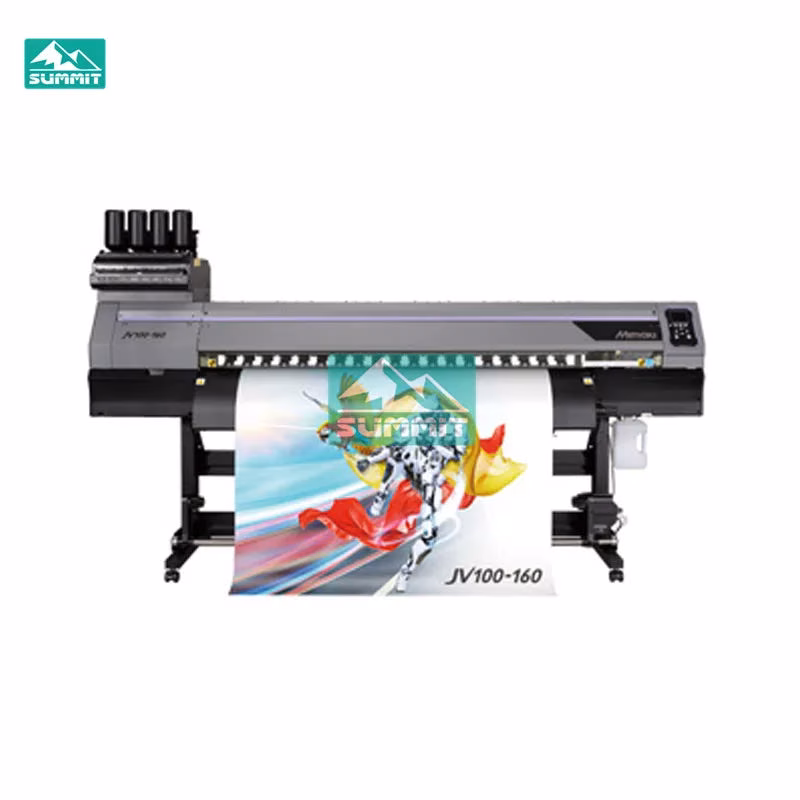

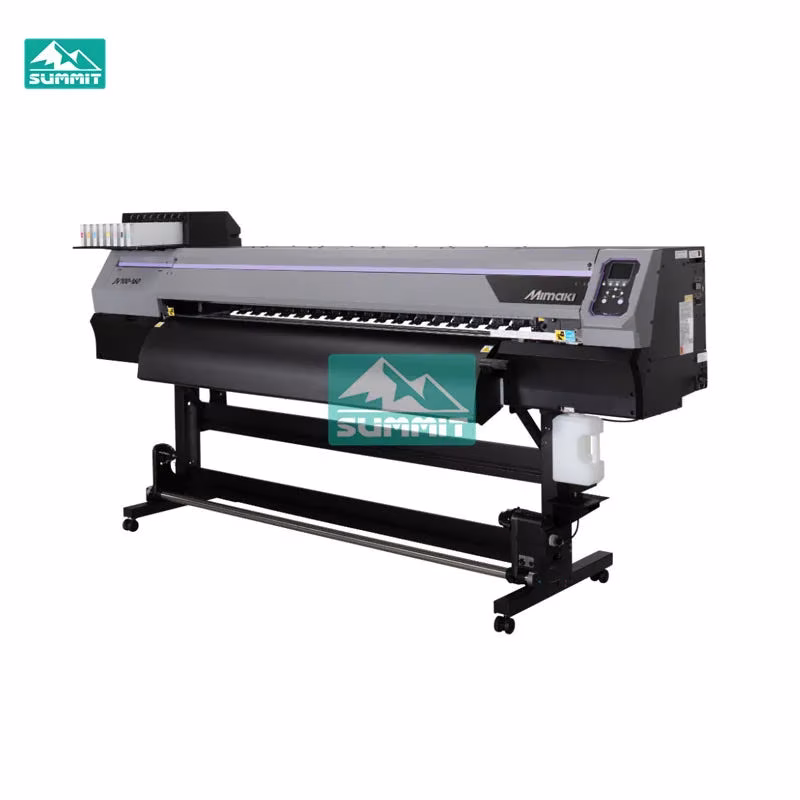

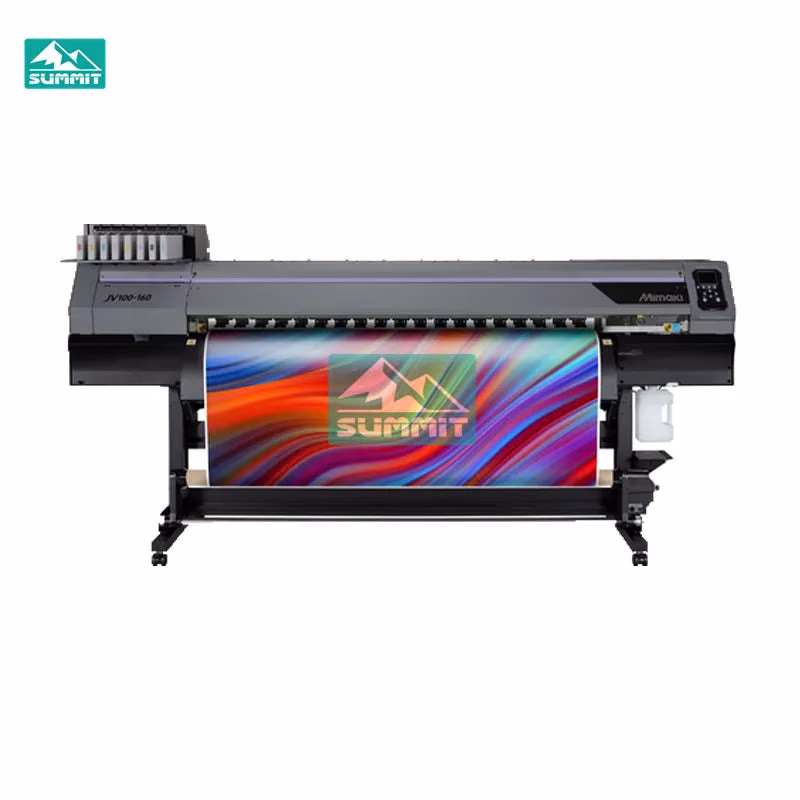

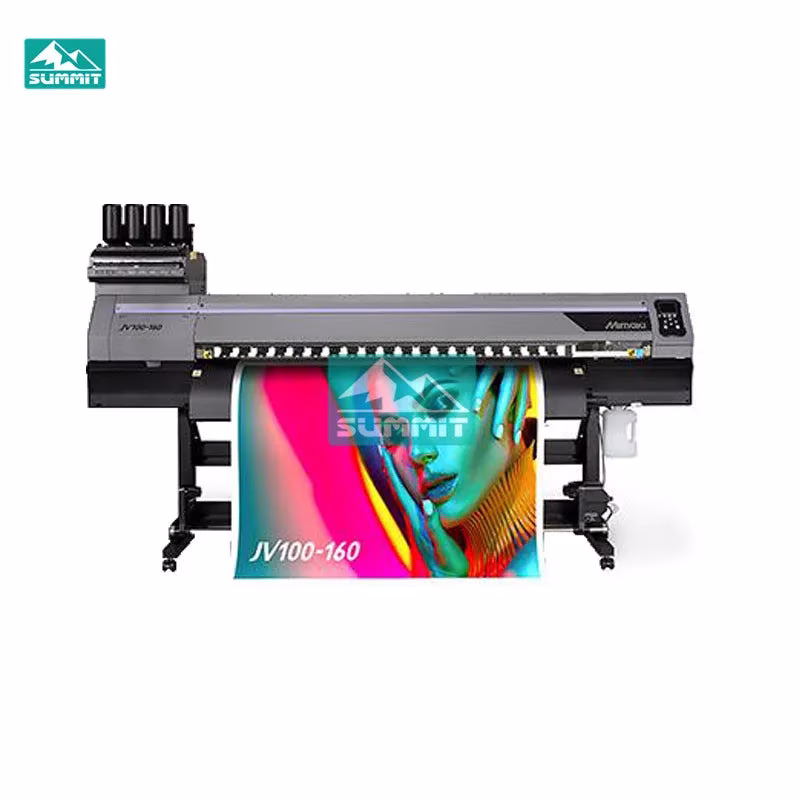

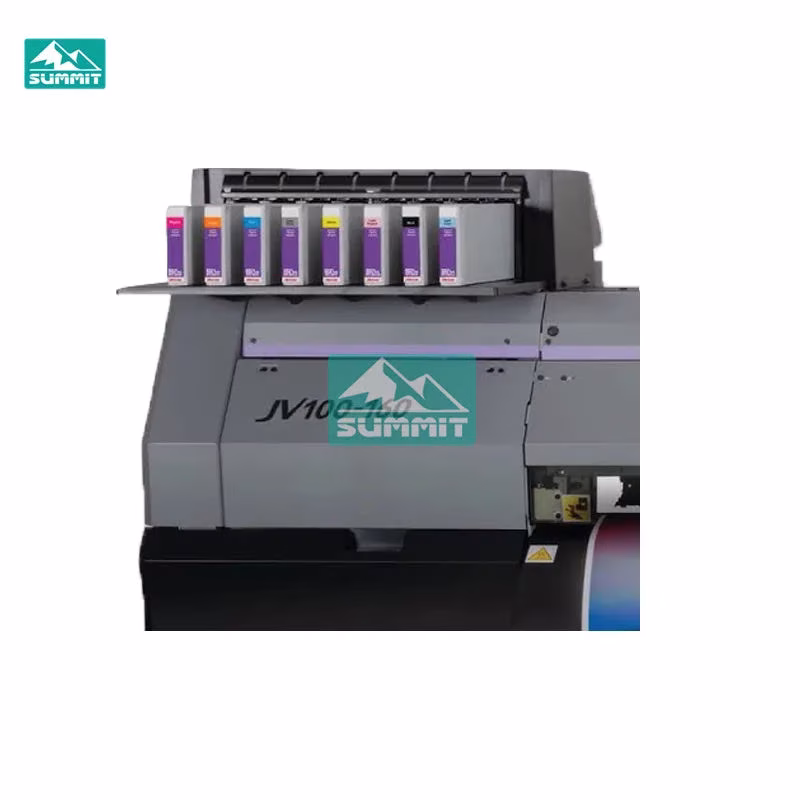

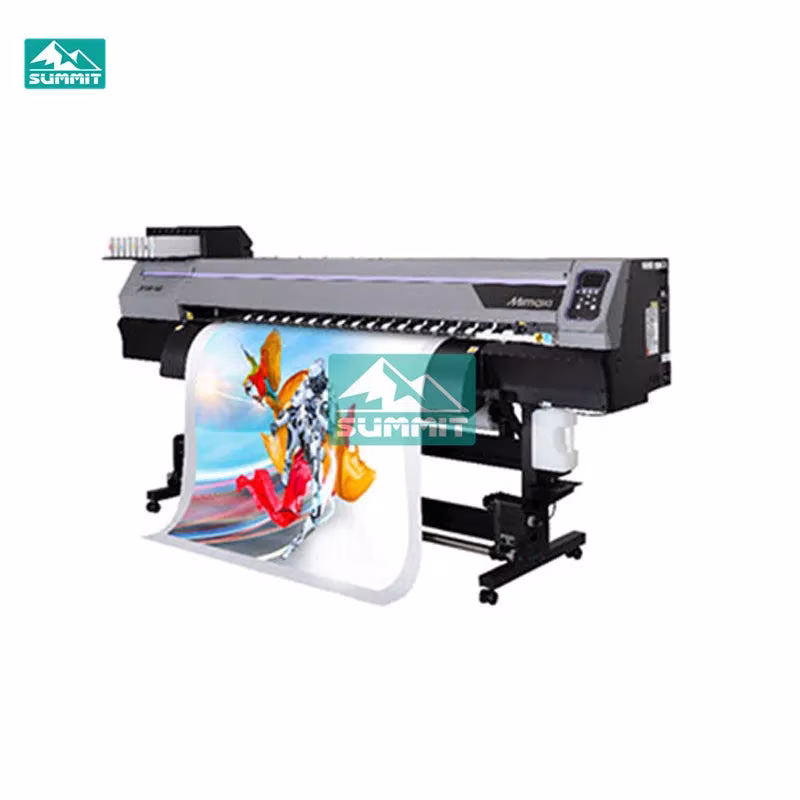

MIMAKI 64 Inch JV100 JV100-160 PVC PET Film Paper Cloth Canvas Printing Machine
MIMAKI 64 Inch JV100 JV100-160 PVC PET Film Paper Cloth Canvas Printing Machine 1

MIMAKI 64 Inch JV100 JV100-160 PVC PET Film Paper Cloth Canvas Printing Machine

0.00 / 5 (0 user)
SKU: SHP-B1D09BFF58676F4E
Brand: Unbranded
Category: Varied
$19296.00 $61846.00
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared
Gross Power
1,440W
Model Number
JV100-160

Product Description Specification JV100-160 Cartridge type Bottle type Print head On-demand piezo head (2 staggered layout) Print resolution 360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi Ink Type/ Color Eco-solvent ink ・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or) ・SS21

Product Description
Specification
JV100-160
Cartridge type
Bottle type
Print head
On-demand piezo head (2 staggered layout)
Print resolution
360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi
Ink
Type/ Color
Eco-solvent ink
・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or)
・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or)
・BS4 (C,M,Y, and K) *Only available in specific countries
Eco-solvent ink
・CS250 (C,M,Y, and K) *Only available in specific countries
Capacity
600ml Ink pack *1 / 2L Ink pack *2
1L bottle
Maximum print width
1,610 mm (63.4 in)
Media
Maximum width
1,620 mm (63.8 in)
Thickness
1 mm or lower
Roll diameter
φ250 mm or less
Roll weight
45 kg or less
Roll inside diameter
2 inch / 3 inch
Certifications
VCCI class A, FCC class A,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, ENERGY STAR®, RCM, EAC
Interface
USB2.0 / Ethernet 1000BASE-T
Power supply
Single-phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Operational environment
Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H)
2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in)
2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)
Weight
166 kg (366 lb)
168 kg (370.4 lb)
Product outlines
1. Abundant features that achieve Mimaki quality
- Dot position / Feeding amount auto correcting function "DAS"
- Mimaki technology that enables stable and high-quality print
2. High productivity supported by high-quality functions
- 6pass 20.0m²/h (PVC), 4pass 27.4m²/h (tarpaulin)
3. Stable quality is achieved with eco-solvent ink with an excellent drying property
- New AS5 and CS250 inks with excellent drying properties are used
4. New and improved genuine RIP [RasterLink7] is provided as standard
- RIP processing becomes faster to increase productivity
Application
Trade Shows
