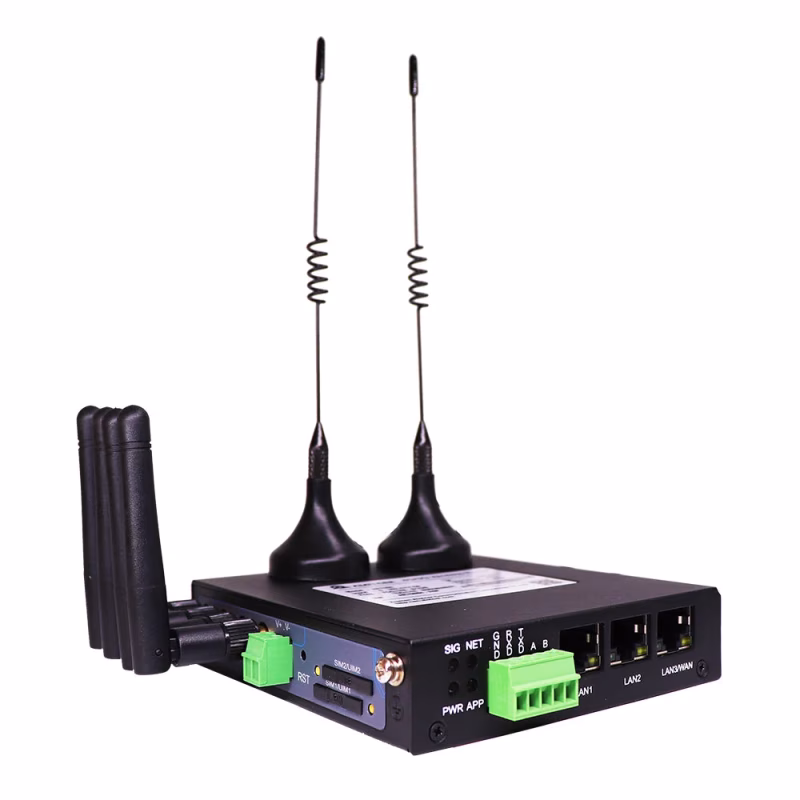

New design 4g wireless router IoT M2M Advertising Marketing Sim card 12V Car WiFi LTE 3G 4G Industrial Router for Buses
New design 4g wireless router IoT M2M Advertising Marketing Sim card 12V Car WiFi LTE 3G 4G Industrial Router for Buses 1
New design 4g wireless router IoT M2M Advertising Marketing Sim card 12V Car WiFi LTE 3G 4G Industrial Router for Buses 2

New design 4g wireless router IoT M2M Advertising Marketing Sim card 12V Car WiFi LTE 3G 4G Industrial Router for Buses

0.00 / 5 (0 user)
SKU: SHP-F8323B6238E18FC6
Brand: Unbranded
Category: Electronics
$374.80 $875.30
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
Color
Black
Model Number
AR7088H
Number of USB Interfaces
None

Product Description Items Contents Hardware System CPU Industrial 32 bits CPU FLASH 16MB (Extendable to 64MB) SDRAM 128MB Interface Serial 1 RS232 and 1 RS485, 15KV ESD protection Serial port: 5 PIN industrial terminal, 3.5mm pitch Data bits: 5, 6 ,7, 8 S

Product Description
Items
Contents
Hardware System
CPU
Industrial 32 bits CPU
FLASH
16MB (Extendable to 64MB)
SDRAM
128MB
Interface
Serial
1 RS232 and 1 RS485, 15KV ESD protection
Serial port: 5 PIN industrial terminal, 3.5mm pitch
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Large serial port data cache:10MB

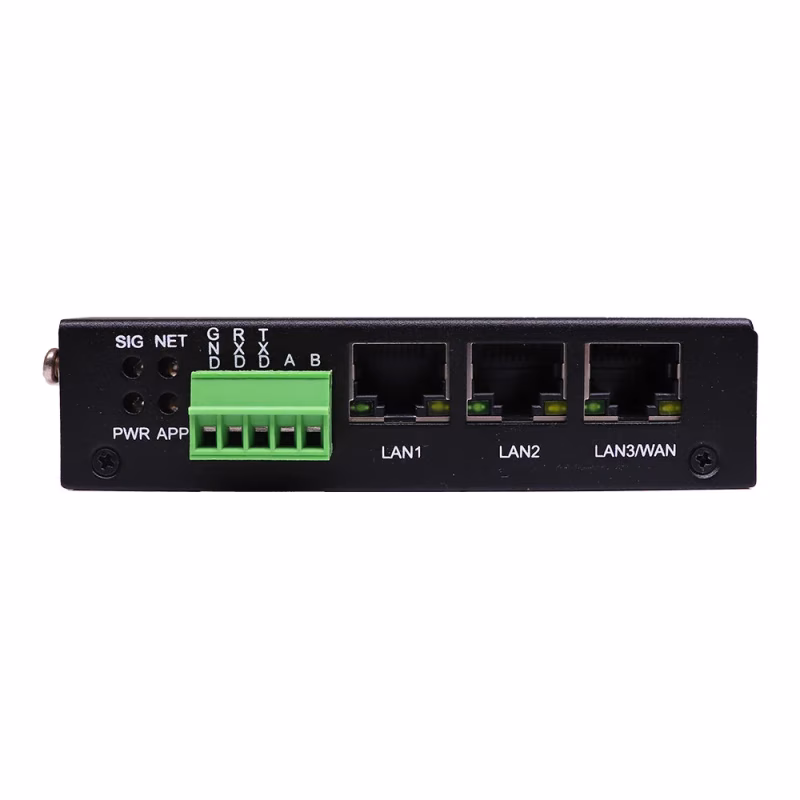

WAN/LAN
1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN
2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

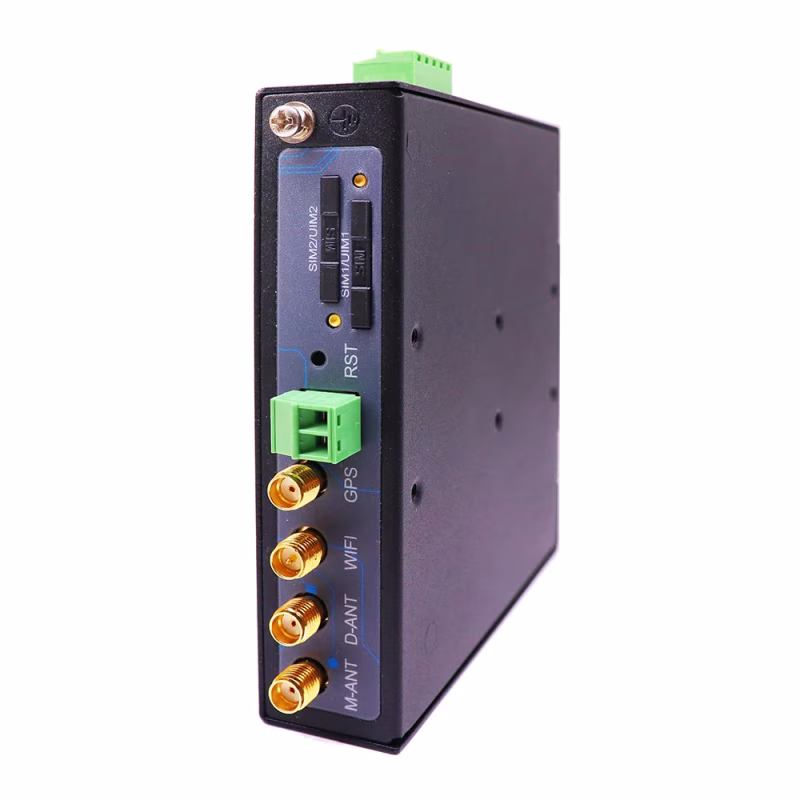

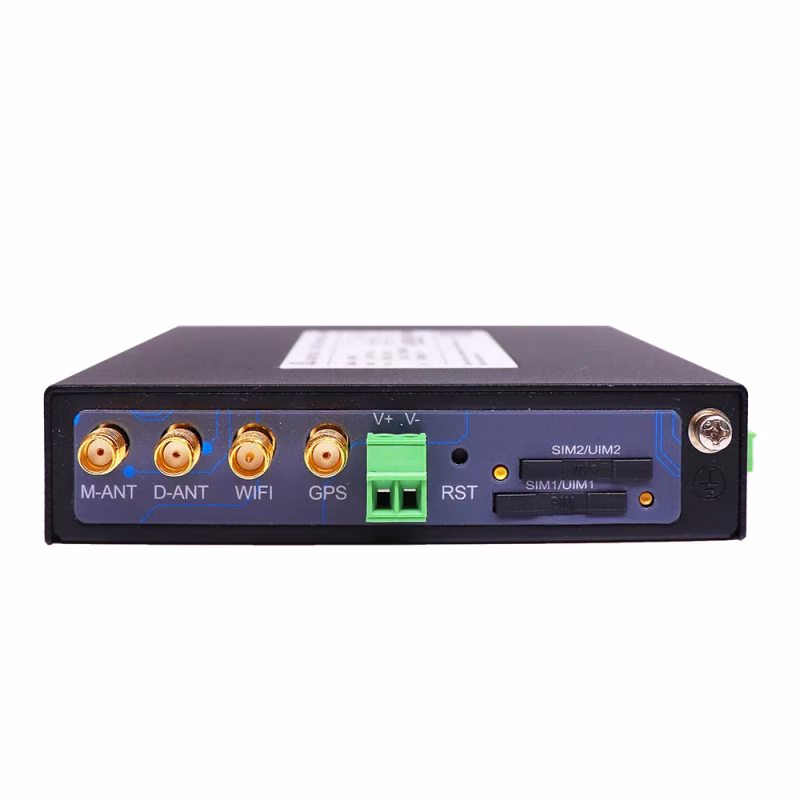

Antenna
Cellular/GPS: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
SIM/UIM
Standard 3V/1.8V user card interface, 15KV ESD protection
Power
2 PIN industrial terminal, 3.81mm pitch, reverse- voltage and over voltage protection
Reset
Press this key for 8 seconds to restore the Router to its original factory default settings
Indicator
“PWR”、”SIG”、”NET”、”APP” 、”Link”(RJ45)
Network
Wireless Network
GSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66
PPP Protocol
Support PPP Protocol
PPP Heartbeat
Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link.
Network Authentication
Support CHAP/PAP Authentication
TCP Heartbeat
Monitor the server connection
Highlights
Application
