waterproof ip camera

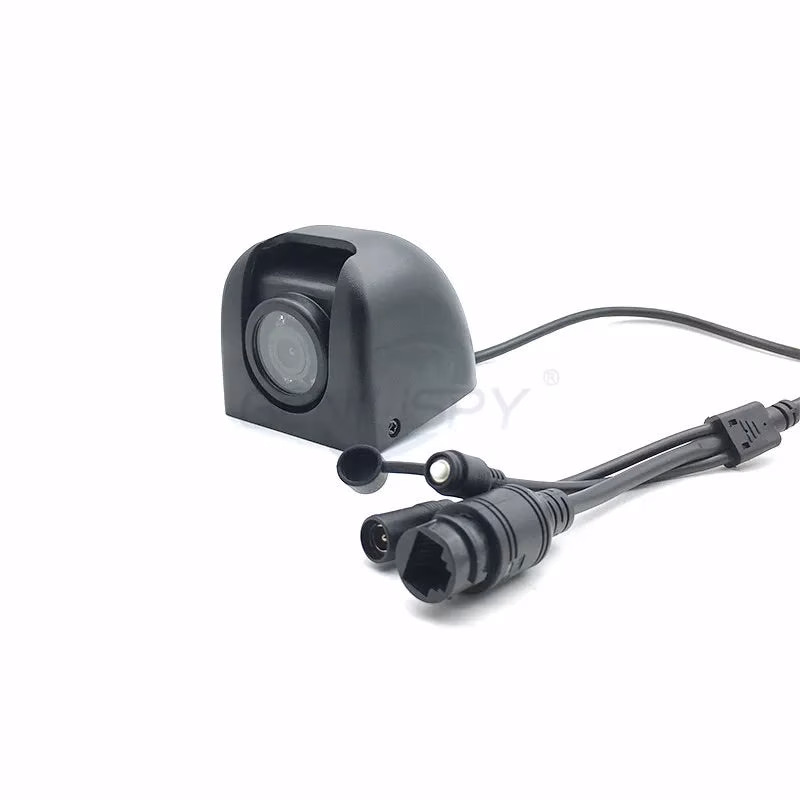

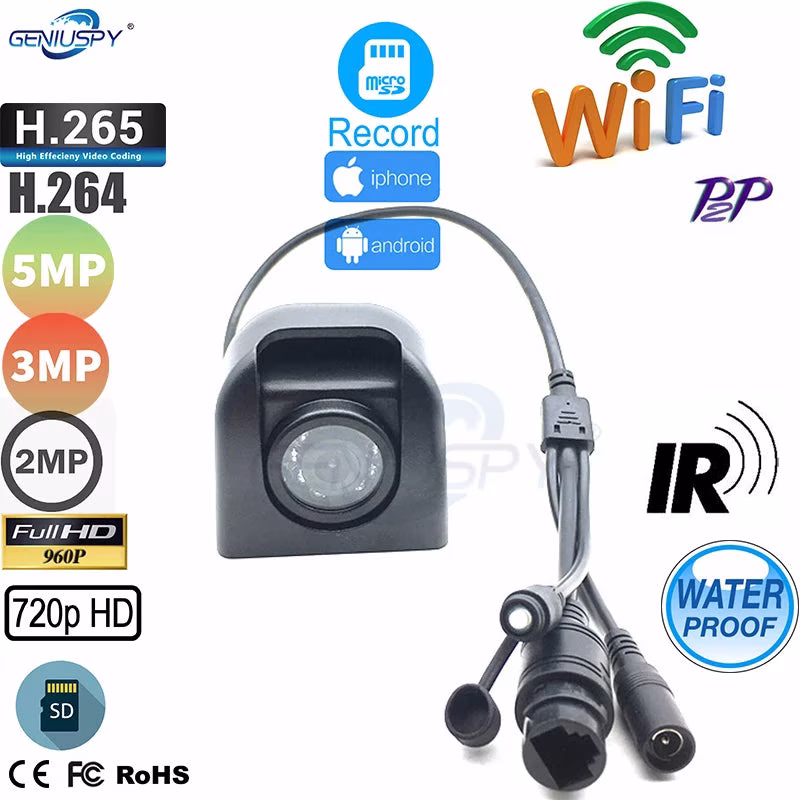

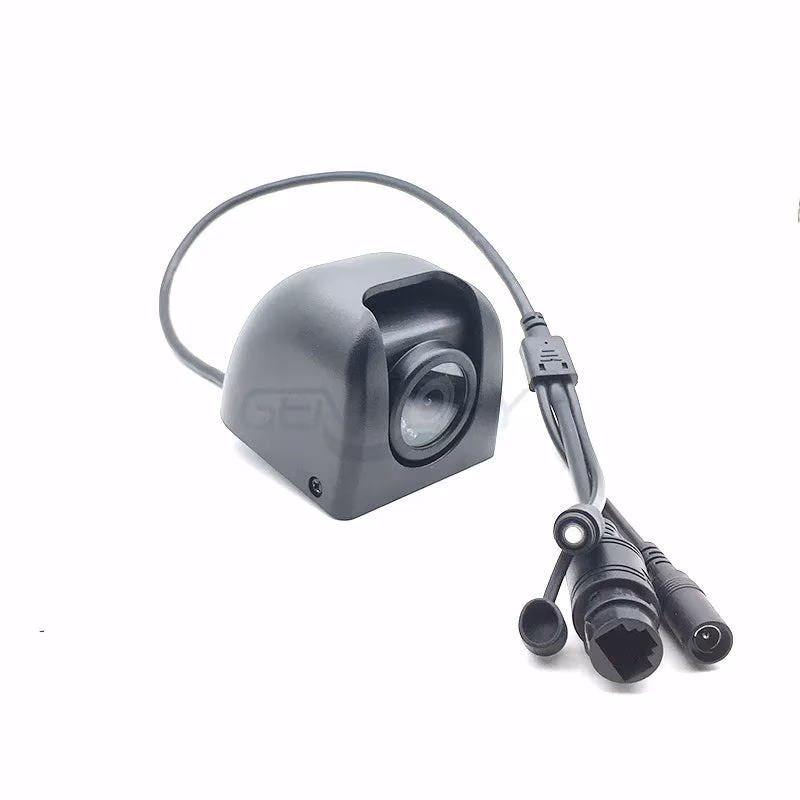

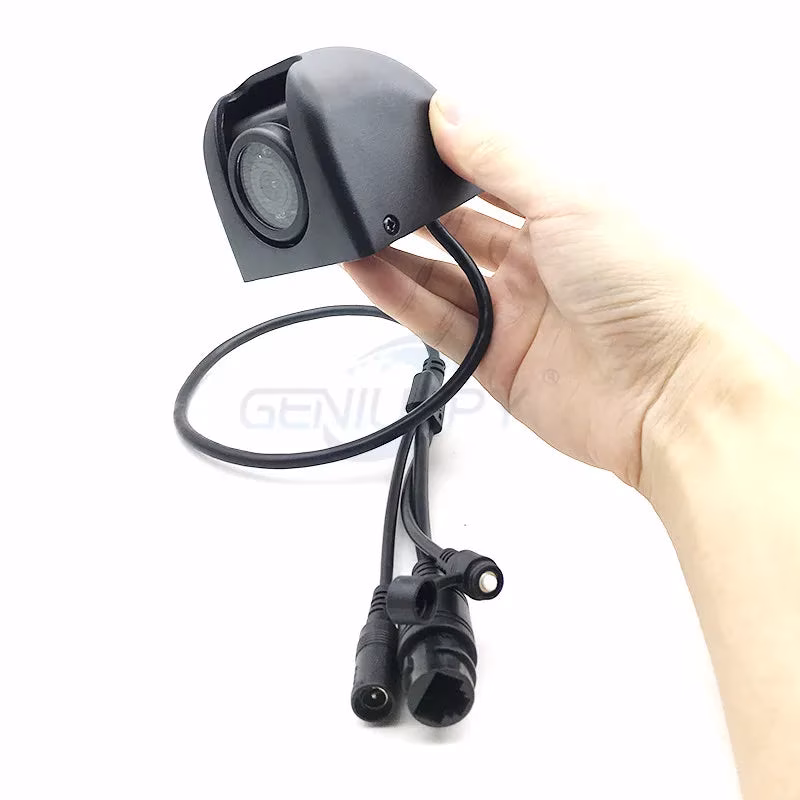

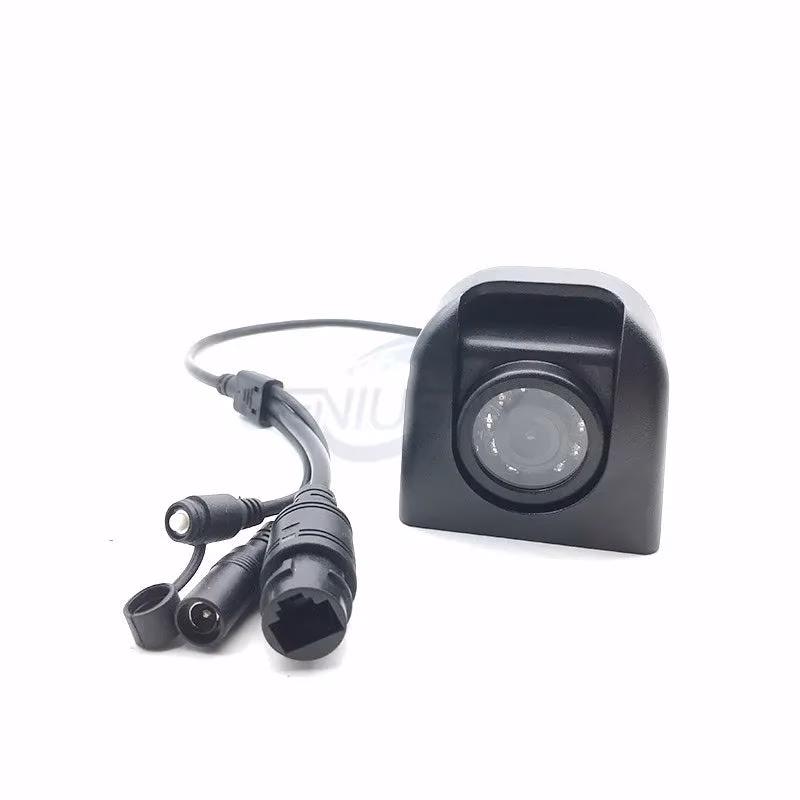

Outdoor Waterproof IP67 Side Rear View Parking Reversing Backup Wireless Wifi IP Camera For Truck Bus Vehicle Monitor P2P ON VIF
Product Description

Product Description
Order Models:
GS-HXT2WC
1.0megapixel. Hi3518E+1/4" OV9732 . With Wifi &TF Card Slot &  ir leds ir-cut waterproof
GS-HXT2WCH
1.3megapixel. HI3518E+1/3" SC1135 Low Lux .With Wifi &TF Card Slot & ir leds ir-cut waterproof
GS-HXT2WCM
2.0megapixel. HI3516E+1/2.9" SONY307 Low Lux Starlight . Wifi &TF Card Slot & ir leds ir-cut waterproof
GS-HXT2W3M
3.0megapixel. HI3516E+SC3235 Low Lux With Wifi &TF Card Slot &  ir leds ir-cut waterproof
GS-HXT2W5M
5.0megapixel.  HI3516EV300+IMX335 Low Lux With Wifi &TF Card Slot & ir leds ir-cut waterproof
Specification: 1.0MP Models:GS-HXT2WC
Resolution:1280*720P
Image Sensor: GC1034
Sensor Size: 1/4 inch
Support 128GB TF Card Max


Specification: 1.3MP Models:GS-HXT2WCH
Resolution:1280*960P
Image Sensor: GC2053
Sensor Size: 1/2.8 inch
Support 128GB TF Card Max


Specification: 2.0MP Models:GS-HXT2WCM
Resolution:1920x1080
Image Sensor: 1/2.8 inch SONY IMX307
Support 128GB TF Card Max

Specification: 3.0MP Models:GS-HXT2W3M
Resolution:2304x1296
Image Sensor: SC3235
Sensor Size: 1/2.7 inch
Support 128GB TF Card Max


Specification: 5.0MP Models:GS-HXT2W5M
Resolution:2560x1920 or 2560x1440
Sensor Size: 1/2.8 inch
Image Sensor: SONY IMX335
Support 128GB TF card Max

support tf card slot

Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone  operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ON VIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting

 Features
5.0 megapixel HD IP camera, maximum resolution 2560x1920P
3.0 megapixel HD IP camera, maximum resolution 2304x1296
2.0 megapixel HD IP camera, maximum resolution 1920*1080;
1.3 megapixel HD IP camera, maximum resolution 1280*960P;
1.0 megapixel HD IP camera, maximum resolution 1280*720P;

Support up to 128G TF card storage;
Optional 2.8/3.6(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable

2. Specifications
Model
GS-HXT2W5M/GS-HXT2W3M/GS-HXT2WCM/GS-HXT2WCH/GS-HXT2WC
Video
Sensor

GS-HXT2W5M
:5.0megapixel.  HI3516EV300+IMX335 Low Lux CMOS.

GS-HXT2W3M
:3.0megapixel. HI3516E+SC3235 Low Lux CMOS
GS-HXT2WCM

:2.0 megapixel 1/2.7" CMOS SONY IMX307
GS-HXT2WCH
:1.3 megapixel 1/2.7" CMOS GC2053
GS-HXT2WC
:1 megapixel 1/4" CMOS GC1034
Video resolution

GS-HXT2W5M
 Main stream: 2560x1920@15fps, 2560x1440@15fps
Sub stream:
800x600/800x448@25fps, 640x480/640x352@25fps

GS-HXT2W3M
Main stream: 2560x1440@15fps
Sub stream:
800x600/800x448@25fps, 640x480/640x352@25fps

GS-HXT2WCM
:Main stream: 1920x1080@20fps, 1280x720@25fps
Sub stream: 640x352@25fps, 320x176@25fps
GS-HXT2WCH
:Main stream:, 1280x960@25fps
Sub stream: 640x352@25fps, 320x176@25fps
GS-HXT2WC
:Main stream:, 1280x720@25fps
Sub stream: 640x352@25fps, 320x176@25fps
Video compression
H.264 OR H.265 3mp 5mp
Lens
3.6MM Lens default Optional 2.8/3.6(default)/6mm lens
View angle
based on lens
Audio
Audio compression
G.726/G.711
Audio code rate
Rate adaptive
Audio input
Not support audio
Alarm
Motion detecting alarm
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push
Alarm recording
Support Micro SD card and PC client linkage alarm recording
Network
Wireless
YES
Ethernet
RJ45 Ethernet
ON VIF protocol
Support ON VIF 2.4(backward compatible)
Storage
Micro SD card
Support up to 128G micro SD card max
Recording mode
Alarm record, timing record,
Video playback
Support APP, IE browser, remote client play and download the video
General specification
Power
DC12V 1A/2a
Operating environment
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
Product size
/
Product weight
0.35kg
IR Night vision
n/a
Package weight
0.5kg
Reset button
yes
Package Include:
1 x camera
1 x  bracket
 1 x screw package
1 x User manual
