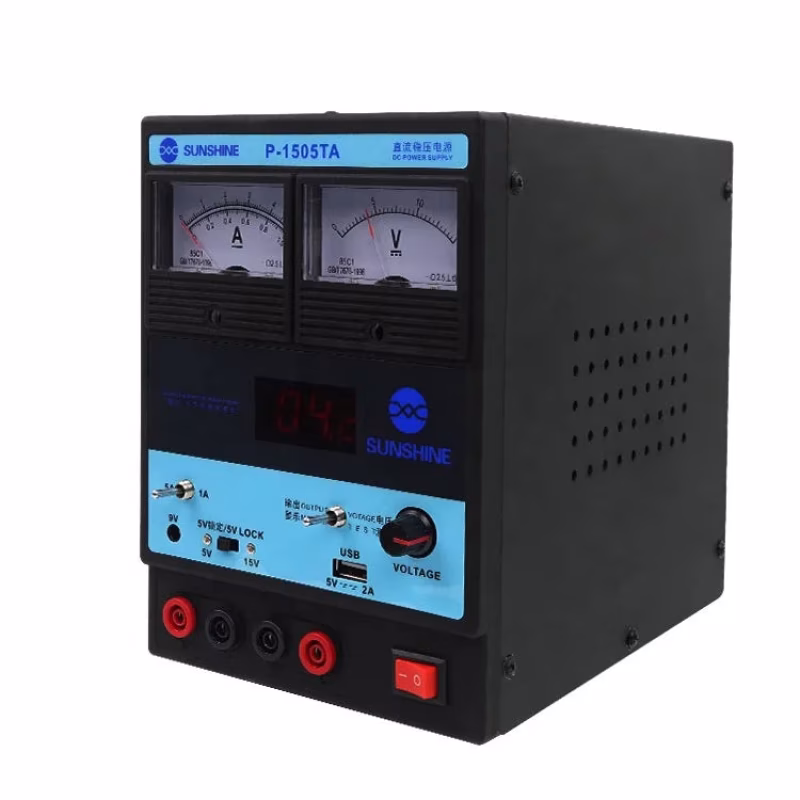

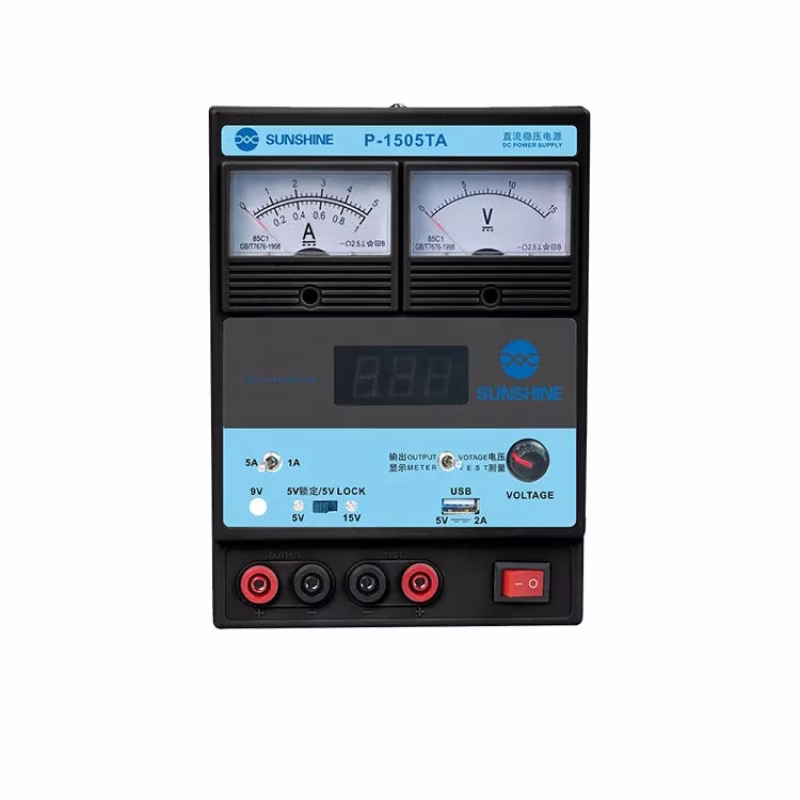

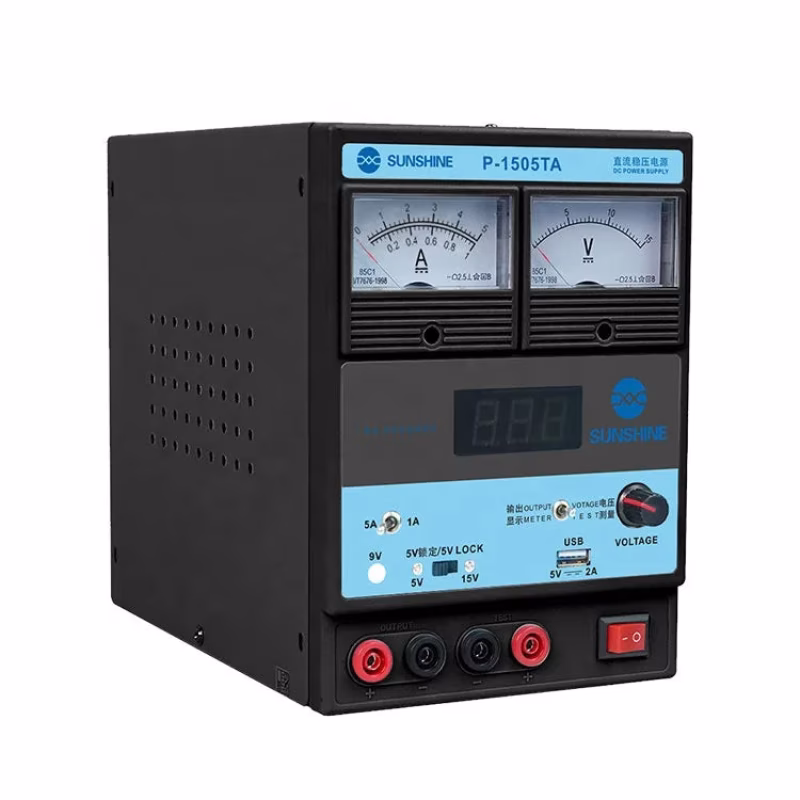

NEw SUNSHINE P-1505TA High precision DC power supply 15V 5A USB Output
NEw SUNSHINE P-1505TA High precision DC power supply 15V 5A USB Output 1
NEw SUNSHINE P-1505TA High precision DC power supply 15V 5A USB Output 2

NEw SUNSHINE P-1505TA High precision DC power supply 15V 5A USB Output

0.00 / 5 (0 user)
SKU: SHP-AEA079AC165ED84F
Brand: Unbranded
Category: Electronics
$145.87 $315.87
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared
Power
OTHER

Product Description P1505TA 15V 5A Power Supply With Repair Mobile Phone Fast Details for our 5A dc switching power supply 1. Constent Output current is adjustable 2. Constent output voltage is adjustable 3. Short circuit testing function; Support 2A curr

Product Description
P1505TA 15V 5A Power Supply With Repair Mobile Phone
Fast Details for our 5A dc switching power supply
1. Constent Output current is adjustable
2. Constent output voltage is adjustable
3. Short circuit testing function; Support 2A current
4. Adjust current 5A
5. Adjust 5V/15V/ custom voltage
6. iron structure, real materials.
7. Support mobile phone signal testing
8. Support Continuity test function
Specifications:
Nominal working regulation
>Upgrade, small volume,lightweight, practical
>sufficient current, stable voltage
> Automatic protection/recovery
>Short circuit buzzer prompt
Work state
1. Output voltage: 0-15 V (adjustable)
2. Output current: 0-5A
3. Recovery time: 100us or less
4. Ripple noise 1 MVRMS or less (RMS)
5. Protect the start is greater than the maximum 10% of the nominal value
Direction for use:
1. AC input: ac input is 220V +/-10% for 50Hz (if it is 110V +/- 10% for 60HZ will be in the back of
my case)
2. Instructions: do not use where the environmental temperature 40 ℃, left and right sides and
machine should leave enough space in the back, good for heat dissipation. Power tube temperature
can reach 100 ℃, use for a long time, please do not touch.
Features:
1. Automatic protection
2. Auto reply
3. Voltage measurement (measuring range: 1-50V)
4. GSM signal test
5. Buzzer alarm prompt
1 set including all the parts:
1 x dc switching power supply machine
1 x set cord for testing
2 x sets cables
1. Plugged in;
2. Will the power switch as to "ON" position, the power supply;
3. The toggle switch to " output according to" the edge;
4. The VOLTAGE regulation knob to the requireed output VOLTAGE value;
5. The left two teminal voltage required for the output value, red for position, black for negative;
6. Normal machine: the positive connection phone positive, negative phones connect the cathodeIntelligent machines: the positive
connection phone positive and negative connection phone next to the cathode and negative interface, the cathode connecting two
interfaces.
7.Toggle switch to the voltage measurement when the edge, pens and lines to connect the output interface, the digital display
shows for you measured voltage (note: the voltage measuring range: 0-50V)
8. GSM signal test: the phone is in a state of emission, lattive beating strength;

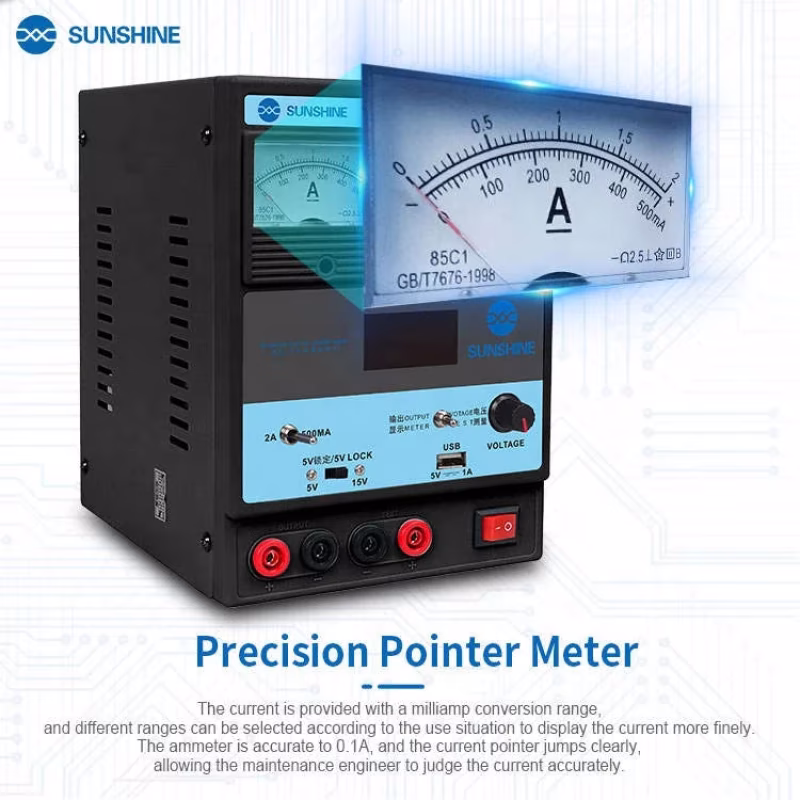

9. 500MA, 2A current switching device: upward: 2A scale, the downside: 500MA scale, on table computers, mobile phones and other
electronic product maintenance, ma dial 500 for slight leakage phone design.
