New Technology 100W foldable solar panel 1000W for portable power station
New Technology 100W foldable solar panel 1000W for portable power station 1

New Technology 100W foldable solar panel 1000W for portable power station

0.00 / 5 (0 user)
SKU: SHP-8428FD9D72DCA6AC
Brand: Unbranded
Category: Varied
$157.79 $339.79
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
Service Prepared Booking Prepared
Number of Cells & Power Range
F2/50W & 60~300W
Max. Power
100W
Material
Monocrystalline Silicon

Product Description The Foldable Series Solar Panels are made to be weatherproof, UV resistant for up to 10 years of continuous use, and provide clean energy for all your portable electronics. This series is ideal for most outdoor activities and the expan

Product Description
The Foldable Series Solar Panels are made to be weatherproof, UV resistant for up to 10 years of continuous use, and provide clean energy for all your portable electronics. This series is ideal for most outdoor activities and the expanded line of different units will ensure that you have the best cell for your purpose. The units are made to fold conveniently for storage and come with a female cigarette lighter adapter, great for charging electronics. Should you need to charge many different types of batteries, we offer a full line of authorized accessories to accommodate your needs.
Key Features
★ Highest efficiency PERC Shingled Solar cells- 21.4%. ★ Use ETFE or PET materials for longer lifespan and resist the worse weather. ★ Use fabric materials to make more lighter, smaller and easier folding.
★ Support OEM & ODM customize service.
Specification
Typical Electrical Data
at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5;
NOCT: lrradiance 800 W/m
2 ambient temperature 20°C wind speed :1m/s
Model
RG-FS60M-B
RG-FS100M-B
RG-FS120M-B
RG-FS160M-B
RG-FS200M-B
RG-FS300M-B
Pmax (W)
60
100
120
160
200
300
Power Tolerance
0 ~ +3%
Vmp (V)
20.36
23.82
20.36
20.44
23.82
23.82
Imp (A)
2.95
4.20
5.90
7.83
8.40
12.6
Voc (V)
24.47
28.64
24.47
24.55
28.64
28.64
Isc (A)
3.12
4.45
6.23
8.31
8.91
13.36
Mechanical Data
Cells Type
Prime Shingled Solar Cells
Cells Efficiency
22.00%
Folded Size (L/W/H) (mm)
490*480*50
570*590*50
490*480*50
510*590*50
570*590*50
520*590*50
Unfolded Size (L/W/H) (mm)
970*480*30
1150*590*30
1740*480*30
1920*590*30
2150*590*30
3160*590*30
Foled Layers/power
F2/30W
F2/40W
F4/30W
F4/40W
F4/50W
F6/50W
Module weight (kg)
3.65
4.97
6.68
7.81
8.46
11.32
Front/Backsheet Materials
11PET+FR4 fibreglass

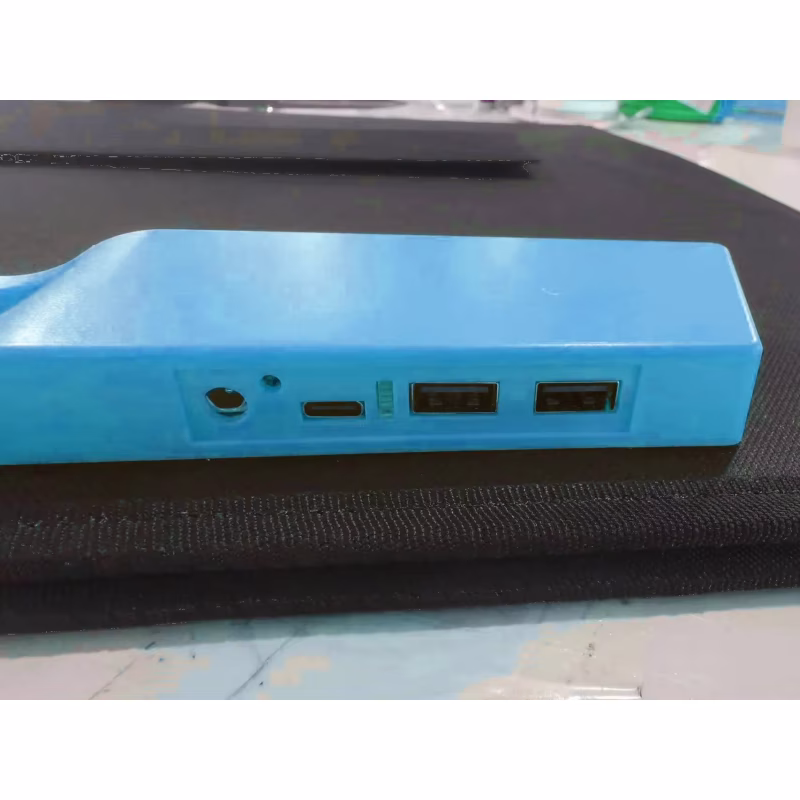

USB Output-1
5V/2A; QC3.0-5~20V/3A
USB Output-2
Type C (PD100)

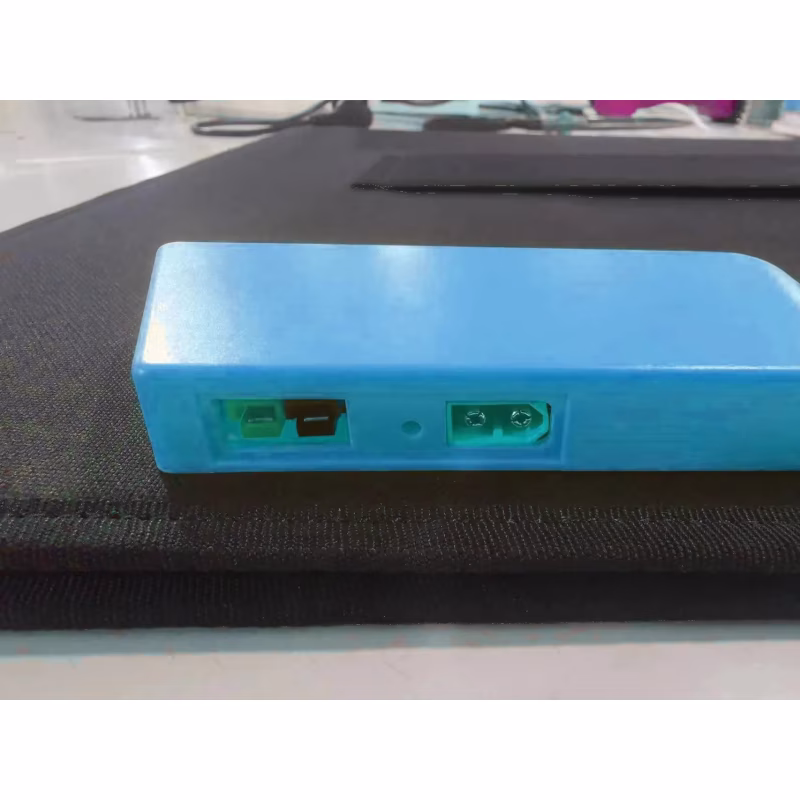

DC Output
Anderson Output port
5521 (5.5*2.1mm)/5A(Max.)
XT60 Connector/30A (Max.)
Supporting Leg
Yes
Eyelets/Ropes
Yes
Thermal Characteristics
Nominal Operating cell temperatures
45± 2°C
Temperature coefficient of Pmax
-0.3%/ °C
Temperature coefficient of Voc
-1.74 %/ °C
Temperature coefficient of Isc
0.05 %/ °C
Temperature coefficient of Vmpp
-0.35 %/ °C
Operating Conditions
Nominal Voltage
12V
Max. System Voltage
100Vdc
Max. Fusing Current
12A
Working Temperature
-40°C ~+ 85°C
Optional Accessories
1000mm cable,battery clips,supporting legs
