PM9200 Digital Power Meter AC and DC parameter measuring instrument 0.15 class full-function type
PM9200 Digital Power Meter AC and DC parameter measuring instrument 0.15 class full-function type 1
PM9200 Digital Power Meter AC and DC parameter measuring instrument 0.15 class full-function type 2

PM9200 Digital Power Meter AC and DC parameter measuring instrument 0.15 class full-function type

0.00 / 5 (0 user)
SKU: SHP-6E3F1012EFA60DA4
Brand: Unbranded
$2141.11 $5105.61
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
Course Prepared Subscription Prepared
Color
Blue

Product Description Parameter PM9200 Bandwidth DC,0.5Hz~2KHz Input model Voltage and Current are floating input Accuracy   (0.2%) Display update Display refresh cycle 0.1s~5s Line filtering cut-off frequency 500Hz A/D Converter sampling period 70μS,24bits

Product Description
Parameter
PM9200
Bandwidth
DC,0.5Hz~2KHz
Input model
Voltage and Current are floating input
Accuracy
 (0.2%)
Display update
Display refresh cycle 0.1s~5s
Line filtering
cut-off frequency 500Hz
A/D Converter
sampling period 70μS,24bits,voltage and current simultaneous sampling
Input Impedance
Voltage input impedance is 2MΩ, current input impedance is 0.5Ω, High-grade is 4mΩ. The input impedance of the input terminal of
External sensor signal Changes according to the change of input voltage.10V: 100kΩ,2V: 20 kΩ.
Zero mode
Calibrate the zero point each time when the range is changed or the measurement mode is changed
Measurement mode
RMS VOLTAGE MEAN AC DC
The power consumption
 < 10VA
Power supply of meter
AC 100V~240V 45~440Hz DC 100V~300V

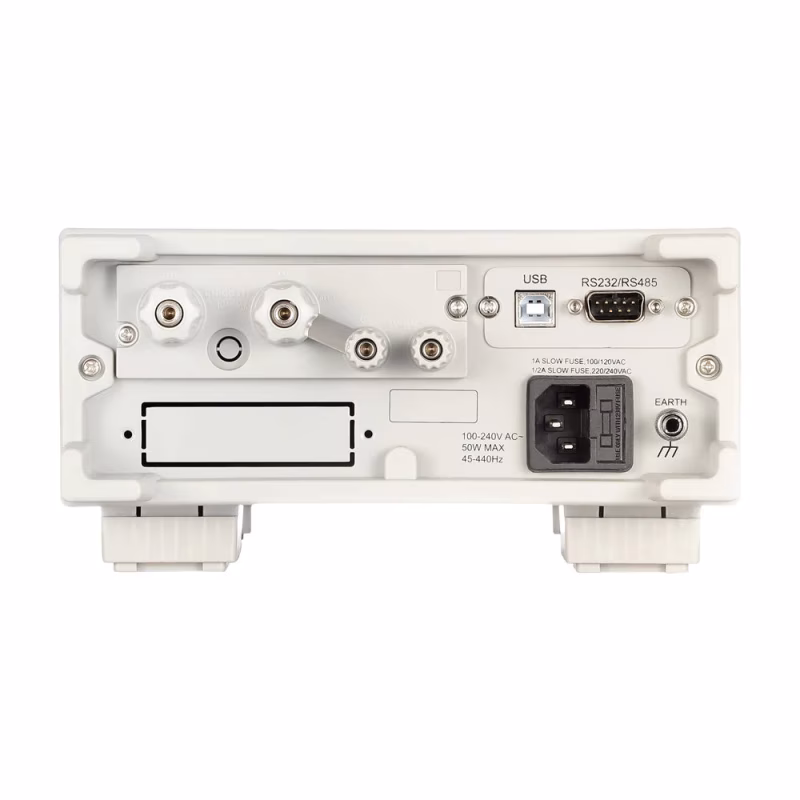

Communication Interface
USB,RS-232/485(standard), Ethernet(optional)
Parameter
Measuring Range
Error
Min. resolution
Voltage
(0.5~600)V
 DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.1% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1 % )
66 Hz < f ≤ 1 kHz ±(read 0.1% + range 0.2 % )
1 k Hz < f ≤ 2 kHz ±(read 0.15% + range 0.3% )
0.001V
Current
0.05mA~45A
0.001A
Active power
U*I*PF
DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.3% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1 % )
66 Hz < f ≤ 1 kHz ±(read 0.2% + range 0.2 % )
1 k Hz < f ≤ 2 kHz ±(read 0.2% + range 0.3 % )
0.001mW
Power factor
0.01~1
0.5 Hz ≤ f≤ 66 Hz ±0.01
66 Hz < f ≤ 1 kHz ±0.02
1 k Hz < f ≤ 2 kHz ±0.05
0.001
Frequency
0.5Hz~2KHz
0.1%
0.001Hz
Electric energy accumulation
0~999999MWh
0~-99999MWh
DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.3% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1% )
66 Hz < f ≤ 1 kHz ±(read 0.2% + range 0.2% )
1 k Hz < f ≤ 2 kHz ±(read 0.2% + range 0.3% )
0.0001mWh
Total ah
0~999999MAh
0~-99999MAh
DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.1% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1% )
66 Hz < f ≤ 1 kHz ±(read 0.1% + range 0.2% )
1 k Hz < f ≤ 2 kHz ±(read 0.15%+ range 0.3% )
0.0001mAh
Electric energy timing
99999h
± 2s/H
1s

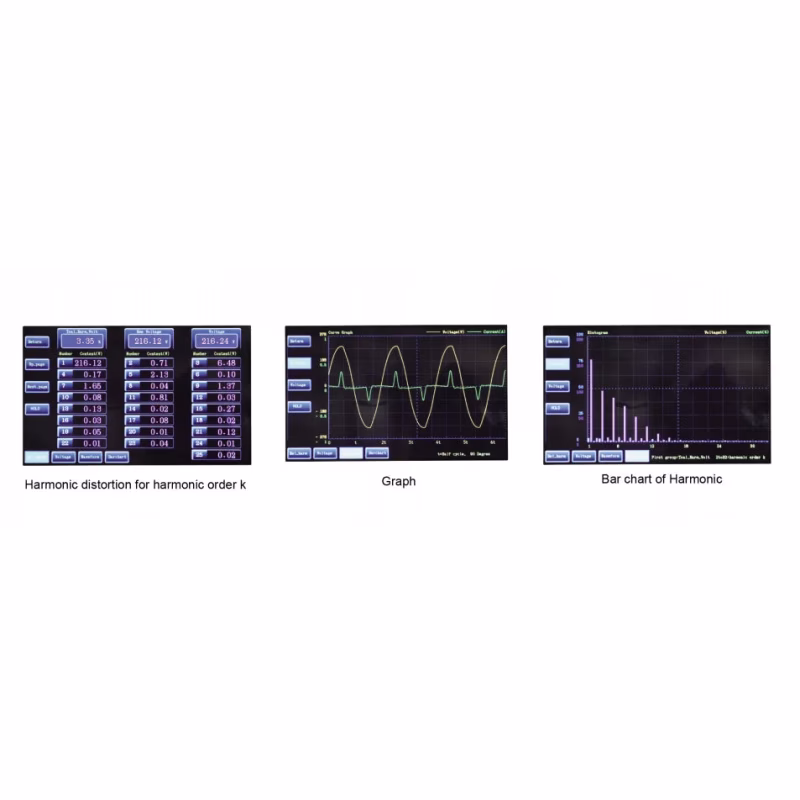

Harmonic
1~50times
Accuracy:
B class IEC61000-4-7
Maximum times of fundamental frequency analysis
10Hz~65Hz 50
65Hz~100Hz 32
100Hz~200Hz 16
200Hz~400Hz 8
0.01

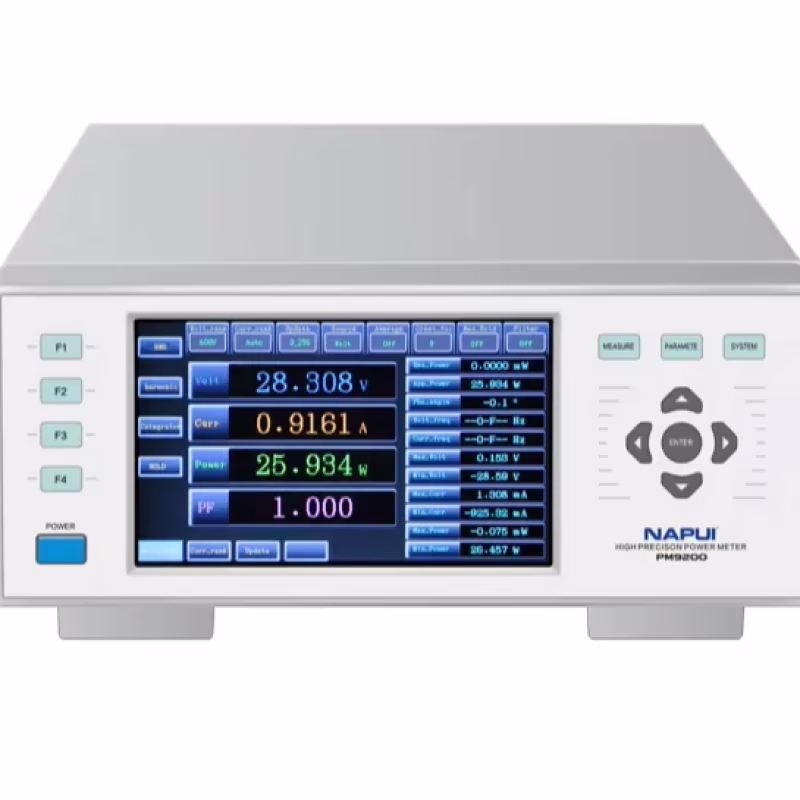

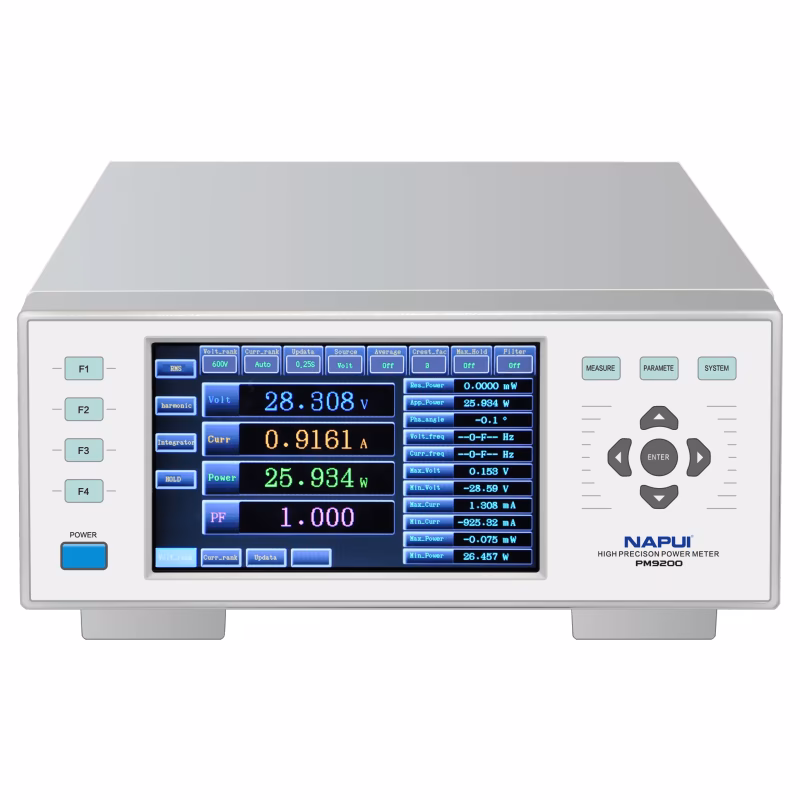

High Precision Power Meter PM9200
The PM9200 is designed with an advanced 32-bit high-speed processor and Dual 24-bit AD converter. High precision, wide dynamic range, junction Compact and dexterous. It is a new generation of digital new power analyzers. The PM9200 is a power meter used by companies to evaluate the energy efficiency of their equipment and features ultra-low standby power consumption.
Meet the ICE.62301-2016 standard. And have RS232/RS485,USB, Ethernet communication interface.
