RF4 Trinocular Microscope 7-50X Zoom RF7050TV Industrial Microscope for Phone Motherboard Repair Jewelry Checking Microscope

0.00 / 5 (0 user)
SKU: SHP-E79611DC0E885CB2
Brand: Unbranded
$339.68 $1120.88
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared

Product Description RF4 Trinocular Microscope 7-50X Zoom RF7050TV Industrial Microscope for Phone Motherboard Repair Jewelry Checking Microscope Features: Magnification:continuous zoom 7X to 50X Head: 45-degree inclined 360-degree swiveling trinocular Eye

Product Description

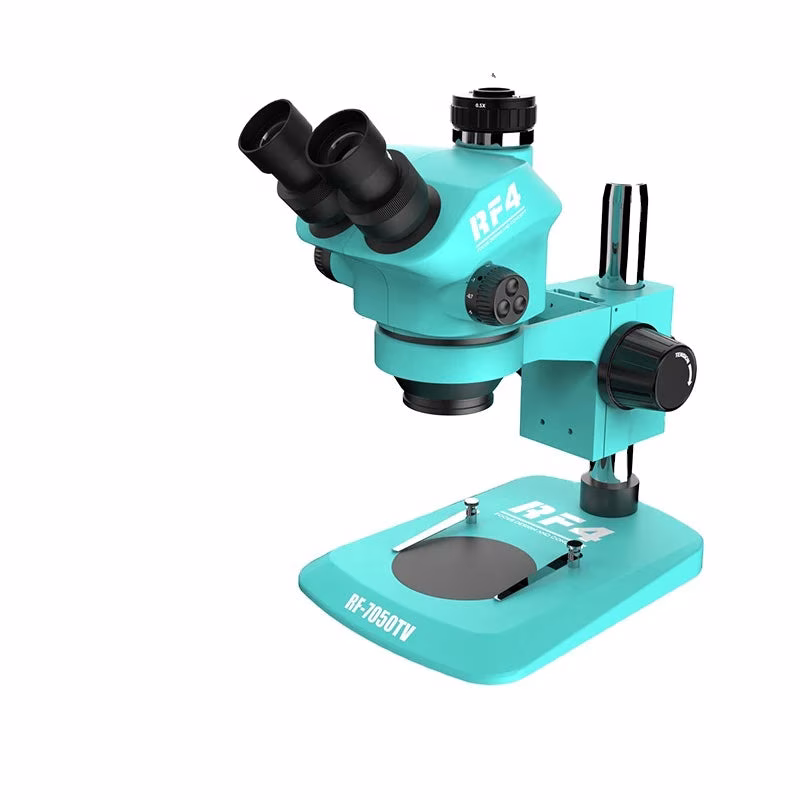

RF4 Trinocular Microscope 7-50X Zoom RF7050TV Industrial Microscope for Phone Motherboard Repair Jewelry Checking Microscope
Features:
Magnification:continuous zoom 7X to 50X Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens:
0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector:1/2ctv Monitor and eyepiece. Synchronous zoom Camera:Different
models optional Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate Accessories: 144 adjustable
led light & dust proof Lens

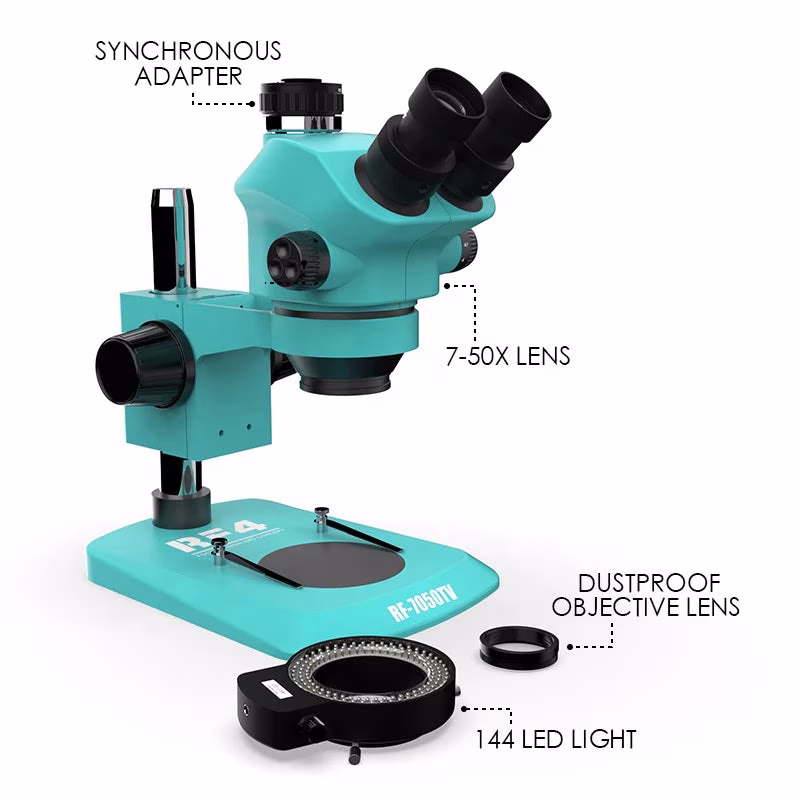

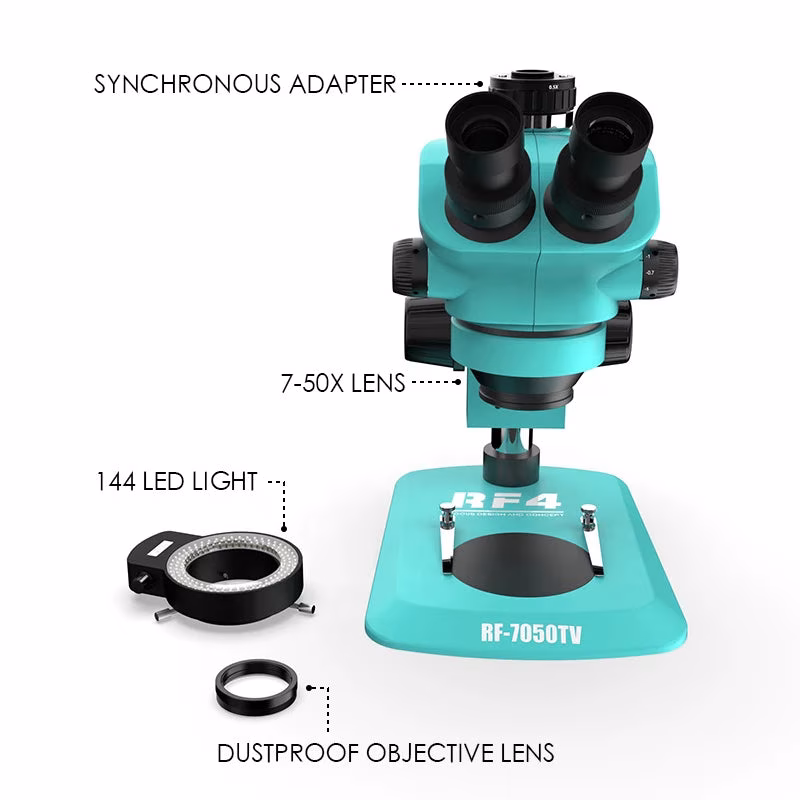

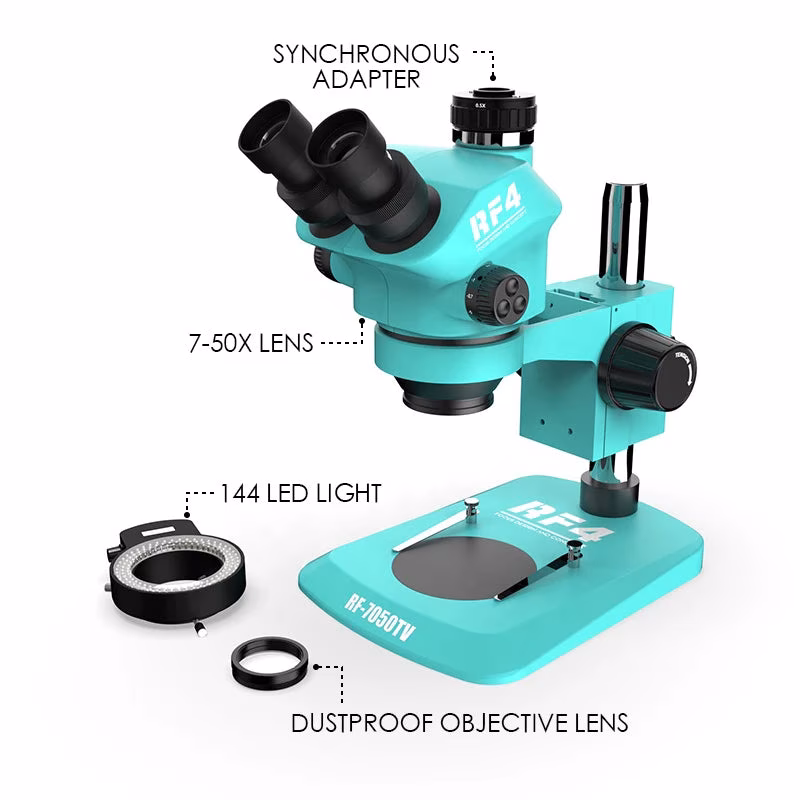

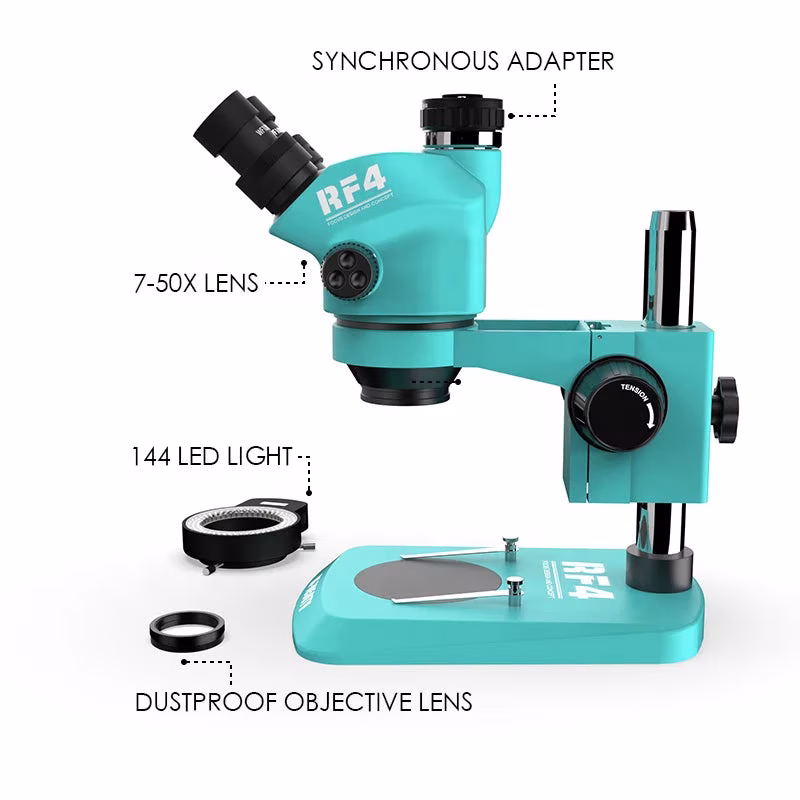

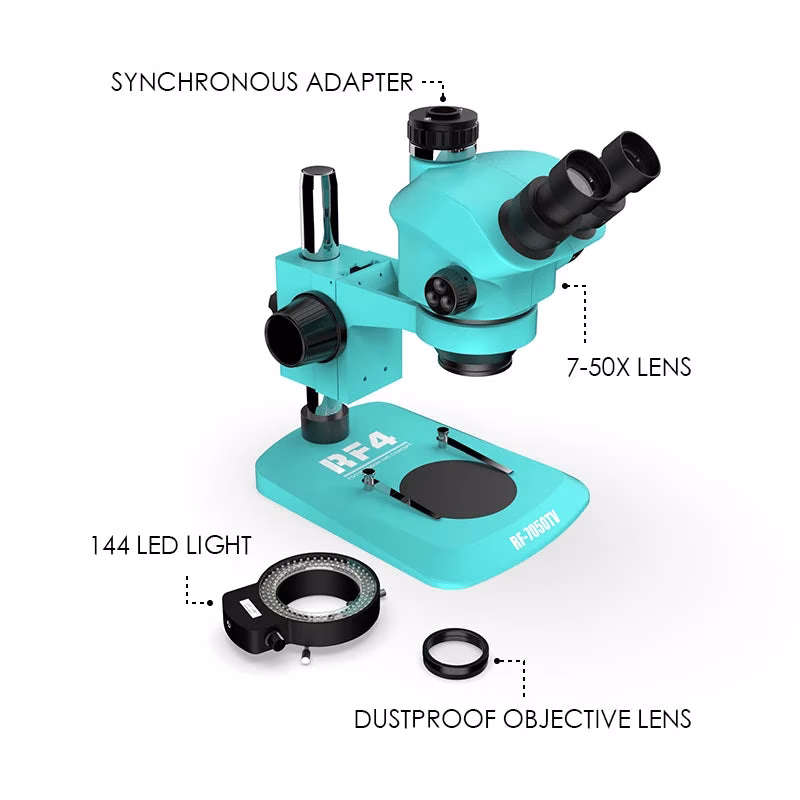

Microscopic structure
1 Eyepiece Shield
2 Eyepieces
3 Zoom Control Knob
4 Microscope bracket
5 clip
8 Focusing knob
6 black and white plate
7 Base
9 Round Column
10 Head
Support parameters
Column aperture: Φ32mm Lens aperture: Φ76mm Center distance: 155mm Lifting range: 50mm
The base parameters
Column height: 240mm Diameter:φ32mm Equipped with pressing tablet and Φ95mm black and white plate Base: 200 x255x22mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet. 2The adapter
ring can use LCD to focus, this kind of focus method is manual focus. 3 The adapter has a transparent mirror inside, which can
help the microscope display and the other display to achieve synchronous zooming. 4 Weight: 0.09kg.
Different eyepieces match different magnifications of the same objective lens
