Introduction         Radar level meter antenna by narrow microwave pulse, the pulse propagation in space at the speed of light, meet the measured medium surface, the part of the energy to be reflected back, by the same antenna. Emission pulses and the tim

Introduction
        Radar level meter antenna by narrow microwave pulse, the pulse propagation in space at the speed of light, meet the measured medium surface, the part of the energy to be reflected back, by the same antenna. Emission pulses and the time interval of the received pulse and the antenna to the measured medium surface is proportional to the distance. Due to the electromagnetic wave propagation and very high speed, pulse and receiving pulse time interval is very small (nanosecond) it is difficult to confirm, 90X series of 26G radar level meter adopts a special demodulation technology, can accurately identify the transmitted pulse and pulse interval, thus further calculate the antenna to the measured medium surface distance.


Parameters
908 series
Application: Rivers, Lakes, Shoal
Measuring Range: 30 meters
Process Connection: Thread G1½ A″ /Frame /Flange
Temperature: -40℃ ~ 100℃
Process Pressure: Normal pressure
Precision: ± 3mm
Frequency Range: 26GHz
Protection Grade: IP67 / IP65
Power Supply: (6 - 24V) DC  / Four-wire
                         24V DC / Two  wire
The Signal output:  RS485 / Modbus  ( 6~24V  DC)
                               4~20mA / Hart  Two  wire ( 24V DC)
The Scene Display: Optional
Shell: Aluminum / Plastic

                                                                                   909 series
Application: Rivers, Lakes, Shoal
                                                      Measuring Range: 70 meters
                                                      Process Connection: Thread G1½ A″ /Frame /Flange
                                                      Temperature: -40℃ ~ 100℃
                                                      Process Pressure: Normal pressure
                                                      Precision: ± 10mm
                                                      Frequency Range: 26GHz
                                                      Protection Grade: IP67 / IP65
                                                      Power Supply: (6 - 24V) DC  / Four-wire
                                                                              24V DC / Two  wire
                                                     The Signal output:  RS485 / Modbus  ( 6~24V  DC)
                                                                                    4~20mA / Hart  Two  wire ( 24V DC)
                                                    The Scene Display: Optional
                                                     Shell: Aluminum / Plastic



 The characteristics
Ø Radar level meter adopts a recommended industry emission frequency of 26GHz, so it has beam angle is small, concentrated energy
Ø Small antenna size, easy to install and dustproof cover antenna protection device.
Ø Light weight about 1KG, easy to install.
Ø The measurement range of up to 70 meters, covering a large reservoir water level measurement.
Ø With a variety of output circuit interface and data acquisition system.
Ø The pulse working mode, radar level meter transmit power is very low, no harm to human body and environment


The  Installation Requirements


Appearance  size

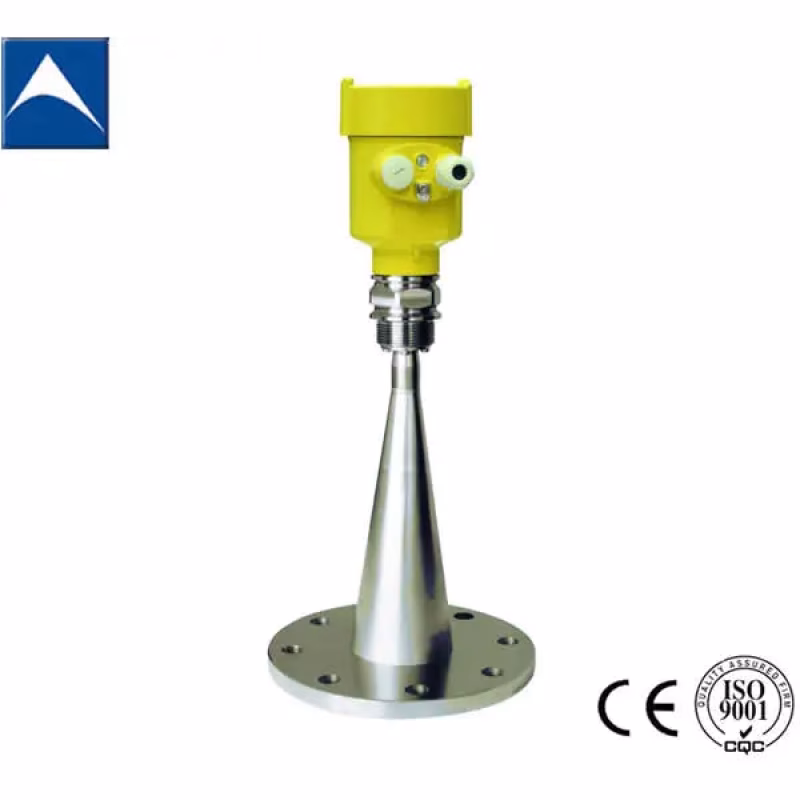

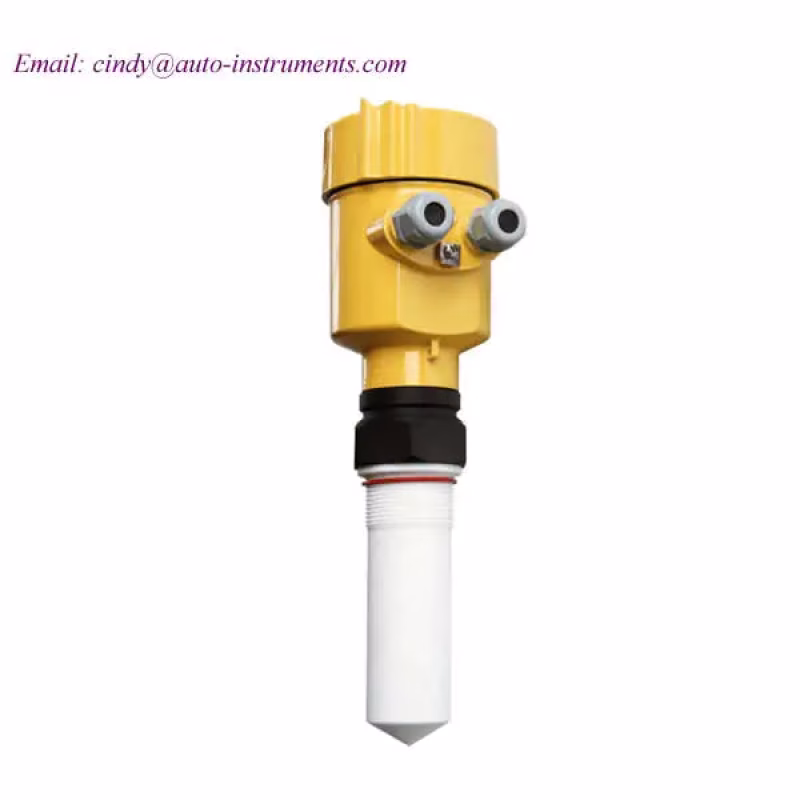

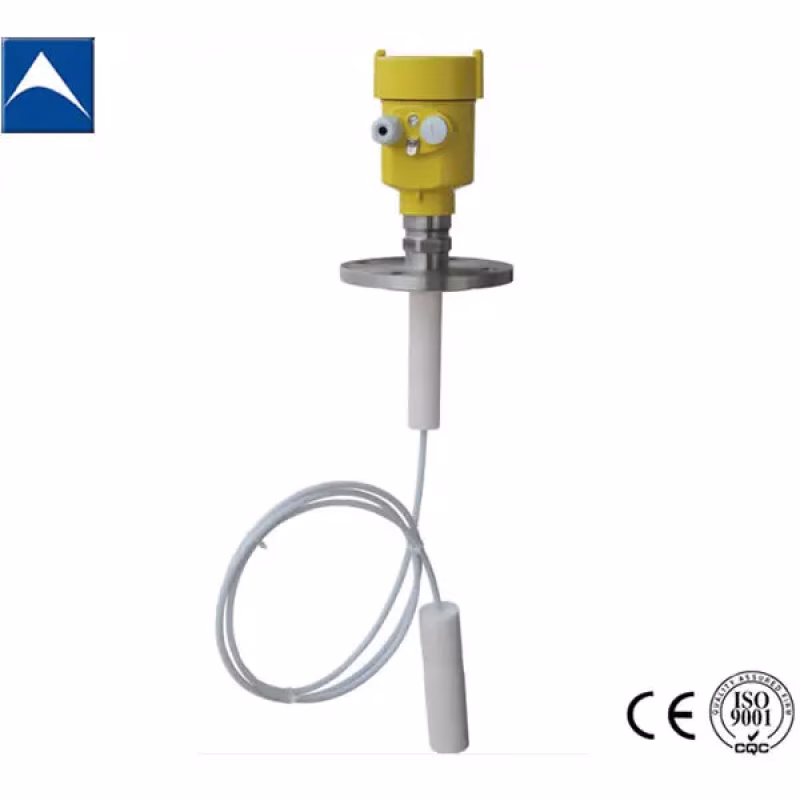

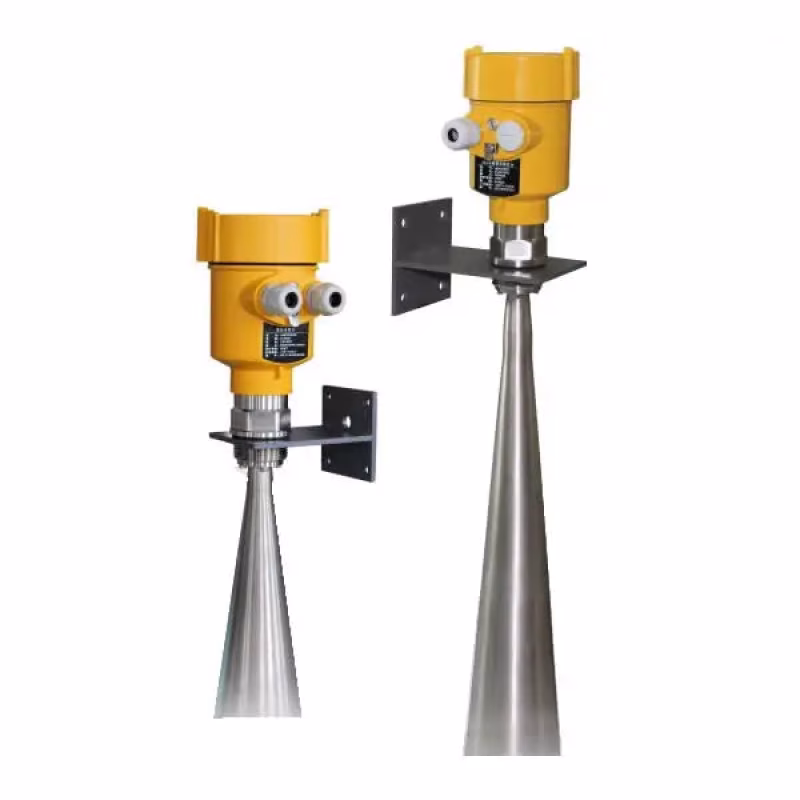

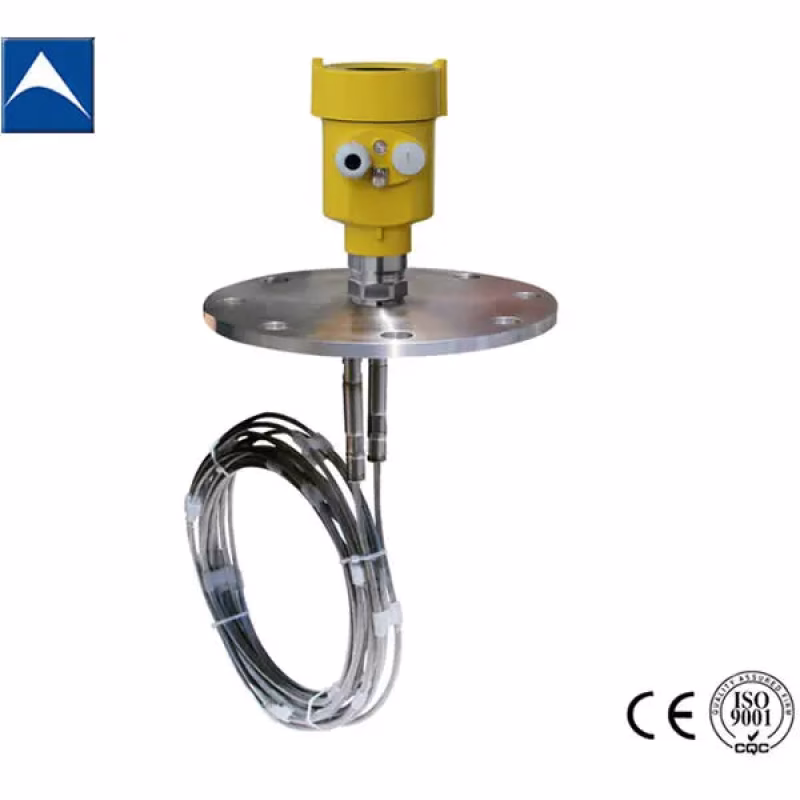

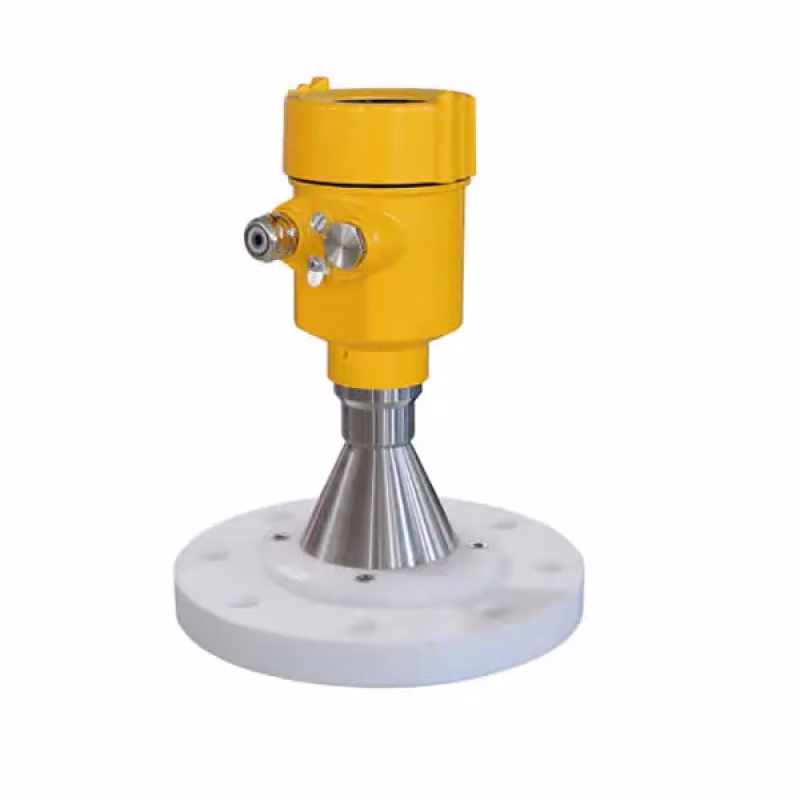

Products show
