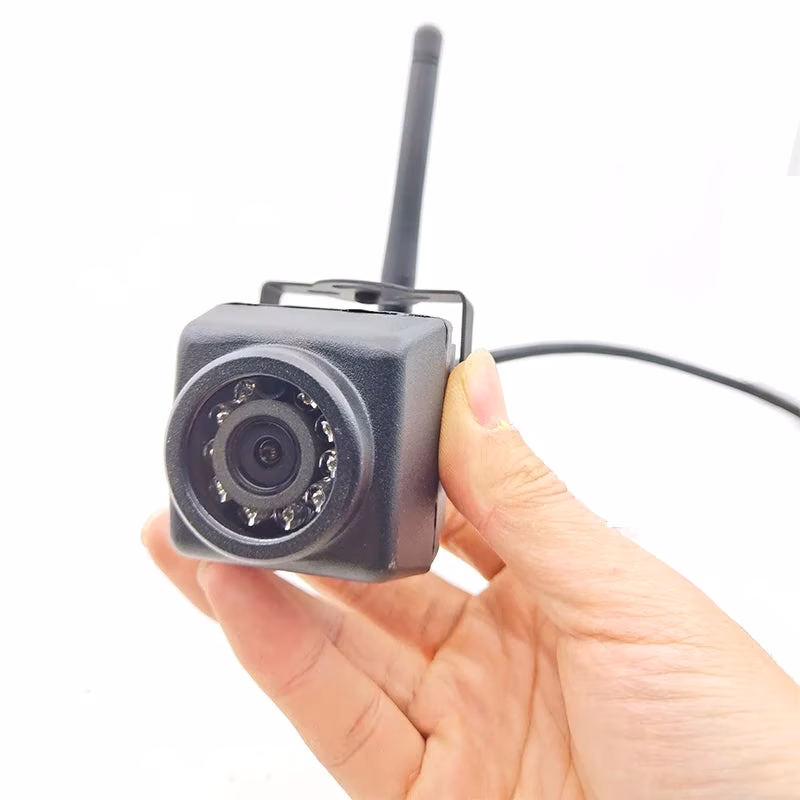

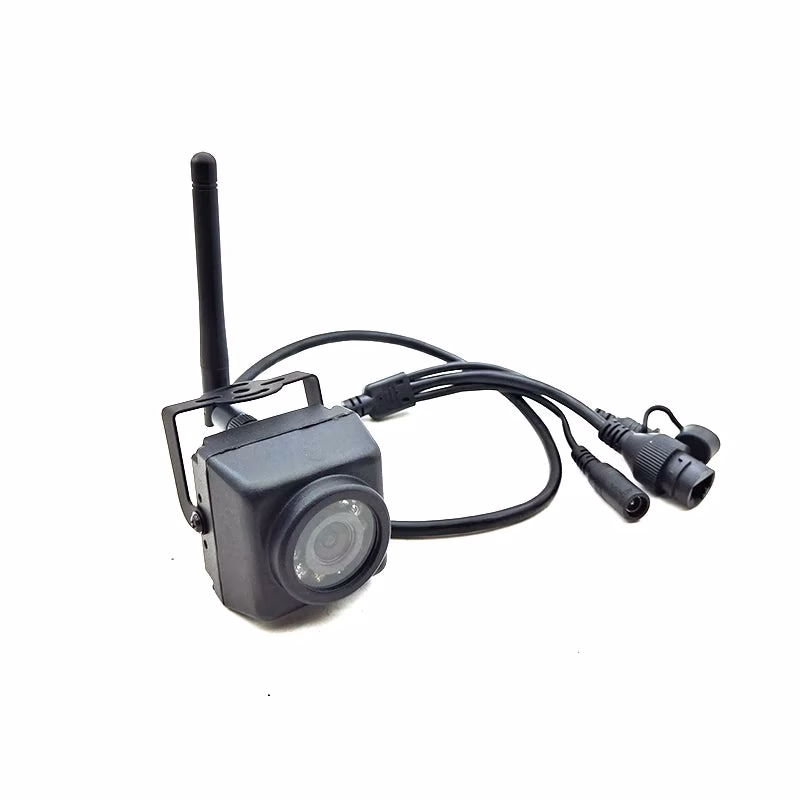

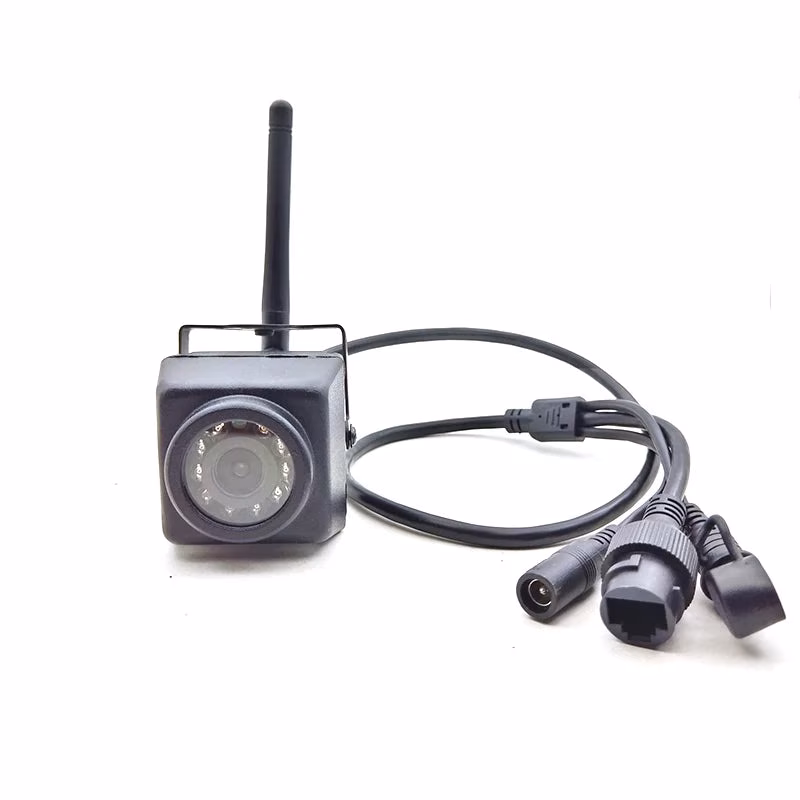

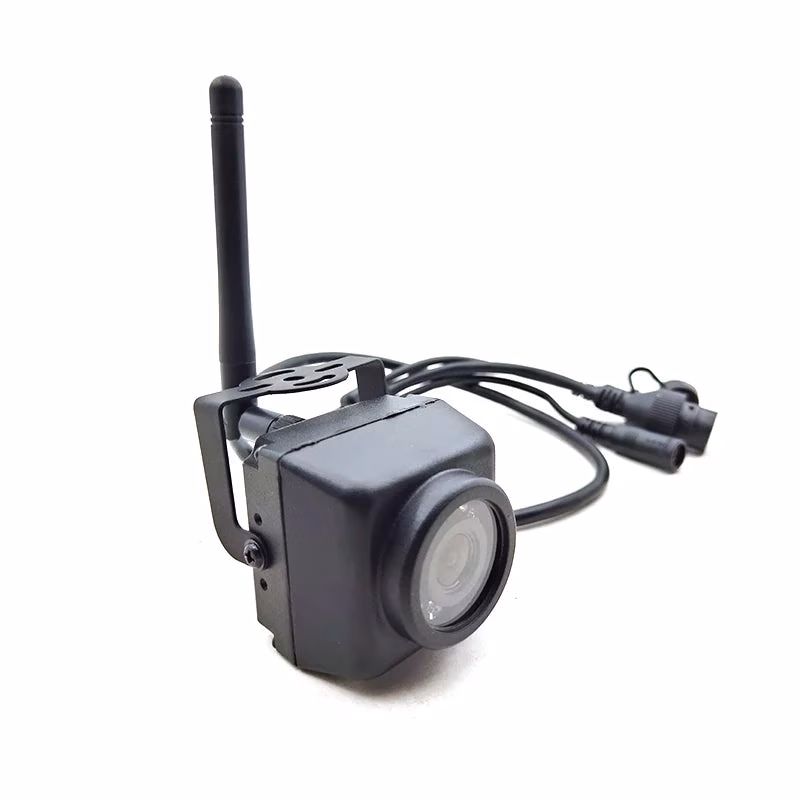

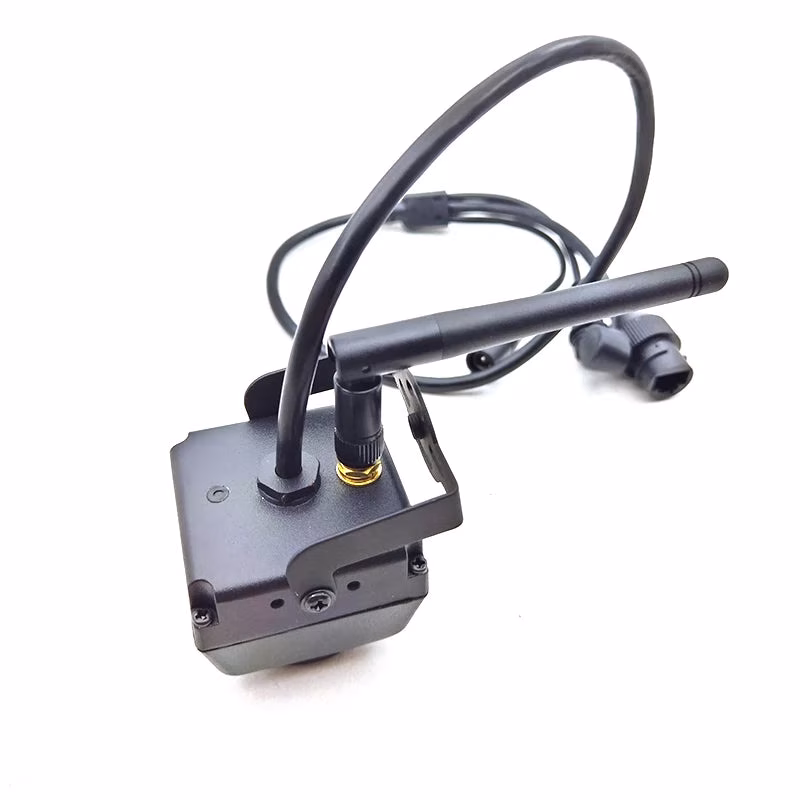

Mini IR Wifi IP Camera
Super Mini Waterproof IR Night Vision 1080P 4MP 5MP IP Micro Camera Wifi Outdoor For Car&Vehicle Fleet&Bird Nest
Product Overviews




Product Description

Features:

H.264  H.265  for 2mp 4MP 5mp Megapixels HD resolution

Outdoor Waterproof IP66
Support both WiFi connection and wired cable connection
Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet
Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Built in IR-CUT, Support both day and night vision,
Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :CamHi
Support QR code login.
Support Plug n Play P2P
Support on vif 2.0, camera can work with on vif NVR recorder!


Q1: Is it wifi camera?
Re: Yes, it is wireless ip camera with wifi antenna.
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.

Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)

Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!

Q5: Does it support on vif?
Re: Yes.

Specifications:
Model
GS-HXFSTWCMA/GS-HXFSTWCMA-A/GS-HXFSTWCMA307/GS-HXFSTWC4MA/GS-HXFSTWC5MA/GS-HXFSTWC5MA335
Video
Sensor

GS-HXFSTWCMA::2.0megapixel.  T31L+SC2235 Low Lux CMOS.20FPS
GS-HXFSTWCMA-A::2.0megapixel. GK7205V200+SC2235 Low Lux CMOS.25FPS
GS-HXFSTWCMA307:2.0megapixel.GK7205V200+IMX307 Low Lux CMOS.
 GS-HXFSTWC4MA:4.0megapixel.  T31X+GC4653 Low Lux CMOS
GS-HXFSTWC5MA:5.0megapixel.  1/2.8 sc5238+T31X
GS-HXFSTWC5MA335 : 5.0megapixel. 1/2.8 IMX335+ GK7205V300

Video resolution

GS-HXFSTWCMA:GS-HXFSTWCMA-A:
:Main stream: 1920*1080P
Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps
GS-HXFSTWC4MA
Main stream: 2560x1440@25fps
Sub stream:
800x600/800x448@25fps, 640x480/640x352@25fps
GS-HXFSTWC5MA GS-HXFSTWC5MA335
 Main stream: 2560x1920@20fps, 2560x1440@15fps
Sub stream:
800x600/800x448@25fps, 640x480/640x352@25fps

Video compression
H.264 H.265
Lens
3.6MM Lens default , 2.8mm or 4mm or 6mm or 2.5mm  optional
View angle
92degree for 3.6mm
Night vision
10pcs  infrared LEDs, night vision distance 10-15m, 850nm ir leds default ,940nm optional
Alarm
Motion detecting alarm
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push
Alarm recording
Support Micro SD card and PC client linkage alarm recording
Network
Wireless
IEEE 802.11 b/g/n
Ethernet
RJ45 Ethernet
on vif protocol
Support on vif 2.4(backward compatible)
Storage
Micro SD card
Support up to 128G micro SD card
Recording mode
Alarm record, timing record,
Video playback
Support APP, IE browser, remote client play and download the video
Audio

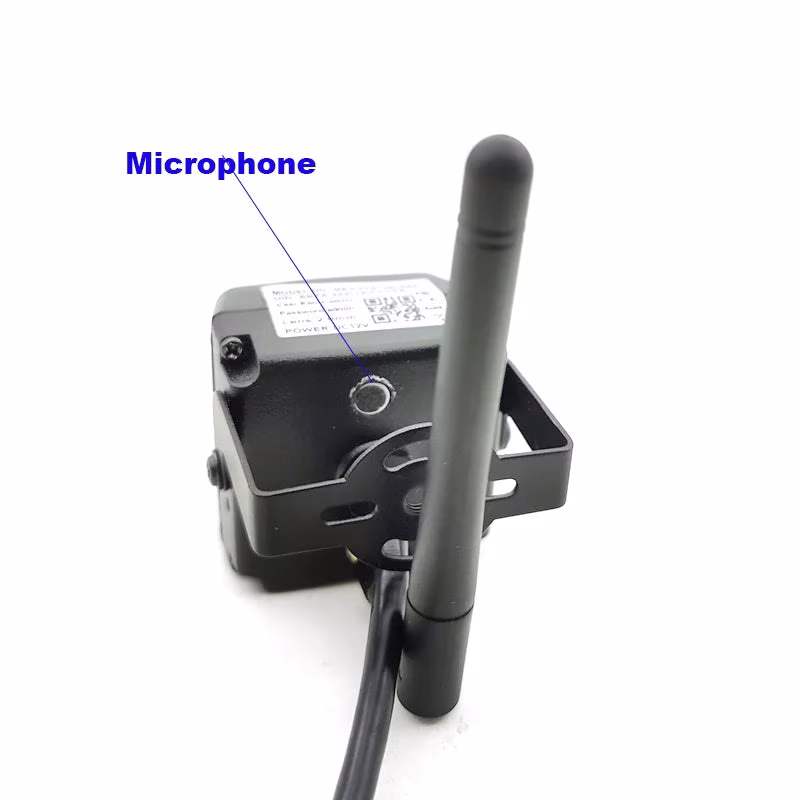

build with microphone
Horizontal speed
/
Vertical speed
/
Preset
/
General specification
Power
DC12V 1A
Operating environment
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
Shell material
 metal shell
Waterproof level
IP66
Product size
/
Product weight
0.35kg
Package size
/
Package weight
0.5kg
Reset button
Support

Packing list:
1 x wifi camera
1 x bracket
1 x Wi-Fi antenna
1 x screw package
1 x User manual
