Swimming pool light 12V Waterproof Power Supply adapter 50W LED Pool Lamp Transformer for pool light
Swimming pool light 12V Waterproof Power Supply adapter 50W LED Pool Lamp Transformer for pool light 1
Swimming pool light 12V Waterproof Power Supply adapter 50W LED Pool Lamp Transformer for pool light 2

Swimming pool light 12V Waterproof Power Supply adapter 50W LED Pool Lamp Transformer for pool light

0.00 / 5 (0 user)
SKU: SHP-4768381B5000B226
Brand: Unbranded
Category: Varied
$104.86 $223.86
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
External offer Prepared Product label Prepared
default
default

Name : 300W LED Pool lamp Transformer 10VA to 350VA Waterproof Toroidal Transformer for outdoor lighting   Specification : Model Power Input Voltage(V)       Output Voltage(V)/A RCO-10W   10W 110-120VAC 230-240VAC 50/60Hz  12VAC 0.83A/ 24VAC 0.42A RCO-15W

Name : 300W LED Pool lamp Transformer
10VA to 350VA Waterproof Toroidal Transformer for outdoor lighting

Specification :
Model
Power
Input Voltage(V)
      Output Voltage(V)/A
RCO-10W
  10W
110-120VAC
230-240VAC
50/60Hz
 12VAC 0.83A/ 24VAC 0.42A
RCO-15W
  15W
 12VAC 1.25A/ 24VAC 0.62A
RCO-20W
20W
12VAC 1.66A/ 24VAC 0.83A
RCO-25W
25W
12VAC 2A/ 24VAC 1A
RCO-30W
30W
12VAC 2.5A/ 24VAC 1.25A
RCO-40W
40W
12VAC 3.33A/ 24VAC 1.66A
RCO-45W
45W
12VAC 3.75A/ 24VAC 1.87A
RCO-50W
50W
12VAC 4.16A/ 24VAC 2.08A
RCO-60W
60W
12VAC 5A/ 24VAC 2.5A
RCO-70W
70W
12VAC 5.83A/ 24VAC 2.91A
RCO-80W
80W
12VAC 6.66A/ 24VAC 3.33A
RCO-85W
85W
12VAC 7A/ 24VAC 3.5A
RCO-100W
100W
12VAC 8.3A/ 24VAC 4.16A
RCO-120W
120W
12VAC 10A/ 24VAC 5A
RCO-150W
150W
12VAC 12.5A/ 24VAC 6.25A
RCO-200W
200W
12VAC 16.66A/ 24VAC 8.33A
RCO-250W
250W
12VAC 20.83A/ 24VAC 10.42A
RCO-300W
300W
12VAC 25A/ 24VAC 12.5A
RCO-350W
350W
12VAC 29.16A/ 24VAC 14.58A

1).WORKING AND SAFETY PROTEETION
   Electrostatic Shield           Magnetic Shield
  Temperature Protection     Over Current Protection
2).INSULATION
Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.
HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown
Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)
3).TEMPERATURE RISE
Ta=25ºCTest by resistance method At rated load
PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.
4).MAJOR MEASUREMENT FACILITIES:
HI-POT TESTER: CJ2670
INSULATION-RESISTANCE METER: ZC-7
VOL TMETER: T19-V
DC-RESISTANCE METER: QJ44
AMPEREMETER: T19/1-A

5). MAIN PARAMETERS:
Input Voltage:AC 220V   230v 110v (Define the voltage)
Output voltage:AC 12V / 24V       (Define the voltage)
Power range:10VA-350VA

6) Waterproof toroidal Transformer's materials:
* Annular core: Cold rolling directional silicon steel
* Insulation protection: Mylar
* Core Insulation: Polyester 7C
* Primary/Secondary Winding: Enamelled copper wire
* Terminal cannula: PVC canula
* Termial uderlay: Polyester 19C
* Temperature Protection: Thermal Switch
* Pri.Insulation: Polyester 7C
* Insulation protection: Mylar
* Coating insulation: Polyester 5C
* Lead: UL WIRE/European standard wire
* Potted resin: Potted resin
* Body: PP+GFRP

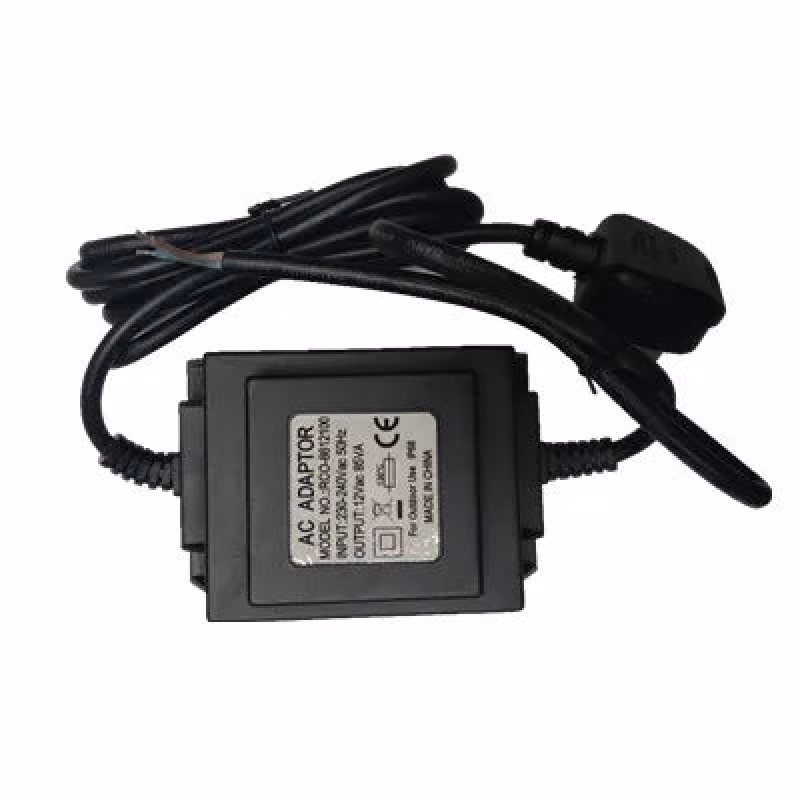

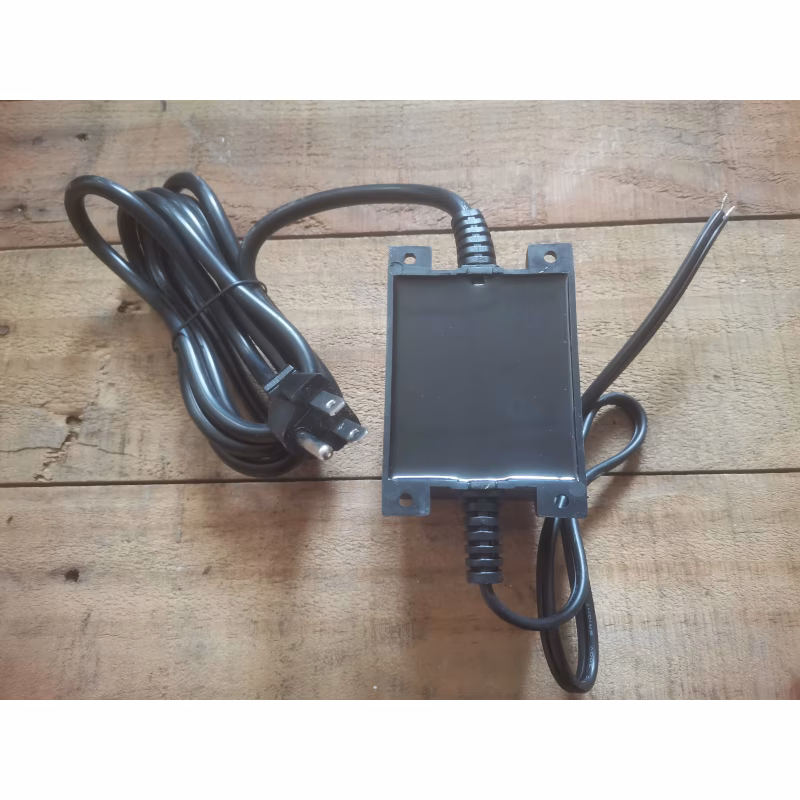

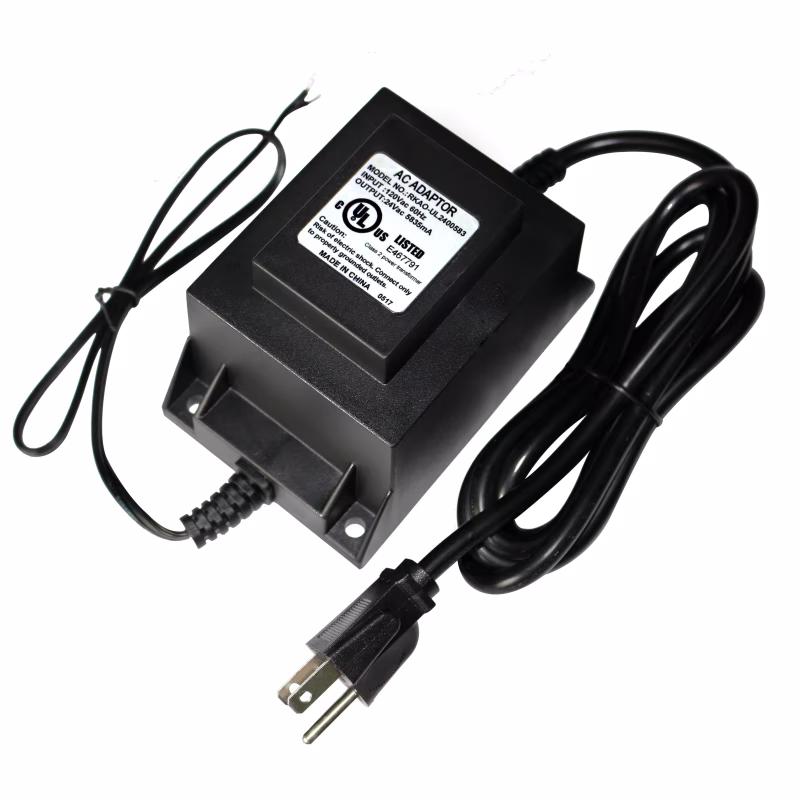

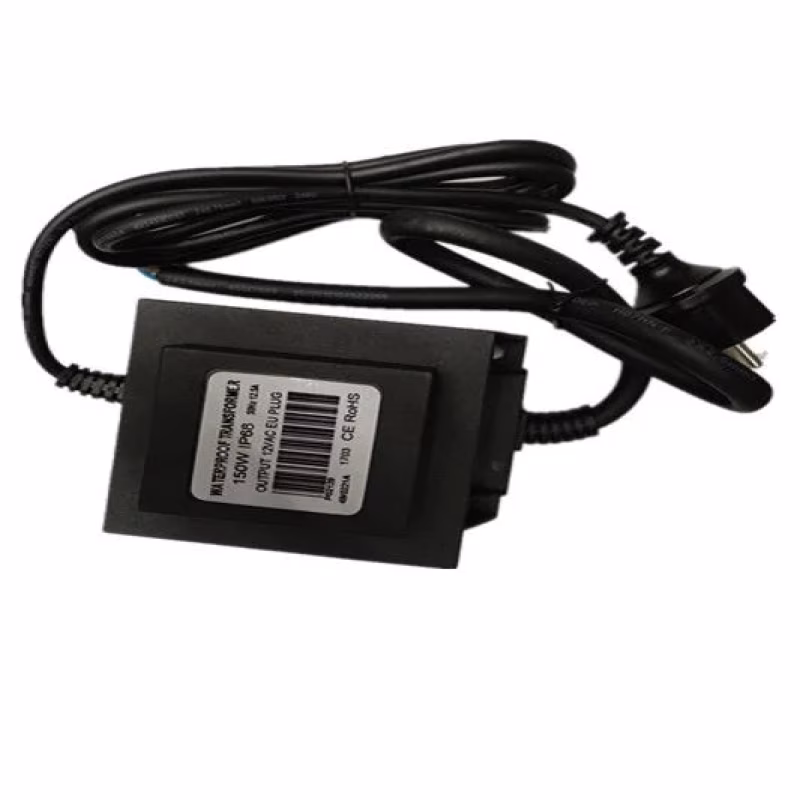

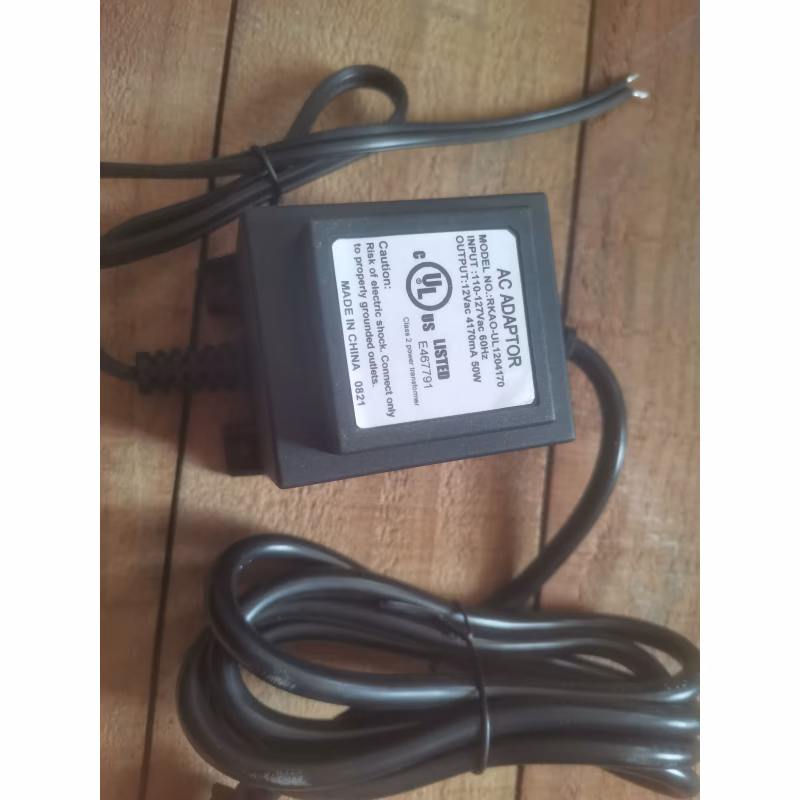

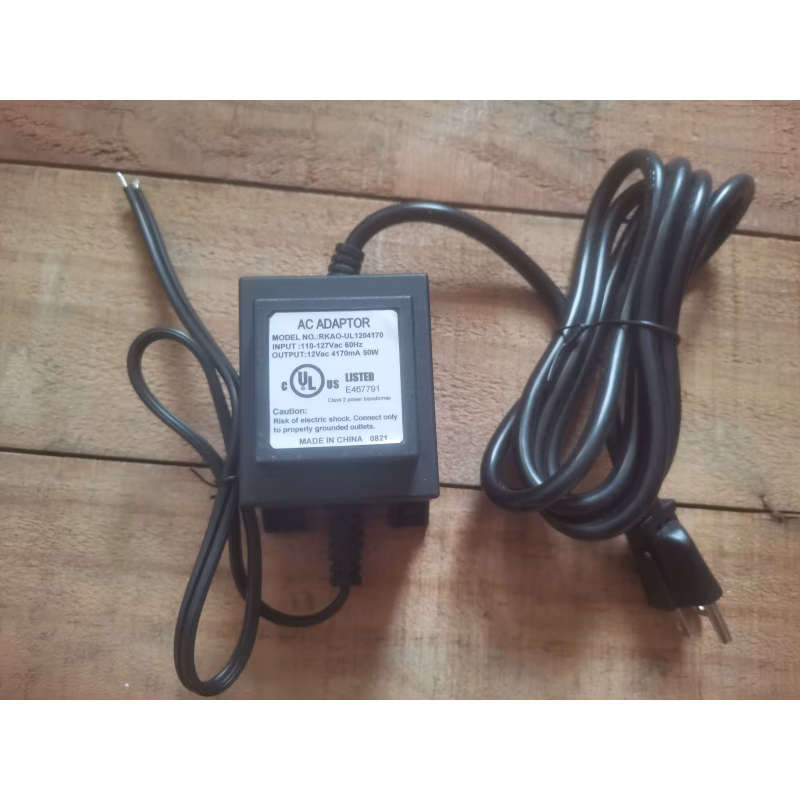

Products Photos:
Production process photo:

Advantages:
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Applications:
Garden light
Swimming pool
LED underwater lamp
LED Ground light
Outdoor power Supply
Humidifier
