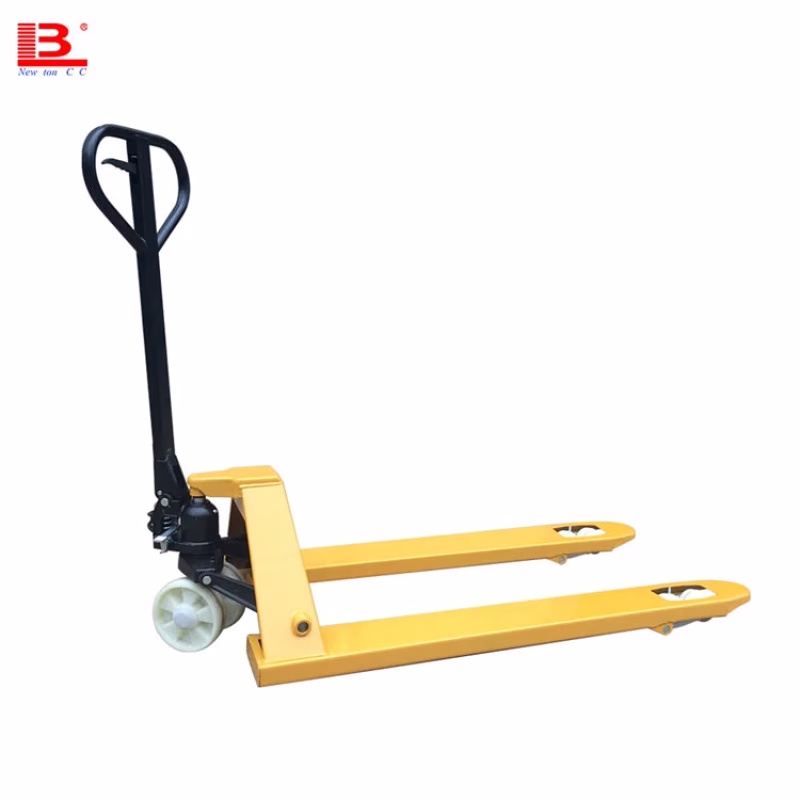

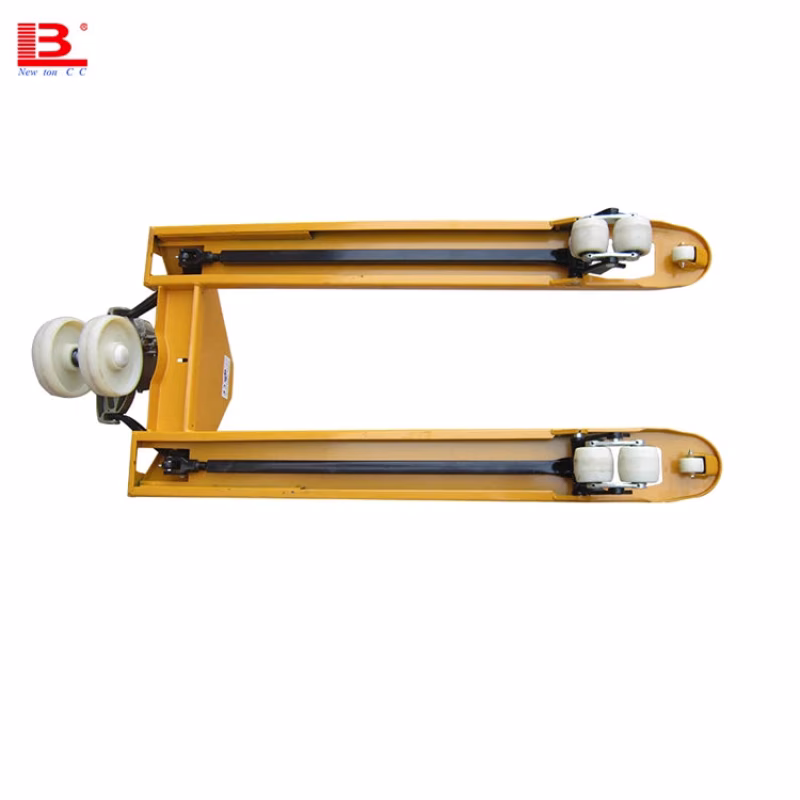

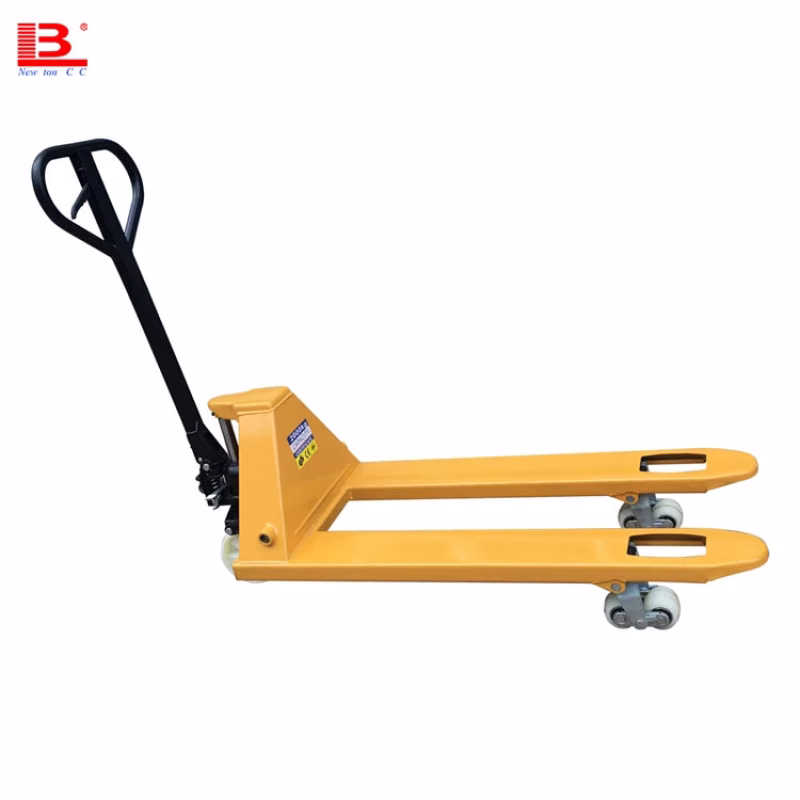

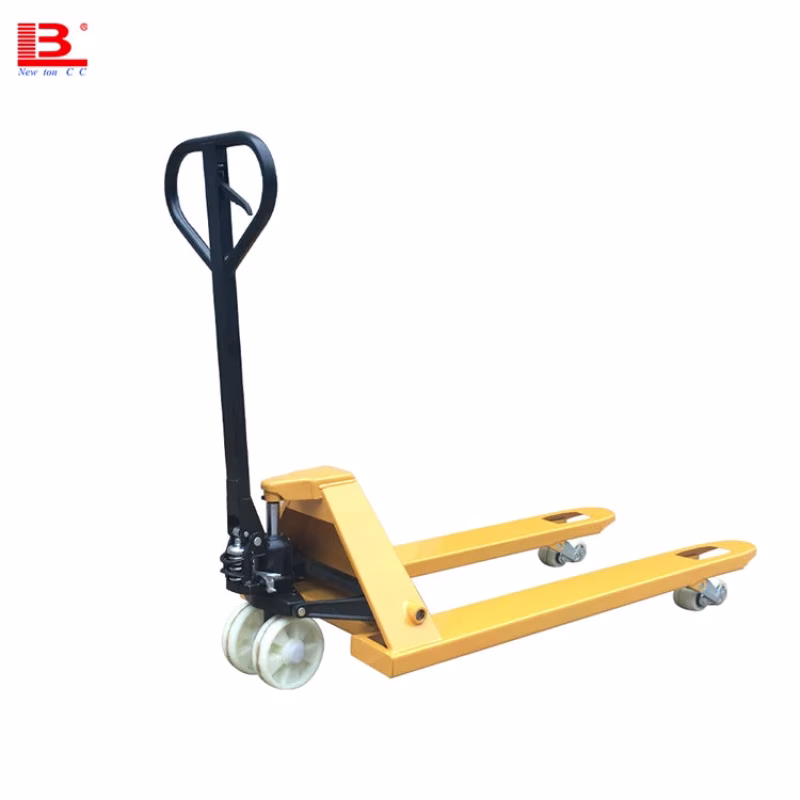

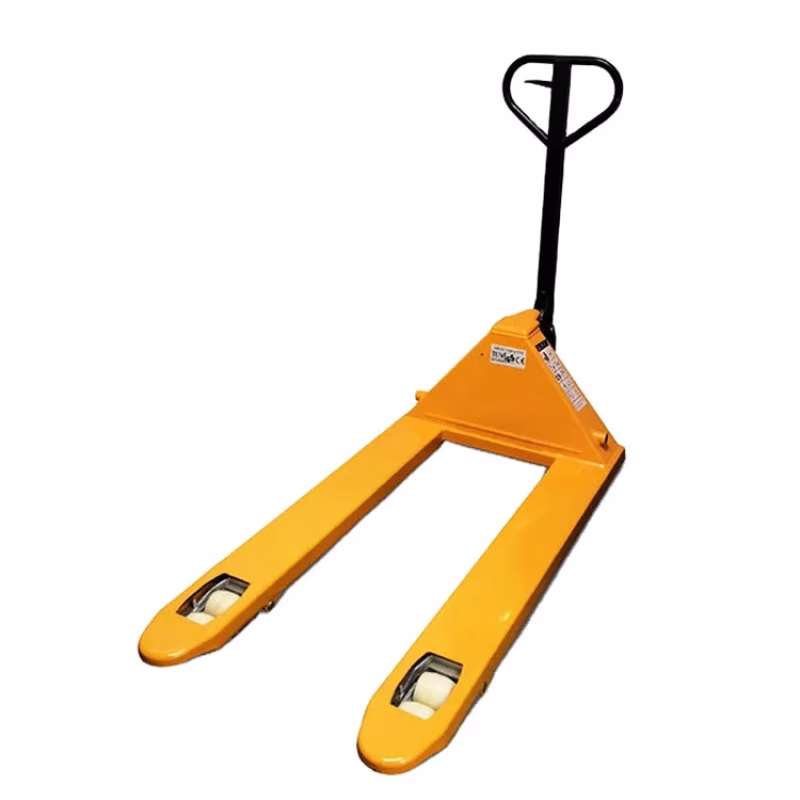

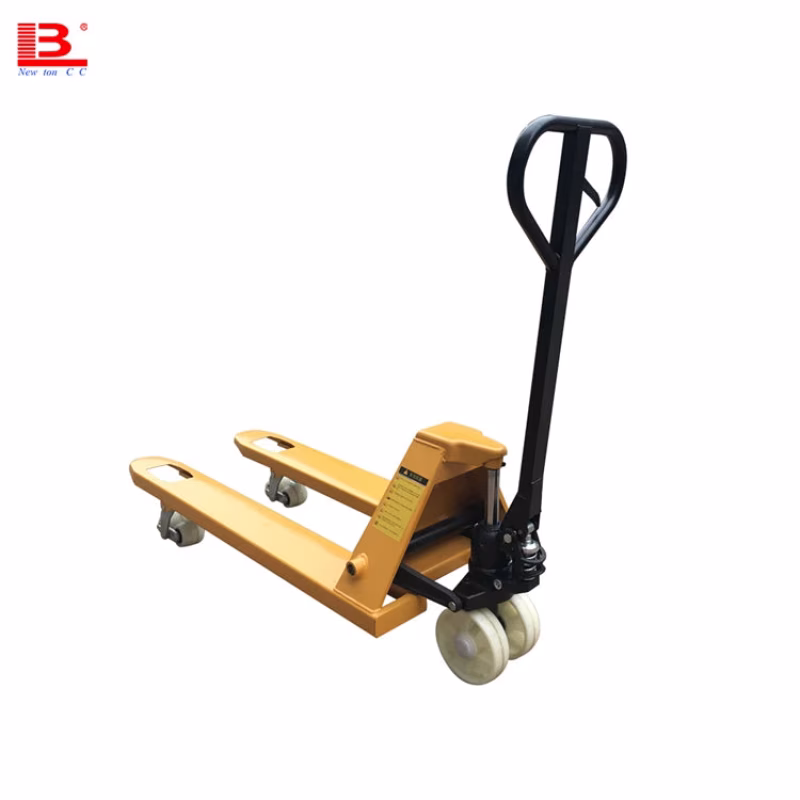

Top Brand High Quality Safe Pallet Jack 5000Kg Hand Pallet Truck manual hydraulic trailers mini forklift truck
Top Brand High Quality Safe Pallet Jack 5000Kg Hand Pallet Truck manual hydraulic trailers mini forklift truck 1
Top Brand High Quality Safe Pallet Jack 5000Kg Hand Pallet Truck manual hydraulic trailers mini forklift truck 2

Top Brand High Quality Safe Pallet Jack 5000Kg Hand Pallet Truck manual hydraulic trailers mini forklift truck

0.00 / 5 (0 user)
SKU: SHP-52BCF71534D628C4
Brand: Unbranded
Category: Varied
$492.50 $804.00
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
Course Prepared Subscription Prepared
Max. Lifting Height
190-200mm
Model Number
LBDB-I-685
Rated Loading Capacity
2500kg

Top Brand High Quality Safe Pallet Jack 5000Kg Hand Pallet Truck manual hydraulic trailers mini forklift truck             Specifications   model LBDB-I-550/685 LBDB-II-550/685 LBWF-I-550/685 JF-I-550/685 Rated load (KG) 2000 3000 5000 1000 Weight (KG) ≈6

Top Brand High Quality Safe Pallet Jack 5000Kg Hand Pallet Truck manual hydraulic trailers mini forklift truck





 Specifications

model
LBDB-I-550/685
LBDB-II-550/685
LBWF-I-550/685
JF-I-550/685
Rated load (KG)
2000
3000
5000
1000
Weight (KG)
≈68/70
≈73/75
≈120/125
≈150
Big wheel size (mm)
Φ180*50
Φ180*50
Φ200*50
Φ180*50
Small wheel size (mm)
Φ80*70
Φ80*70
Φ85*80
Φ80*70
Lifting height (mm)
190-200
190-200
190-200
800
Lower the height of the fork from the ground (mm)
75
75
88
85
Handle off the ground (mm)
1215
1230
1230
1230
Overall length (mm)
1520
1590
1544/1614
1520
Fork size (mm)
(1100/1220)
*160*53
(1100/1220)
*160*53
(1150/1220)
*160*53
(1100/1220)
*160*53
Fork width (mm)
550/685
Distance between shaft
center and ground (mm)
32
32
40
40
Channel width, tray 1M * 1.2M (mm)
1720/1800
Turning radius (mm)
1265/1335





1. How about the sample policy?
We can accept sample order for testing quality. But sample and express charge should be on customer’s account.
2. How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
3. How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
4. Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
5. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
6. Can I visit your company?
Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.
7. Do you offer custom design?
Custom design is surely available. We have very rich experience in customizing shelves.
