Support HEVC/H.265, H.264 /AVC, MJPEG video encoding
Support AAC, AAC+, AAC++,MP3, MP2, AC3, Opus, G.711 audio encoding
Support to live streaming on max 4 live broadcast platforms simultaneously
Support 4 streams output simultaneously, support different protocol transmission for each stream

Support output video frame rate setting, max 60fps input and output
Support output video resolution setting, max 1920x1080P input and output
Choose suitable streaming URL to prioritize bandwidth consumption or image quailty
Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol
Support multiple on screen display settings, such as logo /text /scroll text /time etc
Support customize the no signal image when there is no input signal
Support both HDMI audio and external audio input simultaneously
Support to switch HDMI audio or external audio as output audio at will

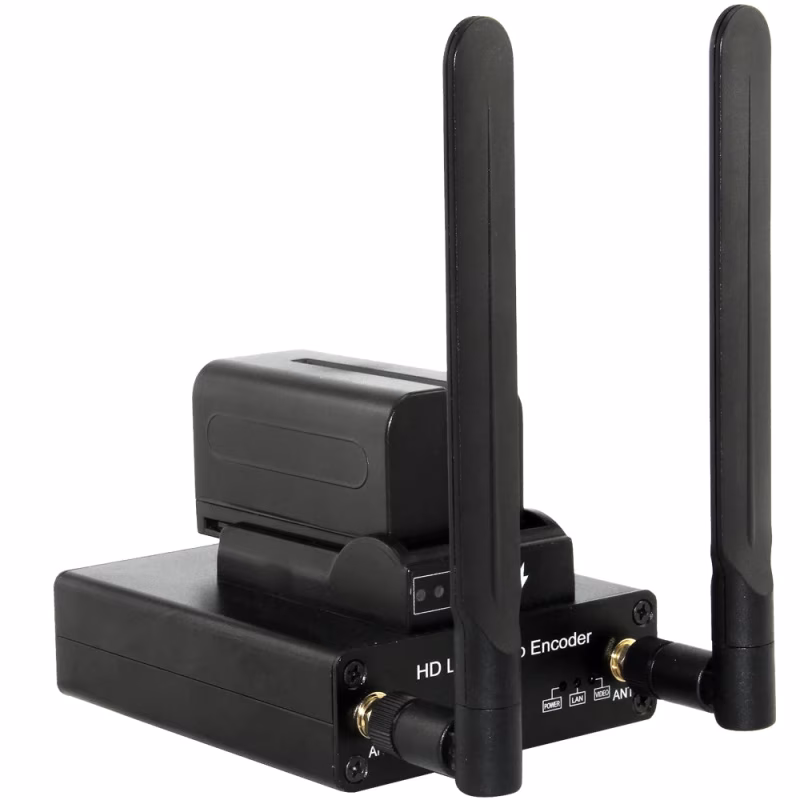

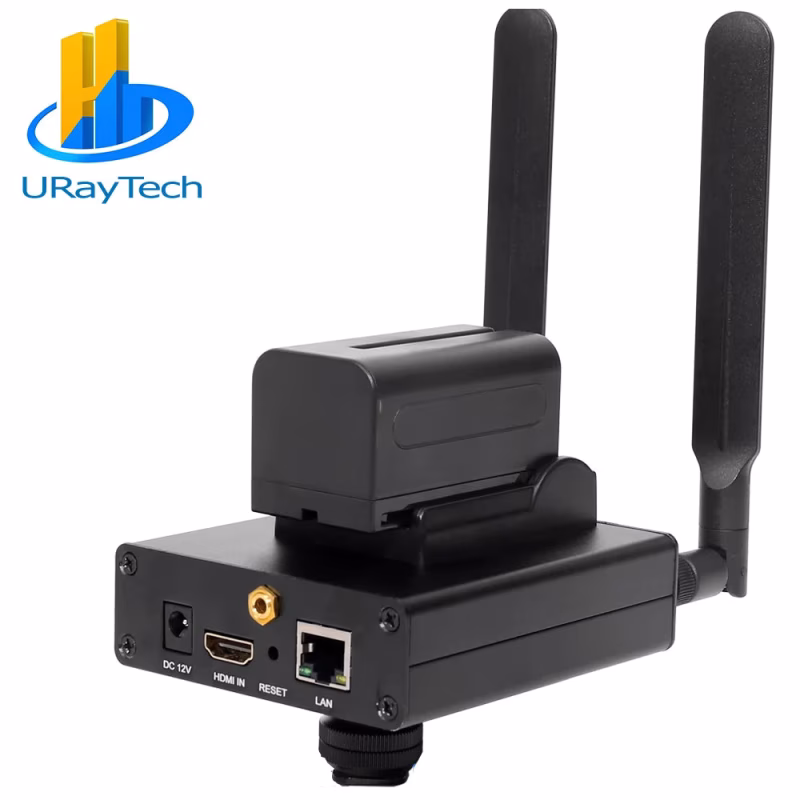

Support hot shoe mount at camera
The Support external SONY battery F550, F750F F970 for selection
NOTE: Batteries are not included in the package due to battery shipping restrictions. You can buy SONY batteries locally.
Support web page or APP control dashboard
Support wide area network remote management(via port forwarding)
Provide SDK /API /CGI for secondary development
Support logo printing /language /firmware /function etc customization
Set up for the first time, plug and play when use it later
Not only RTMP(S), but also streaming HLS to YouTube or other server(New feature)
The Specification

Model No.
UHE265-1WBS
Video
Input Video
1XHDMI, support HDCP
Input Resolution
Max 1920x1080 resolution, max 60fps frame rate
Video Encoding
HEVC/H.265, MPEG-4 /H.264 AVC, MJPEG
Encoding Levels
H.265 main profile, H.264 high /main /baseline profile
Video Bitrate
Adjustable From 32kbit /s to 32mbit /s
Bitrate Control
CBR, VBR, Strong CBR
Output Resolution
It is adjustable, max 1920x1080P /60fps
Video Pre-processing
De-interlacing, noise reducing, sharpening etc
Audio
Input Audio
HDMI embedded audio or external stereo audio(3.5mm jack)
Output Audio
Support to switch HDMI audio or external audio at will
Sampling Rate
44.1KHz, 48KHz, Same as the input
Bitrate Control
Adjustable from 48000~320000
Audio Encoding
AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Network
Interface
Ethernet port(1000 BASE-T) or WIFI(2.4G /5G)
Streaming Protocol
HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc
Control Panel
Webpage UI(language customizable) Or APP
Firmware Update
Enable by uploading files to dashboard and upgrade
General
Dimension (W* L* H)
104 x 95 x 29 /mm
Net Weight
260g
Temperature
0 to 45(For working), -20 to 80(For storing)
Input Voltage
DC 12V /1A
Hot Shoe
Yes, Included.
           Click here to check
           Click here to check
           Click here to check
Control Panel
Web Control

• Status Display
• Stream Setting
• OSD Setting
• Upgrade
•  If you have problem of making payment, please contact us.
•  If you are worried about customhouse charge, please contact us.
•  If you need to print your logo on the device, please contact us.
•  If you require any files regarding to the product(user manual, new firmware etc), please contact us.
•  If you have questions before buying, please contact us.
•  If you meet the technical problems after buying, please contact us.
•  If you want to test this device before buying, please contact us.

Shenzhen URay Technology Co., Ltd is a technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of video encoder and video decoder also video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc. Presently these products are widely used in the industrial and enterprise and school and hospital etc. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.
For more information about our company and product, please visit our official website www.szuray.com.
