XCY Fanless Industrial computer i5 7200U Mini PC Dual Lan GigE Dual Serial GPIO LVDS Dual DDR4 Memory 4K Video

0.00 / 5 (0 user)
SKU: SHP-C72FEA8F7DE78EEF
Brand: Unbranded
Category: Varied
$845.72 $1512.92
Brand / Provider Unbranded
Store Onvels
Product type ONVELS checkout
ONVELS commerce profile This offer is prepared for multiple selling flows.
Service Prepared Booking Prepared

Customizable We can support OEM/ODM service, the process of customization is following: 1: Provide your specific requirement. 2: Our design engineers draw the design draft. 3: You confirm the design draft. 4: We start produce it. Assisting customers in th

Customizable
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)                               ☑ Computer Colors
☑ Security                                                                                ☑ Interfaces Customization
☑ Virtualisation                                                                    ☑ And so on...
☑ Data Protection
For more information, Pls leave email.
Product Description
Features:
• Barebone PCs do not include an operating system or other editions available
• Dual channel DDR4 2133/2400MHz
• Support Dual display configuration by multiple interface: H-D/ Vga
• With 4 x USB3.0 4 x USB2.0
• Support automatic start the computer when plug in power
• Support wake up on Lan
• OS Support: Win 8/ Win 10/ Linux
• Palm-size from factory: 24.8 x 15 x 8.2cm
• with Fanless, Low power consumption
XCY Mini PC X40G Specification:
Onboard CPU
Core i5 7200U
Memory
Dual Channel SO DIMM 4GB/8GB/16GB/32GB, DDR4 2133/2400MHz
Socket:DDR4 2133/2400MHz
Ethernet port
2x Intel 211AT 10/100/1000/ Mbps
Graphics Card
In-tel H-D Graphics 620
VGA
Max 1920×1080@60Hz
HD
Max 4096*2304@24Hz
Dual Display
Support for synchronous and asynchronous display
Audio
Realtek ALC662
COM
2*RS232/422/485
USB
4*USB 3.0+4*USB 2.0
GPIO
1*GPIO
Mini-PCIE
2× Mini PCIE
Storage
2*SATA+1*Full-Height mSATA socket
Bluetooth
Support Blue-tooth 4.0, also compatible with BT 3.0, BT 2.1+EDR
Operating System
Win8 Win10 / ubuntu/LINUX/CENTOS

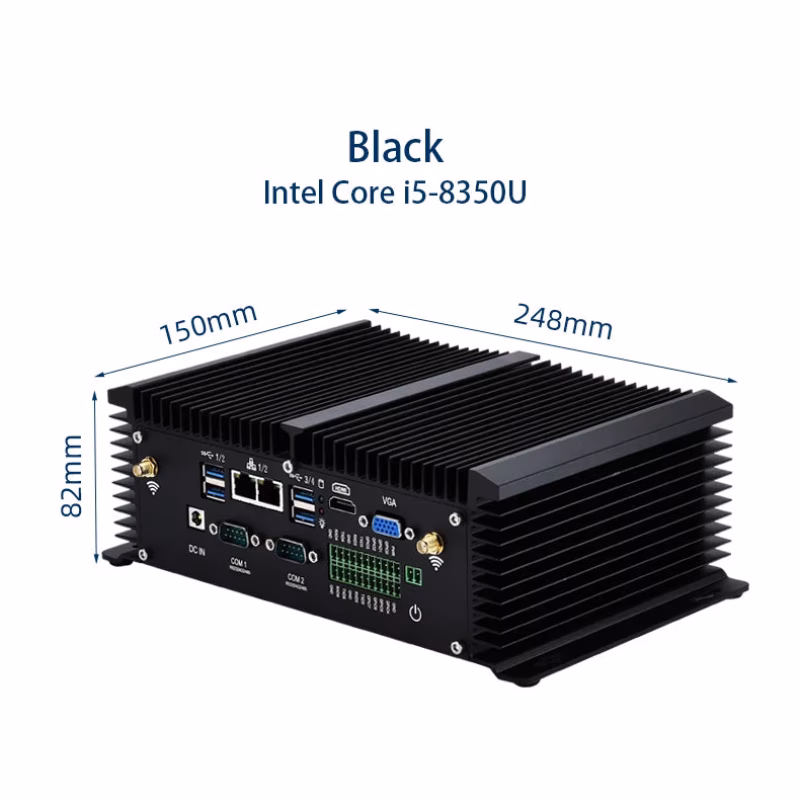

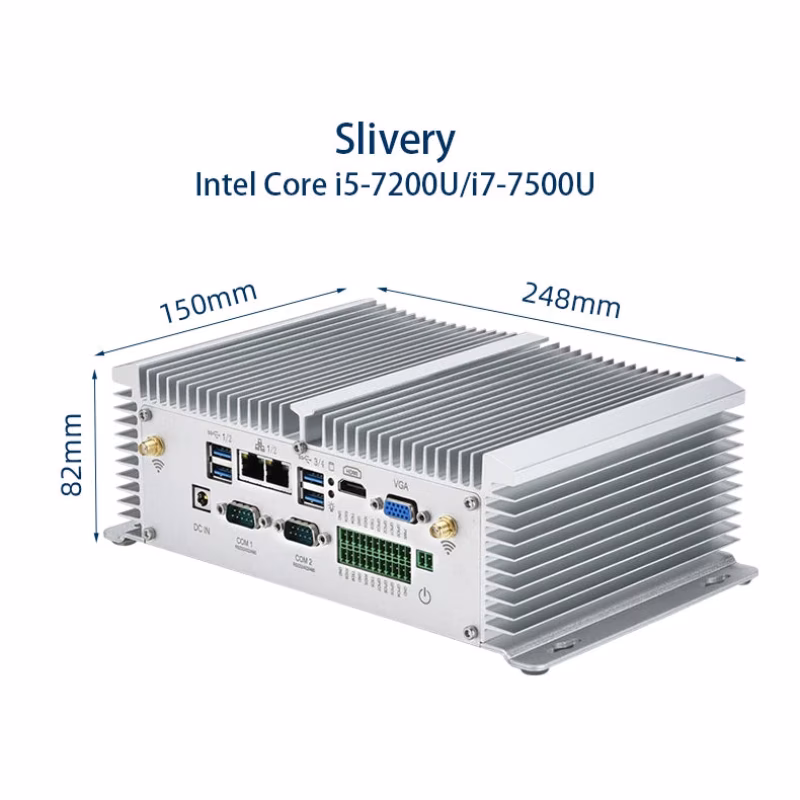

Dimension
248×150×82mm
Wireless wifi
With dual antenna, 802.11.b/g/n (150M/300M )
Input
DC 100-240V AC/50-60Hz
Output
DC 12V 5A/60W(AC TO DC,100~240V)
Cooling System
Fanless System, Heatsink cooling
Operation Temp/Humi
-20℃-65℃ | 5%-95%
Package Content
1x Mini PC
1x Power Adapter
1x VESA-mount(free gift)
2x WiFi Antennas(optional)
1x WiFi Module(optional)
1x User Manual
Detailed Images
