Product Description
Key Features
* Built-in deep learning algorithm to read codes with good robustness.
* Compact design and small in size.
* Adopts aviation connector for single cable wiring.
* Adopts LED aiming light to help aim codes.

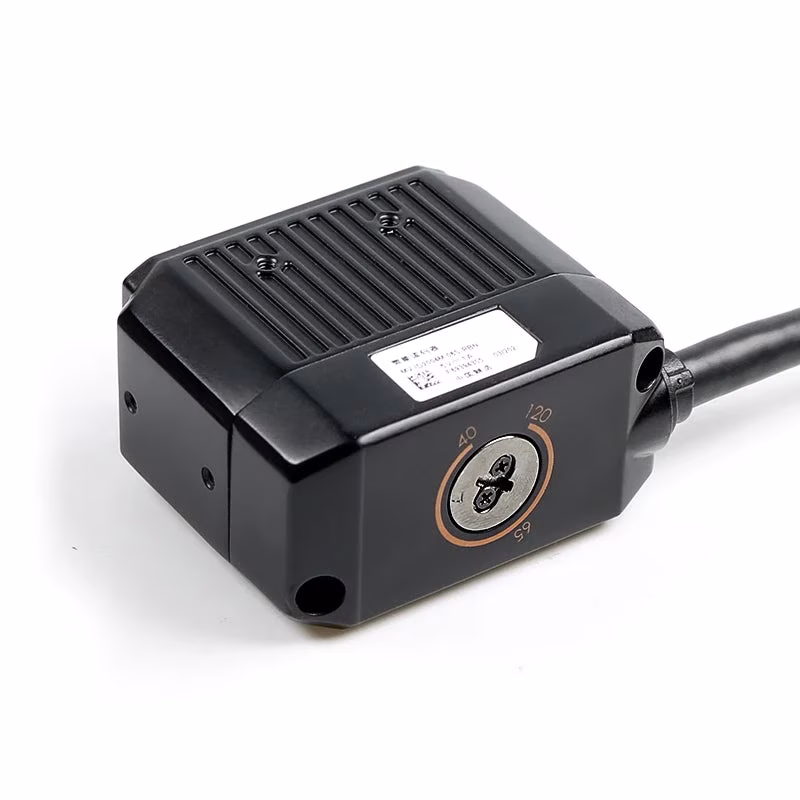

* Adopts focus knob for adjusting focusing manually.
* Adopts multiple IO interfaces and plug-in power interface.
* Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Dimension
Specification
Model
Model
EP2904DP
Performance
Symbologies
1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA,
UPCE
2-dimensional codes: QR Code, Data Matrix
Max. frame rate
60 fps
Max. reading speed
41 codes/sec
Sensor type
CMOS, global shutter
Pixel size
6.9 µm × 6.9 µm
Sensor size
1/2.9"
Resolution
704 × 540
Exposure time
16 μs to 1 sec
Gain
0 dB to 15 dB
Mono/color
Mono
Communication protocol
SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus,
UDP, Fins, SLMP
Optics
Focal length
6 mm (0.2")
Working distance
40 mm to 120 mm (1.6" to 4.7"), adjusting focus manually supported
Ambient illumination
0 lux to 50000 lux
Light source
Red LED, blue LED, white LED
Aiming system
Green LED
Electrical features
Data interface
Fast Ethernet
Digital I/O

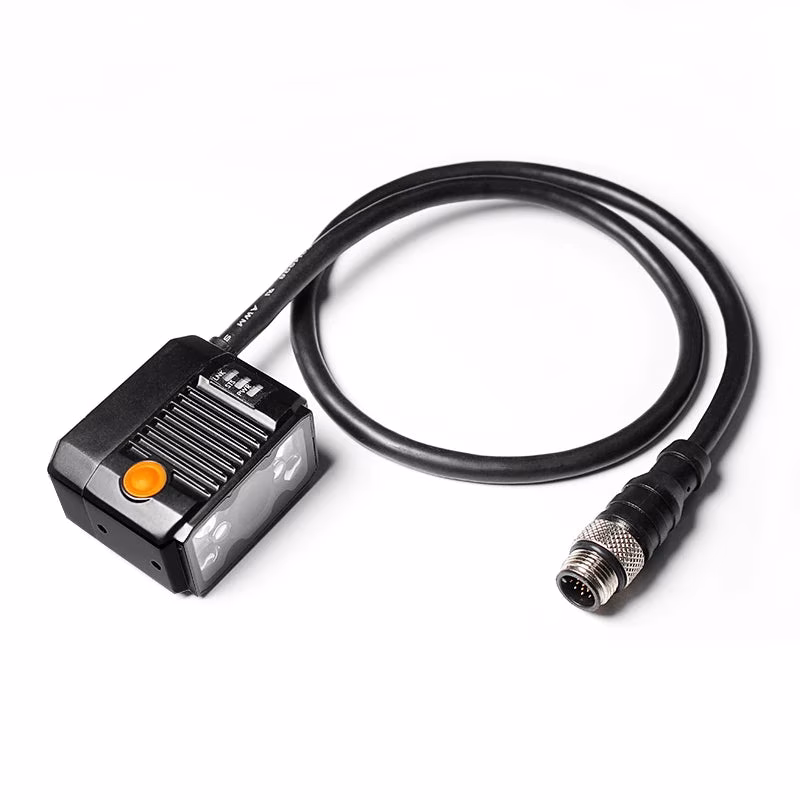

17-pin M12 connector provides power and I/O, including configurable bi-directional
none-isolated I/O × 4: input (Line 0/1) and
output (Line 2/3) by default, RS-232 × 1. Device trigger via pressing button on side supported.
Power supply
12 VDC to 24 VDC
Max. power consumption
Approx. 10.6 W@24 VDC
Mechanical
Indicator

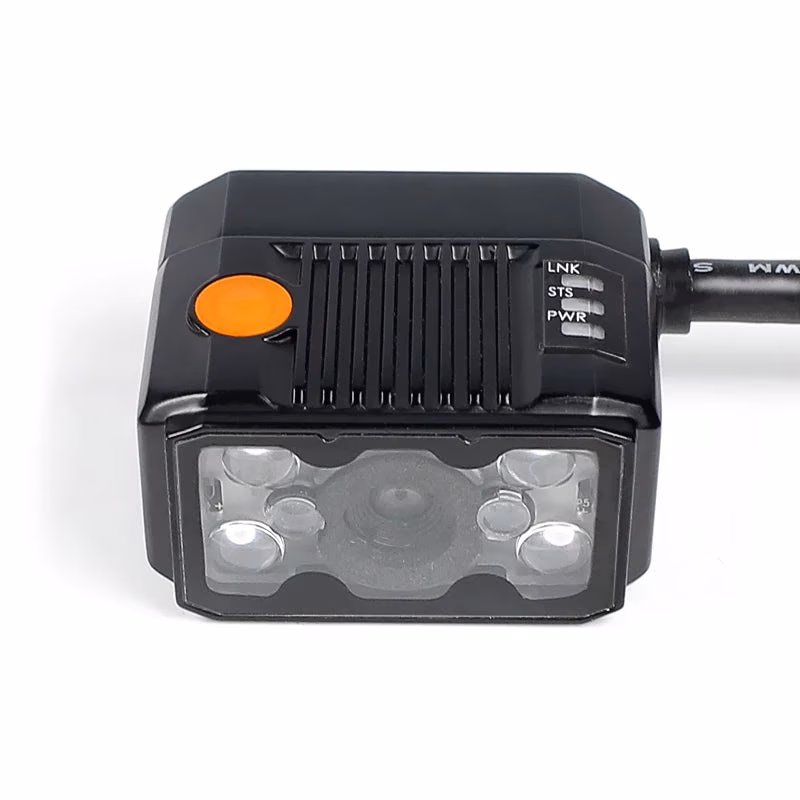

Power indicator (PWR), network indicator (LNK), and status indicator (STS).
Dimension
46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
Weight
Approx. 160 g (0.35 lb.)
Ingress protection
IP65
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F), storage temperature: -30 °C to 70 °C
(-22 °F to 158 °F)
Humidity
20% to 95% RH, non-condensing
General
Client software
IDMVS
Certification
CE, FCC, RoHS
